Bellemave L-Shape Triple Bunk Beds Instruction Manual

1. Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your Bellemave L-Shape Triple Bunk Bed. This bed features a Twin over Full configuration with integrated stairs, storage drawers, and an attached loft bed, designed to accommodate multiple users efficiently. Please read this manual thoroughly before beginning assembly or use to ensure safe and proper installation and operation.

Image 1.1: The Bellemave L-Shape Triple Bunk Bed, showcasing its Twin over Full configuration, integrated stairs, and attached loft bed, situated in a bedroom environment.

2. Safety Information

WARNING: Exceeding the maximum weight capacity may cause damage to the bed or injury. Improper assembly may lead to instability or collapse. Always use the provided mesh guardrails to ensure safety and security.

• Always ensure all bolts and screws are securely tightened before use. Periodically check and re-tighten hardware.
• Do not allow children under 6 years of age on the upper bunk.
• Use only mattresses that comply with the recommended thickness and dimensions for each bed.
• Prohibit more than one person on the upper bunk.
• Always use the ladder or stairs for entering and exiting the upper bunk. Do not use the bed as a jumping surface.
• Ensure the area around the bed is clear of obstructions.
• Do not attach or hang items to any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, or jump ropes.

3. Package Contents

Your Bellemave L-Shape Triple Bunk Bed is shipped in 3 packages. Please verify that all components are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support immediately.

• Pine Wood and MDF Frame Components
• Bed Slats (14 pcs per bed)
• Integrated Stairs with Storage Compartments
• Storage Drawers (3 pcs)
• Ladder
• Guardrails
• Hardware Pack (screws, bolts, nuts, Allen wrench)
• Assembly Instructions Manual

Image 3.1: An exploded view of the Bellemave L-Shape Triple Bunk Bed, illustrating the main structural components including the bed frames, slats, stairs, and drawers.

4. Setup and Assembly

Assembly of the Bellemave L-Shape Triple Bunk Bed requires two adults and approximately 2-3 hours. Basic tools such as a Phillips head screwdriver and a hammer may be needed in addition to the provided Allen wrench.

4.1. Preparation

• Clear a spacious area for assembly, preferably near the final placement of the bed.
• Unpack all components and lay them out, identifying each part using the provided parts list (if applicable).
• Keep all hardware organized and within reach.

4.2. Assembly Steps

1. Begin by assembling the main frames for the Twin and Full beds according to the diagrams. Ensure all connections are finger-tightened initially.
2. Attach the support beams and side rails to form the bed structures.
3. Assemble the integrated stairs unit. Pay close attention to the orientation of the storage compartments.
4. Connect the stairs unit to the Twin bunk bed frame.
5. Assemble the loft bed frame and attach it to the main structure, forming the L-shape.
6. Install the bed slats onto all three bed frames, ensuring even spacing and secure attachment.
7. Attach all guardrails to the upper bunks and the loft bed.
8. Assemble the three storage drawers and slide them into their designated spaces beneath the Full bed.
9. Finally, attach the ladder to the loft bed.
10. Once all components are in place, systematically tighten all bolts and screws using the provided Allen wrench and your screwdriver. Do not overtighten.

Image 4.1: An angled view of the fully assembled Bellemave L-Shape Triple Bunk Bed, showing the integrated stairs, ladder, and the overall L-shaped configuration.

5. Operating Instructions

5.1. Using the Beds

• Upper Twin Bunk: Designed for one occupant. Access via the integrated stairs. Maximum weight capacity: 250 lbs.
• Lower Full Bunk: Designed for one occupant. Maximum weight capacity: 275 lbs.
• Loft Bed: Designed for one occupant. Access via the ladder. Maximum weight capacity: 250 lbs.

5.2. Using the Stairs and Ladder

• Always face the stairs/ladder when ascending or descending.
• Ensure hands are free to grip the handrails or ladder rungs.
• Do not skip steps or rungs.

5.3. Using the Storage Drawers

• The three drawers under the Full bed are designed for light storage, such as bedding, clothes, or toys.
• Avoid overloading the drawers to prevent damage to the runners or the drawer itself.
• The stairs also feature integrated storage compartments. Open and close gently.

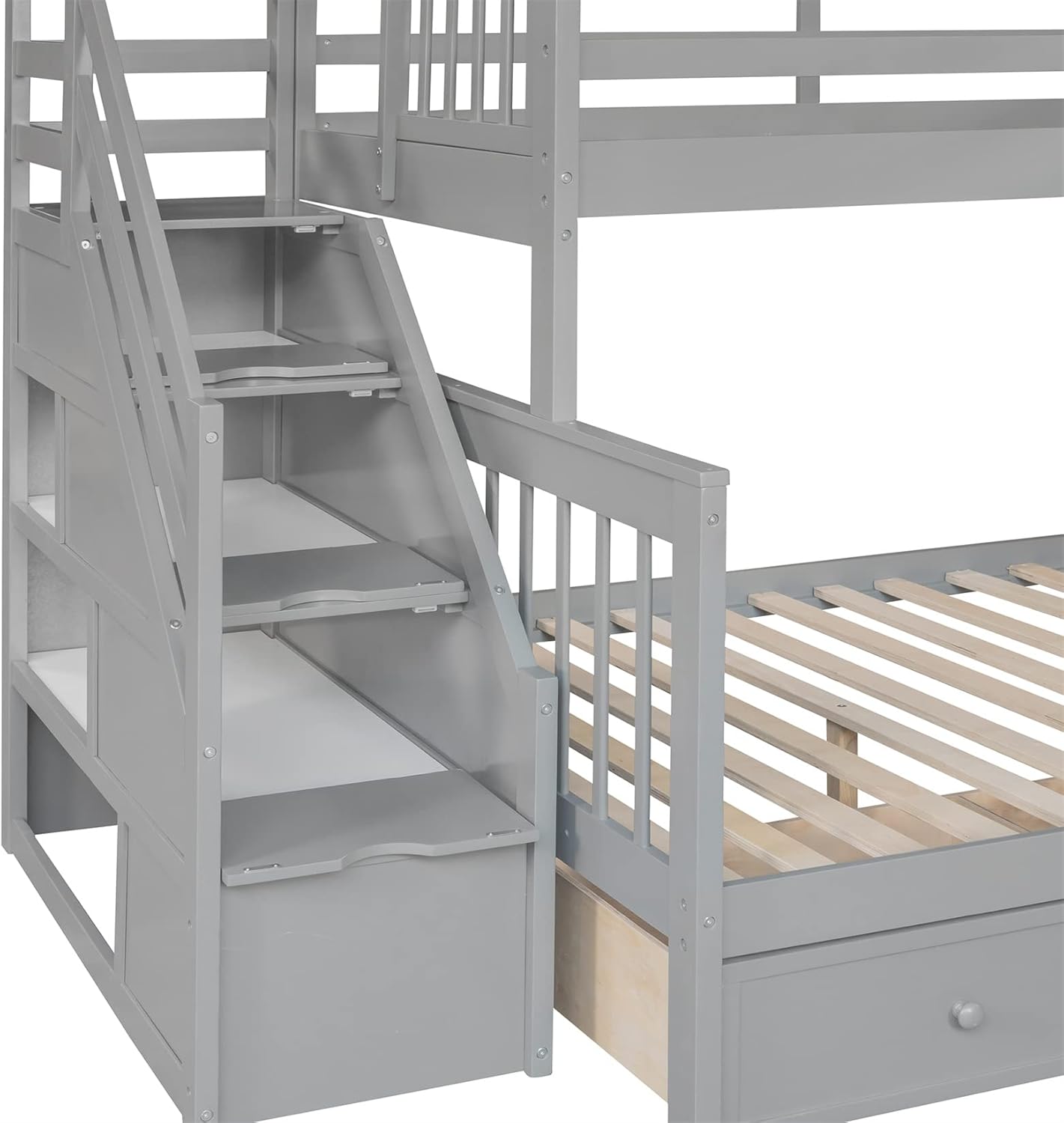

Image 5.1: A detailed view of the integrated stairs, highlighting the built-in storage compartments within each step.

6. Maintenance

• Cleaning: Wipe down the bed frame with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or polishes that may damage the wood finish.
• Hardware Check: Periodically (e.g., every 3-6 months) inspect all bolts, screws, and connections. Re-tighten any loose hardware to maintain stability and safety.
• Slats: Ensure all bed slats remain securely in place and are not cracked or broken. Replace any damaged slats immediately.
• Drawers: Keep drawer runners clean and free of debris to ensure smooth operation.

7. Troubleshooting

8. Specifications

Image 8.1: A technical diagram illustrating the precise dimensions of the Bellemave L-Shape Triple Bunk Bed in inches.

9. Warranty and Support

Bellemave products are manufactured with quality and durability in mind. While specific warranty details are not provided in this manual, please retain your proof of purchase for any potential warranty claims.

For customer support, missing parts, or any inquiries regarding your Bellemave L-Shape Triple Bunk Bed, please contact the seller or Bellemave customer service through the retailer's platform or the official Bellemave website. Provide your product model number (B0B97D3SLH) and a detailed description of your issue for prompt assistance.

You may also visit the Bellemave Store on Amazon for more information and contact options.
