DKS67A Washer Electric Door Lock User Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of the DKS67A Washer Electric Door Lock. This component is designed as a replacement part for specific Siemens and Bosch washing machine models to ensure proper door locking functionality.

Product Overview

The DKS67A is an electric door lock mechanism for washing machines. It plays a critical role in the safe operation of the appliance by securing the washer door during cycles. A malfunctioning door lock can prevent the machine from starting or cause leaks.

Figure 1: Front view of the DKS67A Washer Electric Door Lock, showing its main housing and locking mechanism.

Figure 2: Side view of the DKS67A Washer Electric Door Lock, highlighting the electrical connection pins.

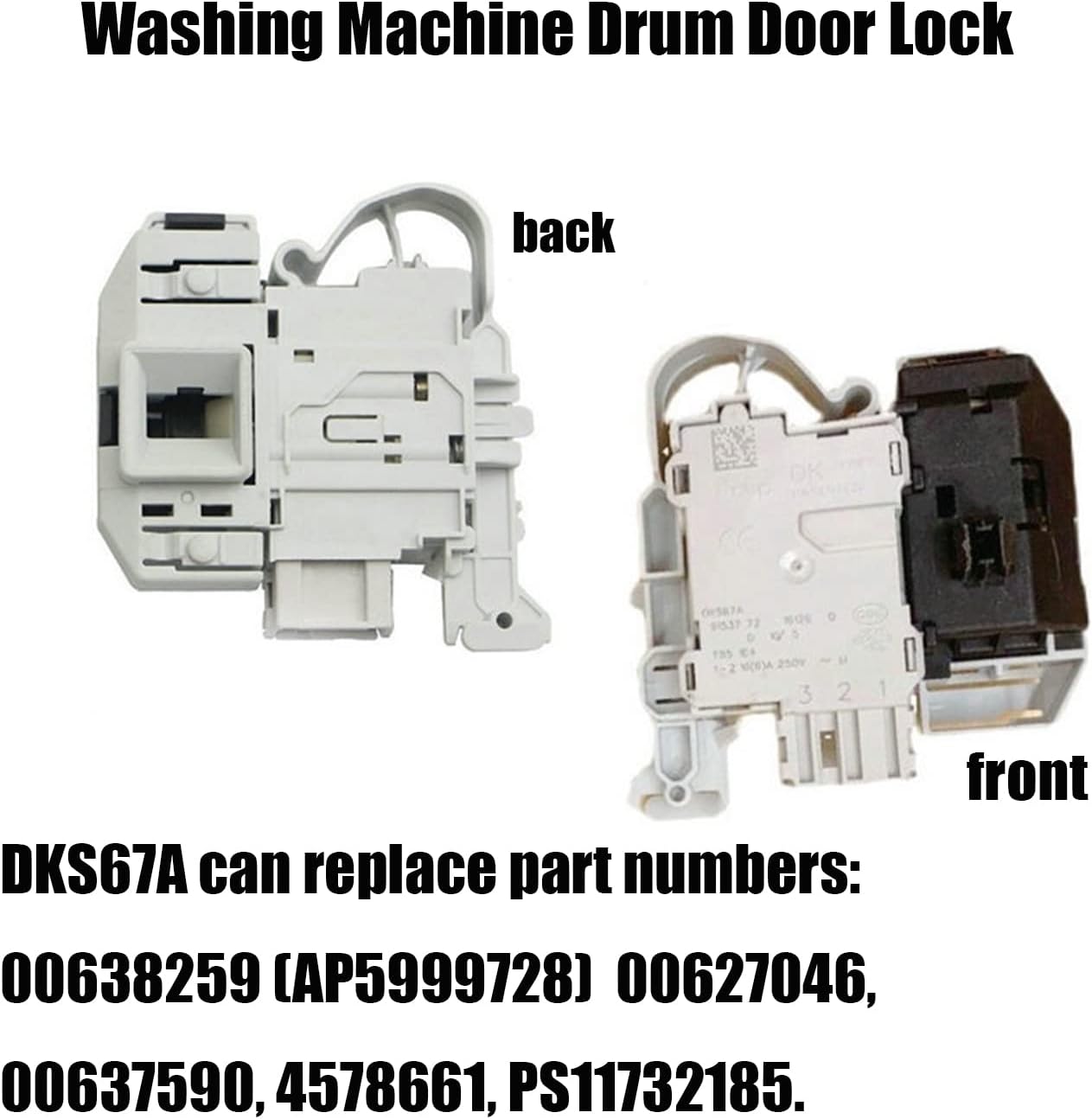

Figure 3: Comparison of the front and back of the DKS67A, along with a list of compatible part numbers it can replace, including 00638259 (AP5999728), 00627046, 00637590, 4578661, and PS11732185.

Compatibility

The DKS67A Electric Door Lock is compatible with various Siemens and Bosch IQ500, IQ300, and IQ700 Drum Washing Machine models. It replaces part numbers 00638259 (AP5999728), 00627046, 00637590, 4578661, and PS11732185.

A partial list of compatible washing machine models includes:

• WAP24202UC/14, WAP24202UC/11, WAP24202UC/05
• WAP24201UC/11, WAP24201UC/05
• WAP24200UC/11, WAP24200UC/05
• W7460X2ES/01
• WAK20200IR/18, WAK20200IR/20, WAK20200IR/21
• WAK2020SIR/18, WAK2020SIR/20, WAK2020SIR/21
• WAK24265IR/18, WAK24265IR/20, WAK24265IR/21
• WAK2426SIR/20, WAK2426SIR/21
• WAN20040PL/01, WAN20040PL/02, WAN20040PL/03
• WAN20050IL/01, WAN20050IL/02, WAN20050IL/03
• WAN20067IT/01, WAN20067IT/02, WAN20067IT/03
• WAN20068IT/01, WAN20068IT/02, WAN20068IT/03
• WAN20150IL/01, WAN20150IL/02, WAN20150IL/03
• WAN20162BY/01, WAN20162BY/02, WAN20162BY/03
• WAN20167IT/01, WAN20167IT/02, WAN20167IT/03
• WAN20168IT/01, WAN20168IT/02, WAN20168IT/03
• WAN2016XPL/02, WAN2016XPL/03
• WAN2026EPL/01, WAN2026EPL/03
• WAN24000GB/01, WAN24000GB/03
• WAN24067IT/01, WAN24067IT/03
• WAN24068GR/01, WAN24068GR/03
• WAN24068IT/01, WAN24068IT/03
• WAN24100GB/01, WAN214100GB/03
• WAN24130FF/01, WAN240FF/01
• WAN24150IL/03
• WAN24167IT/01, WAN24167IT/03
• WAN24168IT/01, WAN24168IT/03
• WAN241A0CH/01, WAN241A0CH/03
• WAN24200FF/01, WAN24200FF/03
• WAN24220FF/01, WAN24220FF/03
• WAN24240CH/01, WAN24240CH/03
• WAN24250IL/01, WAN24250IL/03
• WAN24260ES/01, WAN24260ES/03
• WAN24261ES/01, WAN24261ES/03
• WAN24262ES/01
• WAN24268EP/01, WAN24268EP/03
• WAN2426KPL/01, WAN2426KPL/03
• WAN2426XES/01, WAN20426XES/03
• WAN24277IT/01, WAN277

Setup and Installation

Replacing a washing machine door lock requires caution and basic technical knowledge. It is recommended that this procedure be performed by a qualified technician. Always ensure the appliance is disconnected from the power supply before beginning any repair work.

1. Safety First: Disconnect the washing machine from the main power supply by unplugging it or turning off the circuit breaker.
2. Access the Door Lock: Depending on your washing machine model, you may need to remove the front panel or the door seal to access the door lock mechanism.
3. Disconnect Wiring: Carefully disconnect the electrical wiring harness from the old door lock. Note the position of each wire if they are not color-coded or uniquely shaped.
4. Remove Old Lock: Unscrew or unclip the old door lock from its mounting.
5. Inspect Connections: Before installing the new DKS67A lock, ensure that the water inlet valve and the drain valve of the washing machine are intact, as issues with these can sometimes mimic door lock problems or cause further damage if not addressed.
6. Install New Lock: Position the new DKS67A door lock in place and secure it with screws or clips.
7. Reconnect Wiring: Reconnect the electrical wiring harness to the new door lock, ensuring all connections are firm and correct.
8. Reassemble: Reattach any panels or the door seal that were removed.
9. Test Functionality: Plug the washing machine back into the power supply. Close the door firmly and attempt to start a short cycle to verify the new door lock engages correctly and the machine operates without error.

If you are unsure about any step, consult your washing machine's specific service manual or seek professional assistance.

Operating Principles

The DKS67A electric door lock functions as a safety interlock. When the washing machine door is closed and a cycle is initiated, the control board sends a signal to the door lock. The lock then engages, preventing the door from being opened during operation, especially when the drum is spinning at high speeds or contains hot water. This mechanism ensures user safety and prevents water leakage. The door will remain locked until the cycle is complete and the machine has cooled down sufficiently, or until a specific unlock command is issued by the control system.

Maintenance

The DKS67A door lock is a sealed unit and does not require routine maintenance. However, to ensure its longevity and proper function, consider the following:

• Keep Door Seal Clean: Regularly clean the washing machine's door seal to prevent debris buildup that could interfere with the door closing properly, thus stressing the lock mechanism.
• Avoid Forcing the Door: Never force the washing machine door open or closed. If the door is difficult to open or close, investigate the cause rather than applying excessive force.
• Check for Obstructions: Ensure no clothing or foreign objects are caught in the door frame when closing the door.
• Professional Inspection: If you notice consistent issues with the door locking or unlocking, consider having a qualified technician inspect the washing machine's control system and door lock.

Troubleshooting

If you experience issues with your washing machine's door lock, consider the following common problems and potential solutions:

Important Note: Before replacing the computer board of the washing machine, please ensure that the water inlet valve and the drain valve are intact, as these can sometimes cause symptoms similar to a faulty door lock.

Specifications

Support

For any questions or assistance regarding the DKS67A Washer Electric Door Lock, please contact the manufacturer or seller via email. They are committed to helping you resolve any issues you may encounter.
