1. Product Overview
This manual provides detailed instructions for the assembly, operation, and maintenance of your WORCOTHRAY 10 x 30ft Outdoor Gazebo Event Tent. Designed for various outdoor events, this heavy-duty canopy offers reliable shelter with its waterproof and UV-resistant polyethylene fabric and sturdy alloy steel frame. It features 5 removable sidewalls, including three with transparent PVC church windows for light flow and two with zippers for easy access, providing versatility for different occasions.

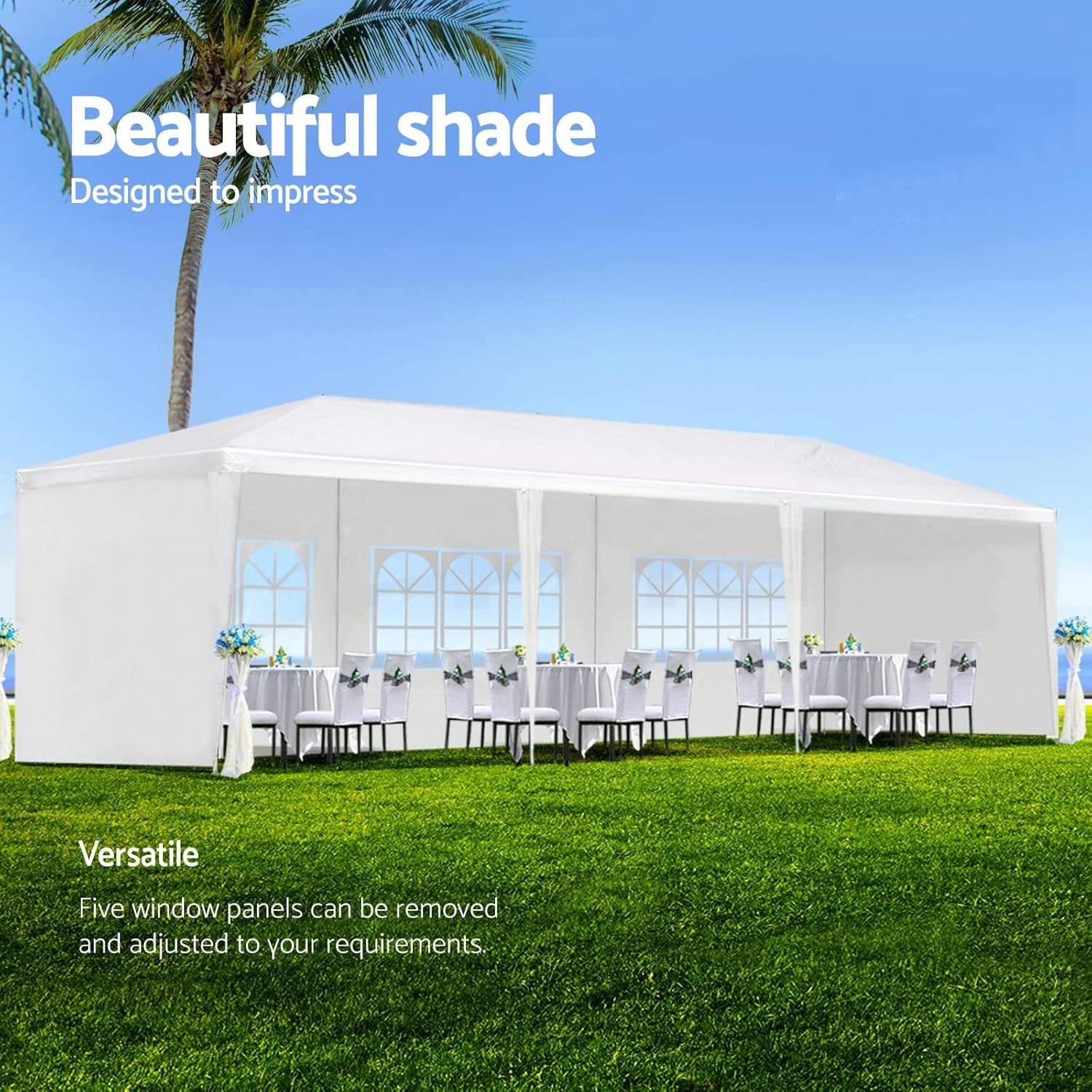

Image 1.1: The WORCOTHRAY 10x30ft Outdoor Gazebo Event Tent fully assembled with sidewalls, suitable for various outdoor gatherings.
2. Safety Information
Please read and understand all safety warnings before assembly and use to prevent injury or damage to the product.
- Fire Hazard: The polyethylene fabric is not fireproof. Keep all sources of fire, including open flames, heaters, and cooking equipment, away from the tent fabric.
- Weather Conditions: This tent is designed for temporary use in fair weather conditions. Do not use the tent during strong winds, heavy rain, snow, or other severe weather. It is advised to take down the tent immediately if adverse weather is expected.
- Water Accumulation: Ensure that no water accumulates on the top of the tent during rainfall. Water pooling can cause the tent structure to collapse. Regularly check and clear any accumulated water.
- Anchoring: Always properly anchor the tent to the ground using stakes and ropes (if provided) to ensure stability, especially in light winds.
- Assembly: Always follow the assembly instructions carefully. Ensure all connections are tight before use. If moving the assembled tent, move all four sides simultaneously to prevent structural damage.
- Supervision: Do not leave the tent unattended for extended periods, especially overnight or during changing weather conditions.
3. Package Contents
Verify that all components listed below are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
| Component | Quantity | Description |
|---|---|---|
| Canopy Top Cover | 1 | Waterproof and UV-resistant PE fabric for the roof. |
| Removable Sidewalls | 5 | PE fabric sidewalls (3 with windows, 2 with zippers). |
| Steel Frame Poles | Various | Numbered alloy steel poles for the main structure. |
| Connectors/Joints | Various | Plastic or metal connectors for assembling poles. |
| Foot Plates | Various | Base plates for the tent legs. |
| Stakes/Ropes | Included | For securing the tent to the ground. |
| Instruction Manual | 1 | This document. |
Image 3.1: The frame structure of the WORCOTHRAY 10x30ft Outdoor Gazebo, illustrating the components before canopy and sidewall attachment.
4. Setup and Assembly
Assembly typically requires two or more people. Follow these steps carefully for proper setup.
- Unpack and Identify Parts: Lay out all components and identify them according to the parts list in Section 3.
- Assemble the Roof Frame: Connect the roof poles and connectors to form the top frame of the gazebo. Ensure all connections are secure.
- Attach the Canopy Top: Carefully drape the canopy top cover over the assembled roof frame. Secure it to the frame using any integrated fasteners (e.g., hook-and-loop straps, ties).
- Attach Leg Poles: Connect the leg poles to the roof frame. Ensure the foot plates are attached to the bottom of each leg.
- Raise the Structure: With assistance, carefully lift the entire frame and extend the legs to their full height.
- Secure to Ground: Use the provided stakes and ropes to firmly anchor each leg and corner of the tent to the ground. This is crucial for stability.
- Attach Sidewalls: The 5 removable sidewalls can be attached using the hook-and-loop fasteners along the top and sides of the frame. Position the windowed sidewalls as desired and the zippered sidewalls for entry/exit. Each sidewall can be used individually.
Image 4.1: An interior view of the assembled gazebo, demonstrating the spaciousness and the attachment points for sidewalls.
Image 4.2: A close-up of a removable sidewall featuring a transparent PVC church window, highlighting its design and attachment method.
5. Operating Instructions
Your WORCOTHRAY gazebo is designed for ease of use and versatility.
- Sidewall Management: The 5 sidewalls can be easily attached or detached using the hook-and-loop fasteners. This allows you to customize the tent's enclosure based on weather conditions, privacy needs, or ventilation requirements. The transparent PVC windows provide natural light even when sidewalls are attached.
- Entry and Exit: Utilize the sidewalls with zippers for convenient entry and exit points.
- Ventilation: For optimal airflow, remove some or all sidewalls as needed. The open design without sidewalls provides maximum ventilation.
Image 5.1: The spacious interior of the gazebo, demonstrating ample room for furniture and activities.
6. Maintenance
Proper maintenance will extend the lifespan of your gazebo.
- Cleaning: Clean the canopy and sidewalls with mild soap and water. Do not use harsh chemicals or abrasive cleaners, as they can damage the fabric's waterproof and UV-resistant coating. Rinse thoroughly and allow to air dry completely before storage.
- Frame Care: Inspect the steel frame periodically for any signs of rust or damage. Clean any dirt or debris from the frame.
- Storage: After each use, especially if the tent will not be used for an extended period, disassemble the tent and store all components in a dry, cool place, away from direct sunlight. Ensure the fabric is completely dry before folding and storing to prevent mildew. Storing the tent promptly after use helps prolong its service life.
- Inspection: Before each setup, inspect all poles, connectors, and fabric for any wear, tears, or damage. Replace damaged parts as necessary.
Image 6.1: Illustration highlighting the waterproof properties of the PE cover, essential for protection against light rain and moisture.
Image 6.2: Diagram showing the layered construction of the fabric, emphasizing its waterproof, tear-resistant, and lightweight characteristics.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Tent is unstable or wobbly. | Not properly anchored; loose connections. | Ensure all leg poles are fully extended and locked. Use all provided stakes and ropes to secure the tent to the ground. Check all frame connections for tightness. |
| Water pooling on the roof. | Insufficient tension on canopy; heavy rainfall. | Ensure the canopy is stretched taut over the frame. If water continues to pool, gently push up from underneath to release water. Consider disassembling in heavy rain. |
| Sidewalls do not fit correctly. | Incorrect orientation; frame not fully extended. | Verify the sidewalls are oriented correctly (e.g., windowed panels in desired positions). Ensure the tent frame is fully assembled and extended to its proper dimensions. |
| Difficulty with assembly/disassembly. | Attempting alone; connections stuck. | Assembly and disassembly are easier with two or more people. If connections are stiff, gently wiggle or apply a small amount of lubricant (e.g., silicone spray) to the joints. |
8. Specifications
- Brand: WORCOTHRAY
- Model: 10'x30' with 5 Removable Sidewalls
- Dimensions: 10 feet (width) x 30 feet (length)
- Material: Alloy Steel (Frame), Polyethylene (Canopy & Sidewalls), Plastic (Connectors)
- Color: White
- Water Resistance Level: Waterproof
- UV Protection: Yes
- Assembly Required: Yes
- Recommended Uses: Beach, Outdoor Activities, Party, Wedding, Pavilion, BBQ
9. Warranty and Support
For warranty information, missing parts, or technical support, please contact WORCOTHRAY customer service directly. Refer to your purchase documentation or the seller's contact information for specific details regarding warranty coverage and how to obtain support.
It is recommended to retain your proof of purchase for any warranty claims.
