Blue Jay Heat it Up Rapid Heat Heating Pad User Manual

1. Important Safety Information

Please read all safety warnings and instructions carefully before using this heating pad. Failure to follow these instructions may result in electric shock, fire, or injury.

• WARNING: Do not leave unattended while in use.
• Keep away from children and flammable materials.
• Do not use if you are pregnant or have a medical condition that makes you sensitive to heat. Consult a physician before use if you have any medical conditions.
• Always follow the instructions provided with the product.
• Do not use while sleeping.
• Do not use on infants, incapacitated persons, or persons insensitive to heat.
• Do not use pins or other metallic objects to fasten the pad.
• Never pull the heating pad by the supply cord.
• Do not use if the cord or plug is damaged.

2. Product Overview

The Blue Jay Heat it Up Rapid Heat Heating Pad is designed to provide soothing heat therapy for various body areas. It features rapid heat technology, a digital LCD controller, and a machine-washable design for convenience.

• Rapid Heat Technology: Feel heat within 30 seconds of activation.
• Digital LCD Controller: Features 6 heat settings and 6 timer settings.
• Real-time Display: LCD shows current temperature and auto-off timer countdown.
• Temperature Units: Switch temperature readout between Fahrenheit and Celsius.
• Washable Design: The entire pad is fully washable; no cover to remove.
• Soft Fabric: Super soft and thick velvety fabric for comfort.
• Dual Therapy: Can be used moist or dry.
• Long Power Cord: 9-foot extra-long power cord for flexible use.
• Large Size: Pad measures 12" x 24".

Image: The soft, velvety fabric of the heating pad, demonstrating its comfortable texture.

3. Setup

Before first use, ensure the heating pad and controller are free from any damage. Unroll the pad and lay it flat.

1. Connect the power cord to the heating pad securely.
2. Plug the power cord into a standard 120V AC electrical outlet.
3. The digital LCD controller should illuminate, indicating it is ready for use.

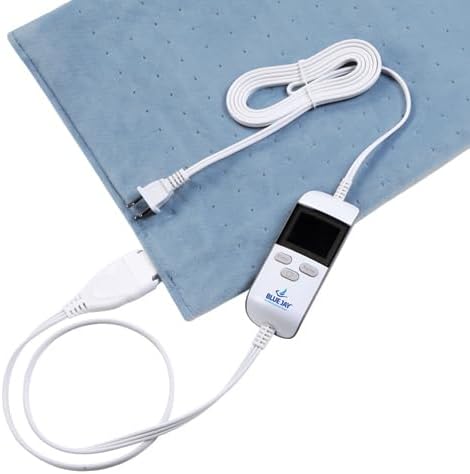

Image: The heating pad with its connected digital controller and power plug.

4. Operating Instructions

Using the Digital LCD Controller

The controller allows you to adjust heat and timer settings. The LCD screen displays real-time temperature and the remaining timer duration.

Image: Detailed view of the digital LCD controller with its display and buttons.

1. Power On/Off: Press the power button (O) to turn the heating pad on or off.
2. Adjust Heat Setting: Press the 'Temp' button to cycle through 6 available heat settings. The current temperature will be displayed on the LCD.
3. Set Timer: Press the 'Timer' button to select from 6 timer settings. The LCD will show the countdown. The pad will automatically shut off when the timer expires.
4. Temperature Unit Switch: The controller allows you to switch the temperature display between Fahrenheit and Celsius. Refer to the controller's specific instructions for this function, usually a long press on the 'Temp' button.

Application Guidelines

To use the heating pad effectively and safely:

• Place the pad on the desired area of your body. Ensure it is not in direct contact with bare skin for prolonged periods, especially at higher heat settings. A thin layer of clothing is recommended.
• For best results, use the pad for no more than 20-30 minutes at a time.
• Avoid using it while sleeping or under blankets, as this can lead to overheating.

Image: A woman using the heating pad for abdominal comfort.

Moist or Dry Therapy

The heating pad can be used for both moist and dry heat therapy.

• For Dry Heat: Use the pad as described above.
• For Moist Heat: Lightly dampen the pad with water using a spray bottle. Do not soak the pad. Ensure the pad is only damp, not wet, before connecting to power.

5. Maintenance

Cleaning and Storage

The Blue Jay Heat it Up Rapid Heat Heating Pad is designed for easy cleaning.

1. After use, unplug the pad from the electrical outlet and allow it to cool completely.
2. Important: Disconnect the power cord from the heating pad before washing.
3. Machine wash the entire pad in cold water on a gentle cycle.
4. Do not use bleach or fabric softeners, as these can damage the fabric and heating elements.
5. Allow the pad to air dry completely before storing or using again. Do not tumble dry.
6. Store the pad in a cool, dry place, loosely rolled or folded. Avoid sharp creases.

Image: Instructions for machine washing the heating pad, highlighting the removal of the adapter.

6. Troubleshooting

If you encounter issues with your heating pad, please refer to the following common solutions:

• Pad not heating: Ensure the power cord is securely plugged into both the pad and the electrical outlet. Check if the outlet is functional. Press the power button on the controller.
• Controller display not working: Verify the power connection. If the issue persists, unplug and re-plug the unit.
• Pad feels too hot or not hot enough: Adjust the heat setting using the 'Temp' button on the controller. Ensure the pad is not folded or bunched up, which can concentrate heat.
• Automatic shut-off too soon: Check the timer setting on the controller. If the pad is overheating, the safety feature may activate. Unplug and allow to cool before re-using.
• Error message on LCD: If an error code appears, unplug the unit immediately and contact customer support. Do not attempt to repair the unit yourself.

If these steps do not resolve the issue, discontinue use and contact customer support.

7. Specifications

8. Warranty and Support

Specific warranty information for the Blue Jay Heat it Up Rapid Heat Heating Pad is not provided in this manual. Please refer to the product packaging or contact the manufacturer directly for warranty details and customer support.

Manufacturer: Complete Medical Supplies

For further assistance, please visit the Blue Jay An Elite Healthcare Brand website or contact their customer service.
