MISINI T5026B 911 Sports Car Building Kit

1. Product Overview

The MISINI T5026B 911 Sports Car Building Kit is a 1:8 scale model designed for enthusiasts aged 14 and up. This advanced construction set features 3389 precision-engineered particles, allowing for the creation of a detailed and functional sports car replica. The finished model measures approximately 57 cm (length) x 18 cm (width) x 28 cm (height).

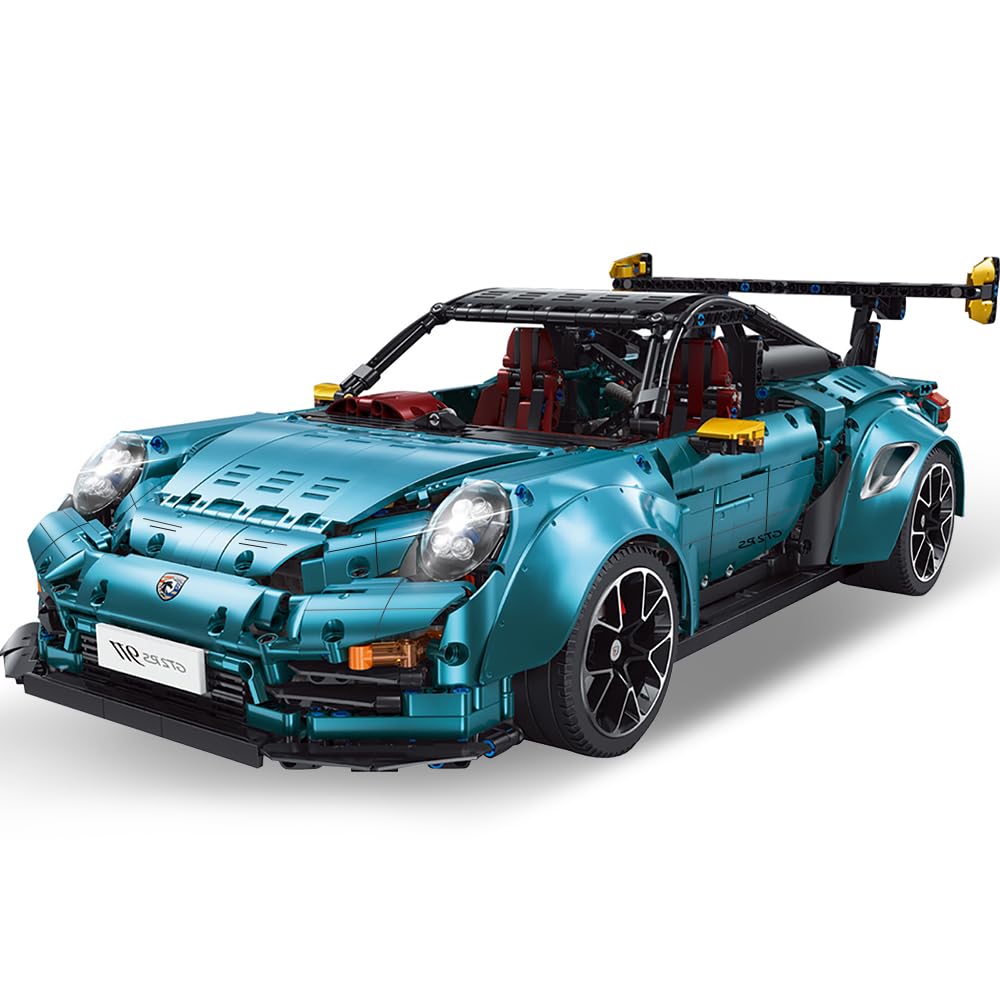

Image 1.1: Assembled MISINI T5026B 911 Sports Car Model.

Key functionalities include dual remote control mode (mobile phone and dedicated remote control), chassis lifting, door linkage control, two-wheel and four-wheel drive switching, a personalized rear spoiler, and an openable head cover and trunk with engine linkage. This kit offers a rewarding building experience and a highly collectible display model.

2. Safety Information

Please read and understand the following safety guidelines before beginning assembly or operation:

• Small Parts Warning: This product contains small parts and is not suitable for children under 3 years of age due to choking hazards.
• Age Recommendation: Recommended for ages 14 years and up. Adult supervision is advised for younger builders.
• Handling: Handle all components with care to avoid damage or injury.
• Electrical Components: Ensure all electrical connections are secure and correctly installed as per the instructions. Do not expose electrical components to water or excessive moisture.

3. Package Contents

Your MISINI T5026B kit includes:

• Approximately 3389 building block particles.
• Detailed assembly instruction manual.
• Remote control unit (if included in your specific version).
• Motor and electrical components (if included in your specific version).

Please verify all parts against the parts list provided in the physical instruction manual before starting assembly. If any parts are missing or damaged, please contact customer support.

4. Assembly Instructions

Follow the step-by-step instructions provided in the included physical manual. Organize your parts before starting to ensure a smooth building process. The assembly involves constructing the chassis, engine, steering mechanism, interior, and exterior body panels.

4.1 Key Assembly Steps Illustrated

Image 4.1: Internal mechanisms and features during assembly.

Image 4.2: Functional elements like chassis lift and opening parts.

The following video demonstrates various assembly stages and functional aspects of the building kit. Pay close attention to the details for correct construction.

Ensure all connections are firm but do not force pieces together, as this may cause damage. If a piece feels too tight, double-check the orientation and the corresponding step in the manual.

5. Features

The MISINI T5026B 911 Sports Car Building Kit boasts several interactive and realistic features:

• 1:8 Scale Model: A large, detailed replica of a 911 sports car.
• Dual Remote Control: Operate the model using either a dedicated remote control or a mobile phone application.
• Chassis Lifting: Adjustable chassis height for dynamic display or play.
• Door Linkage Control: Doors can be opened and closed with a realistic linkage mechanism.
• Drive Mode Switching: Easily switch between two-wheel drive and four-wheel drive.
• Openable Hood and Trunk: Front hood and rear trunk can be opened to reveal detailed engine components.
• Engine Linkage: The engine features moving parts that simulate real engine operation.
• Adjustable Sports Car Seats: The interior includes seats that can be adjusted.
• Detailed Interior: A meticulously designed cockpit with a steering wheel and dashboard.

Image 5.1: Detailed interior with adjustable seats.

Image 5.2: Engine bay and rear spoiler detail.

6. Operating Instructions

Once assembled, the MISINI T5026B model can be operated using the provided remote control or a compatible mobile application.

6.1 Remote Control Pairing

1. Ensure the model's power source (e.g., battery box) is switched ON.
2. Turn ON the remote control.
3. Follow the pairing instructions in your physical manual to connect the remote control to the model. Indicators on both devices will confirm successful pairing.

6.2 Basic Controls

• Driving: Use the joystick or directional buttons on the remote control/app to move the car forward, backward, left, and right.
• Steering: The servo motor provides precise left and right steering control.
• Chassis Lift: Use the designated buttons to raise or lower the chassis.
• Door Control: Activate the door linkage control to open and close the car doors.
• Engine Linkage: Observe the engine components moving when the car is in operation.

Refer to the video in Section 4.1 for visual demonstrations of these operating functions.

7. Maintenance

To ensure the longevity and optimal performance of your MISINI T5026B model, follow these maintenance guidelines:

• Cleaning: Use a soft, dry cloth to gently wipe dust and debris from the model. Avoid using harsh chemicals or abrasive materials.
• Storage: Store the model in a cool, dry place away from direct sunlight and extreme temperatures.
• Battery Care: If the model uses batteries, remove them during long periods of non-use to prevent leakage.
• Inspection: Periodically inspect all connections and moving parts for any signs of wear or looseness. Tighten as necessary.

8. Troubleshooting

If you encounter any issues with your MISINI T5026B kit, consider the following common solutions:

• Missing Parts: If you find parts are missing during assembly, carefully re-check the packaging and the parts list in the manual. Contact customer support for assistance with replacement parts.
• Tight Fittings: Some pieces may fit snugly. Ensure correct orientation and alignment before applying gentle pressure. Avoid excessive force, which can damage components.
• Remote Control Not Responding:
  1. Check if the model's power is ON.
  2. Ensure the remote control has fresh batteries and is switched ON.
  3. Re-attempt the pairing process as described in Section 6.1.
• Movement Issues: If the car does not move or moves incorrectly, verify that all motor connections are secure and that no gears are jammed. Check for any obstructions in the drivetrain.

9. Specifications

Image 9.1: Product dimensions diagram.

10. Warranty and Support

For any questions, concerns, or assistance with missing/damaged parts, please contact MISINI customer support. Refer to the contact information provided in your product packaging or on the official MISINI website. Please have your model number (T5026) and purchase details ready when contacting support.
