VEVOR French Fry Cutter Instruction Manual

Product Overview

The VEVOR Commercial French Fry Cutter is a robust and versatile kitchen tool designed for efficiently cutting various fruits and vegetables into uniform strips or cubes. Constructed from durable aluminum alloy and stainless steel, this chopper is built for longevity and ease of use in both commercial and home kitchen environments.

Key features include two interchangeable blades for distinct cutting sizes (1/2'' and 3/8''), labor-saving handles for convenient operation, and an enhanced stability design with a heavy-duty cast iron base and non-skid rubber feet. It is ideal for preparing potatoes, carrots, cucumbers, peppers, onions, mushrooms, apples, and lemons for salads, french fries, and desserts.

Image: The VEVOR Commercial French Fry Cutter, designed to streamline food preparation.

Setup and Assembly

The VEVOR French Fry Cutter arrives largely pre-assembled. Minor assembly is required to prepare the unit for first use.

1. Unpacking: Carefully remove all components from the packaging. Verify that all parts are present, including the main unit, two interchangeable blades (1/2'' and 3/8''), and the rotatable handles.
2. Handle Installation: Thread the three rotatable handles into their designated positions on the main unit. Ensure they are securely tightened by hand for stable operation.
3. Placement: Place the cutter on a stable, flat countertop. The heavy-duty cast iron base and non-skid rubber feet are designed to prevent movement during operation.

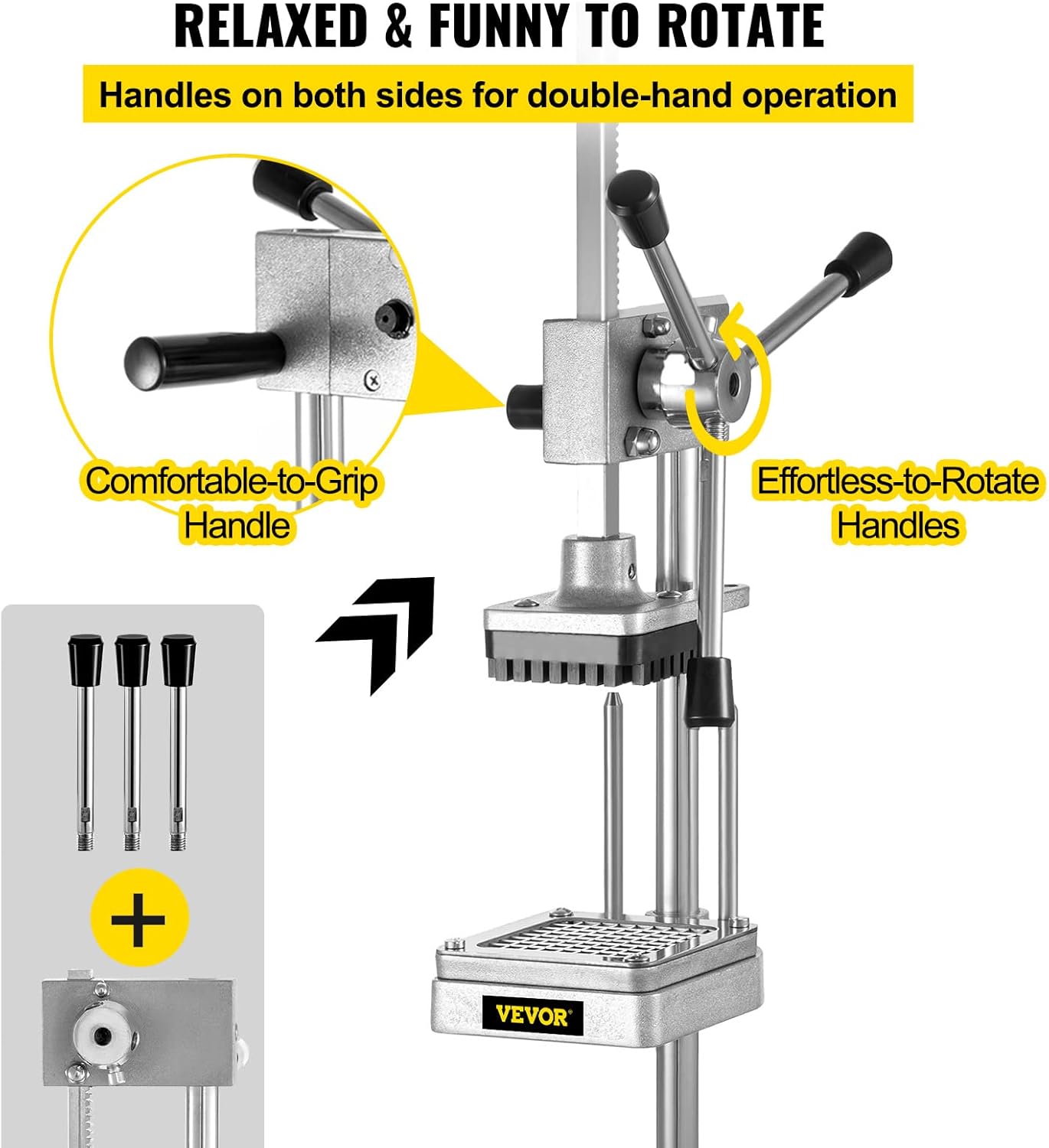

Image: The comfortable-to-grip and effortless-to-rotate handles, along with the U-shaped base and rubber feet for enhanced stability.

Operating Instructions

Follow these steps for effective and safe operation of your VEVOR French Fry Cutter:

1. Select Blade: Choose the desired blade size (1/2'' or 3/8'') based on your cutting needs. Ensure the blade is securely in place before use.
2. Prepare Produce: For optimal results, ensure the fruit or vegetable (e.g., potato) is appropriately sized to fit the cutting area. For longer items, it may be beneficial to cut them in half. For items like potatoes, cutting off one end to create a flat surface can enhance stability during the cutting process.
3. Position Produce: Place the prepared fruit or vegetable onto the cutting grid.
4. Engage Handles: Firmly grasp the rotatable handles. Apply steady, downward pressure to push the produce through the blade. While the design is labor-saving, some muscle may be required for denser vegetables like sweet potatoes.
5. Collect Cut Produce: Position a bowl or container beneath the cutter to collect the uniformly cut strips or cubes.

Image: Illustration demonstrating the chopping and dicing capabilities, including the recommendation to cut off one end of the potato for stability.

Image: The four interchangeable blades available, including 8-wedge, 3/8 inch, 1/2 inch, and 1/4 inch, with instructions to unscrew for blade changes.

Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your VEVOR French Fry Cutter.

• Cleaning: The unit is designed for easy cleaning. After each use, disassemble the cutting blade and push plate. Wash all components with soap and water. The aluminum alloy body and stainless steel blades are rust and corrosion-proof.
• Blade Removal/Replacement: To remove or replace blades, keep the handle downward. Loosen the two buckles on the push plate bracket. Then, lift the handle and remove the push plate. Replace the push plate and secure it with two lock nuts. Finally, replace the cutting blade and secure it using two lock nuts.
• Care Instructions: This product is designed for hand washing only. Do not place in a dishwasher.

Image: The easy disassembly and cleaning process for the food-grade stainless steel and die-cast aluminum components.

Image: A visual guide detailing the steps to remove and replace the cutting blades, ensuring proper maintenance.

Troubleshooting

If you encounter any issues while using your VEVOR French Fry Cutter, consider the following:

• Difficulty Cutting: Ensure the produce is properly positioned and that you are applying sufficient, steady downward pressure. Very hard or oversized vegetables may require more force or pre-cutting.
• Unstable Unit: Verify that the unit is placed on a flat, stable surface and that the non-skid rubber feet are clean and making full contact with the countertop.
• Blade Issues: Check that the blades are correctly installed and secured. If blades appear dull or damaged, they may need replacement.

For persistent issues or concerns not addressed here, please contact VEVOR customer support for assistance.

Specifications

Image: Detailed product specifications including weight, dimensions, and examples of suitable environments such as home kitchens, fast-food chains, and restaurants.

Warranty and Support

For information regarding product warranty, please refer to the documentation included with your purchase or visit the official VEVOR website. For technical support, replacement parts, or any other inquiries, please contact VEVOR customer service directly.

VEVOR Official Website: www.vevor.com
