Hillsdale Capri Wood Twin Over Full Size Bunk Bed with Ladder User Manual

1. Introduction

This manual provides essential instructions for the safe assembly, operation, and maintenance of your Hillsdale Capri Wood Twin Over Full Size Bunk Bed with Ladder. Please read all instructions carefully before assembly and retain this manual for future reference.

Image: The Hillsdale Capri Wood Twin Over Full Size Bunk Bed, white, featuring a twin bed on top and a full bed on the bottom, with an angled ladder for access to the top bunk. The bed is shown in a contemporary room with grey walls and a blue rug.

2. Safety Information

Adherence to these safety guidelines is crucial to prevent injury and ensure the longevity of your bunk bed.

• Top Bunk Age Restriction: The top bunk is intended for use by children 6 years of age and older.
• Weight Limit: The recommended maximum weight limit for this bunk bed is 350 pounds. Do not exceed this limit.
• Guardrails: Always use the guardrails on both sides of the upper bunk. Ensure they are properly installed and secured.
• Ladder Safety: Always use the ladder for entering and exiting the upper bunk. Do not use the bed as a play structure.
• Mattress Requirements: Use only mattresses that meet the specified dimensions and thickness. For this bunk bed, one 8-inch twin mattress for the top bunk and one 8-inch full mattress for the bottom bunk are required. No box spring is necessary.
• Assembly: Ensure all parts are correctly assembled and all fasteners are tightened before use. Periodically check and re-tighten fasteners as needed.
• Ventilation: Ensure adequate ventilation around the bunk bed.
• Prohibited Items: Do not attach or hang items to any part of the bunk bed that are not designed for use with the bed, such as hooks, belts, or ropes, as they can pose a strangulation hazard.
• Residential Use: This product is designed for residential use only.

3. Package Contents

Your Hillsdale Capri Bunk Bed will ship in two boxes. Please verify that all components are present before beginning assembly. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

Included Components:

• Bunk bed frame components (headboards, footboards, side rails)
• Bed slats for both twin and full beds
• Ladder
• Guardrails for the upper bunk
• All necessary hardware (screws, bolts, nuts, etc.)
• Assembly tools (typically an Allen wrench)

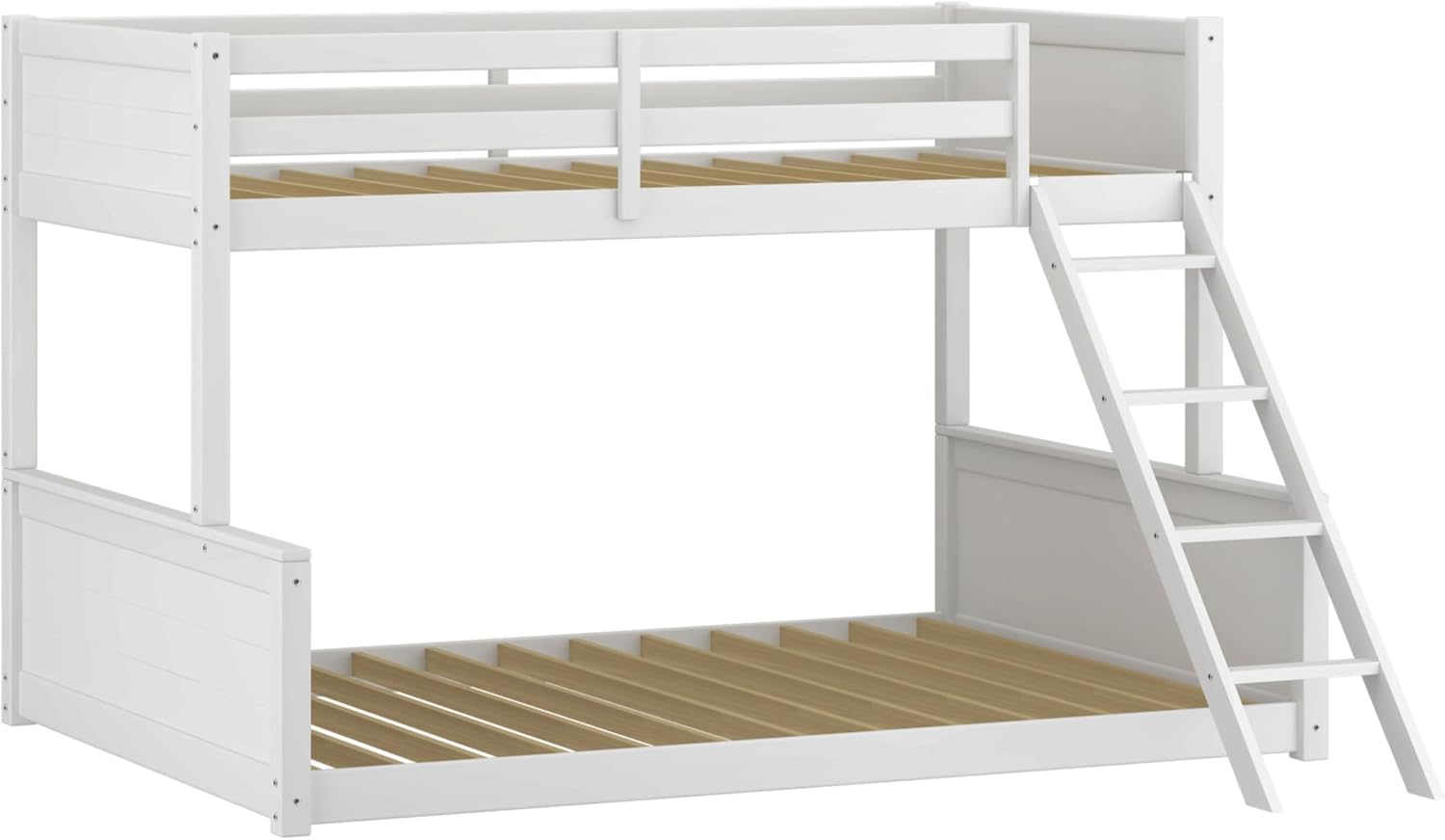

Image: A view of the Hillsdale Capri Bunk Bed frame without mattresses, showing the wooden slats that support the mattresses on both the upper twin and lower full beds.

4. Setup & Assembly

Assembly of the Hillsdale Capri Bunk Bed is required. It is recommended that two adults perform the assembly. Clear a spacious area for assembly and keep all hardware out of reach of small children.

General Assembly Steps:

1. Unpack all components and verify against the parts list.
2. Begin by assembling the headboards and footboards for both the twin and full beds.
3. Attach the side rails to form the bed frames.
4. Install the wooden slats onto the support ledges of each bed frame.
5. Carefully stack the twin bed frame onto the full bed frame, securing them with the provided bunk bed connectors.
6. Attach the ladder securely to the upper bunk.
7. Install the guardrails on the upper bunk, ensuring they are firmly attached.
8. Double-check all bolts and screws to ensure they are tightened. Do not overtighten.

Image: A detailed view of the white wooden ladder for the Hillsdale Capri Bunk Bed, highlighting the sturdy construction and how it connects to the upper bunk frame.

5. Operating Instructions

The Hillsdale Capri Bunk Bed is designed for versatile use, functioning as a twin-over-full bunk bed or converting into two separate beds.

Using as a Bunk Bed:

• Ensure the ladder is always in place and secure when accessing the top bunk.
• Confirm guardrails are properly installed on the top bunk.
• Place a twin mattress (8 inches recommended) on the top bunk and a full mattress (8 inches recommended) on the bottom bunk.

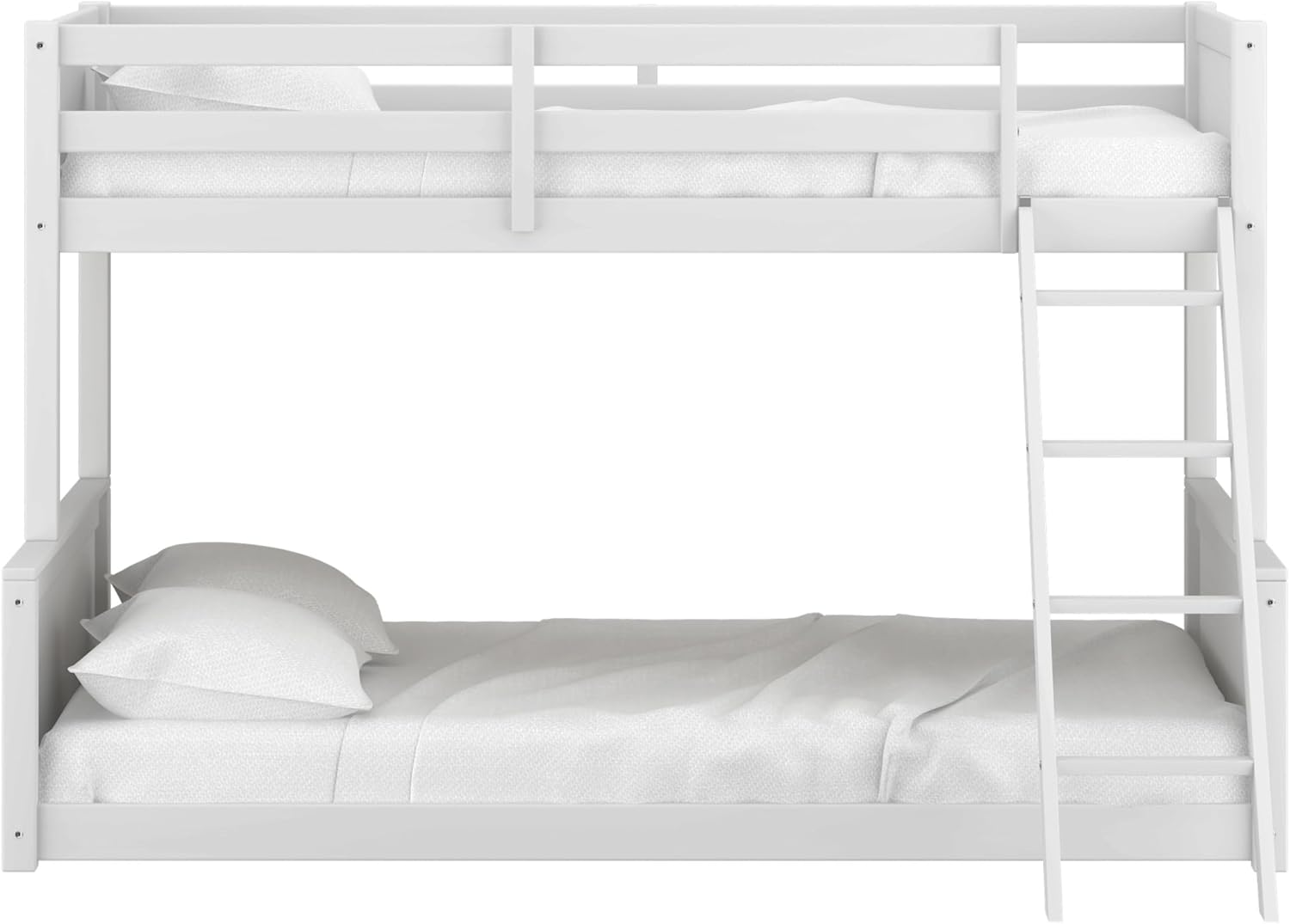

Image: A straight-on view of the assembled Hillsdale Capri Bunk Bed, showing the twin bed on top and the full bed on the bottom, complete with mattresses and white bedding.

Converting to Two Separate Beds:

This bunk bed can be separated into a standalone twin bed and a standalone full bed. This conversion allows for flexibility as needs change.

1. Remove mattresses and bedding from both bunks.
2. Carefully detach the upper twin bed from the lower full bed by unscrewing the bunk bed connectors.
3. Remove the ladder and guardrails.
4. Position the twin and full beds in desired locations.
5. Ensure all remaining fasteners are tightened for stability of the individual beds.

Image: The Hillsdale Capri Bunk Bed disassembled into two separate beds: a twin bed and a full bed, positioned side-by-side in a room, demonstrating its convertible feature.

6. Maintenance and Care

Proper care will help maintain the appearance and structural integrity of your bunk bed.

• Cleaning: Spot or wipe clean with a damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Fastener Checks: Periodically inspect all bolts, screws, and other fasteners. Re-tighten any loose connections to ensure stability and safety.
• Environmental Conditions: Avoid placing the bed in direct sunlight or near heat sources, which can cause wood to dry out or warp. Maintain a stable room temperature and humidity.
• Moving the Bed: When moving the bed, always lift it rather than dragging it to prevent damage to the frame and floor.

7. Troubleshooting

If you encounter issues with your Hillsdale Capri Bunk Bed, refer to the following common solutions:

• Squeaking Noises: Squeaking often indicates loose fasteners. Check and tighten all bolts and screws throughout the bed frame. Ensure slats are properly seated.
• Wobbly Frame: A wobbly frame is typically due to uneven assembly or loose connections. Re-check all assembly steps and tighten all hardware. Ensure the bed is on a level surface.
• Ladder Instability: Ensure the ladder hooks are fully engaged with the upper bunk rail and all ladder fasteners are tight.
• Missing Parts: If parts are missing upon unboxing, do not proceed with assembly. Contact Hillsdale customer support immediately for replacement parts.

8. Product Specifications

Image: A technical diagram illustrating the key dimensions of the Hillsdale Capri Bunk Bed: 79 inches in length, 57 inches in width, and 52.5 inches in height.

9. Warranty Information

For detailed information regarding the manufacturer's warranty for your Hillsdale Capri Bunk Bed, please refer to the product description on the original purchase platform or visit the official Hillsdale Furniture store page. Warranty terms and conditions may vary.

You can visit the Hillsdale Store here: Hillsdale Furniture Store

10. Customer Support

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact Hillsdale Furniture customer support. Have your model number (7173TFBB) and purchase information ready when contacting support.

Contact information can typically be found on the Hillsdale Furniture website or through the retailer where the product was purchased.
