CoffeeB by café royal Globe Coffee Machine

1. Introduction

Welcome to the world of CoffeeB by café royal. The Globe coffee machine is designed to provide an exceptional coffee experience using innovative Coffee Balls, eliminating the need for traditional capsules. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new CoffeeB Globe machine.

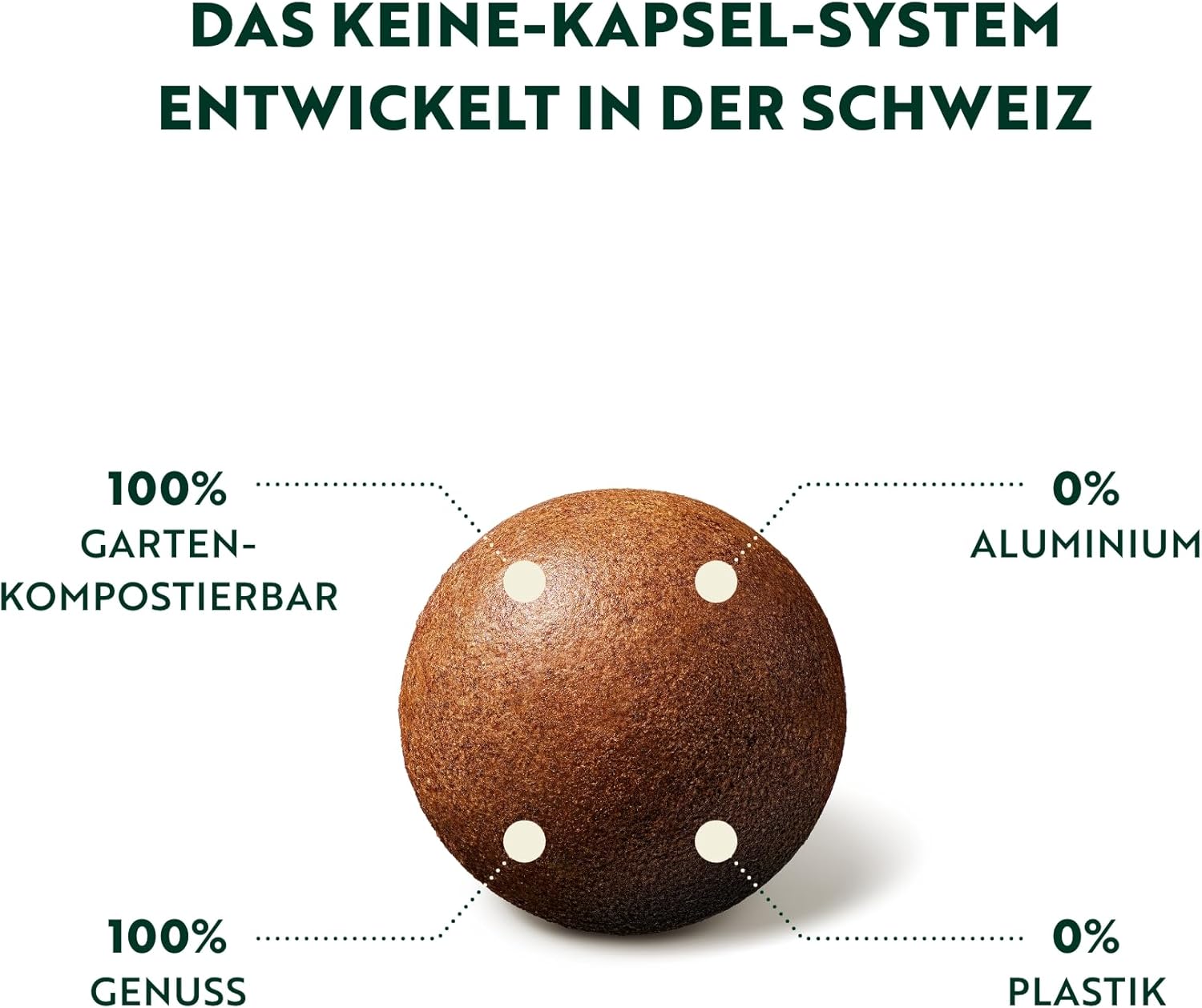

Image 1.1: A Coffee Ball, highlighting its compostable nature and absence of aluminum or plastic. This illustrates the sustainable design of the CoffeeB system.

The CoffeeB system is engineered for sustainability, utilizing 100% garden-compostable Coffee Balls. The machine itself incorporates 34% recycled plastic material in its design, reflecting a commitment to environmental responsibility.

2. Safety Instructions

• Read all instructions before operating the appliance.
• Do not immerse the appliance, power cord, or plug in water or other liquids.
• Keep the appliance out of reach of children.
• Unplug the machine from the power outlet when not in use and before cleaning.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• Use only original CoffeeB accessories and Coffee Balls.
• Avoid contact with hot surfaces.

3. Product Overview

Familiarize yourself with the components of your CoffeeB Globe machine.

Image 3.1: Front view of the CoffeeB Globe coffee machine with a cup of coffee. This image shows the main body, coffee outlet, and drip tray.

Image 3.2: Side view of the CoffeeB Globe coffee machine, clearly showing the removable water tank and the coffee ball loading mechanism.

Key Components:

• Water Tank: Removable tank for fresh water.
• Coffee Ball Compartment: Top-loading area for Coffee Balls.
• Brew Unit: Internal mechanism for brewing coffee from Coffee Balls.
• Coffee Outlet: Where brewed coffee dispenses.
• Drip Tray: Collects excess liquid and supports the coffee cup.
• Control Panel: Buttons for power, brewing, and programming cup size.
• Lever: Used to initiate the brewing cycle and eject used Coffee Balls.

4. Setup

4.1 Unpacking

1. Carefully remove the coffee machine and all accessories from the packaging.
2. Remove any protective films or stickers from the appliance.
3. Retain the packaging for future transport or storage.

4.2 Initial Cleaning and Rinse

1. Wash the water tank and drip tray with warm, soapy water. Rinse thoroughly and dry.
2. Fill the water tank with fresh, cold drinking water up to the MAX level.
3. Place a large container under the coffee outlet.
4. Plug the machine into a grounded power outlet.
5. Press the power button to turn on the machine. It will heat up quickly.
6. Once heated, press a brew button (without a Coffee Ball) to run a full cycle of hot water through the system. Repeat this process 2-3 times to clean the internal components.

5. Operating

5.1 Brewing Coffee

1. Ensure the water tank is filled with fresh water.
2. Open the coffee ball compartment lid.
3. Insert a Coffee Ball into the designated slot. The machine is designed to hold multiple Coffee Balls in a rotating dispenser.

Image 5.1: Top-down view of the CoffeeB Globe machine, showing Coffee Balls loaded into the rotating compartment.

4. Close the coffee ball compartment lid.
5. Place a cup on the drip tray under the coffee outlet.
6. Pull the lever to the right to engage the Coffee Ball.
7. Press the desired brew button (e.g., small cup for espresso, large cup for lungo). The machine will begin brewing.
8. Once brewing is complete, the used Coffee Ball will be automatically ejected into the internal collection container.

5.2 Programming Cup Size

The CoffeeB Globe allows you to customize your preferred cup size.

1. Place a Coffee Ball and a cup as described in section 5.1.
2. Press and hold the desired brew button (small or large cup).
3. Release the button when your cup reaches the desired fill level. The machine will remember this setting for future brews.

6. Maintenance

6.1 Daily Cleaning

• Empty and clean the drip tray and used Coffee Ball container daily. Wash with warm, soapy water and rinse.
• Wipe the exterior of the machine with a soft, damp cloth. Do not use abrasive cleaners.
• Rinse the water tank with fresh water daily.

6.2 Descaling

Regular descaling is crucial for maintaining machine performance and longevity. The frequency depends on water hardness and usage.

1. Refer to the descaling instructions provided with your CoffeeB descaling solution.
2. Follow the steps carefully, typically involving filling the water tank with descaling solution and running several cycles.
3. After descaling, rinse the machine thoroughly by running several cycles with fresh water to remove any descaling residue.

7. Troubleshooting

If you encounter issues, consult this section before contacting support.

8. Specifications

Image 8.1: Dimensions of the CoffeeB Globe coffee machine, showing height, width, and depth.

• Model: Globe
• Dimensions (L x W x H): 37.3 x 15.3 x 26.7 cm
• Weight: Approximately 3.5 kg
• Water Tank Capacity: 1.3 Liters
• Pump Pressure: 19 bar
• Voltage: 230V
• Energy Consumption: 45.9 kWh/year
• Automatic Shutdown: Yes, after 1 minute of inactivity
• Special Features: Quiet operation, fast heating time, programmable cup sizes, energy-saving mode, 34% recycled plastic material.

9. Warranty and Support

Your CoffeeB by café royal Globe coffee machine comes with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details.

For technical assistance, spare parts, or any questions regarding your appliance, please contact CoffeeB customer support. Contact information can typically be found on the official CoffeeB website or in your product documentation.
