YPLZYANJIAO 0401 Mercurous Sulfate Reference Electrode User Manual

1. Introduction

This manual provides detailed instructions for the proper use, maintenance, and care of the YPLZYANJIAO 0401 Mercurous Sulfate Reference Electrode. This electrode is designed for precise electrochemical measurements in laboratory and scientific environments. Please read this manual thoroughly before operating the device to ensure safe and effective use.

2. Product Overview

The YPLZYANJIAO 0401 is a Mercurous Sulfate Reference Electrode, characterized by its single salt bridge design. It is a crucial component in various electrochemical setups, providing a stable and reproducible reference potential for accurate measurements. Its design features an electrode rod with a 6 mm diameter, making it suitable for insertion into electrolytic cell cover holes ranging from 6.1 mm to 6.5 mm in diameter.

While this manual focuses on the 0401 model, YPLZYANJIAO also offers other reference electrodes, including double salt bridge mercurous sulfate electrodes (0402), saturated calomel electrodes (232, 232-2), and mercury oxide electrodes (0501, 0502), each designed for specific applications and cell configurations.

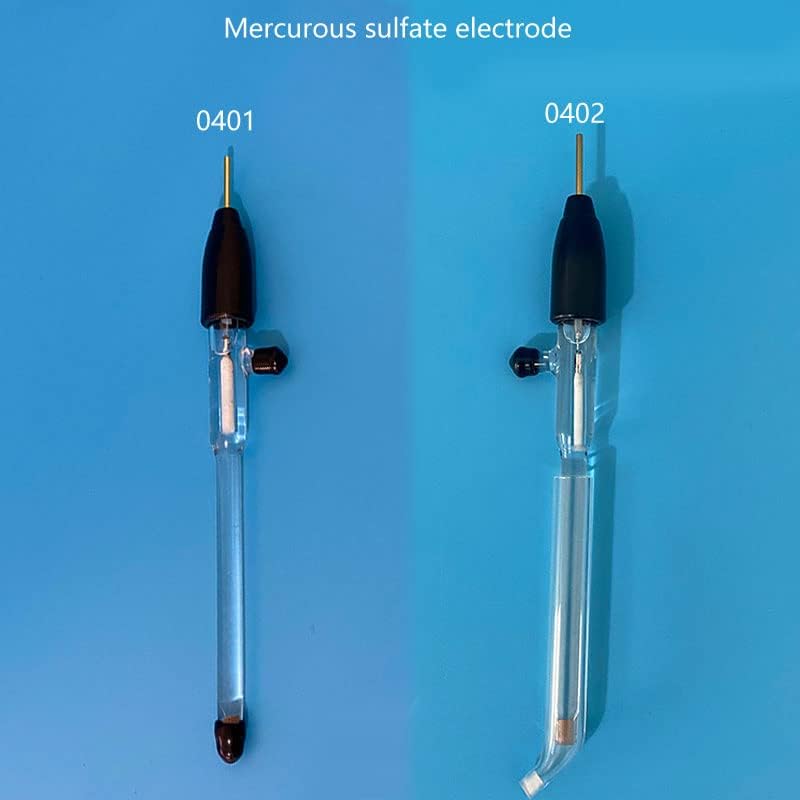

Figure 2.1: YPLZYANJIAO 0401 (left) and 0402 (right) Mercurous Sulfate Electrodes. The 0401 is a single salt bridge design, while the 0402 features a protective sleeve for a double salt bridge configuration.

Figure 2.2: An assortment of YPLZYANJIAO reference electrodes, showcasing various types including mercurous sulfate, calomel, and mercury oxide electrodes.

3. Components

The YPLZYANJIAO 0401 package typically includes:

• One (1) YPLZYANJIAO 0401 Mercurous Sulfate Reference Electrode

4. Setup

Before initial use, follow these steps to prepare your 0401 electrode:

1. Inspection: Carefully unpackage the electrode and inspect it for any visible damage. Ensure the glass body is intact and there are no leaks.
2. Storage Solution Removal: If the electrode comes with a protective cap containing a storage solution, remove it. Gently rinse the electrode tip with deionized water.
3. Filling (if applicable): Ensure the electrode is filled with the appropriate internal electrolyte solution (typically a saturated potassium sulfate solution for mercurous sulfate electrodes). If refilling is necessary, carefully open the filling port and add the solution using a pipette, avoiding air bubbles. Close the port securely.
4. Conditioning: Immerse the electrode tip in a beaker of the internal electrolyte solution or a suitable reference solution for at least 30 minutes prior to use. This helps stabilize the potential.
5. Connection: Connect the electrode to your potentiostat or electrochemical workstation using the appropriate cable and connector.

5. Operating Instructions

To use the 0401 Mercurous Sulfate Reference Electrode in your electrochemical experiments:

1. Placement: Carefully insert the electrode into the electrolytic cell. Ensure the electrode tip is fully immersed in the sample solution and positioned correctly relative to the working and counter electrodes. The 6 mm diameter rod is designed to fit cell cover holes between 6.1 mm and 6.5 mm.
2. Temperature Stability: Allow the electrode to equilibrate to the temperature of the sample solution before taking measurements. Temperature fluctuations can affect electrode potential.
3. Measurement: Proceed with your electrochemical measurement according to the specific requirements of your experiment (e.g., cyclic voltammetry, chronoamperometry). The electrode provides a stable reference potential against which other potentials are measured.
4. Avoid Contamination: Prevent contamination of the electrode tip with the sample solution, especially if the sample contains substances that could react with mercury or sulfate.

6. Maintenance

Proper maintenance ensures the longevity and accuracy of your reference electrode:

• Cleaning: After each use, thoroughly rinse the electrode tip with deionized water to remove any residual sample solution. Do not wipe the glass junction, as this can damage it.
• Storage: Store the electrode in its original protective cap filled with the appropriate storage solution (typically saturated potassium sulfate solution). Do not store dry, as this can lead to junction clogging and unstable potentials.
• Electrolyte Level: Periodically check the level of the internal electrolyte solution. If it is low, refill it carefully to ensure the internal element remains fully immersed.
• Junction Care: If the liquid junction becomes clogged, it may be possible to clear it by soaking the tip in a warm, dilute solution of potassium sulfate or by gently applying suction/pressure. Consult a professional if issues persist.

7. Troubleshooting

If you encounter issues with your 0401 electrode, consider the following:

• Unstable Readings:
  • Check for air bubbles in the electrolyte solution or at the liquid junction.
  • Ensure the electrode is properly filled and the electrolyte level is adequate.
  • Verify the temperature stability of the solution.
  • Clean the electrode tip and junction thoroughly.
  • Check the connection to the potentiostat.
• Slow Response:
  • The liquid junction may be partially clogged. Refer to the Maintenance section for cleaning.
  • The electrode may require longer conditioning time.
• Incorrect Potential:
  • Verify the internal electrolyte solution is correct and not contaminated.
  • Ensure the electrode is not expired or damaged.
  • Calibrate your potentiostat or measurement system.

8. Specifications

9. Safety Information

This product contains mercury, a hazardous substance. Adhere to the following safety precautions:

• Handle with Care: Always handle the electrode carefully to prevent breakage and mercury exposure.
• Personal Protective Equipment (PPE): Wear appropriate PPE, including gloves and eye protection, when handling the electrode, especially during setup, maintenance, or if breakage occurs.
• Ventilation: Use in a well-ventilated area or under a fume hood to minimize exposure to mercury vapor.
• Spill Protocol: In case of breakage or mercury spill, follow your laboratory's established mercury spill cleanup procedures immediately. Do not use a regular vacuum cleaner.
• Ingestion/Contact: Avoid ingestion and direct skin contact with mercury or the internal electrolyte solution. Wash hands thoroughly after handling.

10. Disposal

Due to the presence of mercury, the 0401 electrode must be disposed of as hazardous waste in accordance with all local, national, and international regulations. Do not dispose of the electrode in regular trash or down the drain. Contact your local waste management authority or a specialized hazardous waste disposal service for proper disposal instructions.

11. Warranty and Support

For information regarding product warranty, technical support, or service, please contact YPLZYANJIAO customer service or refer to the official YPLZYANJIAO website. Please have your product model number (0401) and purchase details ready when contacting support.

You can visit the YPLZYANJIAO store on Amazon for more information: YPLZYANJIAO Store
