QUIRUMED Wheelchair Model 951ACB-56 User Manual

1. Introduction and Product Overview

The QUIRUMED Model 951ACB-56 is a special width 56 cm wheelchair designed for enhanced comfort and adaptability for individuals with reduced mobility. Constructed from high-resistance chromed steel, it offers durability and supports a maximum weight of 125 kg. This manual provides essential information for the safe and effective use, assembly, and maintenance of your wheelchair.

Key features include a foldable design for easy transport, adjustable and removable footrests, removable armrests, and an extra padded seat and backrest for superior comfort. It is also equipped with a secure braking system and an anti-tip system for user safety.

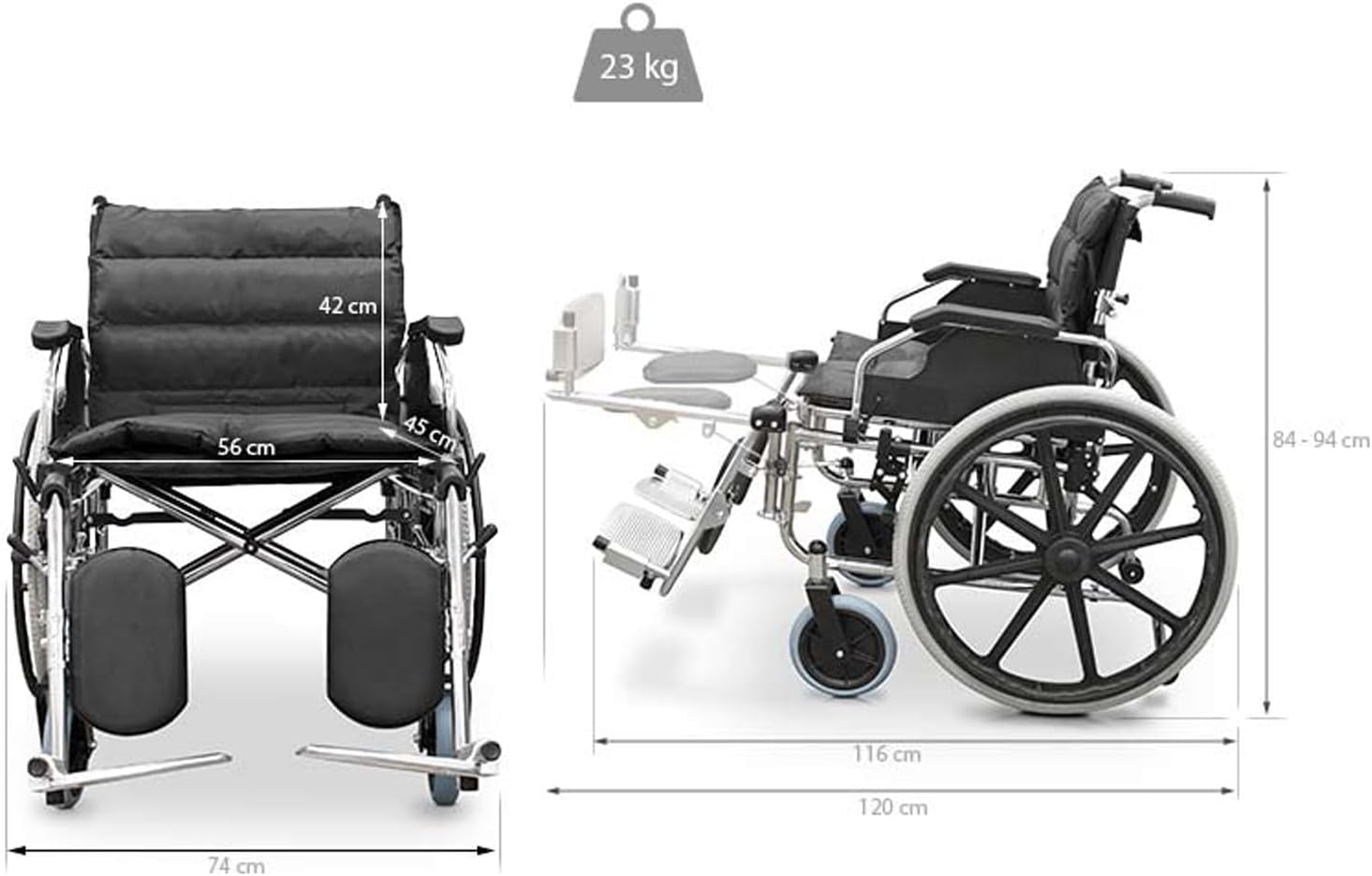

Figure 1: Front and side view of the QUIRUMED wheelchair with key dimensions. The seat width is 56 cm, backrest height 42 cm, seat depth 45 cm, total width 74 cm, total length 116 cm, and total height ranges from 84 to 94 cm.

2. Setup and Assembly

2.1 Unfolding the Wheelchair

The wheelchair features a practical folding mechanism for compact storage and transport. To unfold, gently pull the armrests outwards until the seat is fully extended and locked into place. Ensure all locking mechanisms are engaged before use.

2.2 Attaching and Adjusting Footrests

The footrests are detachable and adjustable. To attach, align the footrest pins with the corresponding slots on the wheelchair frame and push down until they click securely into place. Ensure both footrests are firmly attached before use. The footrests can be adjusted to multiple positions, from 30° to 90°, allowing for various leg positions, including fully extended. Use the adjustment levers to set the desired angle and height.

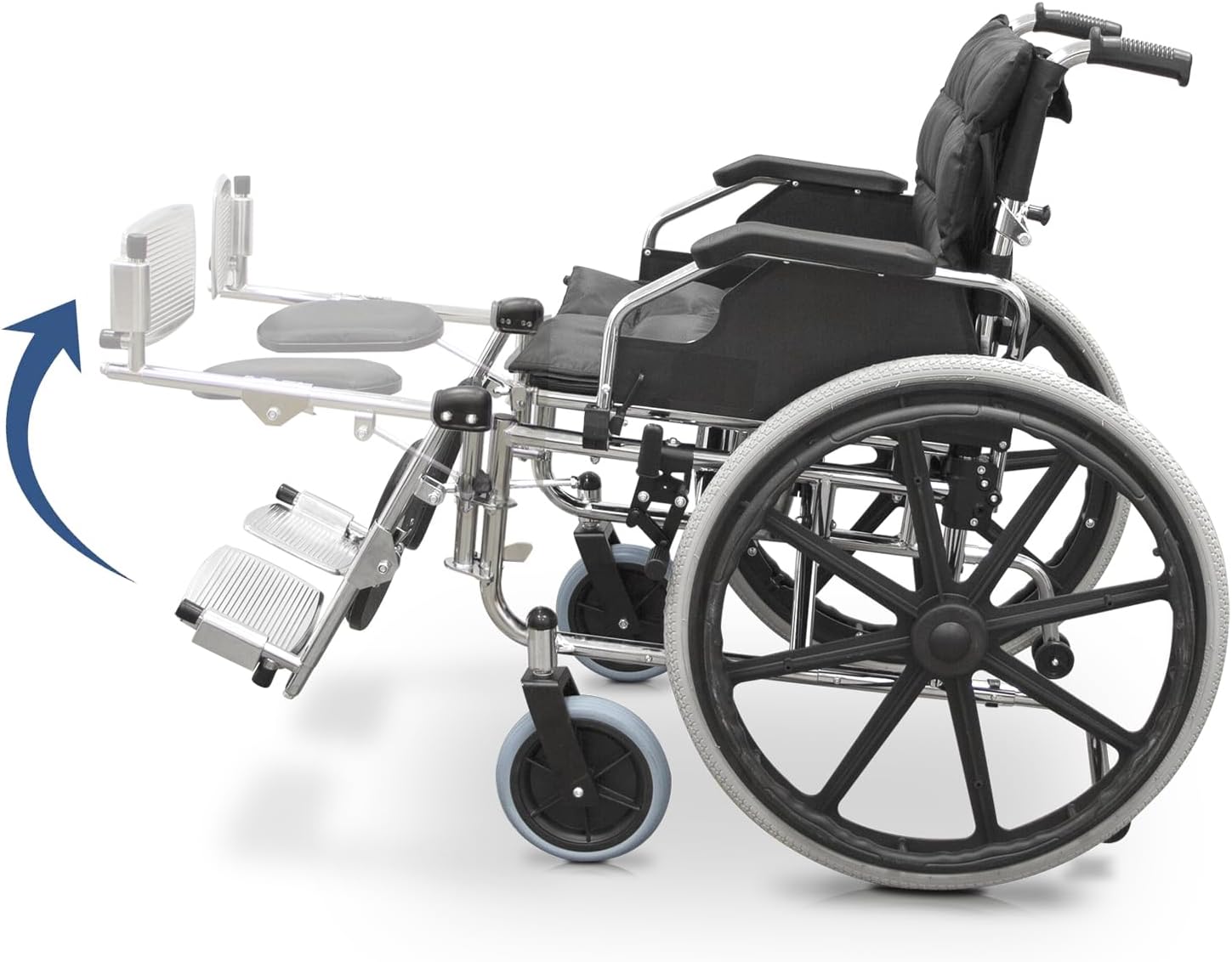

Figure 2: The adjustable footrests can be elevated and positioned for user comfort.

2.3 Attaching and Removing Armrests

The armrests are removable for easier transfers. To remove, locate the release mechanism (typically a button or lever) near the armrest attachment point and press it while lifting the armrest. To reattach, align and push down until it locks securely.

3. Operating Instructions

3.1 Braking System

The wheelchair is equipped with a secure push-to-lock braking system on both rear wheels. To engage the brakes, push the brake levers forward until they lock the wheels. To release, pull the levers back. Always engage brakes when transferring in or out of the wheelchair, or when stationary, to prevent unintended movement.

Figure 3: Close-up of the push-to-lock brake lever and footrest adjustment.

3.2 Anti-Tip System

The rear anti-tip system provides additional stability and helps prevent the wheelchair from tipping backward. Ensure it is properly engaged during use, especially when navigating inclines or uneven surfaces.

Figure 4: Rear wheel with brake and anti-tip mechanism.

3.3 Maneuvering

The wheelchair is designed for manual propulsion by the user or assistance from a caregiver using the push handles. Practice maneuvering in a safe, open area before navigating more challenging environments.

4. Maintenance

Regular maintenance ensures the longevity and safe operation of your QUIRUMED wheelchair.

4.1 Cleaning

Clean all surfaces regularly with a damp cloth and mild soap. Avoid using abrasive cleaners or solvents that could damage the finish or materials. The extra padded seat and backrest can be removed for easier cleaning.

4.2 Component Inspection

Periodically check all screws, bolts, and moving parts for tightness and wear. Ensure the braking system is functioning correctly and that the brake pads are not excessively worn. Inspect the tires for damage, punctures, or excessive wear. Replace any damaged or worn parts immediately.

4.3 Lubrication

Apply a suitable lubricant to moving joints and axles as needed to ensure smooth operation and prevent rust. Consult a professional if you are unsure about proper lubrication points.

4.4 Storage

When not in use, store the wheelchair in a dry, clean place, away from direct sunlight and extreme temperatures. The foldable design allows for compact storage, making it easy to store in a car trunk or small space.

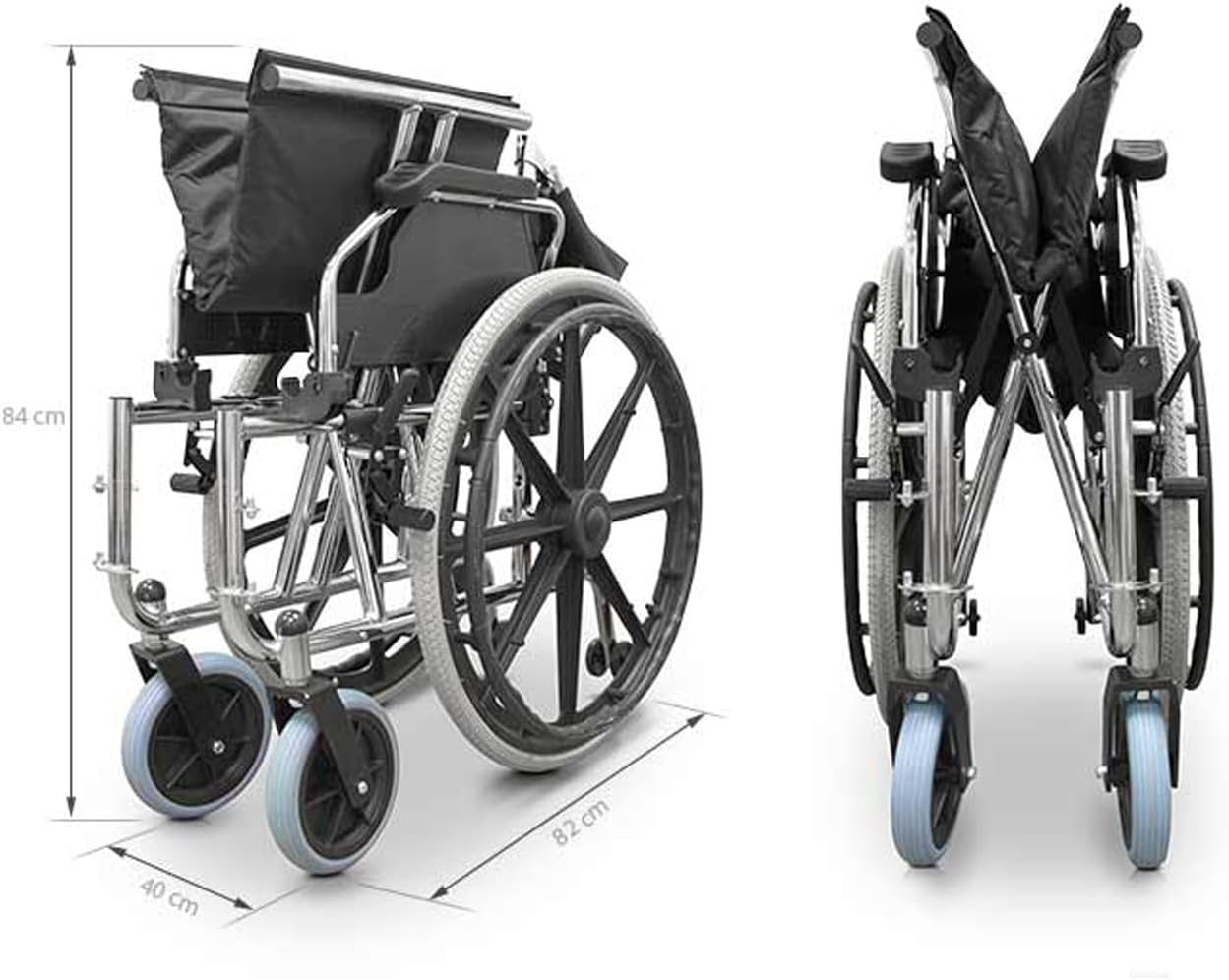

Figure 5: The wheelchair in its folded state, ideal for transport and storage.

5. Troubleshooting

This section addresses common issues you might encounter with your wheelchair.

• Wheelchair does not fold/unfold smoothly: Check for any obstructions in the folding mechanism. Ensure all components are aligned correctly. Apply lubricant to hinges if necessary.
• Brakes are not holding: Inspect brake pads and levers for wear or damage. Adjust brake tension if possible, or contact customer support for assistance.
• Footrests are loose: Ensure footrest pins are fully engaged and locked. Check for any damage to the attachment points.
• Unusual noises during operation: Inspect wheels, axles, and frame for loose parts or damage. Tighten any loose fasteners. If the noise persists, contact customer support.

6. Specifications

7. Official Product Video

8. Warranty and Support

For warranty information or technical support, please contact QUIRUMED customer service. Refer to your purchase documentation for specific warranty terms and conditions. QUIRUMED offers specialized customer service to assist with product inquiries, parts, and repairs. Please have your model number (951ACB-56) and purchase date available when contacting support.
