Introduction
Thank you for choosing the VEHHE Filtered High-Pressure Shower Head. This manual provides essential information for the safe and effective use of your new shower head. It features three adjustable spray modes, water-saving technology, and an integrated filtration system designed to improve water quality.
Safety Information
- Ensure all connections are secure to prevent leaks.
- Do not overtighten plastic components, as this may cause damage.
- Always test water temperature before showering, especially when bathing children or pets, to prevent scalding.
- Keep out of reach of small children when not in use.
- If you experience any issues, refer to the troubleshooting section or contact customer support.
Package Contents
Please verify that all items are present in your package:
- 1 x VEHHE Shower Head
- 1 x Shower Hose
- 2 x Replaceable Filter Stone Packs
Setup and Installation

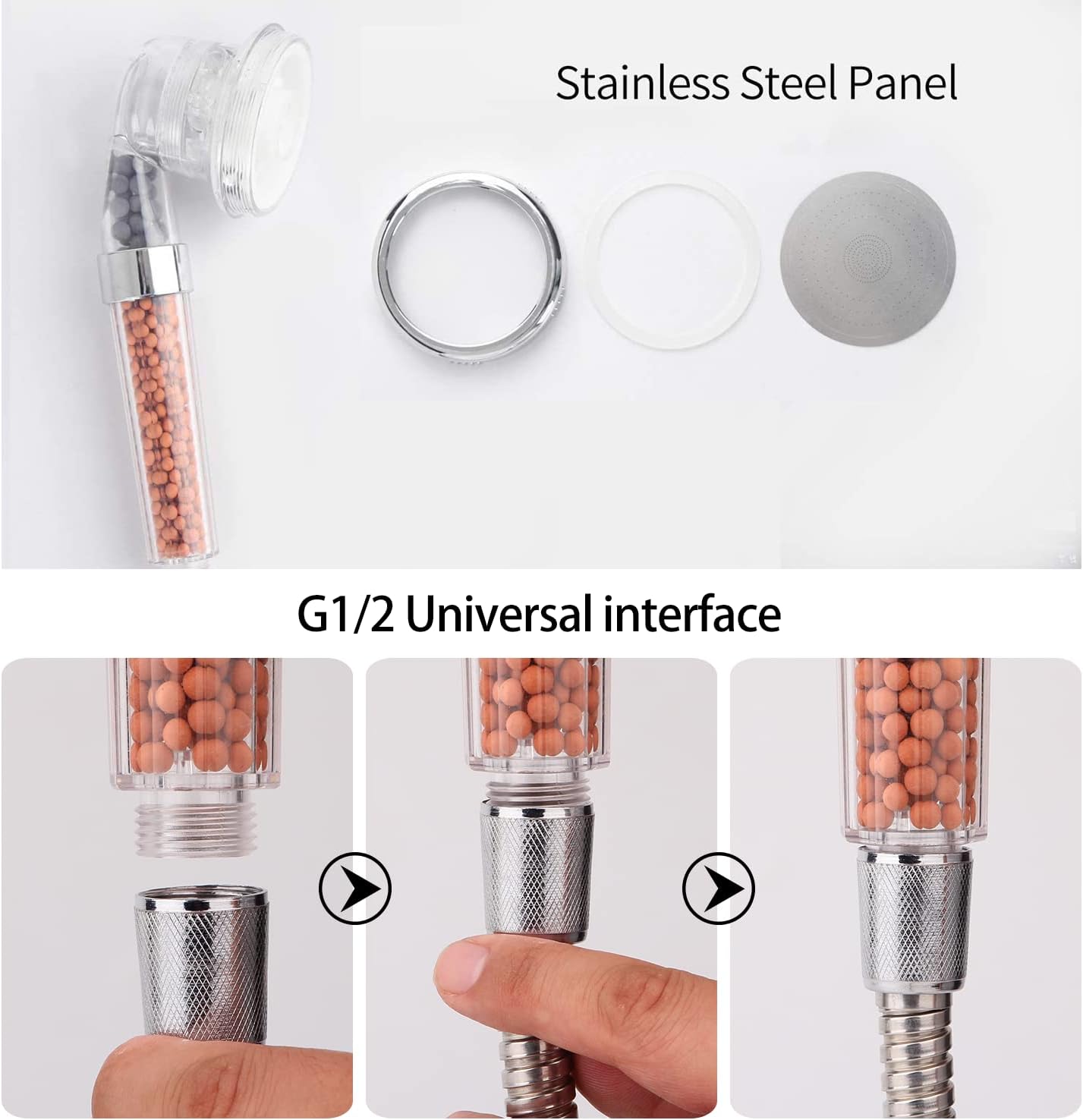

The VEHHE shower head is designed for standard G1/2 universal wall-mount connections. No special tools are typically required for installation.
- Prepare for Installation: Turn off the main water supply to your shower. Remove your old shower head and hose, if applicable.
- Connect the Shower Hose: Attach one end of the provided shower hose to your shower arm outlet. Hand-tighten first, then use a wrench if necessary, but do not overtighten. Ensure a washer is in place to prevent leaks.
- Attach the Shower Head: Connect the VEHHE shower head to the other end of the shower hose. Hand-tighten until secure.
- Check for Leaks: Turn on the water supply and check all connections for leaks. If leaks occur, tighten slightly more or ensure washers are correctly seated.
The shower head features a stainless steel panel and a transparent body containing filter beads. Ensure these components are securely assembled before installation.
Operating Instructions
Your VEHHE shower head offers three distinct spray modes:
- Jetting Mode: Provides a powerful, concentrated stream for rinsing and invigorating showers.
- Rainfall Mode: Delivers a gentle, wide spray mimicking natural rainfall, ideal for a relaxing experience.
- Massage Mode: Combines a gentle outer spray with a powerful central jet for a soothing and targeted cleanse.
To switch between modes, rotate the shower head's spray plate or the designated selector on the head. The mechanism is designed for easy adjustment during your shower.
Maintenance
Regular maintenance ensures optimal performance and longevity of your shower head.
Cleaning the Shower Head
- The shower head is designed to be removable for easy cleaning.
- To clean the stainless steel panel, gently wipe it with a soft cloth and a mild descaling solution if mineral deposits are present. Avoid abrasive cleaners.
- Periodically check the nozzles for mineral buildup. You can often clear these by gently rubbing them with your finger or a soft brush.
Replacing Filter Beads
The shower head contains infrared mineral beads and negative ionic beads that filter impurities. These beads have a limited lifespan and should be replaced periodically, typically every 3-6 months depending on water quality and usage.
- Disassemble: Unscrew the transparent handle section of the shower head.
- Remove Old Beads: Carefully empty the old filter beads.
- Insert New Beads: Fill the section with the new filter stone packs provided or purchased separately.
- Reassemble: Screw the handle section back onto the shower head, ensuring it is hand-tight to prevent leaks.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Low water pressure | Clogged nozzles or filter beads; low household water pressure. | Clean shower head nozzles. Replace filter beads if old. Check household water supply. |
| Leaks from connections | Loose connections; missing or worn washers. | Ensure all connections are hand-tightened. Check that washers are properly seated and not damaged. Do not overtighten plastic parts. |
| Water spraying unevenly | Mineral buildup in spray nozzles. | Gently rub the rubber nozzles to dislodge mineral deposits. For stubborn clogs, soak the shower head in a vinegar solution. |
| Shower head or hose connection breaks | Overtightening during installation; material fatigue. | Ensure connections are only hand-tightened, with minimal additional tightening using a wrench if necessary. Avoid excessive force. If a part breaks, contact customer support for replacement options. |
Specifications
- Brand: VEHHE
- Model Number: 8KHS00WN
- Material: Plastic
- Finish Type: Polished
- Installation Type: Wall Mount
- Number of Settings: 3 (Rainfall, Jetting, Massage)
- Efficiency: 2.5 GPM (Gallons Per Minute)
- Special Features: Removable for cleaning, Water Filtration (Mineral Beads)
- ASIN: B0B87Y1GZT
Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact the seller directly through the platform where the product was purchased. Keep your purchase receipt as proof of purchase.
