WulaWindy Digital Alarm Clock User Manual

1. Introduction

Thank you for choosing the WulaWindy Digital Alarm Clock. This manual provides detailed instructions for setting up, operating, and maintaining your new alarm clock. Please read this manual thoroughly before use to ensure proper function and longevity of the product.

2. Product Features

• Easy Operation: Features only 3 buttons for straightforward setting of time, alarm, and brightness.
• Large Mirrored LED Display: A 6.5-inch screen with large numbers for easy readability. The mirrored surface also serves as a convenient mirror.
• Adjustable Brightness: Offers three manual brightness levels (L1, L2, L3) and an automatic dimming mode for comfortable viewing day and night.
• Dual USB Charging Ports: Two USB ports (5V/1A) allow simultaneous charging of two external devices.
• Memory Backup Battery: Includes a CR2016 backup battery to retain time settings during power outages. (Note: Clock requires USB power to operate).
• Super Convenient Snooze Button: A large, easily accessible snooze button provides 5-60 minutes of extra sleep.
• Versatile Placement: Can be used as a desk clock with its detachable stand or wall-mounted.

Image: The WulaWindy Digital Alarm Clock displayed on a nightstand in a bedroom.

3. Package Contents

Please check the package for the following items:

• WulaWindy Digital Alarm Clock (Model yishang-br)
• USB Power Cable
• Detachable Stand
• CR2016 Backup Battery (pre-installed)
• User Manual (this document)

Note: A USB power adapter (wall plug) is NOT included and must be supplied by the user.

4. Product Diagram

Image: Detailed diagram highlighting the snooze button, light sensor, mode button, up/down buttons, dual USB charging ports, input port, wall hanging hole, CR2016 battery compartment, and detachable stand.

1. Big Snooze Alarm: Top button for snooze function.
2. PM (12h System) Indicator: Lights up when time is PM.
3. Light Sensor: Detects ambient light for auto-brightness adjustment.
4. Mode Button (M): Used to switch between time/alarm settings and 12/24-hour format.
5. Up Button (+): Adjusts values upwards.
6. Down Button (-): Adjusts values downwards.
7. Wall Hanging Hole: For mounting the clock on a wall.
8. Double USB Charging Ports: Two USB-A ports for charging external devices.
9. Input Port: For connecting the USB power cable.
10. CR2016 Battery (included): Backup battery compartment.
11. Detachable Stand (Removable): For desk placement.

5. Setup

1. Power Connection:

   Connect the provided USB power cable to the Input Port on the back of the clock. Plug the other end of the USB cable into a compatible USB power adapter (5V/1A recommended, not included) and then into a wall outlet. The clock display will light up.

2. Backup Battery:

   The CR2016 backup battery is pre-installed. This battery ensures that time settings are retained if the main power is disconnected. The clock will not display time or function without continuous USB power.

3. Stand Attachment:

   If using the clock on a desk or bedside table, attach the detachable stand to the bottom of the clock for stable placement.

4. Protective Film:

   Gently peel off any protective film from the mirrored display surface and the plastic insulator tab from the battery compartment (if present) before first use for optimal clarity and function.



   Image: Instructions on removing protective films from the clock face and the battery insulator tab.

6. Operating Instructions

6.1. Setting the Time

1. Press and hold the Mode (M) button for 3 seconds to enter time setting mode. The hour digits will start flashing.
2. Use the Up (+) and Down (-) buttons to adjust the hour.
3. Press the Mode (M) button again to confirm the hour and move to minute setting. The minute digits will flash.
4. Use the Up (+) and Down (-) buttons to adjust the minutes.
5. Press the Mode (M) button a third time to confirm the minutes and exit time setting mode.

6.2. 12/24-Hour Format Selection

While in normal time display mode, press the Mode (M) button once to toggle between 12-hour and 24-hour formats. In 12-hour format, a "PM" indicator will light up for afternoon hours.

6.3. Setting the Alarm

1. From normal time display, press the Mode (M) button twice to enter alarm setting mode. The alarm hour digits will flash, and an "AL" indicator will appear.
2. Use the Up (+) and Down (-) buttons to adjust the alarm hour.
3. Press the Mode (M) button again to confirm the alarm hour and move to alarm minute setting. The alarm minute digits will flash.
4. Use the Up (+) and Down (-) buttons to adjust the alarm minutes.
5. Press the Mode (M) button a third time to confirm the alarm minutes and exit alarm setting mode. The "AL" indicator will remain lit, indicating the alarm is active.

6.4. Activating/Deactivating Alarm

In normal time display mode, press the Down (-) button once to toggle the alarm ON or OFF. When the alarm is ON, the "AL" indicator will be visible. When OFF, the "AL" indicator will disappear.

6.5. Snooze Function

When the alarm sounds, press the large Snooze button on the top of the clock. The alarm will pause and sound again after the set snooze duration (default 5 minutes, adjustable up to 60 minutes). To turn off the alarm completely, press any other button on the side.

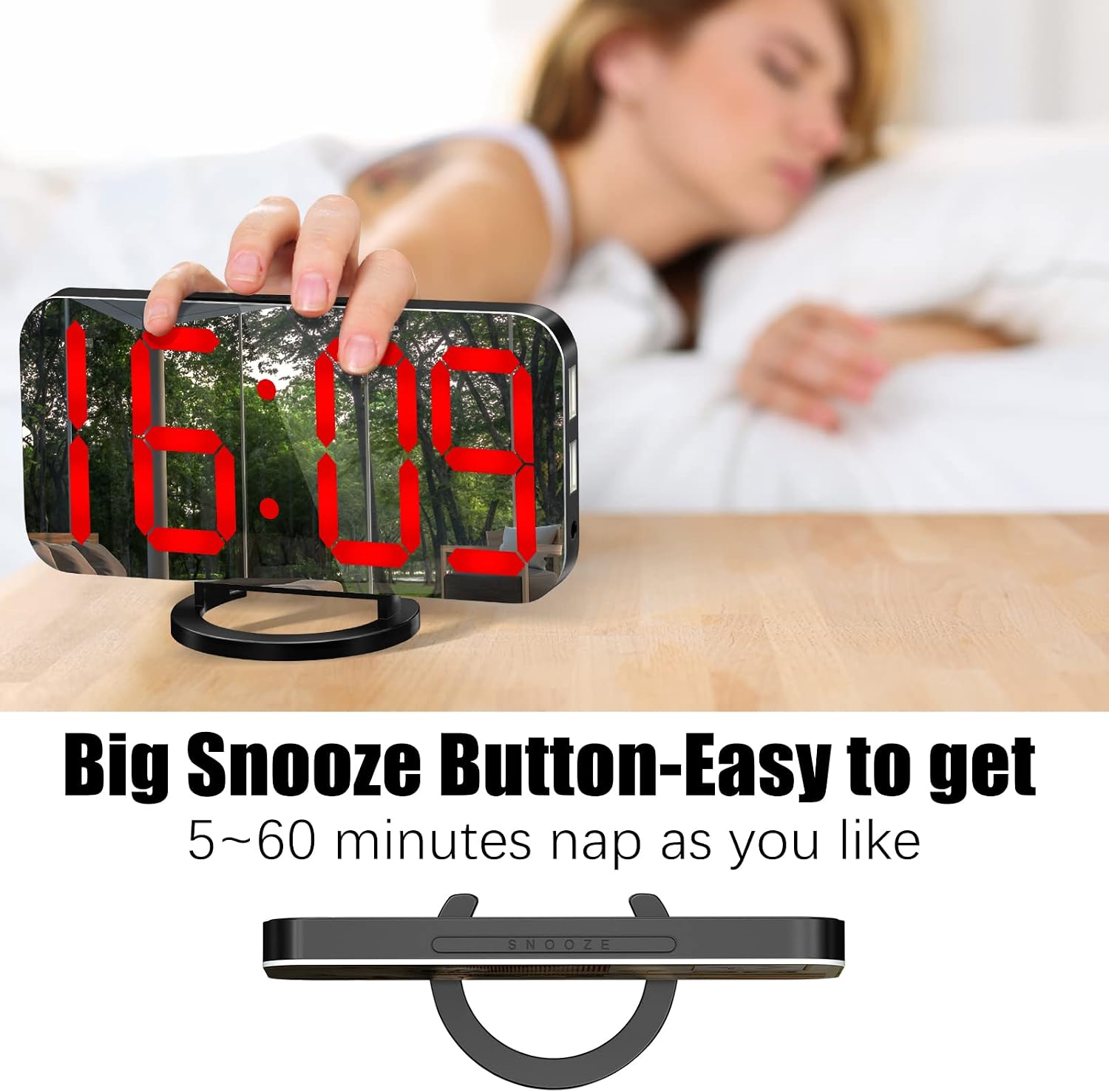

Image: A hand reaching to press the large snooze button on the top of the alarm clock.

6.6. Brightness Adjustment

The clock offers both manual and automatic brightness control:

• Manual Adjustment: In normal time display mode, press the Up (+) button repeatedly to cycle through three brightness levels (L1 - dim, L2 - medium, L3 - bright).
• Automatic Adjustment: The clock features a light sensor that can automatically dim the display at night and brighten it during the day. Ensure the light sensor (located on the side) is not obstructed for this feature to work effectively.

Image: Visual representation of the three adjustable screen brightness levels and the automatic dimming function.

6.7. USB Charging Ports

The two USB ports on the side of the clock can be used to charge other devices (e.g., smartphones, smartwatches) while the clock is powered. Each port provides 5V/1A output.

Image: The clock's mirrored surface and the two USB charging ports on its side, with devices connected for charging.

6.8. Wall Mounting

The clock can be mounted on a wall using the designated wall hanging hole on its back. Ensure the wall mount is secure and capable of holding the clock's weight.

7. Maintenance

• Clean the clock's mirrored surface with a soft, dry, lint-free cloth. Avoid abrasive cleaners or solvents.
• Keep the clock away from direct sunlight, extreme temperatures, and high humidity.
• If the backup battery needs replacement, open the battery compartment on the back and replace it with a new CR2016 battery.

8. Troubleshooting

9. Specifications

10. Product Overview Video

11. Warranty and Support

WulaWindy products are designed for quality and reliability. For any questions, technical support, or warranty claims, please contact WulaWindy customer service through the retailer where the product was purchased. Please retain your proof of purchase for warranty purposes.
