Introduction
This manual provides detailed instructions for the installation, operation, and maintenance of your BAIJAC Replacement Bobbin Winder Tire. This component is designed to restore proper bobbin winding function to compatible sewing machines.
Product Name: BAIJAC Replacement Bobbin Winder Tire
Compatible Models: Necchi 549 BU, Necchi Mira, Necchi Nova, Necchi Supernova, Necchi Good Housekeeper 555
Important Safety Information
- Always unplug your sewing machine from the power outlet before performing any maintenance or installation.
- Use appropriate tools and exercise caution to avoid injury.
- If you are unsure about any step, consult a qualified sewing machine technician.
Setup and Installation
Tools Required:
- Small flathead screwdriver (for some models)
- Needle-nose pliers (optional, for grip)
Installation Steps:
- Unplug the Machine: Ensure the sewing machine is completely disconnected from the power source.
- Locate the Bobbin Winder: Identify the bobbin winder mechanism on your sewing machine. This is typically a small spindle with a rubber tire that contacts the handwheel.
- Remove the Old Tire: Carefully pry off the old, worn-out bobbin winder tire. It may be brittle or stretched. Use a small flathead screwdriver if necessary, being careful not to scratch the machine.
- Clean the Spindle: Clean any residue or debris from the bobbin winder spindle where the tire sits. A clean surface ensures a secure fit for the new tire.
- Install the New Tire: Stretch the new BAIJAC bobbin winder tire over the spindle. Ensure it sits snugly and evenly in the groove. It should fit tightly to provide proper friction.
- Verify Fit: Gently rotate the handwheel by hand to ensure the new tire makes firm contact and rotates smoothly without slipping.

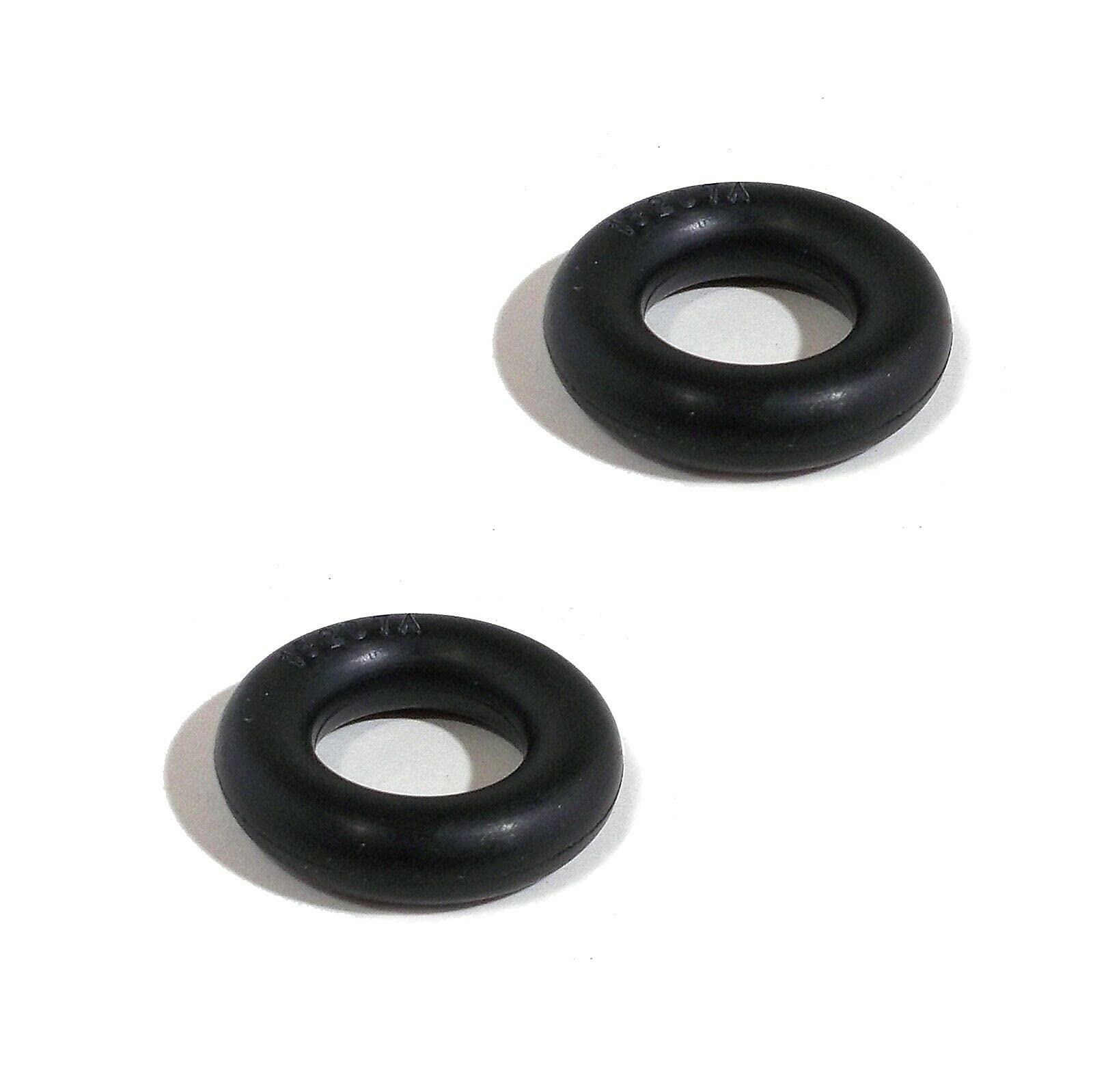

A typical bobbin winder mechanism with the tire installed. The tire should be seated firmly on the spindle and make contact with the machine's handwheel when engaged.
Operating the Bobbin Winder
After installation, follow your sewing machine's specific instructions for winding a bobbin. Generally, the process involves:
- Thread Setup: Thread the machine for bobbin winding according to your machine's manual.
- Place Bobbin: Place an empty bobbin onto the bobbin winder spindle.
- Engage Winder: Push the bobbin winder spindle towards the handwheel so the new tire makes firm contact.
- Start Winding: Press the foot pedal or engage the motor. The tire will spin the bobbin, winding thread onto it.
- Disengage Winder: Once the bobbin is full, disengage the winder and trim the thread.
Video: Demonstration of bobbin winding process.
This video would typically show the steps for threading the machine for bobbin winding and engaging the bobbin winder mechanism. It would illustrate how the bobbin winder tire facilitates the winding process by making contact with the handwheel.
Maintenance
To ensure the longevity and optimal performance of your BAIJAC Bobbin Winder Tire:
- Keep Clean: Periodically inspect the tire for lint, dust, or thread buildup. Clean with a soft, dry cloth.
- Avoid Oil: Do not apply oil or lubricants to the tire, as this can cause it to slip and lose friction.
- Storage: When not in use for extended periods, ensure the bobbin winder is disengaged from the handwheel to prevent the tire from developing flat spots.
- Inspect for Wear: Over time, rubber tires can harden or crack. If you notice reduced winding efficiency or visible damage, consider replacing the tire again.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Bobbin not winding or winding slowly. | Tire not making firm contact with handwheel. Tire is dirty or oily. Tire is worn out or hardened. | Ensure bobbin winder is fully engaged. Clean the tire and handwheel contact surface. Replace the tire if it's old or damaged. |
| Bobbin winder tire slips. | Tire is oily or greasy. Tire is not seated correctly on the spindle. Spindle or handwheel surface is dirty. | Clean the tire and contact surfaces thoroughly. Re-seat the tire firmly on the spindle. Clean the handwheel surface. |
| Bobbin winds unevenly. | Incorrect thread tension during winding. Bobbin winder mechanism issue (not tire related). | Refer to your sewing machine manual for correct bobbin winding tension. Consult a technician if the issue persists. |
Specifications
- Product Type: Replacement Bobbin Winder Tire
- Brand: BAIJAC
- Material: Durable Rubber
- Compatibility: Necchi 549 BU, Mira, Nova, Supernova, Good Housekeeper 555 sewing machines
- Quantity: 2 tires per pack
Warranty and Support
For any questions regarding the BAIJAC Replacement Bobbin Winder Tire, please contact your retailer or the manufacturer directly. Specific warranty details may vary by seller and region. Please retain your proof of purchase for warranty claims.
