BAIJAC Replacement Belt Motor Lug

BAIJAC Replacement Belt Motor Lug Instruction Manual

Model: Replacement Belt Motor Lug

1. Introduction

This manual provides essential instructions for the proper installation, operation, and maintenance of your BAIJAC Replacement Belt Motor Lug. This component is designed to replace worn or broken motor drive belts in compatible sewing machines, ensuring smooth and efficient machine operation. Please read this manual thoroughly before attempting installation or use.

2. Safety Information

  • Always disconnect the sewing machine from the power supply before performing any maintenance, installation, or repair work.
  • Wear appropriate safety gear, such as gloves, to protect your hands during installation.
  • Keep small parts away from children.
  • If you are unsure about any step, consult a qualified technician or refer to your sewing machine's original service manual.
  • Ensure all tools are clean and in good condition to prevent damage to the machine or injury.

3. Compatibility

This BAIJAC Replacement Belt Motor Lug is compatible with the following sewing machine models:

  • Elna 100, 110, 120, 130, 140, 150
  • Elna Elite 860
  • Necchi 531, 535, 535FA, 537FA

Verify your sewing machine model number before proceeding with installation.

4. Setup & Installation

Follow these steps to replace the motor lug belt on your compatible sewing machine. Specific machine designs may vary, so refer to your machine's original manual for detailed disassembly instructions.

4.1. Pre-Installation Steps

  1. Disconnect Power: Ensure the sewing machine is unplugged from the electrical outlet.
  2. Access Motor Area: Carefully open the access panels or remove the outer casing of your sewing machine to expose the motor and drive belt area. This usually involves unscrewing a few screws.
  3. Identify Old Belt: Locate the existing motor drive belt connecting the motor pulley to the handwheel pulley.

4.2. Belt Replacement Procedure

  1. Remove Old Belt: Gently roll the old belt off the pulleys. If it is broken, remove all fragments.
  2. Clean Pulleys: Use a clean cloth to wipe any dust, lint, or rubber residue from both the motor pulley and the handwheel pulley. This ensures optimal grip for the new belt.
  3. Install New Belt:
    • Place the new BAIJAC Replacement Belt Motor Lug onto the smaller motor pulley first.
    • Then, stretch the belt over the larger handwheel pulley. It may require some gentle force to stretch it into place. Ensure the belt sits securely in the grooves of both pulleys.
  4. Check Tension: The new belt should be taut but not overly tight. It should have a slight amount of give when pressed. If it's too loose, it may slip; if too tight, it can strain the motor and bearings.
  5. Reassemble Machine: Carefully reattach any removed panels or casing. Ensure all screws are tightened securely.
BAIJAC Replacement Belt Motor Lug

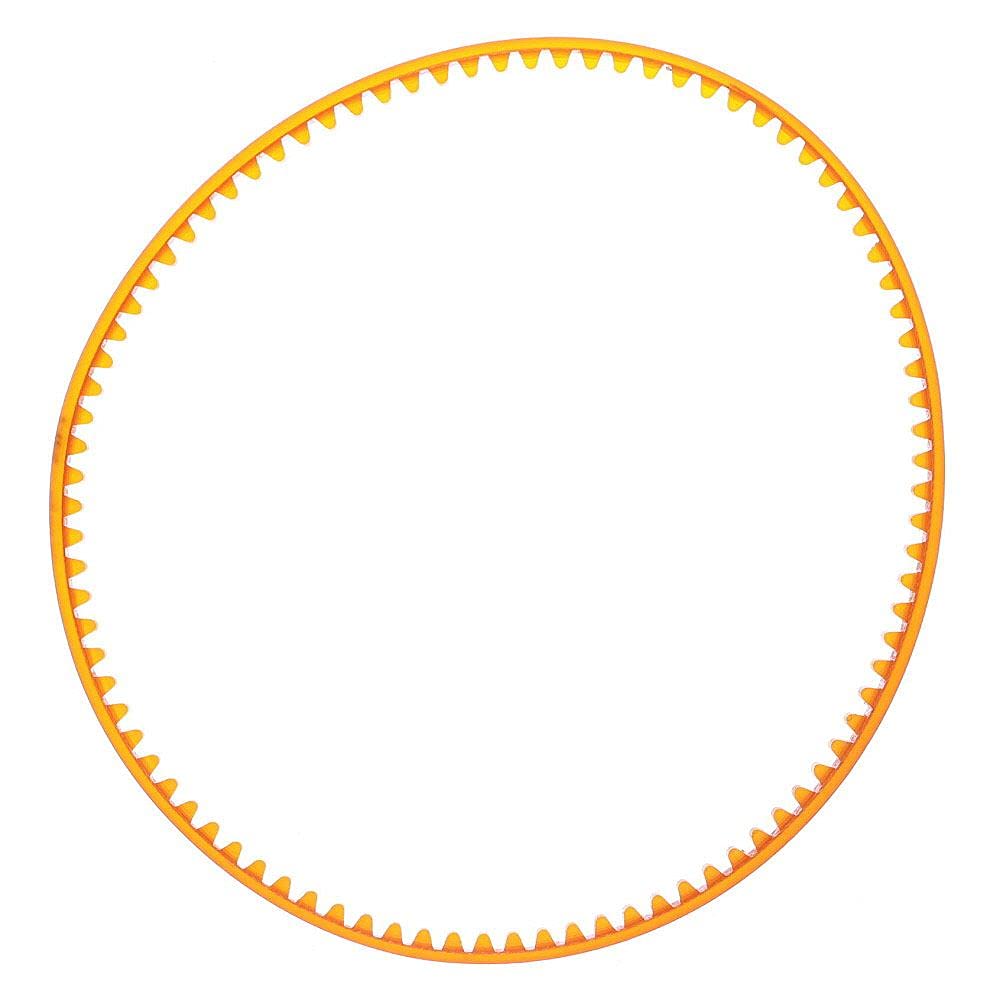

Figure 1: BAIJAC Replacement Belt Motor Lug. This image shows the replacement belt, which is crucial for connecting the motor to the sewing machine's handwheel.

5. Operating (Post-Installation)

After successful installation of the replacement belt, perform the following checks:

  1. Power On: Plug the sewing machine back into the power outlet.
  2. Test Run: Operate the machine at various speeds without thread or fabric. Listen for any unusual noises, observe the belt for smooth rotation, and ensure consistent power delivery to the needle bar and feed dogs.
  3. Adjustments: If the belt slips or makes excessive noise, re-check its tension and seating on the pulleys. Some machines may have a motor adjustment screw to fine-tune belt tension.

6. Maintenance

Proper maintenance extends the life of your motor belt and ensures optimal sewing machine performance:

  • Regular Inspection: Periodically inspect the belt for signs of wear, cracking, fraying, or glazing. Replace the belt if any damage is observed.
  • Keep Clean: Keep the motor and belt area free from dust, lint, and oil. Accumulation can cause the belt to slip or wear prematurely.
  • Avoid Over-tightening: Do not over-tighten the belt, as this can cause excessive strain on the motor and bearings, leading to premature failure.
  • Storage: If the machine is stored for extended periods, ensure it is in a dry, temperature-controlled environment to prevent material degradation of the belt.

7. Troubleshooting

Problem Possible Cause Solution
Belt slips during operation. Belt is too loose, pulleys are dirty/oily, or belt is worn/glazed. Adjust belt tension, clean pulleys, or replace belt if worn.
Unusual noise from motor/belt area. Belt is too tight, misaligned, or worn. Motor bearings may be failing. Check belt tension and alignment. If noise persists, inspect motor bearings or consult a technician.
Machine runs slowly or lacks power. Belt is slipping significantly, or motor itself is faulty. Ensure belt is properly tensioned and not slipping. If problem persists, motor may require service.
Belt breaks prematurely. Belt was over-tightened, defective, or machine has excessive friction. Ensure correct tension. Inspect machine for binding parts. Replace belt.

8. Specifications

  • Product Type: Replacement Belt Motor Lug
  • Brand: BAIJAC
  • Belt Style: Flat belt
  • Compatible Devices: Elna 100, 110, 120, 130, 140, 150, Elna Elite 860, Necchi 531, 535, 535FA, 537FA sewing machines.
  • ASIN: B0B86M68NG
  • Manufacturer: BAIJAC

9. Warranty & Support

For specific warranty information regarding your BAIJAC Replacement Belt Motor Lug, please refer to the purchase documentation or contact the seller directly. Warranty terms may vary depending on the retailer and region.

For technical support or further assistance, please contact the manufacturer or your point of purchase. Always provide your product's ASIN (B0B86M68NG) when seeking support.

© 2023 BAIJAC. All rights reserved. Information in this manual is subject to change without notice.
