Introduction
This instruction manual provides detailed guidance for the assembly, operation, and maintenance of your AMOC Technik Dynamic Bulldozer MOC-49777 building set. This complex model features an advanced motor drive system, remote-controlled pneumatic functions, and consists of over 12,000 pieces, offering an engaging building experience.
Setup and Assembly
The AMOC Technik Dynamic Bulldozer MOC-49777 is a highly detailed building set comprising 12,135 pieces. Assembly requires careful attention to detail and adherence to the provided instructions.
Assembly Instructions
A professional and detailed PDF assembly instruction manual is included with your set. Please follow these instructions step-by-step to ensure correct construction. Due to the complexity and number of parts, it is recommended to organize components before starting.
Motor and Pneumatic System Installation
This model features a comprehensive electrical system, including 16 motors. Each wheel is driven by 2 XL motors, and 2 L motors control the linear actuators for steering. The pneumatic system, which controls the bucket, requires careful installation of approximately 5.8 meters of pneumatic hose. The entire system is powered by 3 Buwizz units (not included, typically purchased separately).

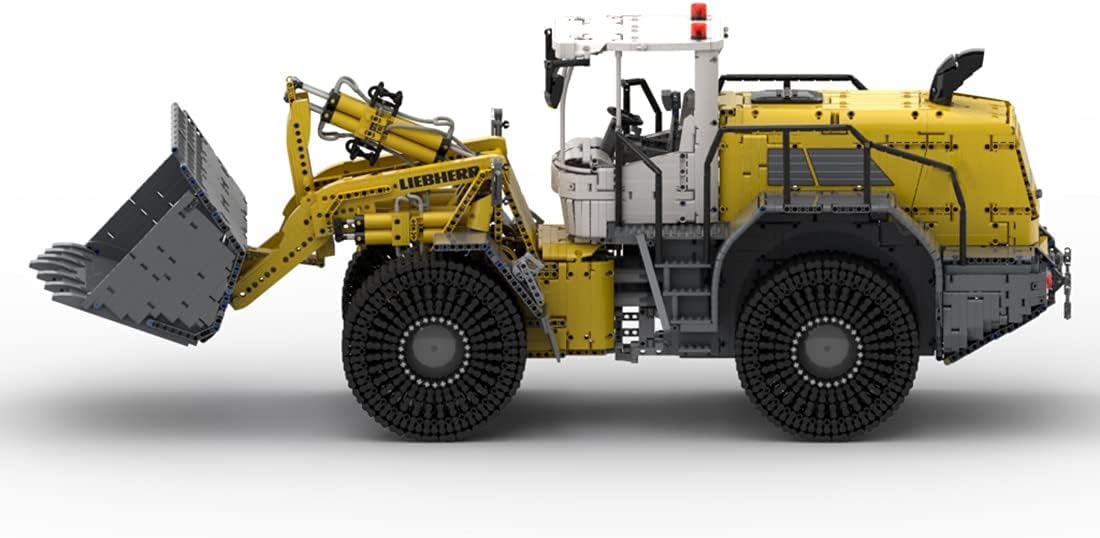

Image: Side view of the fully assembled AMOC Technik Dynamic Bulldozer MOC-49777, showcasing its detailed construction and large wheels.

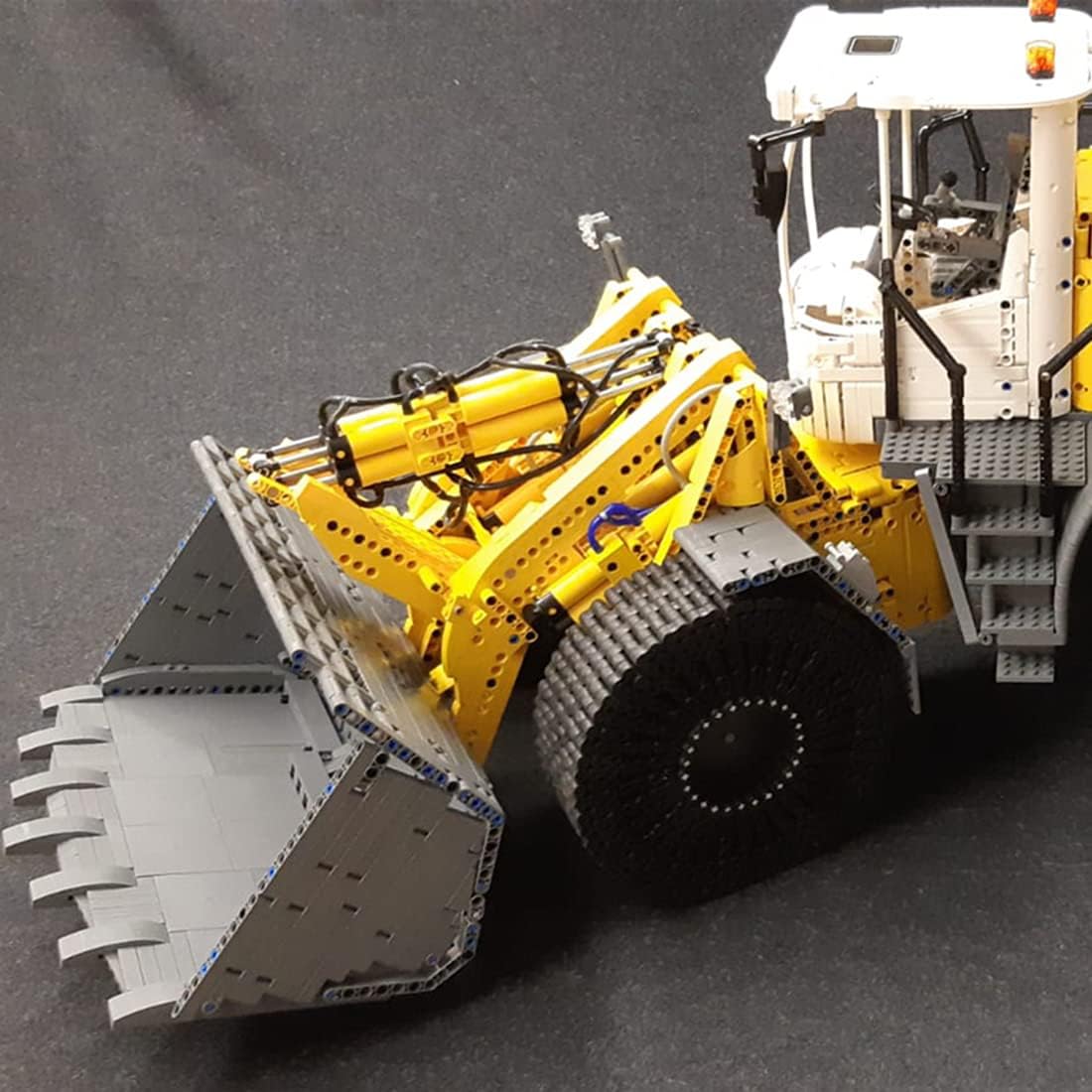

Image: Close-up view of the front bucket and arm mechanism, highlighting the pneumatic cylinders and structural details.
Operating Instructions
The Dynamic Bulldozer is designed for remote-controlled operation, providing realistic movement and functionality.
Powering On
Ensure the 3 Buwizz units are correctly installed and charged. Power on the Buwizz units and establish a connection with your remote control device (e.g., smartphone with Buwizz app).
Driving and Steering
The bulldozer's movement is controlled by the 8 XL motors (2 per wheel). Use your remote control to drive forward, backward, and steer. The 2 L motors manage the steering mechanism via linear actuators.
Pneumatic Bucket Control
The pneumatic system allows for precise control of the front bucket. The bucket can be raised to a maximum height of 64 cm. Use the designated controls on your remote to operate the pneumatic cylinders for lifting, lowering, and tilting the bucket.

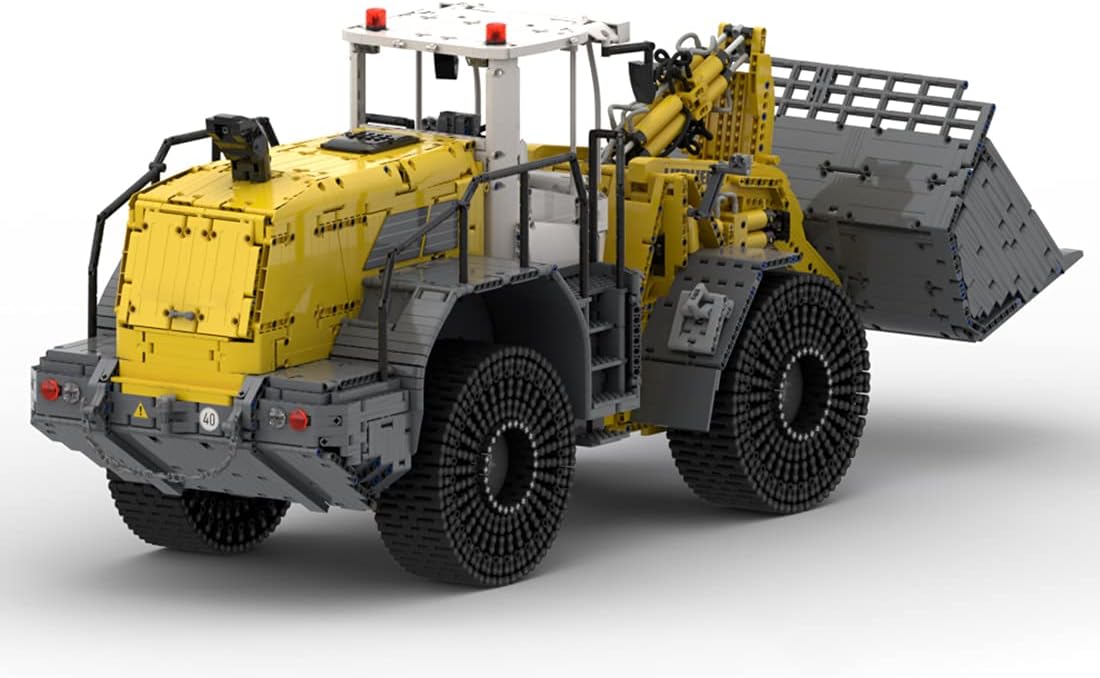

Image: Front three-quarter view of the bulldozer, showing its robust design and large tires.
Image: Overhead view of the bulldozer, illustrating its overall layout and the position of the cabin and bucket.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your AMOC Technik Dynamic Bulldozer.
- Cleaning: Regularly dust the model with a soft, dry cloth. Avoid using water or chemical cleaners, as these can damage the plastic components or electronic parts.
- Component Check: Periodically inspect all connections, especially those for motors and pneumatic hoses, to ensure they are secure. Loose connections can affect performance.
- Storage: Store the model in a cool, dry place away from direct sunlight and extreme temperatures to prevent material degradation.
Troubleshooting
If you encounter issues with your Dynamic Bulldozer, consider the following common solutions:
- Model Not Responding:
- Ensure the Buwizz units are charged and powered on.
- Verify the remote control device is properly connected to the Buwizz units.
- Check all motor connections for looseness.
- Pneumatic System Malfunction:
- Inspect all pneumatic hoses for kinks, leaks, or disconnections.
- Ensure the pneumatic pump (if applicable) is functioning correctly.
- Movement Issues:
- Check for any obstructions in the wheels or steering mechanism.
- Verify that all drive motors are correctly installed and connected.
For persistent issues, refer to the detailed PDF assembly instructions or contact customer support.
Product Specifications
| Model Number | MOC-49777 |
| Brand | AMOC |
| Product Dimensions (L x W x H) | 105 x 32 x 41 cm |
| Item Weight | 16 kg |
| Number of Pieces | 12135 |
| Material Type | Acrylonitrile Butadiene Styrene (ABS) |
| Power Source | Corded Electric (requires 3 Buwizz units) |
| Special Features | Remote-controlled pneumatic device, 16 motors |
| Recommended Age | 14 years and older |
Image: Diagram illustrating the key dimensions of the AMOC Technik Dynamic Bulldozer: 103cm length, 40.5cm width, and 40cm height.
Warranty and Support
For any questions regarding your AMOC Technik Dynamic Bulldozer MOC-49777 building set, including missing parts, assembly assistance, or operational issues, please contact the seller or manufacturer directly. Specific warranty details may vary; please refer to your purchase documentation for information on returns or replacements.
