1. Introduction
This user manual provides detailed instructions for the installation, operation, and maintenance of your ulip Front Suspension Kit and Adjustable Kickstand. This kit is designed to enhance the riding experience of your Segway Ninebot Max G30, G30LP, G30E, and G30D electric scooters by providing superior shock absorption and improved stability. Please read this manual thoroughly before installation and use to ensure proper function and safety.
2. Product Features
- Enhanced Shock Absorption: Specifically designed to reduce uncomfortable vibrations and impacts, providing a smoother and more comfortable ride, especially beneficial for extended use.
- Adjustable Kickstand: Includes a specially designed ulip kickstand with adjustable length and angle, anti-skid feet, and anti-rust aluminum construction for easy and stable parking.
- High-Quality Material: Constructed from durable stainless steel for ultra-long service life. The sturdy, smooth spring ensures non-stuck and soft flex during extension.
- Wide Compatibility: Compatible with Segway Ninebot Max G30, G30E II, G30 LE, G30D, and G30LP electric scooters.
- Simplified Installation: Designed for user-friendly installation, even for non-professional users.
Image: Key features of the ulip Front Suspension Kit, highlighting perfect shock absorption, comfortable ride, high-quality material, and tough and durable construction.
3. Package Contents
Please verify that all components are present and undamaged before proceeding with installation.
- ulip Front Suspension Fork Assembly
- Adjustable Kickstand
- Installation Hardware (screws, washers, Allen wrench)
- Fender Extension (if applicable)
Image: All components included in the ulip Front Suspension Kit, showing the suspension fork, adjustable kickstand, and various installation tools and fasteners.
4. Safety Information
- Always wear appropriate safety gear, including gloves and eye protection, during installation.
- Ensure the scooter is turned off and stable before beginning any work.
- If you are unsure about any step, seek professional assistance.
- Do not overtighten screws, as this may damage components.
- Regularly inspect the installed components for any signs of wear or loosening.
5. Setup and Installation
This section outlines the steps for installing the ulip Front Suspension Kit and Adjustable Kickstand on your Segway Ninebot Max scooter. For a visual guide, please refer to the installation video below.
5.1. Tools Required
- Allen wrenches (various sizes, typically included)
- Socket wrench (for wheel axle nut)
- Pliers (optional, for cable management)
5.2. Installation Steps
- Prepare the Scooter: Ensure the scooter is powered off and placed on a stable surface. It is recommended to elevate the front wheel for easier access.
- Remove Original Components:
- Carefully remove the plastic covers from the front wheel axle.
- Unscrew the front wheel axle nut and remove the front wheel.
- Loosen the screws on the original folding mechanism/stem clamp and carefully remove the entire stem assembly from the scooter frame.
- Remove the original front fender.
Image: The original front wheel and fender assembly of the Segway Ninebot Max scooter, prior to removal for suspension kit installation.
- Install New Suspension Fork:
- Insert the new ulip front suspension fork into the scooter's head tube. Ensure it slides in smoothly.
- Reattach the stem assembly to the top of the new suspension fork. Tighten the screws on the stem clamp securely, ensuring the stem is aligned straight with the scooter.
- Attach the new front fender to the suspension fork using the provided screws.
Image: The ulip front suspension fork being installed into the scooter's head tube, showing the new fork assembly in place.
- Reinstall Front Wheel:
- Carefully place the front wheel back into the new suspension fork. Align the wheel with the fork dropouts.
- Insert the axle through the wheel and fork, then secure it with the axle nut. Tighten firmly.
- Reattach any brake cables or other components that were disconnected.
Image: The front wheel reattached to the newly installed ulip front suspension kit, demonstrating the completed assembly.
- Install Adjustable Kickstand:
- Locate the kickstand mounting area on your scooter.
- Attach the ulip adjustable kickstand using the provided hardware. Ensure it is securely fastened and can be easily deployed and retracted.
- Adjust the kickstand length as needed for optimal scooter stability when parked.
Image: The adjustable kickstand, showing its design and how it attaches to the scooter for stable parking.
- Final Checks:
- Double-check all screws and bolts to ensure they are tightened securely.
- Test the front suspension by gently pressing down on the handlebars to ensure smooth compression and rebound.
- Verify that the front wheel spins freely and the brakes function correctly.
5.3. Installation Video Guide
Video: A detailed installation guide for the ulip Front Suspension Kit on a Ninebot Max scooter, demonstrating each step of the process.
6. Operating Tips
With the ulip Front Suspension Kit installed, your scooter will provide a significantly smoother ride. Here are some tips for optimal operation:
- Adapt to Road Conditions: The suspension is designed to handle various road conditions, from smooth pavement to rougher terrains like cobblestones.
- Improved Braking: The enhanced damping effect can improve braking stability.
- Comfort on Bumps: Experience reduced impact and vibration when riding over bumps and potholes.
Image: A scooter equipped with the ulip Front Suspension Kit navigating different road surfaces, illustrating its adaptability and improved ride comfort.
7. Maintenance
Regular maintenance ensures the longevity and optimal performance of your ulip Front Suspension Kit and Adjustable Kickstand.
- Regular Inspection: Periodically check all bolts and screws for tightness. Re-tighten if necessary.
- Cleanliness: Keep the suspension components clean from dirt and debris to prevent wear and tear.
- Lubrication: Apply a small amount of silicone-based lubricant to the moving parts of the suspension and kickstand if any squeaking or stiffness occurs.
- Damage Check: Inspect the suspension fork and kickstand for any signs of damage, cracks, or excessive wear. Replace damaged parts immediately.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Suspension feels stiff or doesn't absorb shocks effectively. | Lack of lubrication; internal component issue. | Apply silicone lubricant to the moving parts. If problem persists, contact customer support. |
| Front wheel wobbles after installation. | Axle nut not tightened sufficiently; stem clamp loose. | Ensure the front wheel axle nut is securely tightened. Check and tighten the stem clamp screws. |
| Kickstand is unstable or difficult to use. | Incorrect length adjustment; loose mounting bolts. | Adjust the kickstand length for optimal balance. Tighten the mounting bolts. |
| Unusual noises from the front suspension. | Loose components; lack of lubrication; foreign object. | Inspect all connections for tightness. Lubricate moving parts. Check for any lodged debris. |
9. Specifications
| Attribute | Value |
|---|---|
| Brand | ulip |
| Model Number | US-G30 Frontsuspension set-B |
| Compatibility | Segway Ninebot Max G30 / G30E II / G30 LE / G30D / G30LP Electric Scooters |
| Material | High-quality Stainless Steel (suspension), Aluminum (kickstand) |
| Item Weight | 1 Kilograms |
| Package Weight | 2.06 Kilograms |
| Item Package Dimensions (L x W x H) | 15.63 x 6.3 x 3.82 inches |

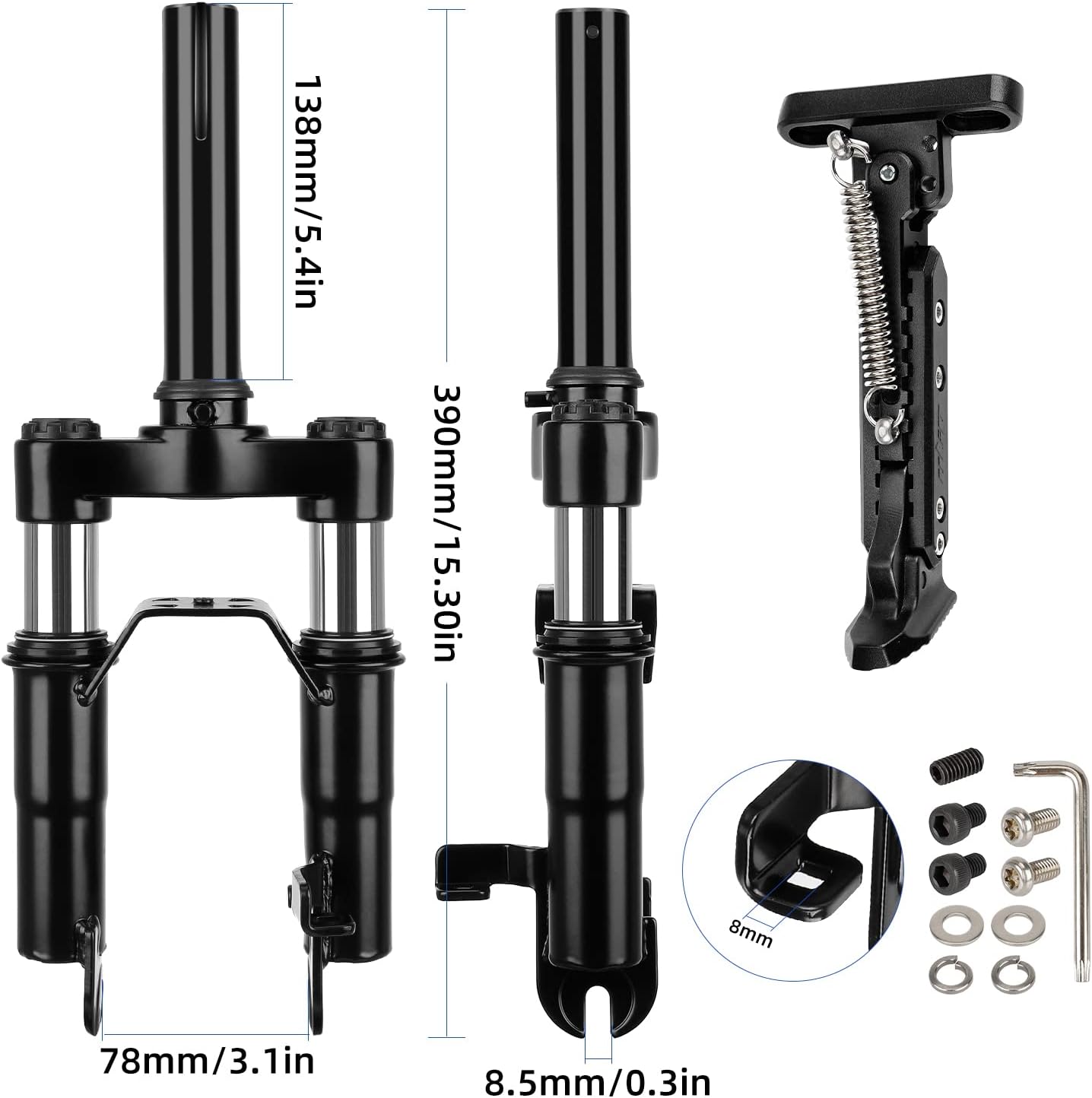

Image: Detailed dimensions of the ulip Front Suspension Kit components, including length and width measurements for the fork and kickstand.
10. Warranty and Support
For any questions, assistance with installation, or issues with your ulip Front Suspension Kit, please contact the seller directly. The manufacturer, ulip, is committed to customer satisfaction and provides support for their products.
Refer to your purchase documentation for specific warranty terms and conditions.
You can find more professional electric scooter accessories in the ulip store.
