1. Introduction and Overview
This manual provides essential instructions for the safe assembly, operation, and maintenance of your Sportspower Northridge Metal Swing Set, Model TSC-1001. This outdoor playset is designed for children aged 3 to 8 years, offering a variety of activities including a saucer swing, two blow-molded swings, and a 5-foot wavy slide. Please read all instructions carefully before assembly and use to ensure maximum safety and enjoyment.
Image 1.1: Overview of the Sportspower Northridge Metal Swing Set.
2. Safety Information
Your safety and the safety of others are paramount. Adhere to all warnings and instructions to prevent injury.
- Age and Weight Limits: This swing set is intended for children aged 3 to 8 years. The maximum total weight capacity is 500 lbs, with a maximum of 100 lbs per individual user. A maximum of 5 children should use the set simultaneously.
- Adult Supervision: Constant adult supervision is required at all times when children are using the swing set.
- Proper Installation: Ensure the swing set is assembled correctly according to the instructions and securely anchored to the ground using the provided anchor kit. Place the set on level ground, at least 6 feet away from any structures or obstacles.
- Safety Features: The swing chains are vinyl-covered to protect hands, and the frame legs are foam-padded for added safety.
- Regular Inspection: Perform routine checks for loose bolts, worn parts, or structural damage. Replace any damaged components immediately.
- ASTM Standards: This product has been tested and meets or exceeds ASTM safety standards.
3. Setup and Assembly Instructions
Assembly of the Sportspower Northridge Metal Swing Set requires two adults. Follow these general steps for proper setup. Refer to the detailed assembly guide included in your product packaging for specific part identification and step-by-step diagrams.
- Unpack Components: Carefully unpack all parts and verify against the parts list in your assembly guide.
- Assemble Frame: Begin by assembling the main A-frame structure. The frame is constructed from powder-coated steel for rust resistance and stability.
- Attach Swings and Slide: Securely attach the 32-inch saucer swing, the two blow-molded swings, and the 5-foot wavy slide to the frame. Ensure all connections are tight.
- Install Anchor Kit: Use the included 4-piece anchor kit to secure the swing set to the ground. This is crucial for stability and preventing tipping during use.
- Final Inspection: Before first use, double-check all bolts, nuts, and connections to ensure they are tightened and secure.
Image 3.1: Illustration of the swing set's safe and sturdy A-frame design, featuring rust-resistant, powder-coated, and weather-resistant finish.

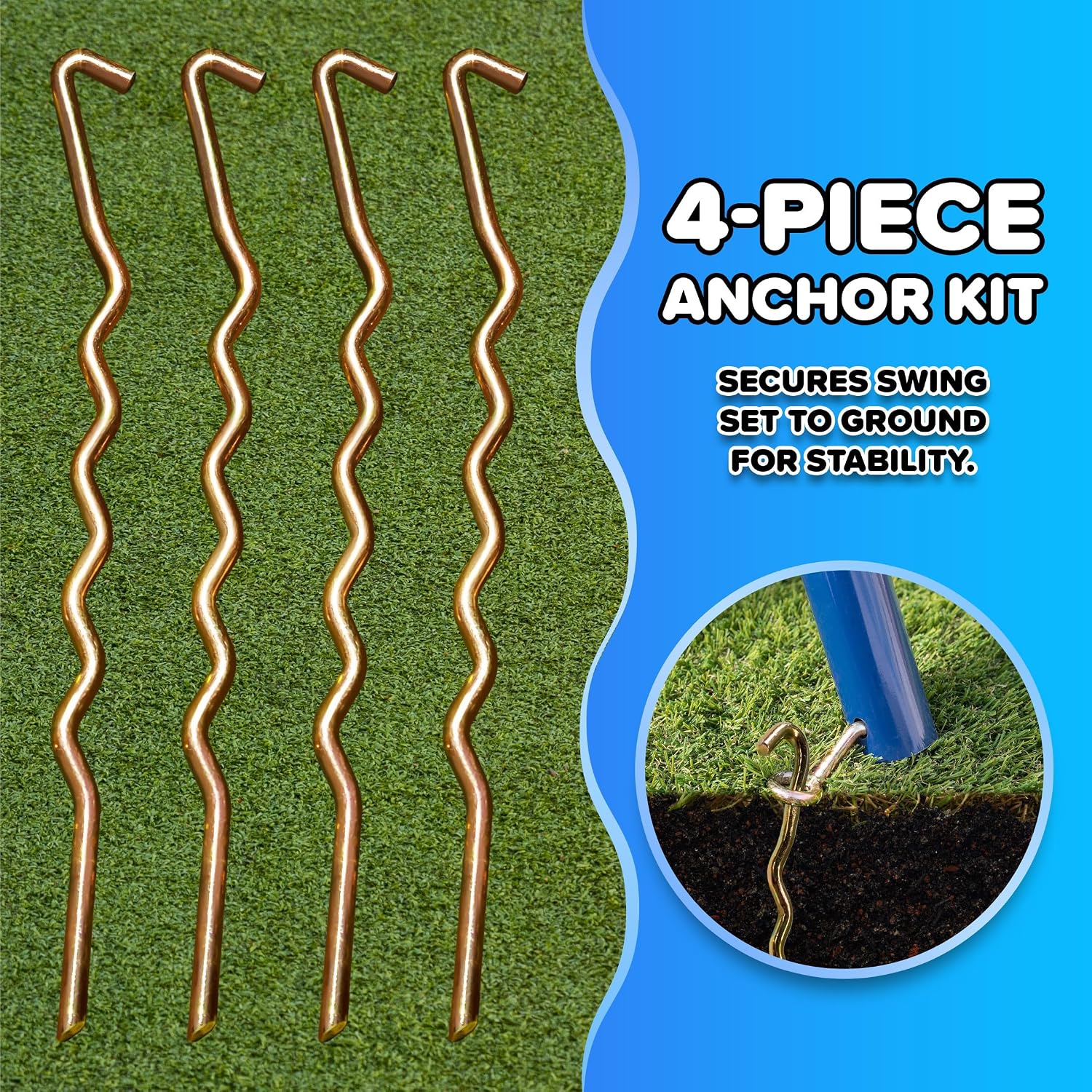

Image 3.2: The 4-piece anchor kit, designed to secure the swing set to the ground for enhanced stability.

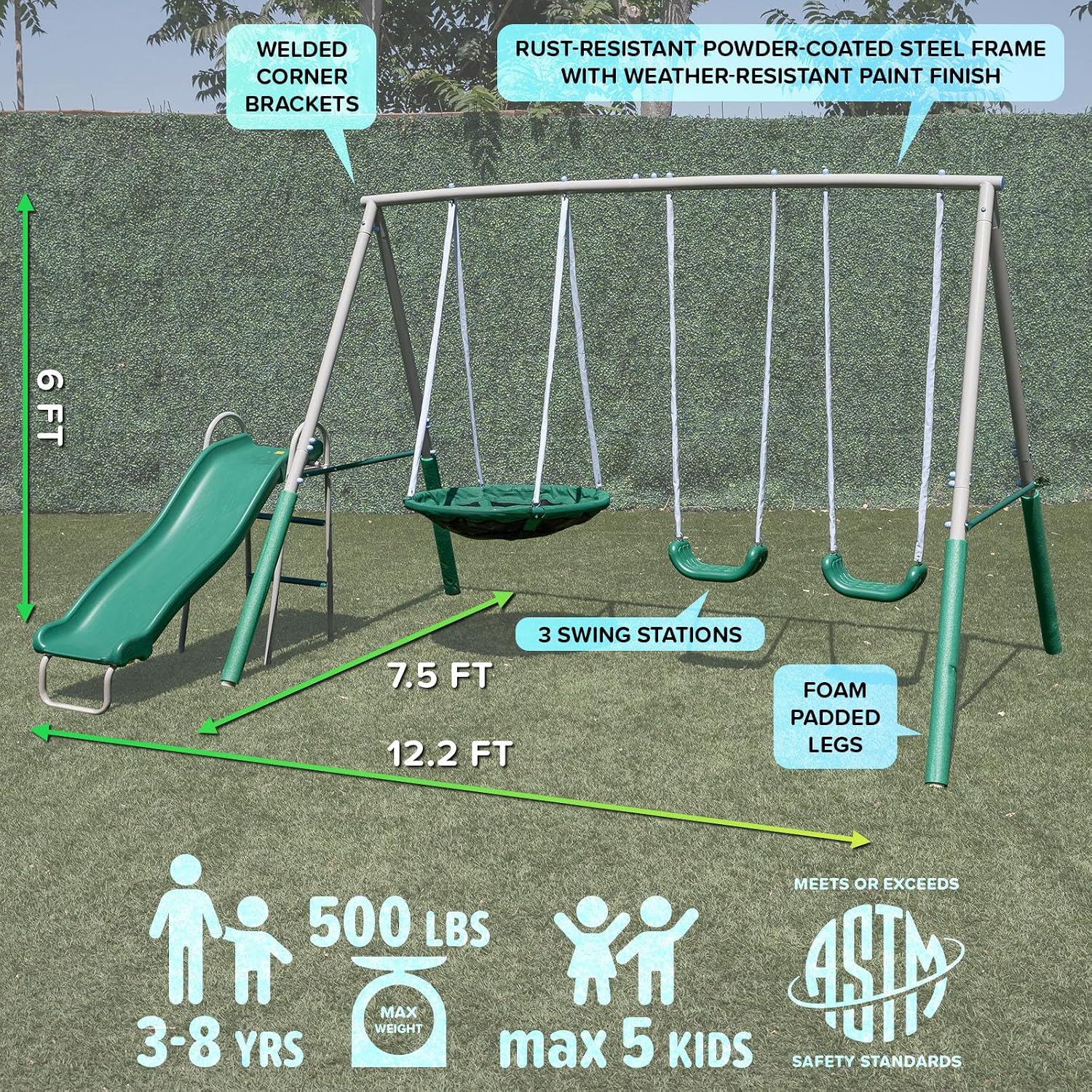

Image 3.3: Diagram showing the overall dimensions (6 ft H, 7.5 ft D, 12.2 ft W) and key features of the swing set, including foam-padded legs and welded corner brackets.
4. Operating Instructions
Ensure children understand and follow these guidelines for safe play.
- Swings: Instruct children to sit in the center of the swing seat, holding onto the chains firmly. Avoid twisting chains, standing on swings, or swinging too high.
- Saucer Swing: The 32-inch saucer swing is designed for two children. Ensure both children are seated properly within the reinforced inner netting before swinging.
- Slide: Children should slide down feet first, one at a time. Ensure the landing area is clear before sliding. The 5-foot wavy slide features a 2-inch edge on each side for safety and a safe landing zone.
- Clear Area: Keep the area around the swing set clear of other children, pets, and obstacles during use.
Image 4.1: Two children enjoying the 2-person padded saucer swing, which features reinforced inner netting for safety.
Image 4.2: A child using one of the two blow-molded swing seats, highlighting the thick PVC chain covers for comfort and safety.
Image 4.3: A child descending the 5-foot double-walled blow-molded wavy slide, which includes a 2-inch safety edge and a safe landing zone.
Video 4.4: An official Sportspower brand video showcasing the swing set in use, demonstrating its features and play activities.
5. Maintenance
Regular maintenance is crucial to ensure the longevity and safety of your swing set.
- Monthly Checks: Inspect all nuts and bolts for tightness. Tighten as necessary. Check all coverings for bolts and sharp edges and replace if missing or damaged.
- Seasonal Checks: At the beginning of each play season, and twice a month during the play season, check all moving parts, including swing chains, ropes, cables, and other connecting hardware, for wear, rust, or deterioration. Replace any worn or damaged parts.
- Frame Inspection: Examine the metal frame for any signs of rust, cracks, or structural fatigue. The powder-coated finish helps prevent rust, but any exposed metal should be treated.
- Cleaning: Clean the swing set regularly with mild soap and water. Avoid harsh chemicals that could damage the finish or plastic components.
- Ground Anchoring: Periodically check that the ground anchors remain firmly in place. Re-secure if they become loose.
6. Troubleshooting
Address common issues promptly to maintain safety and functionality.
- Squeaking Noises: If swings or other moving parts begin to squeak, check for loose connections. A small amount of lubricant (e.g., silicone spray) can be applied to pivot points, avoiding contact with plastic seats or chains.
- Instability: If the swing set feels unstable, ensure it is placed on level ground and that the anchor kit is fully and correctly installed. Verify all frame connections are tight.
- Missing or Damaged Parts: If you discover any missing or damaged parts during assembly or use, do not use the swing set. Contact Sportspower customer support for assistance.
7. Specifications
| Feature | Detail |
|---|---|
| Brand | Sportspower |
| Model Number | TSC-1001 |
| Set Name | Northridge |
| Material | Alloy Steel (Frame) |
| Finish Type | Powder-coated Metal |
| Color | Light Grey and Green |
| Product Dimensions (D x W x H) | 90"D x 146.4"W x 72"H (approx. 7.5 ft D x 12.2 ft W x 6 ft H) |
| Item Weight | 73 Pounds |
| Maximum Weight Recommendation | 500 Pounds (Total) |
| Maximum Compatible Number of Seats | 5 |
| Saucer Swing | 32-inch, 2-person |
| Blow-Molded Swings | 2 |
| Slide | 5-foot Wavy, Blow-Molded |
| Required Assembly | Yes |
| UPC | 687064065123 |
8. Warranty and Customer Support
Warranty: The Sportspower Northridge Metal Swing Set frame is backed by a limited lifetime warranty. This warranty covers defects in materials and workmanship under normal use and service. Please refer to your product packaging or the Sportspower website for full warranty details and terms.
Customer Support: For assistance with assembly, missing parts, troubleshooting, or warranty claims, please contact Sportspower Customer Support. Keep your model number (TSC-1001) and proof of purchase readily available when contacting support.
Contact information can typically be found on the product packaging or the official Sportspower website.
