1. Introduction
This manual provides essential information for the safe and effective installation, operation, and maintenance of your Criditpid Replacement Fireplace Fan Blower and Heating Element. This unit is designed as a direct replacement part for various Twin Star electric fireplace models, including 28E05, 28E05R, TS-001, 23EF010GAA, and 10QI071ARA. Please read this manual thoroughly before proceeding with any installation or operation.
Figure 1.1: Example of a fireplace where the blower unit can be installed.
2. Safety Information
Adhering to these safety guidelines is crucial to prevent injury and damage to the product or property.
- Disconnect Power: Always ensure the fireplace unit is completely disconnected from the main power supply before attempting any installation, maintenance, or troubleshooting.
- Professional Installation: If you are not confident in your ability to safely install electrical components, it is recommended to seek assistance from a qualified technician.
- Proper Ventilation: Ensure the fireplace area has adequate ventilation to prevent overheating.
- Inspect for Damage: Before installation, carefully inspect the blower and heating element for any signs of shipping damage. Do not install if damaged.
- Electrical Safety: Do not modify the wiring or components. Ensure all connections are secure and comply with local electrical codes.
3. Package Contents
Verify that all components are present in the package:
- 1 x Criditpid Replacement Fireplace Fan Blower Unit
- 1 x Integrated Heating Element

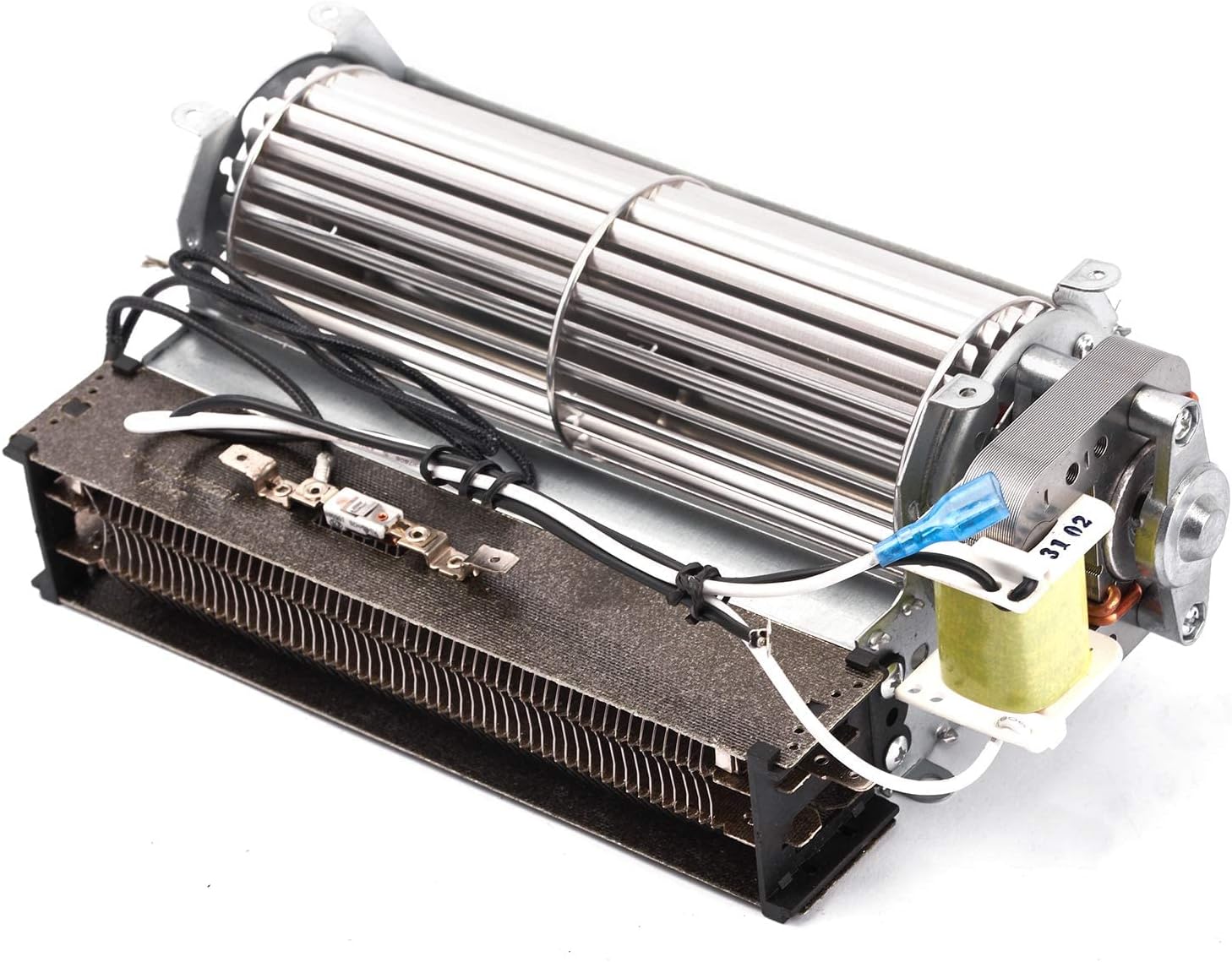

Figure 3.1: The Criditpid Replacement Fireplace Fan Blower and Heating Element.
4. Specifications
Key technical specifications for the Criditpid Replacement Fireplace Fan Blower and Heating Element:
| Feature | Specification |
|---|---|
| Total Width (excluding heating element) | 9.75 inches |
| Depth | 3.73 inches |
| Height | 3.23 inches |
| Blower Fan Size | Diameter 60mm x Length 185mm |
| IR Heater Size | Length 200mm x 35mm |
| Wattage | 1350W |
| Voltage | 120V |
| Temperature Switch | 105°C / 221°F |
| Motor Approval | UL Approved |
| Item Weight | 2.14 Pounds |
| Main Power Connector Type | NEMA 5-15 |
Figure 4.1: Dimensional overview of the blower and heating element.
5. Installation Guide
This section outlines the general steps for replacing your fireplace blower and heating element. Specific steps may vary slightly depending on your fireplace model. Always refer to your fireplace's original manual for detailed disassembly and reassembly instructions.
- Preparation:
- Ensure the fireplace unit is unplugged from the wall outlet and completely cooled down.
- Clear the area around the fireplace for safe access.
- Measure the space available in your fireplace to confirm compatibility with the new blower unit.
- Access the Old Unit:
- Carefully remove any decorative grates, logs, or panels that obstruct access to the existing blower and heating element.
- Note the existing wiring connections and how the old unit is mounted. Taking photos can be helpful.
- Remove the Old Unit:
- Disconnect all electrical wiring from the old blower and heating element. Pay attention to which wires connect where.
- Unscrew or unclip any fasteners holding the old unit in place and carefully remove it from the fireplace.
- Install the New Unit:
- Position the Criditpid replacement unit in the designated space within the fireplace.
- Secure the new unit using the appropriate screws or mounting clips. Ensure it is stable and level.
- Connect the electrical wiring to the new blower and heating element. Match the connections as they were on the old unit. The motor is UL approved for safety.
- Reassemble and Test:
- Carefully reassemble any panels, logs, or grates that were removed.
- Plug the fireplace unit back into the power outlet.
- Test the fan and heating functions to ensure proper operation. The unit should run quietly and efficiently.

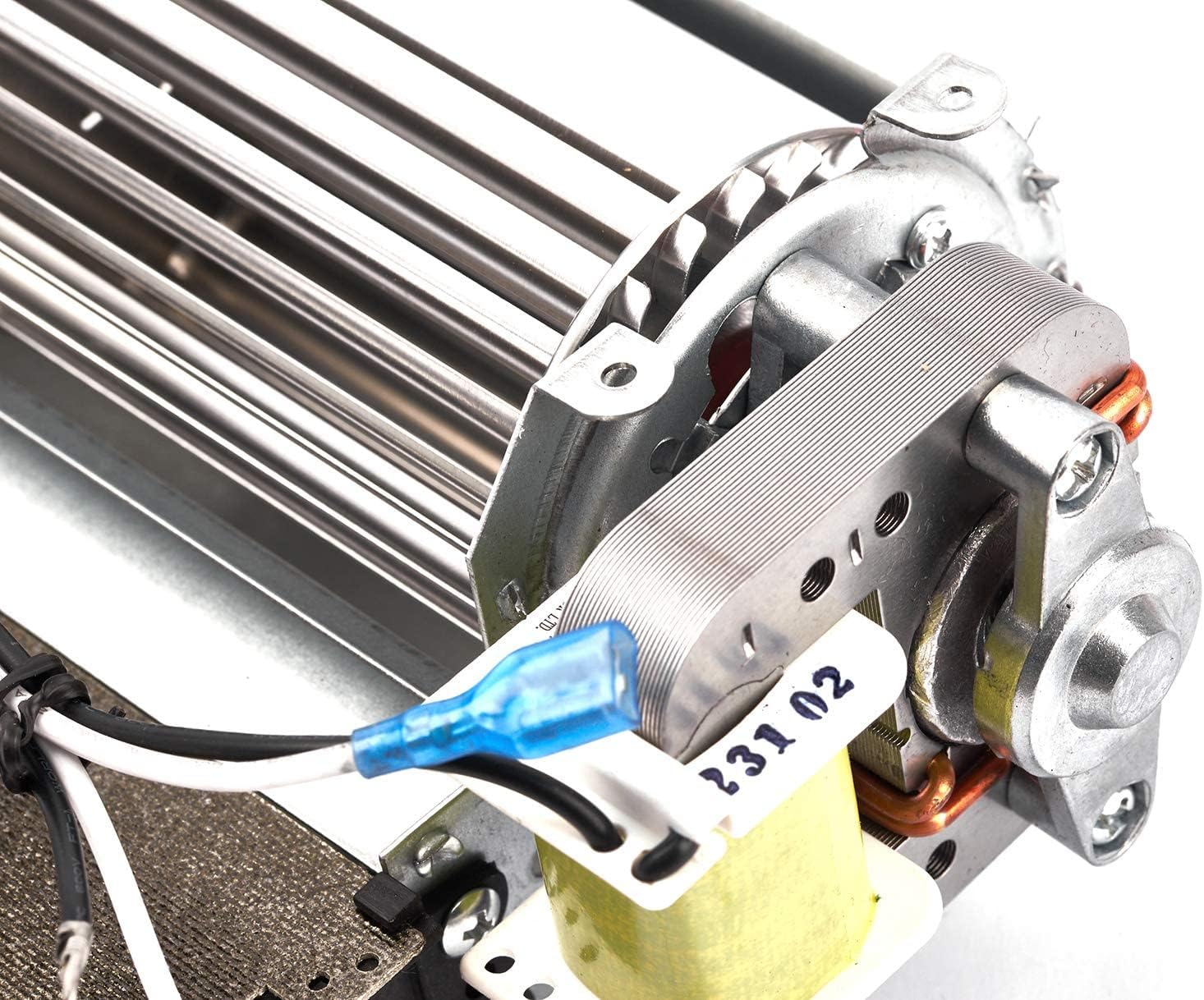

Figure 5.1: Various views of the Criditpid blower and heating element for installation reference.
Figure 5.2: Visual representation of the installation process.
6. Operating Instructions
Once installed, the Criditpid Replacement Fireplace Fan Blower and Heating Element operates in conjunction with your fireplace's existing controls. The unit is designed to circulate warm air generated by the heating element, distributing it more effectively into your room.
- Power On/Off: The blower and heating element will activate and deactivate with the fireplace's main power switch or remote control, as per your fireplace's design.
- Temperature Control: The heating element's output is regulated by the fireplace's thermostat or temperature settings. The integrated temperature switch (105°C / 221°F) provides an additional safety measure against overheating.
- Fan Operation: The blower fan will typically operate when the heating element is active, ensuring efficient heat distribution.
Figure 6.1: The blower provides warmth and operates with low noise for comfort.
7. Maintenance
Regular maintenance helps ensure the longevity and optimal performance of your blower and heating element.
- Power Disconnection: Always unplug the fireplace unit before performing any maintenance.
- Cleaning: Periodically, and when the unit is cool, use a soft brush or vacuum cleaner with a brush attachment to gently remove dust and debris from the blower fan blades and heating element fins. Accumulation of dust can reduce efficiency and potentially cause overheating.
- Inspection: Annually, or if you notice any unusual noises or reduced performance, inspect the wiring for any signs of wear, fraying, or loose connections. Check the fan blades for any obstructions or damage.
- No Lubrication Required: The motor is designed for maintenance-free operation and does not require lubrication.
8. Troubleshooting
This section addresses common issues you might encounter. If the problem persists after attempting these solutions, please contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Blower not operating | No power to the fireplace; Loose wiring connection; Faulty fireplace control; Overheat protection activated. | Check if the fireplace is plugged in and the outlet has power. Verify all wiring connections are secure. Consult your fireplace manual for control issues. Allow unit to cool down if it was recently running. |
| No heat output | Heating element not receiving power; Faulty heating element; Fireplace thermostat set too low. | Ensure heating element wires are securely connected. Check fireplace temperature settings. If element is faulty, replacement may be needed. |
| Unusual noise from blower | Obstruction in fan blades; Loose mounting; Worn motor bearings. | Disconnect power and inspect fan blades for debris. Ensure the unit is securely mounted. If noise persists, the motor may require replacement. |
| Reduced airflow | Dust accumulation on fan blades; Obstruction in air pathways. | Clean fan blades and surrounding areas. Ensure nothing is blocking the air intake or exhaust vents of the fireplace. |
9. Warranty and Support
Criditpid is committed to providing satisfactory service and a comfortable living experience. We stand behind the quality of our products.
- Technical Support: We offer lifetime technical support for our products.
- Free Replacement: A 1-year free replacement warranty is provided for manufacturing defects.
- Prompt Reply: Expect a response to your inquiries within 12 hours.
For any questions, concerns, or support needs, please contact Criditpid customer service through the platform where you purchased the product or visit the official Criditpid store page.
