TURBO CHALLENGE Honda CBR1000RR Electric Ride-On Motorcycle User Manual

Introduction

This manual provides essential information for the safe operation, assembly, and maintenance of your TURBO CHALLENGE Honda CBR1000RR Electric Ride-On Motorcycle. Please read it thoroughly before use and retain it for future reference.

The Honda CBR1000RR Electric Ride-On Motorcycle is designed to provide an engaging and educational experience for young riders, helping to develop dexterity and coordination. It features a 12V rechargeable battery, front lights, and engine sounds, offering a realistic riding experience.

Safety Warnings

WARNING: Remove all ties and packaging elements before giving the toy to the child.

• Always supervise children during operation.
• Ensure the child wears appropriate safety gear, including a helmet.
• Do not operate near stairs, steep inclines, roads, or swimming pools.
• The maximum weight capacity is 30 kg.
• Recommended age: 36 months to 6 years.
• This product is not suitable for children under 3 years due to small parts.
• Only use the provided charger and battery.
• Do not modify the electrical system.
• Regularly inspect the product for damage before each use.

Package Contents

Verify that all components are present before assembly:

• 1 x Honda CBR1000RR Electric Ride-On Motorcycle
• 1 x 12V Rechargeable Battery
• 1 x USB Charger
• Assembly Hardware (screws, tools if applicable)
• Instruction Manual (this document)

Image: The TURBO CHALLENGE Honda CBR1000RR Electric Ride-On Motorcycle in white, showcasing its design and features.

Assembly Instructions

This product requires assembly. Please follow these steps carefully:

1. Unpack Components: Carefully remove all parts from the packaging.
2. Install Front Wheel: Attach the front wheel to the fork using the provided axle and fasteners. Ensure it spins freely.
3. Attach Handlebars: Secure the handlebars to the steering column. Make sure they are aligned correctly and tightened securely.
4. Connect Battery: Locate the battery compartment (usually under the seat). Connect the battery terminals according to the polarity markings (+ to +, - to -).
5. Install Seat: Place the seat onto the motorcycle frame and secure it with the designated screws.
6. Attach Stabilizer Wheels (if applicable): If included, attach the stabilizer wheels to the rear axle for added balance for younger riders.
7. Final Check: Before first use, ensure all screws are tightened, and all connections are secure.

Charging the Battery

The motorcycle is powered by a 12V rechargeable battery. Proper charging ensures optimal performance and battery life.

1. Initial Charge: Before first use, fully charge the battery for approximately 12 hours.
2. Connecting the Charger: Plug the USB charger into a compatible USB power source (e.g., wall adapter, computer USB port).
3. Connecting to Motorcycle: Locate the charging port on the motorcycle (refer to the diagram in the manual, if available, or product images for typical location). Plug the charger into the port.
4. Charging Indicator: The charger may have an indicator light to show charging status (e.g., red for charging, green for fully charged).
5. Disconnecting: Once fully charged, disconnect the charger from the motorcycle and the power source.

Important Notes:

• Do not overcharge the battery.
• Charge the battery in a dry, well-ventilated area.
• If the product will not be used for an extended period, charge the battery every 2-3 months to maintain its health.

Operating Instructions

Follow these steps to operate your electric ride-on motorcycle:

1. Power On: Locate the power switch (usually near the dashboard or seat) and switch it to the "ON" position.
2. Start Riding: The motorcycle features an acceleration pedal. Press the pedal to move forward. Release the pedal to stop.
3. Lights and Sounds: The motorcycle is equipped with front lights and engine sound effects. These features typically activate when the power is on or when the acceleration pedal is pressed. Some models may have separate buttons for lights and horn.
4. Steering: Use the handlebars to steer the motorcycle left or right.
5. Speed: The motorcycle operates at a maximum speed of 4 km/h, suitable for young children.
6. Environment: The vehicle is designed for use both indoors and outdoors on flat, stable surfaces.

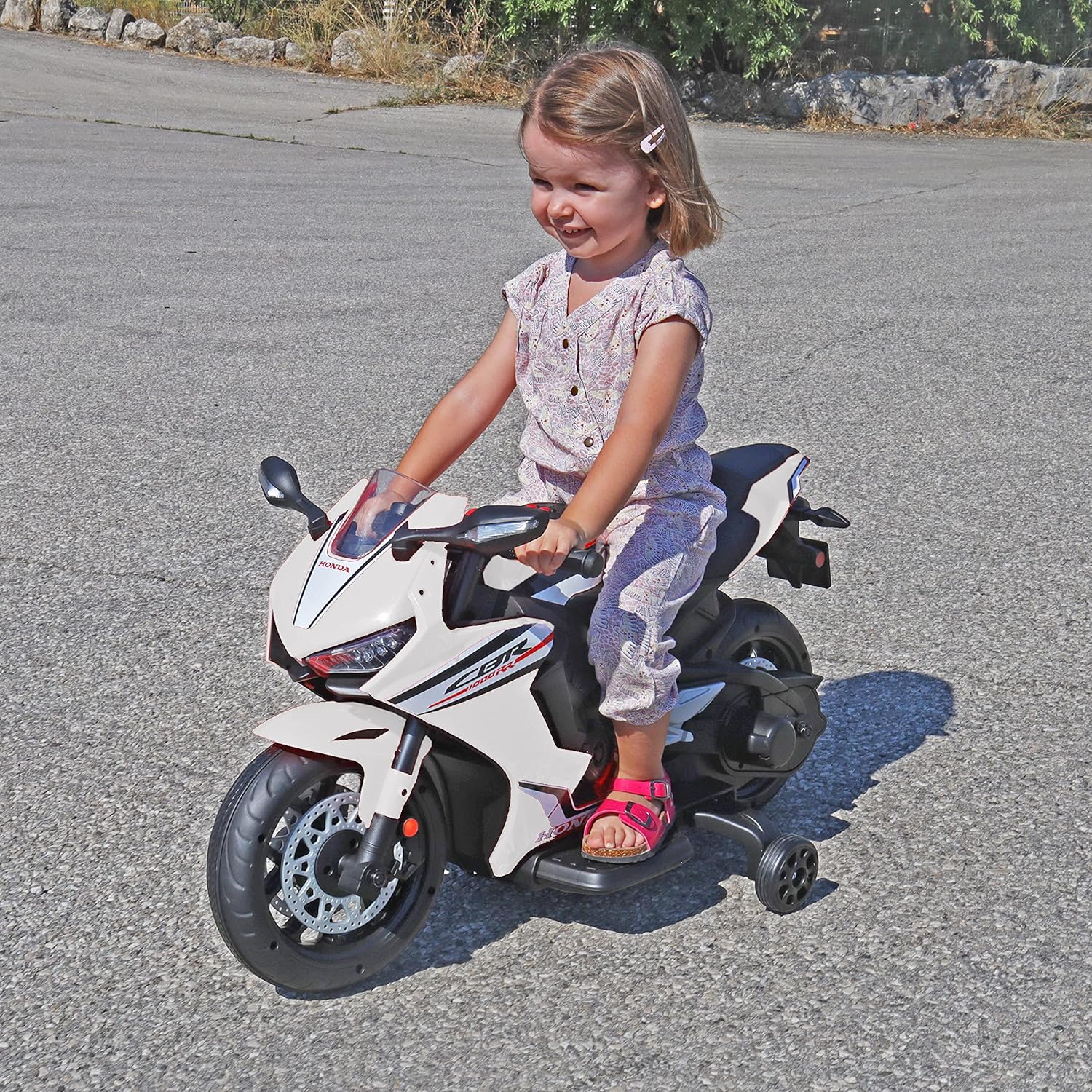

Image: A young child riding the TURBO CHALLENGE Honda CBR1000RR Electric Ride-On Motorcycle outdoors, demonstrating its use.

Image: A child riding the TURBO CHALLENGE Honda CBR1000RR Electric Ride-On Motorcycle indoors, highlighting its suitability for various environments.

Maintenance

Regular maintenance ensures the longevity and safe operation of your ride-on motorcycle.

• Cleaning: Wipe the motorcycle with a damp cloth. Do not use harsh chemicals or abrasive cleaners. Avoid spraying water directly onto electrical components.
• Storage: Store the motorcycle in a dry, cool place away from direct sunlight and moisture.
• Battery Care: As mentioned, charge the battery every 2-3 months if not in regular use. Do not store the battery completely discharged.
• Inspections: Periodically check all screws, nuts, and bolts to ensure they are tight. Inspect wheels, tires, and electrical connections for wear or damage.
• Material: The vehicle is constructed from durable plastic designed to resist impacts and scratches.

Troubleshooting

Specifications

• Model: 119178
• Brand: TURBO CHALLENGE
• Product Dimensions (L x W x H): 90 x 44 x 52 cm
• Product Weight: 1.4 kg
• Manufacturer Recommended Age: 36 months - 6 years
• Maximum Weight Capacity: 30 kg
• Educational Value: Develops fine motor skills and coordination without screen use.
• Assembly Required: Yes
• Battery Type: 12V Rechargeable Battery
• Charging Time: Approximately 12 hours for a full charge
• Speed: Up to 4 km/h
• Main Material: Plastic
• Color: White

Warranty and Support

Information regarding spare parts availability is currently unavailable. For any issues or support inquiries, please contact the retailer or the manufacturer directly using the contact information provided at the point of purchase.
