Dobest Motorcycle Water Pump Mechanical Seal User Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of your Dobest Motorcycle Water Pump Mechanical Seal. Please read this manual thoroughly before installation to ensure proper function and longevity of the product.

This mechanical seal is designed for specific Yamaha motorcycle models to ensure efficient water pump operation and prevent coolant leakage.

Applicable Models

This water pump mechanical seal is suitable for the following Yamaha models:

• Yamaha SX700R (2000-2002)
• Yamaha SXV700 SX Viper (2002-2005)
• Yamaha VT700 Venture (1998-2004)
• Yamaha VX700 V-Max (1997-2002)
• Yamaha RX10 RX-1 (2003-2005)
• Yamaha RXW10 RX Warrior (2005)
• Yamaha RX10 Apex (2006-2011)

Product Overview

The Dobest Motorcycle Water Pump Mechanical Seal is a critical component for maintaining the integrity of your motorcycle's cooling system. It prevents coolant from leaking past the water pump shaft, ensuring optimal engine temperature regulation.

Figure 1: Main components of the Dobest water pump mechanical seal kit, including the main seal assembly and various O-rings.

Figure 2: An overhead view showing the individual seal components, highlighting their distinct shapes and sizes.

Figure 3: Components arranged to show their relative sizes and the main mechanical seal unit.

Figure 4: A closer look at the primary mechanical seal and two smaller rubber seals, indicating their precise construction.

Figure 5: A side profile view of all four seal components, illustrating their varying thicknesses and designs.

Figure 6: The seal components laid out linearly, demonstrating their individual forms and the main mechanical seal.

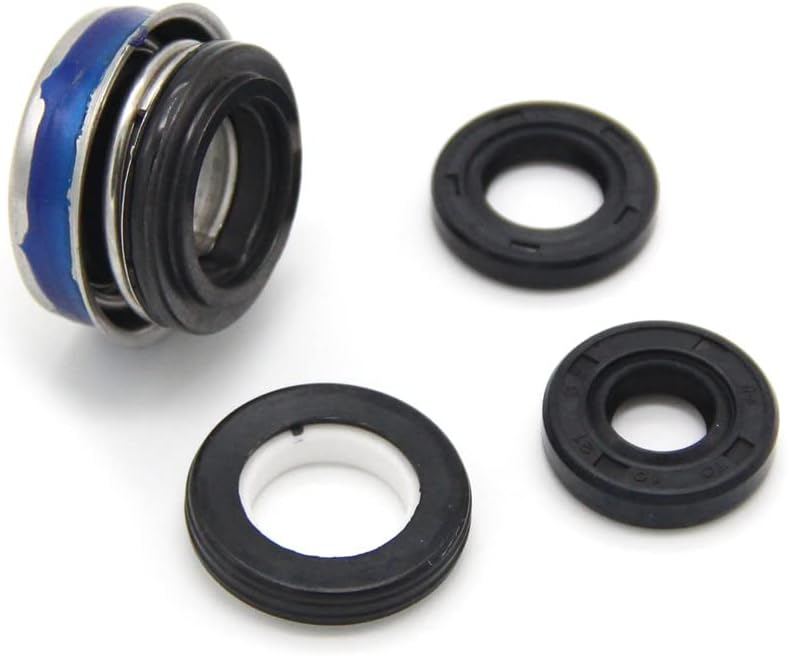

Figure 7: An angled perspective of the main mechanical seal and the three accompanying smaller seals, showing their collective appearance.

Setup and Installation

Installation of the water pump mechanical seal requires careful attention to detail. It is recommended that this procedure be performed by a qualified mechanic or an individual with experience in motorcycle engine maintenance.

Required Tools and Materials:

• Basic mechanic's tool set (wrenches, sockets, screwdrivers)
• Coolant drain pan
• New engine coolant (compatible with your motorcycle)
• Clean rags
• Torque wrench (for specific fasteners)
• Service manual for your specific Yamaha model (for torque specifications and detailed disassembly/assembly steps)

Installation Steps:

1. Drain Coolant: Ensure the engine is cool. Place a drain pan under the motorcycle and drain the existing coolant from the cooling system. Refer to your motorcycle's service manual for the exact drain plug location.
2. Access Water Pump: Carefully remove any fairings, hoses, or covers that obstruct access to the water pump assembly.
3. Remove Old Seal: Disassemble the water pump housing. Locate and carefully remove the old mechanical seal and any associated O-rings. Note the orientation of all components during removal.
4. Clean Surfaces: Thoroughly clean all mating surfaces on the water pump housing and engine block. Remove any old gasket material, corrosion, or debris. Ensure surfaces are smooth and dry.
5. Install New Seal: Lubricate the new mechanical seal and O-rings with a small amount of clean coolant. Carefully press the new seal components into place, ensuring they are seated correctly and in the proper orientation. Avoid using excessive force or sharp tools that could damage the seal.
6. Reassemble Water Pump: Reassemble the water pump housing, ensuring all bolts are tightened to the manufacturer's specified torque settings. Refer to your motorcycle's service manual for these specifications.
7. Refill Coolant: Reconnect all hoses and covers. Refill the cooling system with the appropriate type and amount of new coolant. Bleed any air from the system as per your motorcycle's service manual.
8. Check for Leaks: Start the engine and allow it to reach operating temperature. Carefully inspect the water pump area for any signs of coolant leaks.

Note: The installation process may vary slightly depending on your specific Yamaha model. Always consult your motorcycle's official service manual for detailed, model-specific instructions and safety precautions.

Operating Considerations

Once installed, the water pump mechanical seal operates continuously as part of the cooling system. Proper operation relies on a well-maintained cooling system.

• Coolant Level: Regularly check your coolant reservoir level and top up as needed with the correct type of coolant.
• System Pressure: Ensure your cooling system maintains proper pressure. A faulty radiator cap or leaks elsewhere can affect seal performance.
• Temperature Monitoring: Pay attention to your motorcycle's temperature gauge. Overheating can put excessive stress on the water pump seal.

Maintenance

The Dobest water pump mechanical seal is designed for durability. However, its longevity is directly related to the overall health of your motorcycle's cooling system.

• Coolant Replacement: Follow your motorcycle manufacturer's recommendations for coolant replacement intervals. Old or contaminated coolant can degrade seals.
• System Flush: Periodically flush your cooling system to remove sediment and debris that could damage the water pump or its seal.
• Leak Inspection: Regularly inspect the area around the water pump for any signs of coolant leaks, especially after long rides or during routine maintenance checks.
• Hose and Clamp Check: Ensure all cooling system hoses are in good condition and clamps are secure. Loose connections can lead to pressure loss and affect seal performance.

Troubleshooting

If you experience issues with your cooling system after installing the new mechanical seal, consider the following common problems and solutions:

If troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a certified motorcycle technician.

Specifications

• Product Type: Motorcycle Water Pump Mechanical Seal
• Brand: Dobest
• Manufacturer Part Number: for Yamaha
• ASIN: B0B779D1TF
• Material: High-quality materials (strong, anti-aging, wear-resistant)
• Compatibility: Direct replacement for original equipment on specified Yamaha models.
• First Available: July 21, 2022

Warranty and Support

Dobest is committed to providing high-quality products. While specific warranty terms are not detailed in this manual, we stand behind the quality of our mechanical seals.

If you have any questions regarding the product, installation, or performance, please do not hesitate to contact our customer support. We aim to provide prompt and satisfactory solutions to any inquiries.

For support, please refer to the contact information provided at your point of purchase or visit the official Dobest store on Amazon: Dobest Store
