Toyomi PC 2001 Micro-Com Pressure Cooker & Rice Cooker User Manual

Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons. Read all instructions carefully before operating the appliance.

• Pressure Relief Safety: Pressure exceeding 8kPa will automatically trigger the relief of steam to lower internal pressure.
• Safety Self Relief Protection: The inner pot will lower down upon built-up pressure, creating space between the sealing gasket and the pot to relieve pressure safely.
• Relief Pressure Valve: The relief pressure valve is designed to adjust pressure at an optimum 80kPa inside the pot.
• Anti-Jam Safety: A built-in anti-jam valve prevents blockages during operation.
• Lock & Release Lid Safety: Pressure built up inside the cooker activates a self-locking lid mechanism to prevent accidental opening during operation.
• Safety Thermal Fuse: An exceeding built-up temperature will automatically cut off the thermal fuse to prevent overheating.
• Current Surge Safety: Built-in protection cuts off current surges to prevent over-voltage and electrical damage.
• Micro Safeguard Switch: The lid must be securely properly for pressure to generate during operation, ensuring safe use.
• Thermal Limit Safety: Cooking without food inside will trigger the limiter to terminate power, preventing damage.

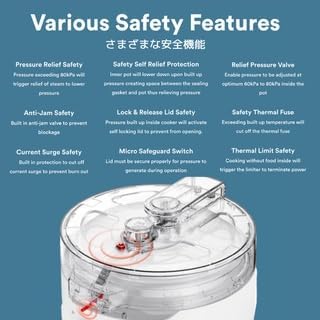

Image: Overview of the Toyomi PC 2001's nine integrated safety features, including pressure relief, lid locking, and thermal protection.

Product Overview and Components

The Toyomi PC 2001 is a 2.0L Micro-Com Pressure Cooker and Rice Cooker designed for efficient cooking. Familiarize yourself with its main parts before use.

Image: The Toyomi PC 2001 cooker, showcasing its black body, red lid, and digital control panel.

Main Components:

• Main Unit: The outer casing housing the heating element and control panel.
• Lid: Features a secure locking mechanism and pressure release valve.
• Inner Pots (2):
  • #304 Food Grade Stainless Steel Pot: Durable and suitable for various cooking methods.
  • Ceramic Coated Pot: Non-stick, ideal for rice, cakes, and other delicate dishes.
• Steamer Tray: Stainless steel tray for steaming food.
• Accessories: Includes a rice spoon, soup ladle, and measuring cup.

Image: Exploded view of the Toyomi PC 2001, detailing its internal components and included accessories.

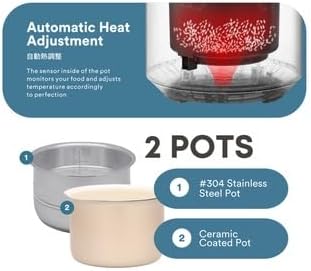

Image: The two distinct inner pots provided with the cooker: a #304 stainless steel pot and a ceramic-coated pot.

Image: Illustration of the automatic heat adjustment system, where a sensor monitors food and adjusts temperature for optimal cooking.

Setup and First Use

1. Unpacking: Carefully remove the cooker and all accessories from the packaging. Retain packaging for future storage or transport.
2. Initial Cleaning:
   • Wash the inner pots, steamer tray, and all accessories with warm, soapy water. Rinse thoroughly and dry completely.
   • Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
3. Placement: Place the cooker on a stable, level, heat-resistant surface, away from walls and cabinets to allow for proper ventilation. Ensure it is not near any heat sources or flammable materials.
4. Power Connection: Ensure the power cord is securely plugged into the cooker and then into a grounded electrical outlet.

Operating Instructions

The Toyomi PC 2001 features a user-friendly touch display and 14 pre-set cooking programs for various dishes.

Image: Detailed view of the touch control panel, showing preset buttons for various cooking functions like Rice, Porridge, Soup, Cake, and more.

Control Panel Functions:

• Digital Display: Shows cooking time, pressure level, and program status.
• Preset Buttons: Dedicated buttons for common dishes such as Rice, Porridge, Soup, Bean, Fish, Ginseng, Seafood, Cake, Steam, Poultry, Braise, B.B. Food, and Instant Heat.
• Pressure Adjustment: Use the "Pre-set Pressure" buttons (arrows) to adjust pressure levels for certain programs.
• Taste: Adjusts the cooking intensity or texture (e.g., Chewy, Standard, Soft for rice).
• Menu: Cycles through available programs or settings.
• Keep Warm / Cancel (Hold 2S): Press once to activate Keep Warm mode after cooking. Hold for 2 seconds to cancel any active program or turn off the cooker.

General Cooking Steps:

1. Prepare Ingredients: Measure and prepare your ingredients according to your recipe.
2. Place Inner Pot: Insert the appropriate inner pot (stainless steel or ceramic coated) into the main unit. Ensure it is seated correctly.
3. Add Ingredients: Place your ingredients into the inner pot. Do not exceed the maximum fill line.
4. Close Lid: Place the lid on the cooker and rotate it clockwise until it locks securely into place. Ensure the pressure release valve is in the sealed position (if applicable, refer to specific lid markings).
5. Select Program: Plug in the cooker. Use the preset buttons or the "Menu" button to select your desired cooking program. The display will show the default cooking time.
6. Adjust Settings (Optional): If desired, use the "Pre-set Pressure" or "Taste" buttons to adjust settings according to your preference.
7. Start Cooking: The cooker will automatically begin the preheating process and then the cooking cycle.
8. Pressure Release: Once cooking is complete, the cooker will beep. Allow the pressure to release naturally or use the quick release method if the recipe permits and safety guidelines are followed. Always ensure the pressure indicator has dropped before attempting to open the lid.
9. Open Lid: Once pressure is fully released, rotate the lid counter-clockwise and lift it carefully away from your face.

Maintenance and Cleaning

Regular cleaning ensures optimal performance and extends the lifespan of your Toyomi PC 2001 cooker. Always unplug the appliance and allow it to cool completely before cleaning.

Cleaning Steps:

1. Inner Pots and Accessories: Wash the inner pots, steamer tray, rice spoon, soup ladle, and measuring cup with warm, soapy water. These parts are generally dishwasher safe, but hand washing is recommended for longevity of the ceramic coating. Rinse thoroughly and dry completely.
2. Lid: Remove the sealing gasket and wash it with warm, soapy water. Clean the lid, including the pressure release valve and anti-block shield, with a damp cloth. Ensure all food debris is removed. Reinstall the sealing gasket correctly after cleaning.
3. Main Unit Exterior: Wipe the exterior of the cooker with a damp cloth. Do not use abrasive cleaners or scourers. Never immerse the main unit in water or any other liquid.
4. Condensation Collector: Empty and clean the condensation collector after each use.

Storage: Store the cooker in a dry place. You may place the inner pot inside the main unit for compact storage.

Troubleshooting

If you encounter issues with your Toyomi PC 2001, refer to the following common problems and solutions. If the problem persists, contact customer support.

Specifications

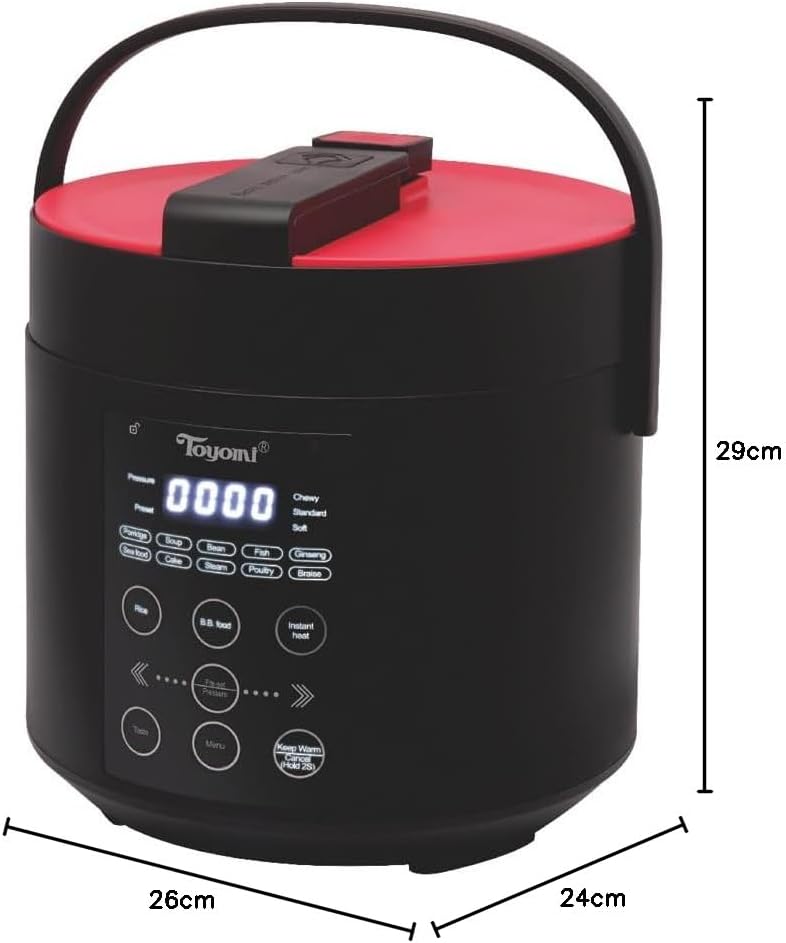

Image: Dimensional diagram of the Toyomi PC 2001, indicating its height, width, and depth.

Warranty and Support

For warranty information, product registration, or technical support, please refer to the warranty card included with your purchase or visit the official Toyomi website. Keep your purchase receipt as proof of purchase for warranty claims.

If you require assistance with troubleshooting or have questions not covered in this manual, please contact Toyomi customer service.

Toyomi Customer Service: Visit the Toyomi Store on Amazon
