LOOK Cycle Keo 2 Max Vision Pedals Instruction Manual

Introduction

The LOOK Keo 2 Max Vision Pedals are designed for road cycling, offering enhanced visibility through integrated lighting, efficient power transfer, and adjustable tension. This manual provides instructions for the proper installation, operation, and maintenance of your pedals to ensure optimal performance and safety.

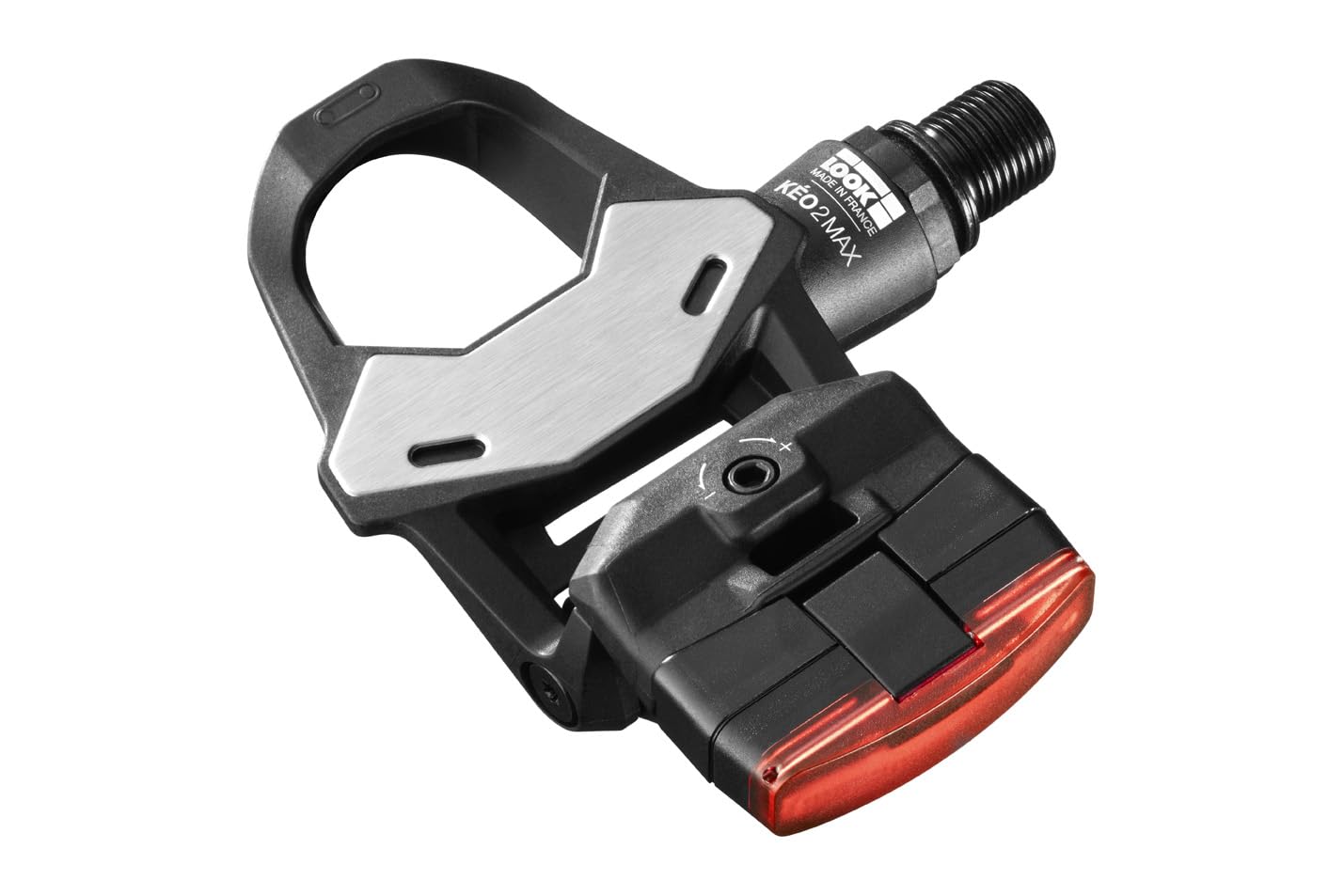

Image: An angled view of a single LOOK Keo 2 Max Vision pedal, highlighting the integrated red light at the rear.

Key features include:

• Integrated Lighting: Dual lights for increased visibility up to 1 km, with up to 40 hours of battery autonomy.
• Maximum Power Transfer: A 500 mm² stainless steel surface ensures efficient power transmission.
• Durable Construction: Chromoly+ spindle for enhanced strength and longevity.
• Adjustable Tension: Cleat retention tension can be adjusted between 8 and 12.
• Water Resistance: IPX7 rated for reliable performance in various weather conditions.

Setup

This section details the installation process for your LOOK Keo 2 Max Vision Pedals.

What's in the Box

Your package includes the pedals and this instruction manual.

Image: All components of the LOOK Keo 2 Max Vision Pedals package, including the pedals, cleat covers, mounting hardware, and USB charging cable.

Pedal Installation

1. Ensure your crank arms are clean and free of debris.
2. Identify the left (L) and right (R) pedals. The right pedal has a standard thread, and the left pedal has a reverse thread.
3. Apply a small amount of grease to the pedal threads.
4. Thread the right pedal clockwise into the right crank arm.
5. Thread the left pedal counter-clockwise into the left crank arm.
6. Tighten both pedals securely using an appropriate pedal wrench. Do not overtighten.

Light Module Installation and Charging

The light modules are designed for plug-and-play installation.

Image: A visual guide demonstrating the simple snap/push fastening system for integrating the light module into the pedal.

1. Align the light module with the designated slot on the pedal body.
2. Gently push until it clicks into place, ensuring a secure fit.
3. To charge the lights, connect the provided USB cable to the charging port on each light module and to a USB power source.
4. A full charge provides up to 40 hours of autonomy.

Image: A close-up view of the charging connections for the integrated pedal lights.

Operating Instructions

Understand how to use your Keo 2 Max Vision Pedals effectively.

Integrated Light Operation

The integrated lights enhance your visibility on the road.

Image: A close-up of the control button on the Keo 2 Max Vision pedal, used to turn the lights on/off and change modes.

• Power On/Off: Press and hold the button on the light module to turn the lights on or off.
• Mode Selection: Short press the button to cycle through different lighting modes (e.g., steady, flashing).
• Battery Indicator: A small LED indicator on the module shows the battery level.

Image: A detailed diagram highlighting the features of the integrated light module, including its fastening system, LED output, control button, and battery indicator.

Cleat Engagement and Release

The Keo 2 Max Vision pedals use a clipless system. Ensure your cleats are properly installed on your cycling shoes.

• Engagement: Position the front of your cleat over the front of the pedal mechanism, then push down firmly with your heel until you hear a click.
• Release: To disengage, twist your heel outwards away from the bicycle.

Adjustable Tension

The cleat retention tension can be adjusted to suit your preference and riding style.

• Locate the tension adjustment screw on the rear of the pedal body.
• Use an Allen key to turn the screw: turn clockwise to increase tension (harder release) or counter-clockwise to decrease tension (easier release).
• The tension range is between 8 and 12. Adjust both pedals equally.

Maintenance

Regular maintenance ensures the longevity and optimal performance of your pedals.

• Cleaning: Regularly clean your pedals with a damp cloth to remove dirt and road grime. Avoid using harsh chemicals.
• Lubrication: Periodically apply a small amount of bicycle-specific grease to the pedal axles and cleat retention mechanism to ensure smooth operation and prevent corrosion.
• Inspection: Routinely check the pedals for any signs of wear, damage, or loose components. Pay attention to the spindle, pedal body, and light modules.
• Cleat Condition: Inspect your cleats regularly for wear. Worn cleats can affect engagement and release, and should be replaced.

Troubleshooting

This section addresses common issues you might encounter with your pedals.

• Lights Not Working: Ensure the light modules are fully charged. Check that they are securely installed in the pedal body. If issues persist, contact customer support.
• Difficulty Engaging/Releasing: Check your cleat tension settings. If tension is too high, decrease it. Ensure cleats are clean and not excessively worn. Lubricate the pedal mechanism if necessary.
• Unusual Noises: Inspect pedals for loose parts. Ensure pedals are securely tightened to the crank arms. Clean and lubricate moving parts.

Specifications

Warranty and Support

LOOK Cycle products are manufactured to high standards and come with a manufacturer's warranty. For specific warranty details, please refer to the documentation included with your purchase or visit the official LOOK Cycle website.

For technical support, spare parts, or any other inquiries, please contact LOOK Cycle customer service through their official channels. Keep your proof of purchase for warranty claims.
