Nieco Frame, Holding Pan, 4 Lane, Jf (Model NC25325) Instruction Manual

1. Introduction

This instruction manual provides essential information for the proper installation, operation, and maintenance of the Nieco Frame, Holding Pan, 4 Lane, Jf, Model NC25325. This component is a genuine Original Equipment Manufacturer (OEM) part designed specifically for Nieco commercial broiler systems. Adhering to the guidelines in this manual will help ensure the safety, reliability, and optimal performance of your equipment.

2. Product Overview

The Nieco Frame, Holding Pan, 4 Lane, Jf is a critical internal component for Nieco broilers, facilitating the organized movement and cooking of food products. It is constructed from durable materials suitable for high-temperature commercial kitchen environments.

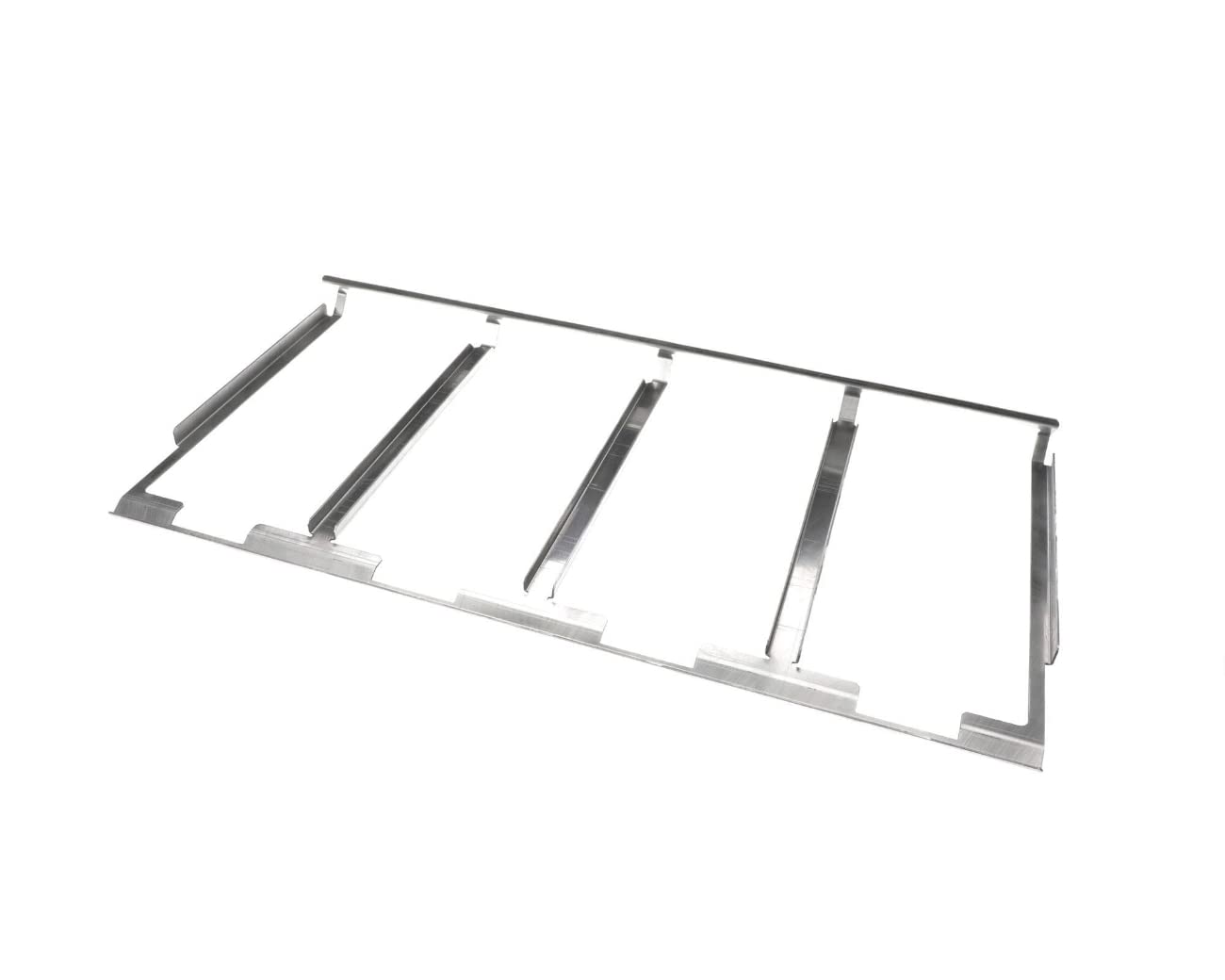

Figure 1: Nieco Frame, Holding Pan, 4 Lane, Jf. This image displays the metallic frame designed to hold pans within a commercial broiler system, featuring four distinct lanes for product separation and movement.

Key Features:

• Genuine OEM Part: Ensures compatibility and performance as designed by Nieco.
• 4-Lane Design: Optimizes product flow and cooking efficiency within the broiler.
• Durable Construction: Built to withstand the demands of commercial food service operations.

3. Setup and Installation

This part is intended as a replacement component. Installation should only be performed by qualified personnel familiar with Nieco broiler systems and safety procedures. Always ensure the broiler is disconnected from its power source before attempting any installation or maintenance.

1. Power Disconnection: Turn off and unplug the Nieco broiler from the main power supply.
2. Access Internal Components: Carefully open or remove panels as required to access the internal broiler components where the frame is located. Refer to your specific Nieco broiler's main service manual for detailed access instructions.
3. Remove Old Frame: Detach and remove the existing frame, noting its orientation and connection points.
4. Install New Frame: Position the new Nieco Frame, Holding Pan, 4 Lane, Jf (Model NC25325) in the correct orientation. Ensure all mounting points align and secure it firmly according to the broiler's design.
5. Reassemble: Replace any removed panels and secure them properly.
6. Power Reconnection: Reconnect the broiler to the power supply.

Note: Improper installation can lead to equipment malfunction or safety hazards. Always consult the comprehensive service manual for your specific Nieco broiler model.

4. Operating Function

The Nieco Frame, Holding Pan, 4 Lane, Jf serves as a structural support and guide for holding pans within the broiler's cooking chamber. Its 4-lane design ensures that food products are separated and move consistently through the cooking process, contributing to uniform cooking and efficient operation of the broiler. This component does not have independent operational controls; its function is integral to the overall broiler system.

5. Maintenance

Regular cleaning and inspection are crucial for maintaining the longevity and performance of the Nieco Frame, Holding Pan.

Cleaning:

• Daily Cleaning: After each use or at the end of the operating day, allow the broiler to cool down. Remove the frame if easily accessible and clean it with a mild detergent and warm water.
• Stubborn Residue: For baked-on food residue, use a non-abrasive cleaning pad or brush. Avoid harsh chemicals or abrasive cleaners that could damage the metal surface.
• Rinse and Dry: Thoroughly rinse the frame with clean water and dry it completely before reinstallation to prevent water spots or corrosion.

Inspection:

• Regular Checks: Periodically inspect the frame for any signs of wear, bending, cracks, or damage.
• Secure Fit: Ensure the frame remains securely seated within the broiler. Loose components can affect performance and safety.
• Replacement: If any significant damage or deformation is observed, replace the frame immediately with another genuine Nieco OEM part to maintain optimal broiler function and safety.

6. Troubleshooting

As a static component, the Nieco Frame, Holding Pan, 4 Lane, Jf typically does not experience operational malfunctions. Troubleshooting primarily involves addressing physical issues.

Common Issues and Solutions:

• Pans Not Moving Smoothly:
  • Cause: Debris accumulation, bent frame, or improper installation.
  • Solution: Clean the frame thoroughly. Inspect for any physical damage or misalignment. Reinstall the frame ensuring it is correctly seated.
• Frame Appears Loose:
  • Cause: Improper installation or worn mounting points.
  • Solution: Re-secure the frame. If mounting points are worn, the frame may need replacement.
• Visible Damage (Bends, Cracks):
  • Cause: Physical impact, excessive force, or material fatigue over time.
  • Solution: The frame must be replaced immediately to prevent further damage to the broiler or potential safety hazards.

If issues persist after troubleshooting, contact Nieco customer support or a certified service technician.

7. Specifications

8. Warranty and Support

As a genuine OEM part, the Nieco Frame, Holding Pan, 4 Lane, Jf is manufactured to Nieco's high standards for quality and durability. Specific warranty terms for replacement parts may vary. Please refer to your original Nieco broiler warranty documentation or contact Nieco customer service directly for detailed warranty information.

For technical assistance, replacement part inquiries, or service, please contact Nieco customer support through their official website or authorized service providers. Using genuine OEM parts is essential for maintaining the validity of your equipment's warranty and ensuring continued safety and performance.
