APEC WATER ROTL-600 Tankless 3-Stage Reverse Osmosis Water Filter System User Manual

1. Introduction

The APEC WATER ROTL-600 is a tankless 3-stage reverse osmosis water filtration system designed to provide clean, great-tasting water directly from your tap. This system utilizes advanced filtration technology to remove a wide range of impurities, offering a convenient and space-saving solution for your home's water purification needs.

Key features include:

• High Performance Filtration: A 3-stage process including Sediment/Carbon, RO Membrane, and Carbon Block filters to remove sediment, chlorine, heavy metals, and other contaminants.
• Space-Saving Tankless Design: Eliminates the need for a bulky storage tank, freeing up valuable under-sink space.
• Smart Filter Alert: Integrated indicator lights provide timely reminders for filter replacement.
• Easy DIY Installation & Maintenance: Designed for straightforward setup and simple twist-and-pull filter changes.
• Efficient Water Usage: Features an optimized pure to drain ratio for reduced water waste.

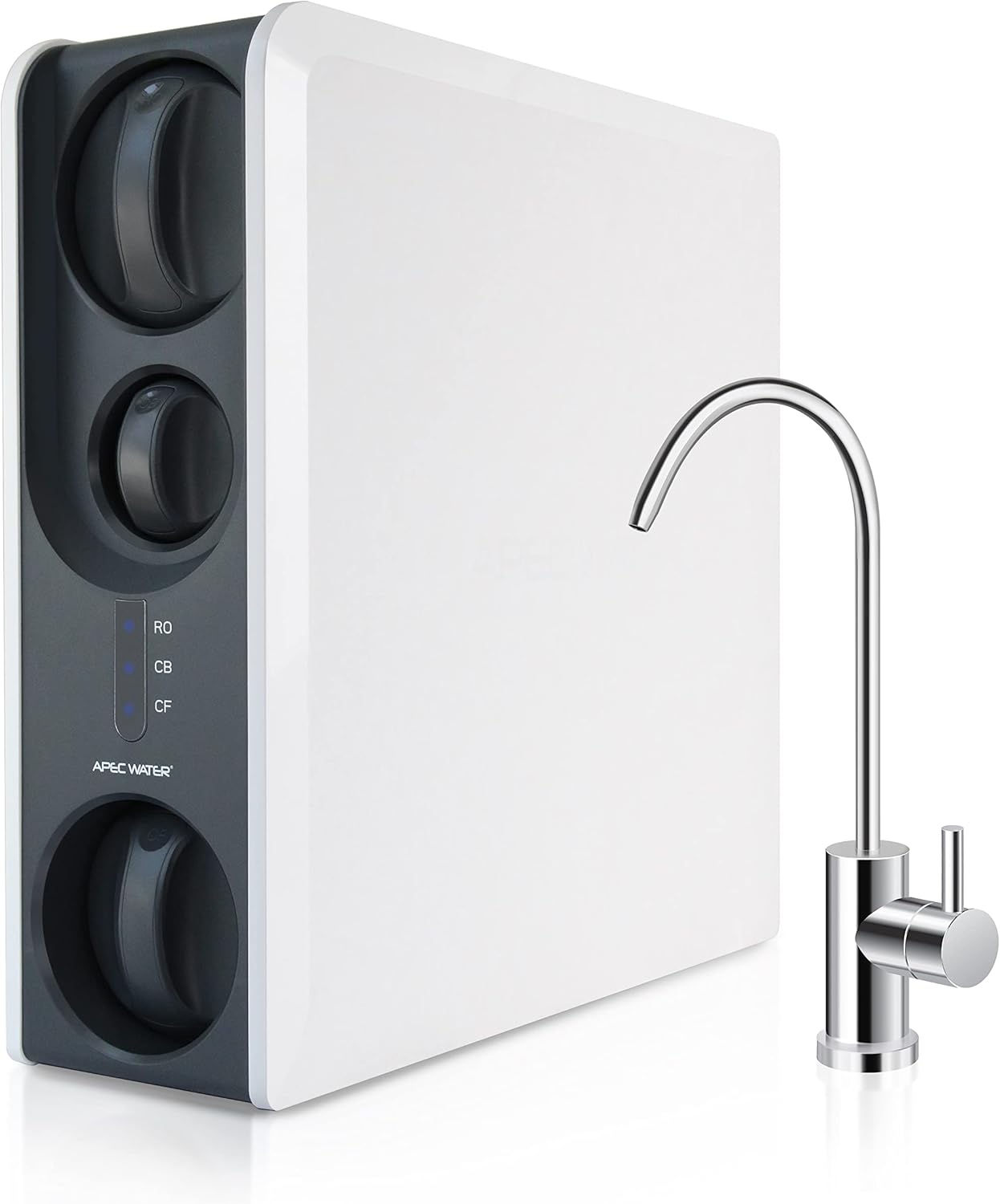

The APEC WATER ROTL-600 system unit, white with dark grey accents, shown alongside its included chrome drinking water faucet.

2. Product Components

The ROTL-600 system comes with all necessary components for installation and operation. Please ensure all parts are present before beginning installation.

A comprehensive layout of all parts supplied with the ROTL-600 system, including the main unit, RO cartridge, CB cartridge, CF cartridge, lead-free designer faucet, feed water adapter, drain saddle, PE tubing, and power adapter.

• Main Unit: The primary filtration system housing.
• RO Cartridge: Reverse Osmosis membrane filter cartridge.
• CB Cartridge: Carbon Block filter cartridge.
• CF Cartridge: Sediment and carbon filter cartridge.
• Lead-Free Designer Faucet: High-quality drinking water faucet.
• Feed Water Adapter: For connecting to your cold water supply.
• Drain Saddle: For connecting the drain line to your sink's drain pipe.
• PE Tubing: Includes 1/4" and 3/8" tubing for water connections.
• Power Adapter: For powering the system's pump and smart features.

3. Setup and Installation

The APEC WATER ROTL-600 system is designed for quick and easy DIY installation under your sink. While detailed step-by-step instructions are provided in the separate installation guide, here are general considerations:

• Location: Install the unit under your kitchen sink, ensuring sufficient space for the main unit and access for filter changes. The tankless design optimizes space utilization.
• Water Supply: Connect the system to your cold water line using the provided feed water adapter.
• Drain Connection: Securely attach the drain line to your sink's drain pipe using the drain saddle.
• Faucet Installation: Install the dedicated drinking water faucet on your countertop or sink.
• Power Connection: Plug the power adapter into a standard electrical outlet.

It is recommended to review the full installation manual thoroughly before beginning the setup process. Ensure all connections are tight to prevent leaks.

The compact APEC ROTL-600 unit neatly installed under a kitchen sink, illustrating how its tankless design saves valuable cabinet space.

4. Operating Instructions

Once installed, operating the ROTL-600 system is straightforward. The system features a smart filter life indicator and an efficient water production process.

4.1 Smart Filter Life Indicator

The unit is equipped with LED indicators that display the status of your filters and alert you to potential issues.

The control panel of the ROTL-600 system displaying LED indicators for RO, CB, and CF filters, showing 'Working Normally' (blue), 'Replacing Soon' (yellow), and 'Replacing Now' (red) statuses. It also shows a water leakage alarm.

• Blue Light: Indicates the filter is working normally.
• Yellow Light: Signals that the filter will need replacement soon.
• Red Light: Indicates that the filter requires immediate replacement. The system may also beep to alert you.
• Water Leakage Alarm: If a leak is detected, the bottom indicator will blink red with beeps. Immediately shut off the water supply and inspect for leaks.

4.2 Water Production

The ROTL-600 provides purified water on demand. Simply open the dedicated faucet to dispense water. The system's pump ensures a consistent flow rate.

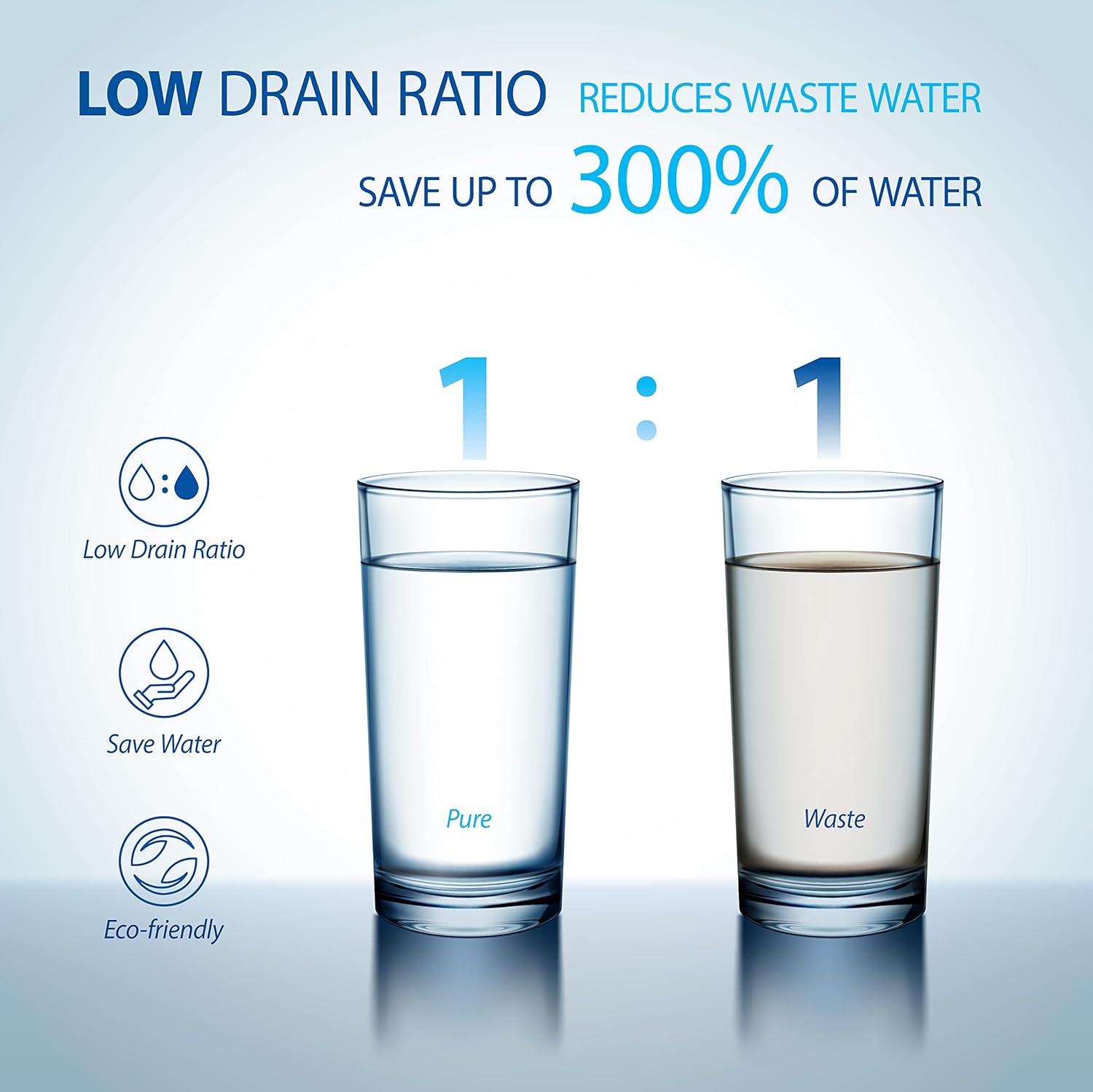

A visual representation showing that for every glass of pure water produced, an equal amount of waste water is generated, highlighting the system's efficient 1:1 pure to drain ratio.

5. Maintenance

Regular maintenance, primarily filter replacement, is crucial for the optimal performance and longevity of your ROTL-600 system.

5.1 Filter Replacement

The ROTL-600 features a twist-and-pull mechanism for easy filter changes, comparable to changing a lightbulb. Always refer to the smart filter alert for timely replacements.

An illustration detailing the three stages of filtration: 1st Stage CF (Sediment/Carbon), 2nd Stage RO (Reverse Osmosis membrane), and 3rd Stage CB (Carbon Block), with images of the corresponding filter cartridges.

1. 1st Stage (CF Cartridge): Sediment/Carbon filter. Removes sand, silt, rust, and residual chlorine.
2. 2nd Stage (RO Cartridge): Reverse Osmosis membrane. Removes up to 99% of impurities including dissolved solids, heavy metals (Lead, Arsenic, Chromium), and harmful agents (Fluoride, PFAs).
3. 3rd Stage (CB Cartridge): Carbon Block filter. Enhances water taste by removing odors.

When a filter indicator turns red, or as recommended by the manufacturer, replace the corresponding filter cartridge. Ensure the water supply to the unit is turned off before replacing filters.

5.2 Auto Flush Function

The ROTL-600 includes an automatic flush function. This feature helps protect your water lines from calcifying and extends the lifespan of the filters and the system by periodically flushing the membrane.

6. Troubleshooting

This section addresses common issues you might encounter with your ROTL-600 system.

• Reduced Water Flow: If the water flow from the faucet decreases significantly, check the filter indicator lights. A yellow or red light suggests a clogged filter that needs replacement. Ensure the main water supply valve to the system is fully open.
• Unusual Taste or Odor: This typically indicates that the carbon block filter (CB cartridge) needs replacement. Ensure all filters are properly seated after replacement.
• Water Leakage Alarm: If the bottom indicator blinks red and beeps, immediately turn off the water supply to the unit. Inspect all connections and filter housings for visible leaks. Tighten any loose connections or replace O-rings if damaged.
• High TDS Readings (TDS Creep): When dispensing water after a period of inactivity, the initial water may have a slightly higher Total Dissolved Solids (TDS) reading due to 'TDS creep'. It is recommended to let the water run for 45-60 seconds before collecting for consumption to ensure the purest water.
• No Power: Check if the power adapter is securely plugged into both the unit and the electrical outlet. Verify the outlet is functional.

For issues not covered here, or if troubleshooting steps do not resolve the problem, please contact APEC WATER customer support.

7. Specifications

8. Warranty and Support

8.1 Warranty Information

The APEC WATER ROTL-600 system comes with a 1 Year Warranty. Please refer to the warranty card included with your product for full terms and conditions.

8.2 Customer Support

APEC WATER Systems provides lifetime customer support. If you have any questions regarding installation, operation, maintenance, or troubleshooting, please contact our support team. Our agents are based in the USA and are available to assist you.

For contact information, please refer to the APEC WATER website or the documentation included with your product.
