1. Introduction and Overview
The Leofoto GSP-80 QR Rifle Support Plate is a lightweight, durable accessory designed to provide a stable and quick-release mounting solution for firearms on Arca-type compatible tripods. Crafted from high-grade T6061 aluminum with a hard anodized finish, this plate ensures robust performance and corrosion resistance. Its hollowed design minimizes weight without compromising stability, making it an ideal tool for precision shooting and outdoor activities.

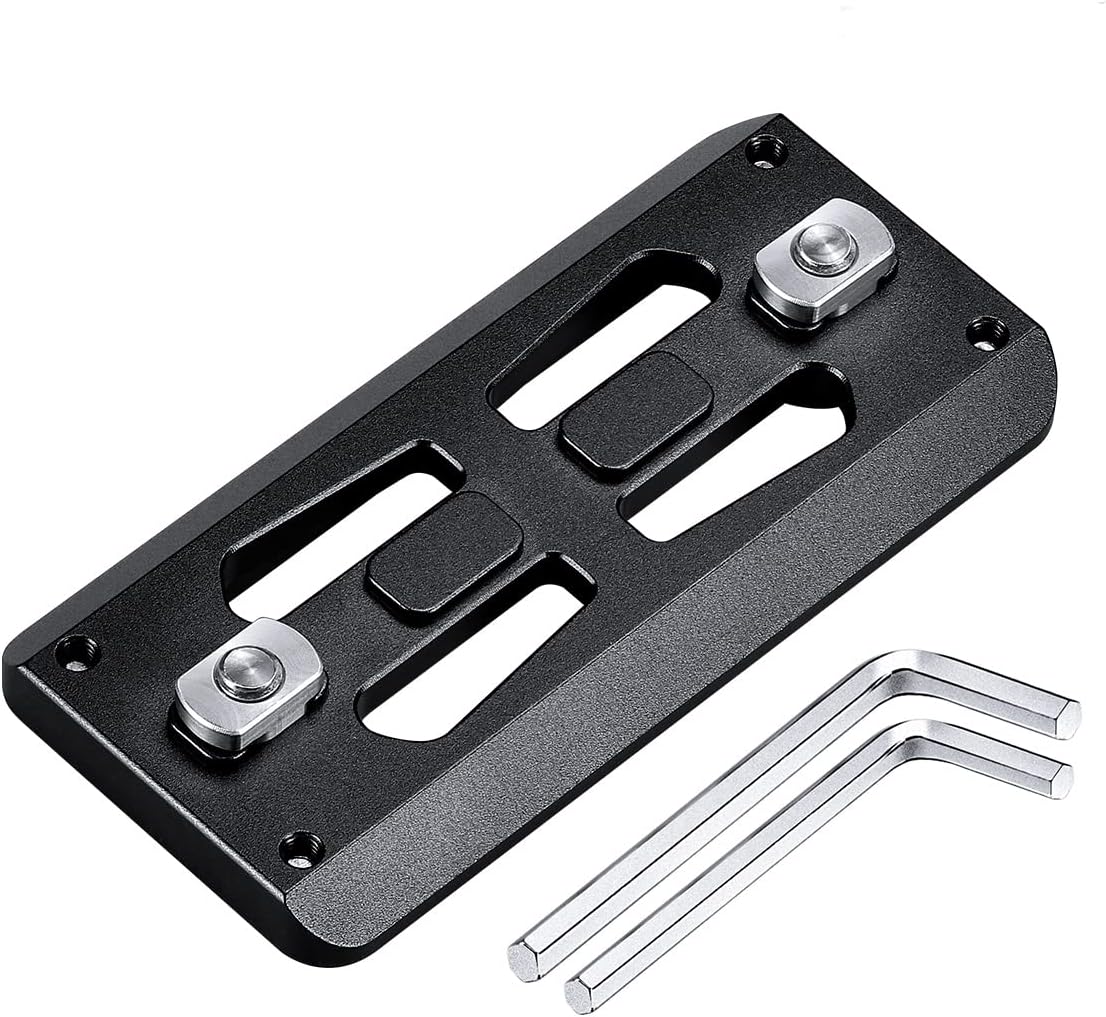

Image: The Leofoto GSP-80 QR Rifle Support Plate shown with the included hex keys for installation.
2. Key Features
- Arca-Type Compatibility: Designed for seamless integration with standard Arca-Swiss style quick release clamps, offering broad compatibility with various tripod heads.
- Removable Safety-Stops: Features integrated safety-stops that can be removed, providing enhanced security and preventing accidental slippage when mounted.
- Durable Construction: Manufactured from high-strength T6061 aluminum, ensuring longevity and resistance to wear and tear.
- Hard Anodized Finish: Provides superior corrosion resistance and a durable, non-reflective surface.
- Lightweight Hollowed Design: Engineered with strategic cutouts to reduce overall weight (only 1.6 ounces) without compromising structural integrity.
- Complete Kit: Includes all necessary screws and tools for straightforward attachment to M-LOK compatible firearm handguards.
Image: Diagram illustrating the GSP-80 M-LOK QR Plate with its dimensions (80x38mm) and weight (45g).
Image: Detailed view of the M-LOK fasteners and the precision CNC machined surface of the GSP-80 plate.
3. Specifications
| Attribute | Value |
|---|---|
| Model | GSP-80 |
| Product Dimensions | 3.15 x 1.5 x 2 inches (80 x 38 x 50.8 mm) |
| Item Weight | 1.6 ounces (45 grams) |
| Material | T6061 Aluminum |
| Finish | Hard Anodized |
| Color | Black |
| Compatible Devices | Rifles with M-LOK handguards, Arca-type compatible tripod heads |
| Maximum Weight Recommendation | 20 Kilograms (44 lbs) |
| Special Features | Rust Resistant, Lightweight Design, Removable Safety-Stops |
4. Setup and Installation
The GSP-80 plate is designed for easy and secure attachment to M-LOK compatible handguards. Follow these steps for proper installation:
- Identify M-LOK Slots: Locate the M-LOK slots on your firearm's handguard where you intend to mount the plate.
- Position the Plate: Align the GSP-80 plate with the desired M-LOK slots. The M-LOK fasteners on the plate should align with the slots.
- Insert Fasteners: Insert the M-LOK fasteners into the slots. Ensure they are fully seated.
- Tighten Screws: Using the provided hex keys, tighten the screws on the fasteners. As you tighten, the fasteners will rotate and lock into place against the inside of the handguard. Tighten until snug, but do not overtighten.
- Verify Security: Gently attempt to move the plate to ensure it is securely attached and does not wobble.
- Optional Safety-Stops: The plate features four safety-screws that can be used to further limit travel and ensure the rifle remains securely in place. These are pre-installed and can be removed if desired, but it is recommended to keep them for maximum security.
Image: A rifle securely mounted on a tripod using the Leofoto GSP-80 QR Support Plate, demonstrating a stable shooting setup.
Image: Another perspective of a rifle attached to a tripod via the GSP-80 plate, highlighting its integration with firearm forends.
Image: Detailed view of the GSP-80 plate showing the four safety-screws designed to limit travel and ensure secure rifle positioning.
5. Operating Instructions
Once the GSP-80 plate is securely attached to your firearm's handguard, it can be easily mounted onto any Arca-type compatible quick release clamp on your tripod head.
- Open Tripod Clamp: Ensure your tripod's Arca-type quick release clamp is open and ready to receive the plate.
- Insert Plate: Slide the GSP-80 plate into the open clamp. The plate's dovetail design will fit precisely into the clamp.
- Secure Clamp: Close and tighten the quick release clamp until the plate is firmly secured. Ensure there is no movement or play between the plate and the clamp.
- Check Stability: Before use, always double-check the stability of your firearm on the tripod. Ensure all connections are tight and secure.
- Quick Release: To remove the firearm, simply loosen the quick release clamp and slide the plate out.
6. Maintenance
To ensure the longevity and optimal performance of your Leofoto GSP-80 QR Rifle Support Plate, follow these simple maintenance guidelines:
- Cleaning: Wipe the plate clean with a soft, damp cloth after use, especially if exposed to dirt, dust, or moisture. Avoid using harsh chemicals or abrasive materials, as they may damage the anodized finish.
- Inspection: Periodically inspect the plate for any signs of wear, damage, or loose screws. Ensure the M-LOK fasteners are clean and free of debris.
- Storage: Store the plate in a dry, clean environment when not in use to prevent accumulation of dust and moisture.
- Rust Resistance: The plate is designed to be rust resistant, but prolonged exposure to extreme moisture or corrosive environments should be avoided.
7. Troubleshooting
If you encounter issues with your GSP-80 QR Rifle Support Plate, consider the following common problems and solutions:
- Problem: The plate does not fit into my M-LOK handguard slots.
Solution: M-LOK specifications can vary slightly between manufacturers. Verify the M-LOK slot dimensions of your handguard against the GSP-80 plate's specifications (3.15 inches length). Ensure proper alignment during installation and do not force the plate into place if significant resistance is met. Some M-LOK handguards may have tighter tolerances. - Problem: The plate feels loose after installation.
Solution: Ensure the M-LOK fasteners are correctly rotated and fully engaged within the handguard slots. Retighten the screws using the provided hex keys until the plate is snug and secure. Do not overtighten, as this can strip the screws or damage the handguard. - Problem: The plate is difficult to slide into my Arca-type clamp.
Solution: Ensure the quick release clamp on your tripod head is fully open. Check for any debris or obstructions in the clamp or on the plate's dovetail. If the issue persists, verify that your clamp is indeed Arca-type compatible.
8. Safety Information
Always prioritize safety when handling firearms and accessories. Adhere to the following safety guidelines:
- Secure Attachment: Always ensure the GSP-80 plate is securely attached to both your firearm's handguard and the tripod's quick release clamp before use. A loose connection can lead to instability and potential damage or injury.
- Weight Limit: Do not exceed the maximum weight recommendation of 20 kilograms (44 lbs) for the plate. Overloading can compromise stability and lead to equipment failure.
- Proper Handling: When mounting or dismounting your firearm, always maintain control and ensure the firearm is pointed in a safe direction.
- Regular Checks: Periodically check all screws and connections for tightness, especially during extended use or after transport.
- Environmental Factors: Be aware of environmental conditions such as wind, uneven terrain, or unstable surfaces that could affect the stability of your tripod setup.
