HEIMPLANET The CAVE V2 Inflatable Camping Tent

Introduction

Welcome to the user manual for your HEIMPLANET The CAVE V2 Inflatable Camping Tent. This tent is designed for 2-3 persons, featuring an innovative inflatable frame system that eliminates the need for traditional poles. Its durable construction and unique design make it ideal for various outdoor adventures. Please read this manual thoroughly to ensure proper setup, operation, and maintenance of your tent.

The CAVE V2 utilizes a Multi Chamber Safety System, allowing the entire frame to be inflated at once. Individual chambers can then be isolated, providing emergency stability and simplifying repairs if one section is damaged.

Product Overview

Figure 1: The HEIMPLANET The CAVE V2 tent fully assembled, showcasing its unique inflatable structure and grey fabric.

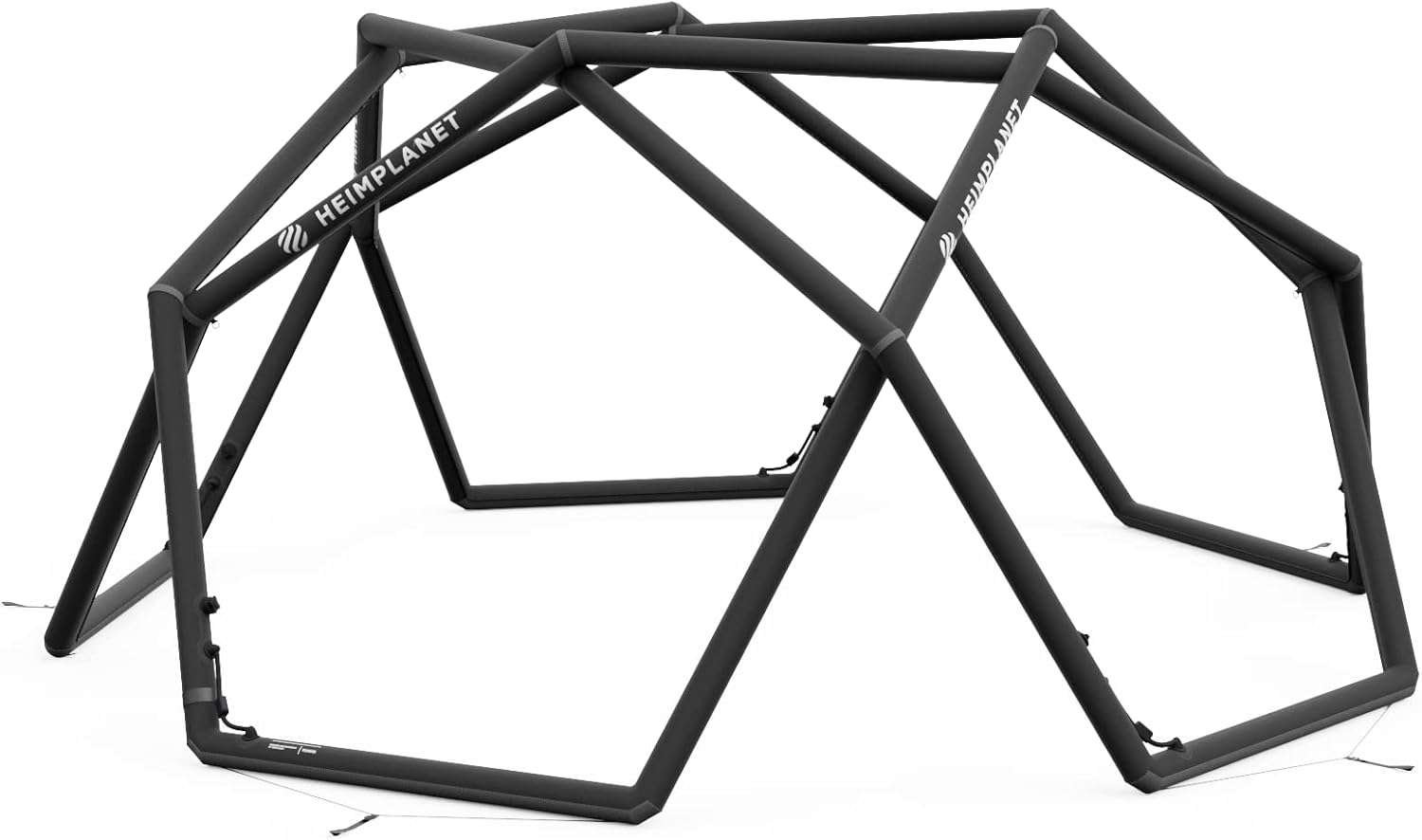

Figure 2: The inflatable diamond grid (IDG) frame of The CAVE V2, demonstrating the structure without the tent fabric.

The CAVE V2 features a robust 40D High Tenacity Polyester with Double Ripstop fabric, offering enhanced tear strength while remaining lightweight. Its design includes five closable ventilation points for optimal air circulation and a star-shaped roof for efficient rain drainage.

• Material: 40D High Tenacity Polyester with Double Ripstop.
• Ventilation: Five closable points for air exchange.
• Roof Design: Star-shaped for effective water runoff.
• Storage: Integrated bedroom pockets and a vestibule for gear.
• Safety System: Multi Chamber Security System for structural integrity.

Setup Instructions

Setting up your HEIMPLANET The CAVE V2 tent is quick and straightforward due to its inflatable design. Follow these steps for optimal setup:

1. Unpack and Lay Out: Remove the tent from its pack sack and lay it flat on a clean, level surface. Ensure the inflatable frame is fully extended and not twisted.
2. Connect Pump: Locate the main inflation valve on the inflatable frame. Attach the included pump adapter to your pump and connect it securely to the valve.
3. Inflate the Frame: Begin inflating the tent frame. The Multi Chamber Safety System allows the entire frame to inflate simultaneously. Continue pumping until the frame is rigid and stands upright. Do not over-inflate.
4. Secure the Tent: Once the frame is inflated, use the provided pegs to secure the tent to the ground. Utilize all available pegging points for maximum stability, especially in windy conditions.
5. Adjust Guy Ropes: Extend and secure the guy ropes to further stabilize the tent. Adjust the tension as needed to ensure the tent is taut and resistant to wind.
6. Inner Tent Setup (if separate): If your inner tent is not pre-attached, connect it to the designated attachment points inside the outer tent.

Figure 3: Rear view of the tent, showing the structure and pegging points for securing it to the ground.

Operating the Tent

Your CAVE V2 tent is designed for ease of use and comfort in various conditions.

Ventilation

The tent features five closable ventilation points. Open these vents to improve airflow and reduce condensation, especially during warmer weather or when cooking inside the vestibule. Close them during cold or wet conditions to retain warmth and prevent water entry.

Storage

Utilize the sewn-in pockets inside the tent for organizing smaller items like phones, headlamps, or personal effects. The vestibule at the entrance provides space for shoes, cooking gear, or other equipment that you prefer to keep outside the main sleeping area but protected from the elements.

Figure 4: View into the inner tent, highlighting the spacious interior and potential for integrated storage pockets.

Disassembly

To deflate and pack away the tent:

1. Remove Pegs and Guy Ropes: Detach all pegs and neatly coil the guy ropes.
2. Open Deflation Valve: Locate the main inflation/deflation valve and open it fully to allow air to escape from the frame. You can gently press down on the frame to assist deflation.
3. Fold and Roll: Once deflated, carefully fold the tent to expel any remaining air. Roll it tightly towards the valve to ensure all air is pushed out.
4. Pack Away: Place the folded tent, pegs, repair kit, and pump adapter back into the pack sack.

Maintenance

Proper maintenance will extend the lifespan of your HEIMPLANET The CAVE V2 tent.

• Cleaning: Clean the tent with a soft brush or sponge and mild soap (non-detergent) and lukewarm water. Do not use harsh chemicals or abrasive cleaners. Rinse thoroughly.
• Drying: Always ensure the tent is completely dry before packing it away to prevent mildew and fabric degradation. Air dry in a shaded, well-ventilated area.
• Storage: Store the tent in a cool, dry place, away from direct sunlight and extreme temperatures.
• Repair Kit: The included repair kit can be used for minor punctures or tears in the fabric or inflatable frame. For significant damage, contact HEIMPLANET customer support.

Figure 5: Close-up of water beading on the tent's waterproof fabric, demonstrating its water resistance.

Troubleshooting

Specifications

Figure 6: Diagram illustrating the dimensions and floor plan of The CAVE V2 tent.

Warranty and Support

For warranty information, please refer to the official HEIMPLANET website or contact their customer service directly. Keep your proof of purchase for any warranty claims.

A digital version of this user manual is available for download: User Manual (PDF).

For further assistance or technical support, please visit the official HEIMPLANET store or contact their support team:
