vidaXL 3x4m Anthracite Gazebo Instruction Manual

1. Important Safety Information

Please read all instructions carefully before assembly and use. Retain this manual for future reference.

• Weather Conditions: This product is designed for temporary shade and privacy. It must NEVER be used in severe weather conditions such as strong winds, heavy rain, snow, or storms. Disassemble or secure the gazebo properly during adverse weather to prevent damage or injury.
• Assembly: Ensure all parts are present and undamaged before beginning assembly. Follow the assembly steps precisely. Two or more people are recommended for safe assembly.
• Anchoring: Always anchor the gazebo securely to the ground using stakes or weights to prevent it from being lifted by wind.
• Clearance: Ensure adequate clearance around the gazebo from heat sources, open flames, and electrical lines.
• Maintenance: Regularly inspect the frame and fabric for wear and tear. Replace damaged parts immediately.

2. Package Contents

Verify that all components listed below are included in your package. If any parts are missing or damaged, contact customer support before proceeding with assembly.

• Powder-coated steel frame components
• Polyester roof fabric with PA coating (double-tier)
• Side walls (removable)
• Decorative panels for each corner post
• Assembly hardware (bolts, nuts, washers, etc.)
• Assembly tools (if provided)
• Instruction manual

3. Assembly Instructions

Assembly is required for this product. It is recommended to have at least two people for assembly. Follow these general steps:

1. Unpack and Identify Parts: Lay out all components on a clean, flat surface. Refer to the parts list in your package to identify each piece.
2. Assemble the Base Frame: Connect the horizontal and vertical steel frame components to form the base structure. Ensure all connections are secure but do not fully tighten bolts until the entire frame is assembled.
3. Attach Corner Posts and Decorative Panels: Secure the corner posts to the base frame. Attach the decorative panels to the lower section of each corner post as shown in the diagrams.
4. Construct the Roof Frame: Assemble the upper roof frame structure. This typically involves connecting roof beams and central supports.
5. Install the Roof Fabric: Carefully drape the polyester roof fabric over the assembled roof frame. Ensure the double-tier roof is correctly positioned for optimal air circulation. Secure the fabric to the frame using the provided fasteners or ties.
6. Attach Side Walls: Hang the removable side walls from the roof frame. These can be tied back or closed as needed for privacy or protection.
7. Final Tightening and Anchoring: Once the entire gazebo is assembled, go back and fully tighten all bolts and connections. Securely anchor the gazebo to the ground using appropriate stakes or weights for stability.

Image 1: Fully assembled vidaXL 3x4m Anthracite Gazebo providing shade over an outdoor dining area.

4. Usage Guidelines

The vidaXL Gazebo is designed to enhance your outdoor living space by providing shade and privacy.

• Shade and UV Protection: The polyester roof with PA coating offers protection from the sun's rays, making your outdoor area more comfortable.
• Air Circulation: The double-tier roof design promotes better airflow, reducing heat buildup under the canopy.
• Privacy and Insect Protection: Utilize the removable side walls for complete protection. They can be drawn closed for privacy or to deter insects, or tied back to create an open configuration.

Image 2: Front view of the gazebo with side walls retracted, offering an open feel.

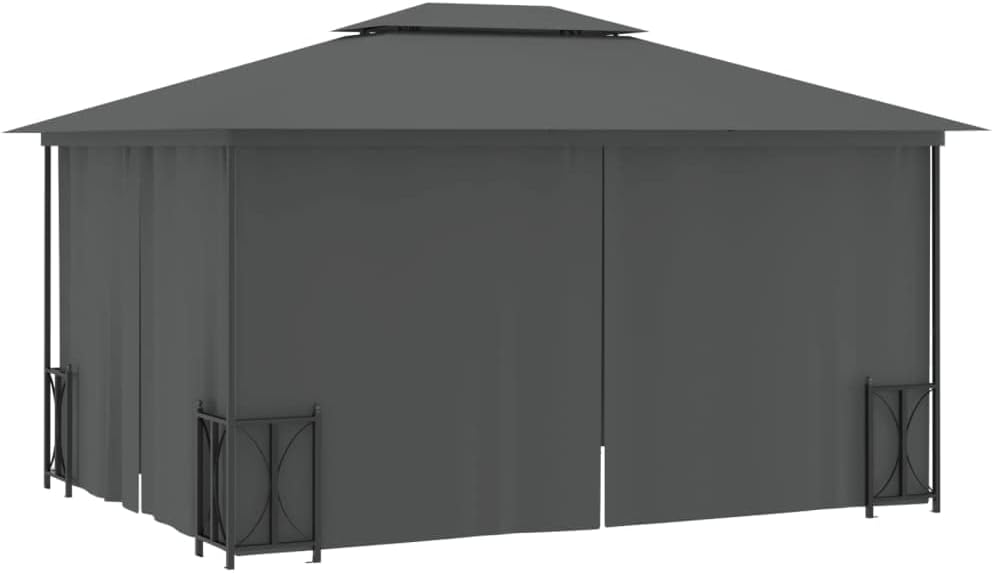

Image 3: Side view of the gazebo with side walls closed, providing enhanced privacy and protection.

5. Care and Maintenance

Proper care will extend the life of your gazebo.

• Cleaning the Fabric: Clean the polyester roof and side walls with a mild soap solution and a soft brush or cloth. Rinse thoroughly with clean water and allow to air dry completely before storage. Do not use harsh chemicals or abrasive cleaners.
• Frame Maintenance: Wipe the powder-coated steel frame with a damp cloth to remove dirt and debris. Inspect the frame periodically for rust or damage. Touch up any scratches on the powder coating to prevent rust.
• Storage: During off-season or prolonged periods of non-use, disassemble the gazebo and store all components in a dry, protected area to prevent damage from weather elements. Ensure fabric is completely dry before folding and storing to prevent mildew.
• Inspection: Regularly check all bolts and connections to ensure they remain tight and secure.

6. Troubleshooting

Here are solutions to common issues you might encounter:

• Gazebo feels unstable: Ensure all frame connections are fully tightened. Verify that the gazebo is properly anchored to the ground using stakes or additional weights. Check if the ground surface is level.
• Water pooling on the roof: Ensure the roof fabric is taut and properly stretched over the frame. The double-tier design helps with drainage, but excessive pooling may indicate improper installation or sagging fabric. Clear any debris from the roof.
• Side walls not closing properly: Check for obstructions or misaligned tracks/ties. Ensure the fabric is not snagged.
• Difficulty with assembly: Refer back to the assembly instructions and diagrams. Ensure you have identified all parts correctly. Do not force components together; if they don't fit, re-check the orientation.

7. Specifications

Detailed product specifications for the vidaXL 3x4m Anthracite Gazebo.

Image 4: Dimensional drawing of the gazebo, illustrating its overall size and key measurements.

Image 5: Detail of the decorative panel at the base of a corner post.

8. Warranty and Support

For any questions, missing parts, or issues not covered in this manual, please contact vidaXL customer support.

• Return Policy: This product is subject to a 30-day refund/replacement return policy. Please refer to your purchase documentation for specific terms and conditions.
• Manufacturer Reference: 318544
• Contact: For support, please visit the vidaXL website or contact your retailer.
