Maax Outback Semi-Frameless Sliding Bathtub Door

Introduction

This manual provides detailed instructions for the installation, operation, maintenance, and troubleshooting of your Maax Outback Semi-Frameless Sliding Bathtub Door. Please read this manual thoroughly before beginning installation or use to ensure proper function and safety. Retain this manual for future reference.

Safety Information

• Always wear safety glasses and gloves during installation.
• Handle glass panels with extreme care. Tempered glass, while strong, can shatter if struck at the edges.
• Ensure the installation surface is structurally sound and level.
• Professional installation is recommended for optimal safety and performance.
• Do not use power tools for final tightening of fasteners to avoid stripping or damaging components.
• Keep children and pets away from the installation area.

Package Contents

Verify that all components are present and undamaged before beginning installation. If any parts are missing or damaged, do not proceed with installation and contact customer support.

• Glass Panels (Fixed and Sliding)
• Top and Bottom Tracks
• Wall Profiles/Jambs
• Rollers and Guides
• Door Handle
• Seals and Gaskets
• Installation Hardware (screws, anchors, etc.)

Setup and Installation

The Maax Outback door features a 'Perfect fit assembly' designed to simplify installation. Follow these general steps:

1. Preparation: Measure your bathtub alcove to ensure it falls within the 55-inch to 59-inch width range. Clean and prepare the wall surfaces where the door will be installed.
2. Install Wall Profiles: Secure the vertical wall profiles to the studs or using appropriate anchors, ensuring they are plumb and level.
3. Assemble Tracks: Attach the top and bottom tracks to the wall profiles. Ensure the bottom track is level along the bathtub rim.
4. Install Fixed Glass Panel: Carefully place the fixed glass panel into its designated track and secure it to the wall profile.
5. Install Sliding Glass Panel: Attach the rollers to the sliding glass panel. Lift and place the sliding panel onto the top track, then guide the bottom into the lower track.
6. Install Handle: Attach the 8-inch handle to the sliding glass panel.
7. Apply Seals: Install all provided seals and gaskets along the glass edges and tracks to ensure a watertight enclosure.
8. Seal with Silicone: Apply a bead of silicone sealant along the exterior base and vertical edges of the door where it meets the wall and bathtub, as per manufacturer guidelines. Allow adequate curing time before use.

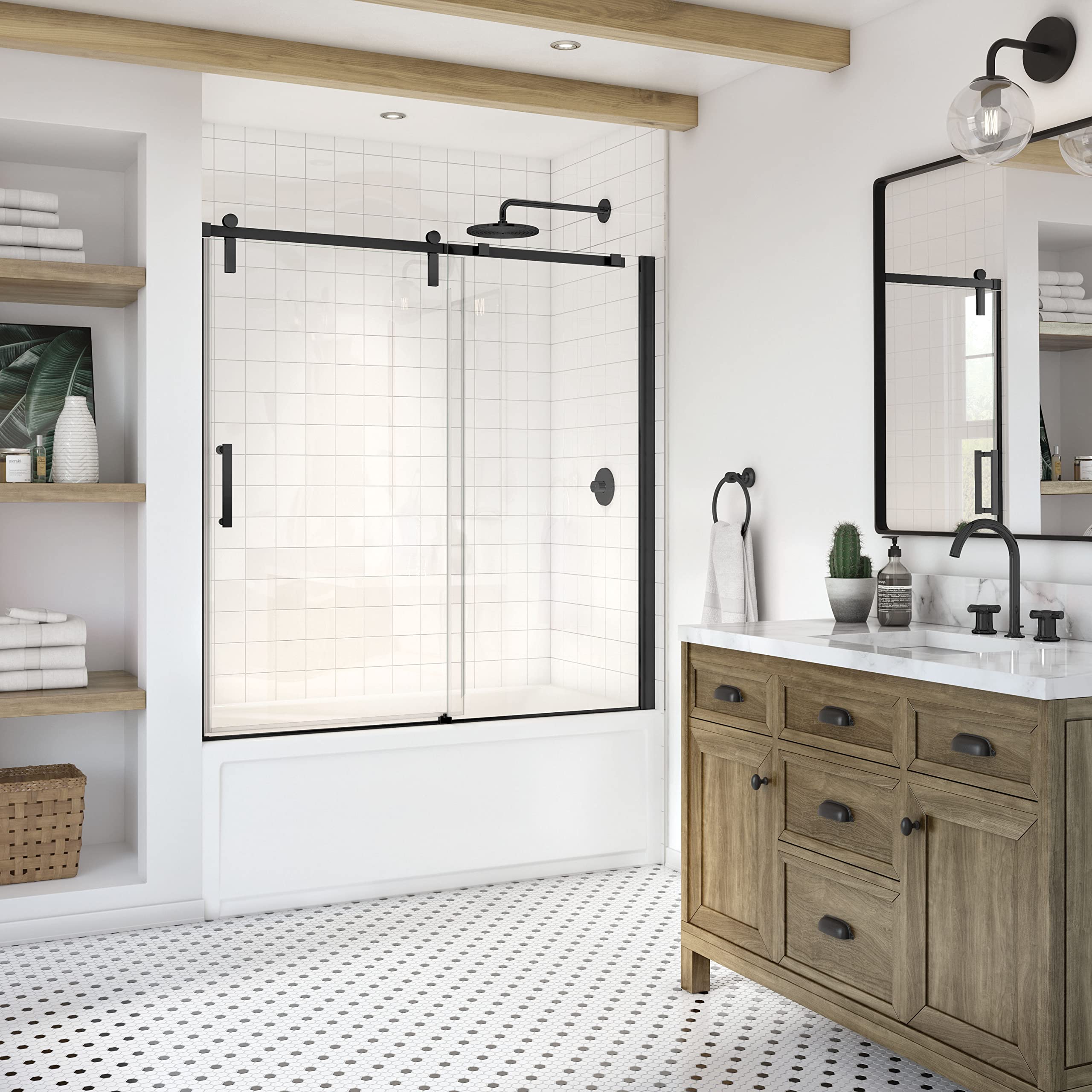

Image: The Maax Outback Semi-Frameless Sliding Bathtub Door, showcasing its matte black finish and clear glass panels. This image illustrates the installed product, providing a visual reference for the completed setup.

Operating Instructions

To operate your Maax Outback sliding bathtub door:

• Grasp the handle firmly.
• Gently slide the door along the top and bottom tracks to open or close.
• The integrated wheel catcher helps retain water within the tub area, preventing splashes outside.
• Ensure the door is fully closed before showering to prevent water leakage.

Maintenance

Regular maintenance will ensure the longevity and appearance of your bathtub door.

• Glass Cleaning: The glass features Lotus easy clean protection. Clean glass panels regularly with a soft cloth and a non-abrasive glass cleaner. Avoid harsh chemicals or abrasive pads that can damage the glass coating or finish.
• Track Cleaning: The detachable guide allows for easy cleaning of the bottom track. Periodically remove debris, soap scum, and hair from the tracks to ensure smooth door operation.
• Hardware: Check all screws and fasteners periodically to ensure they are tight. Do not overtighten.
• Seals: Inspect seals and gaskets for wear or damage. Replace if necessary to maintain water tightness.

Troubleshooting

• Door not sliding smoothly: Check tracks for debris. Clean and lubricate rollers if necessary. Ensure tracks are properly aligned.
• Water leakage: Verify all seals are properly installed and undamaged. Check silicone sealant for cracks or gaps and reapply if needed. Ensure the door is fully closed during use.
• Glass appears cloudy: Use a recommended glass cleaner for shower doors. Hard water stains may require a specialized cleaner designed for mineral deposits.

Specifications

Warranty and Support

For specific warranty information, please refer to the documentation provided at the time of purchase or visit the official Maax website. For technical assistance, replacement parts, or any other inquiries, please contact Maax customer support directly. Ensure you have your model number (835682-900-340-000) available when contacting support.
