Instruction Manual: Replacement Nozzle Assembly

Product Overview

This manual provides essential information for the installation, operation, and maintenance of the replacement nozzle assembly for Hoover Power Scrub Elite Pet Carpet Cleaners. This part is designed to fit specific models, ensuring optimal performance of your carpet cleaner.

The nozzle assembly is a critical component responsible for distributing cleaning solution and extracting dirty water from carpets. Proper installation and care are vital for effective cleaning and longevity of the part.

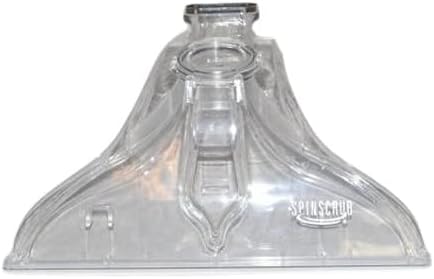

Image: Transparent plastic nozzle assembly for Hoover Power Scrub Elite Pet Carpet Cleaners. The 'SPINSCRUB' branding is visible on the front surface, indicating its compatibility with the SpinScrub brush system. This assembly is crucial for water and solution distribution and suction during carpet cleaning.

Important Safety Information

• Model Compatibility: Always verify that your vacuum cleaner's model number is explicitly listed as compatible with this replacement part. Refer to the "Compatible Models" section in this manual or on the product packaging.
• Visual Identification: Do not rely solely on visual appearance or images of parts for identification. Many parts may look similar but have critical differences in fit and function.
• Installation: Ensure the carpet cleaner is unplugged from the power source before attempting any installation or removal of parts.
• Genuine Parts: Use only genuine or specified replacement parts to maintain the safety and operational integrity of your appliance.

Setup and Installation

This replacement nozzle assembly (compare to part number 305028002) is designed for a precise fit with the following Hoover Power Scrub Elite Pet Carpet Cleaner models:

• FH50134
• FH50135
• FH50150NC
• FH50141
• FH50250
• FH50251
• FH50258
• FH50259CDI
• FH50253PC
• FH50256PC

Installation Steps:

1. Power Off: Ensure your Hoover carpet cleaner is turned off and unplugged from the electrical outlet.
2. Remove Old Nozzle: Carefully detach the existing nozzle assembly from the carpet cleaner. This usually involves releasing latches or clips. Refer to your original carpet cleaner's manual for specific removal instructions if needed.
3. Inspect Area: Clean any debris or residue from the area where the nozzle attaches to ensure a proper seal with the new part.
4. Install New Nozzle: Align the new replacement nozzle assembly with the corresponding slots or attachment points on the carpet cleaner. Gently press or click it into place until it is securely fastened. Ensure all latches or clips are engaged.
5. Verify Fit: Double-check that the nozzle is firmly seated and there are no gaps that could lead to leaks or loss of suction during operation.

Operating Instructions

Once the replacement nozzle assembly is correctly installed, the operation of your Hoover carpet cleaner remains unchanged. The nozzle functions as an integral part of the cleaning system, facilitating the application of cleaning solution and the extraction of dirty water.

For detailed operating procedures of your carpet cleaner, including filling solution tanks, cleaning techniques, and emptying recovery tanks, please refer to the original instruction manual provided with your Hoover Power Scrub Elite Pet Carpet Cleaner.

Maintenance

To ensure the longevity and optimal performance of your replacement nozzle assembly, regular maintenance is recommended:

• Rinse After Use: After each cleaning session, remove the nozzle assembly and rinse it thoroughly under clean running water to remove any accumulated dirt, debris, or cleaning solution residue.
• Check for Clogs: Periodically inspect the suction path and spray nozzles within the assembly for any clogs. Use a small brush or a thin object to clear any blockages carefully.
• Air Dry: Allow the nozzle assembly to air dry completely before reattaching it to the carpet cleaner or storing it.
• Inspect for Damage: Regularly check the nozzle for any signs of cracks, wear, or damage. A damaged nozzle can lead to leaks or reduced suction efficiency.

Troubleshooting

If you experience issues after installing the replacement nozzle assembly, consider the following common troubleshooting steps:

• Reduced Suction:
  • Ensure the nozzle assembly is securely attached and properly sealed to the carpet cleaner.
  • Check for any clogs in the nozzle's suction path or the recovery tank hose.
  • Verify that the recovery tank is not full and is properly seated.
• Leaking:
  • Confirm the nozzle assembly is correctly aligned and fully latched.
  • Inspect the rubber gaskets or seals on the nozzle and the cleaner for damage or misalignment.
  • Check the nozzle for any cracks or physical damage that could cause leaks.
• No Spray/Poor Spray:
  • Ensure the clean water/solution tank is not empty and is properly seated.
  • Check the spray nozzles on the assembly for clogs and clear them if necessary.
  • Verify that the pump on the carpet cleaner is functioning correctly (refer to your main cleaner manual).

If problems persist, consult the original Hoover carpet cleaner manual or contact the seller for further assistance.

Specifications

Warranty and Support

This product is offered with a standard return policy. If you are not satisfied with your purchase, you may be eligible for a refund or replacement within 30 days of receipt, in accordance with the seller's return policy.

For any questions regarding product compatibility, installation, or troubleshooting that is not covered in this manual, please contact the seller directly. The seller for this product is TOPVACUUMPARTS.

Please retain your proof of purchase for any warranty or support claims.
