Instruction Manual

Introduction

This manual provides detailed instructions for the installation, maintenance, and specifications of the APSVE Front Bumper Grill Upper Grille. This product is designed as a direct replacement for the original grille on compatible Mercedes Benz Sprinter models, enhancing both aesthetics and functionality by improving airflow to the radiator.

Please read this manual thoroughly before proceeding with installation to ensure proper fitment and safe operation.

Safety Information

• Always ensure the vehicle is parked on a level surface with the engine off and parking brake engaged before beginning any work.
• Wear appropriate personal protective equipment, such as gloves and eye protection, during installation.
• If you are unsure about any step of the installation process, consult a qualified automotive technician.
• Keep all components and tools away from children and pets.

Package Contents

Verify that all components listed below are present in your package:

• Front Hood Bumper Grille Grill Cover (Chrome finish)
• Tow replaceable accessories for camera hole (if applicable)

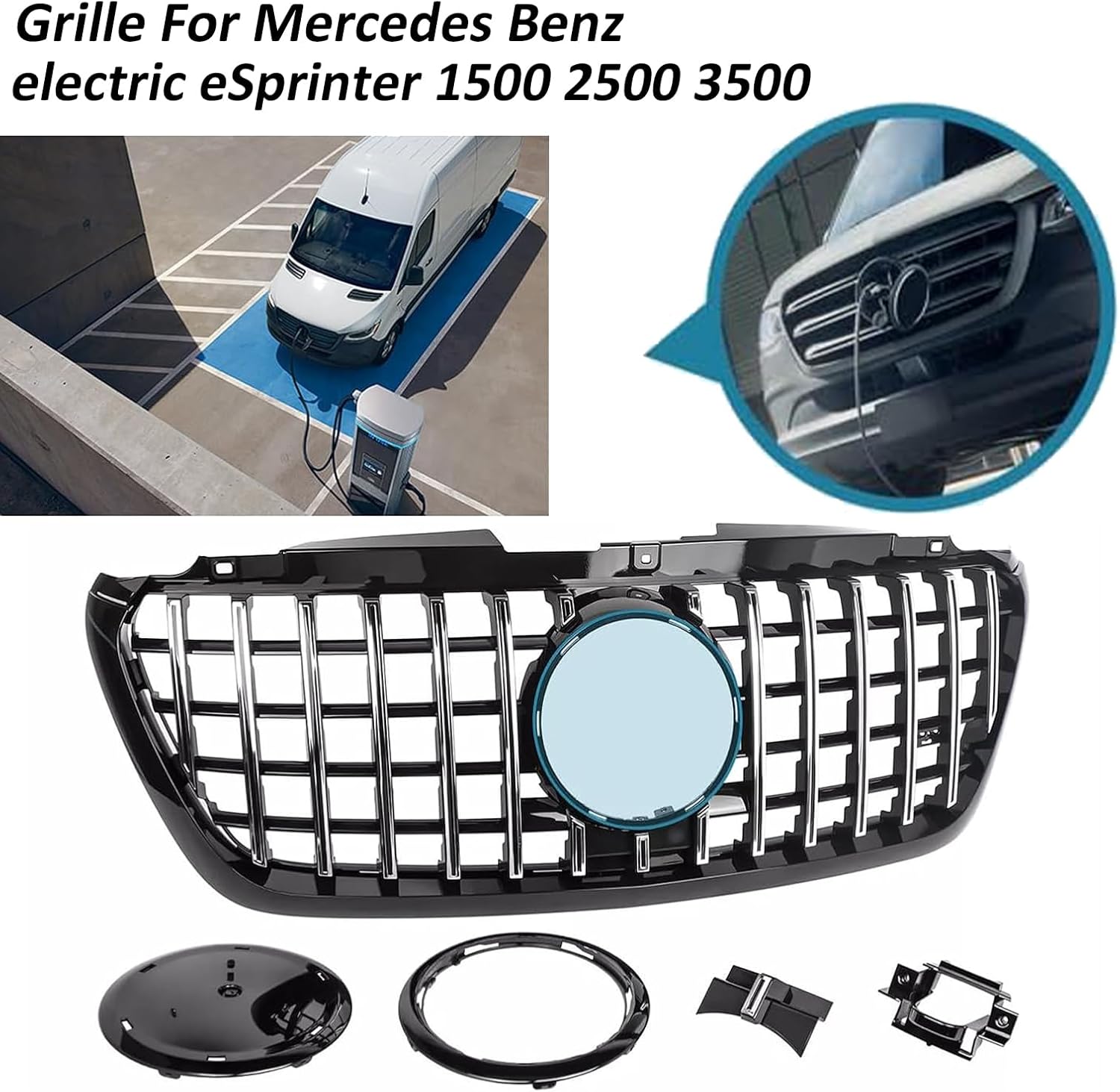

Figure 1: Overview of the grille and included accessories, demonstrating compatibility with eSprinter models.

Compatibility

This APSVE Front Bumper Grill Upper Grille is compatible with the following Mercedes-Benz Sprinter models:

• 2018-2025 Mercedes-Benz Sprinter 1500
• 2018-2025 Mercedes-Benz Sprinter 2500
• 2018-2025 Mercedes-Benz Sprinter 3500
• W907 and W910 chassis codes
• Also compatible with the electric eSprinter version.

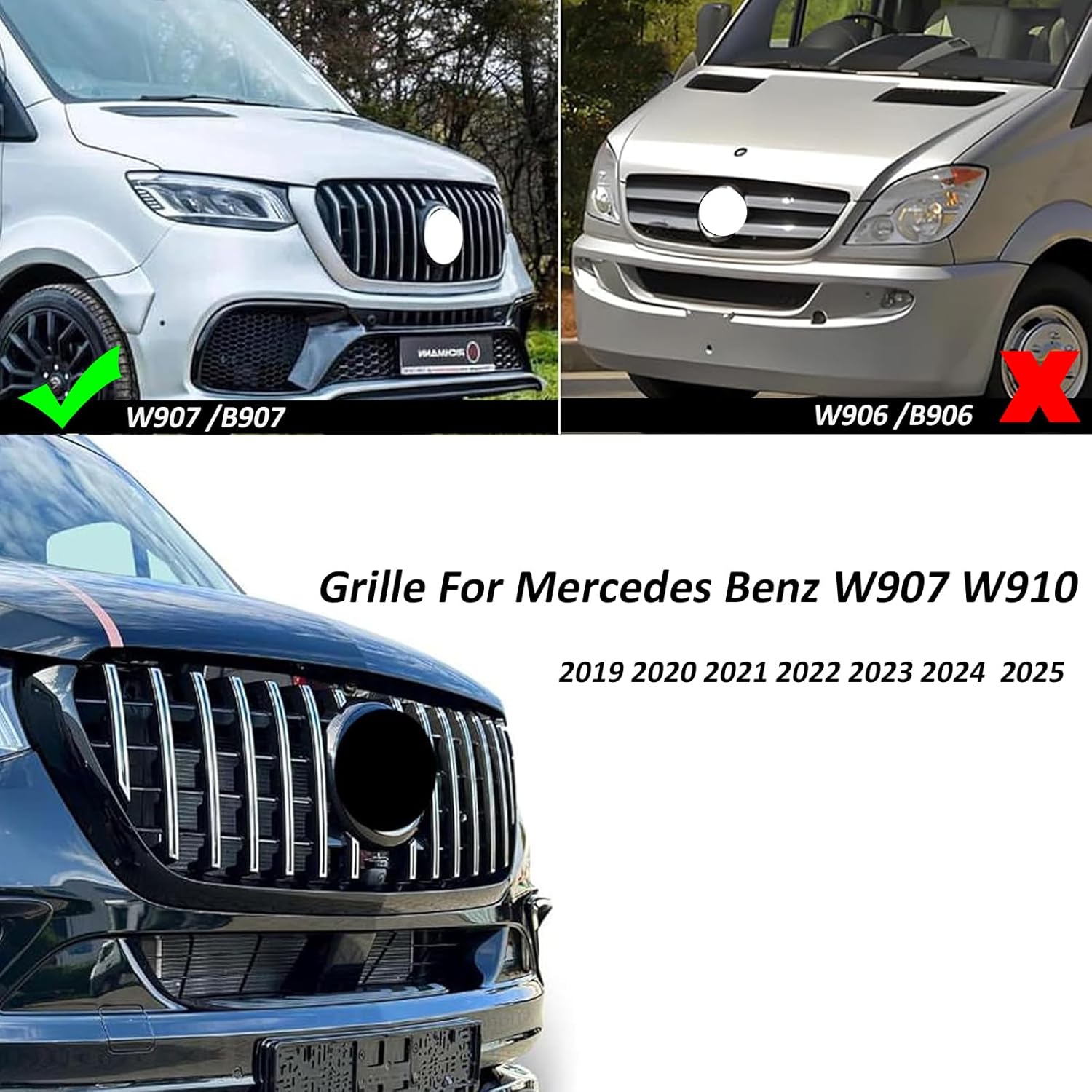

Figure 2: Visual guide for compatible Sprinter models (W907/B907) versus incompatible older models (W906/B906).

Setup and Installation

The APSVE Front Bumper Grill Upper Grille is designed for direct snap-on replacement, requiring no modification to your vehicle. Follow these general steps for installation:

1. Preparation: Ensure the vehicle's front end is clean and free of debris.
2. Remove Existing Grille: Carefully unclip or unscrew the existing front grille from your Mercedes Benz Sprinter. Refer to your vehicle's service manual for specific instructions on removing the OEM grille.
3. Install New Grille: Align the new APSVE grille with the mounting points on your vehicle's front bumper. Press firmly until the grille snaps securely into place. Ensure all clips are engaged.
4. Camera Hole Accessories (if applicable): If your vehicle has a front camera, use the provided tow replaceable accessories to properly integrate the camera into the new grille. Refer to the image below for guidance on using the correct part for vehicles with or without a camera hole.

Figure 3: Instructions for utilizing the provided accessories to accommodate vehicles with or without a front camera.

The durable construction of the grille is designed to withstand heat generated by the engine and sun exposure, ensuring long-lasting performance.

Functionality

While a grille does not have "operating" functions in the traditional sense, the APSVE Front Bumper Grill Upper Grille is engineered to provide better airflow to the radiator. This improved airflow assists in the cooling process of your vehicle's engine, contributing to optimal performance and longevity.

Figure 4: The APSVE grille installed on a Mercedes Benz Sprinter, showcasing its design and fit.

Maintenance

To maintain the appearance and integrity of your APSVE Front Bumper Grill Upper Grille, follow these simple maintenance guidelines:

• Cleaning: Regularly clean the grille with mild automotive soap and water. Use a soft cloth or sponge to avoid scratching the chrome finish. Rinse thoroughly.
• Avoid Harsh Chemicals: Do not use abrasive cleaners, solvents, or harsh chemicals, as these can damage the finish and material.
• Inspection: Periodically inspect the grille for any signs of damage or loose connections. Ensure it remains securely fastened to the vehicle.

Troubleshooting

While the APSVE grille is designed for easy installation, here are some common points to check if you encounter issues:

• Loose Fit: If the grille feels loose after installation, ensure all snap-on clips are fully engaged. Apply firm, even pressure around the perimeter of the grille until it clicks into place.
• Misalignment: Double-check that the grille is correctly aligned with the vehicle's mounting points before applying pressure. Slight adjustments may be needed to ensure a perfect fit.
• Camera Obstruction: If your vehicle's front camera view is obstructed, verify that the correct camera hole accessory has been used and properly installed.

Specifications

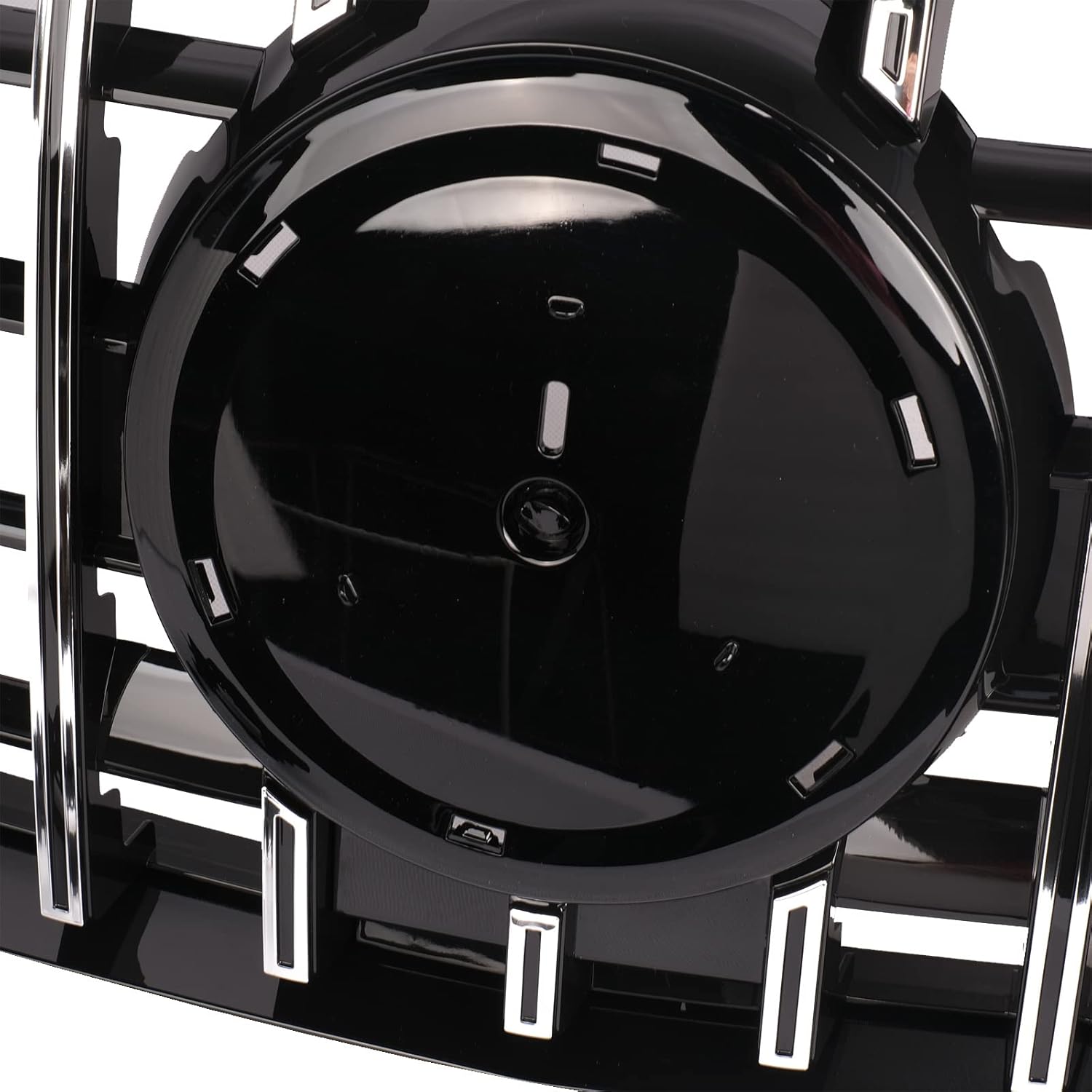

Figure 5: Detailed views of the grille's construction and finish, highlighting the central emblem area and vertical chrome bars.

Warranty and Support

For any questions regarding installation, compatibility, or product defects, please contact the seller or manufacturer directly through your purchase platform. Keep your purchase receipt or order number handy for faster assistance.
