Shimano CURADO DC 200 Low Profile Reels Instruction Manual

Introduction

This manual provides detailed instructions for the proper setup, operation, and maintenance of your Shimano CURADO DC 200 Low Profile Reel. Please read this manual thoroughly before using your reel to ensure optimal performance and longevity.

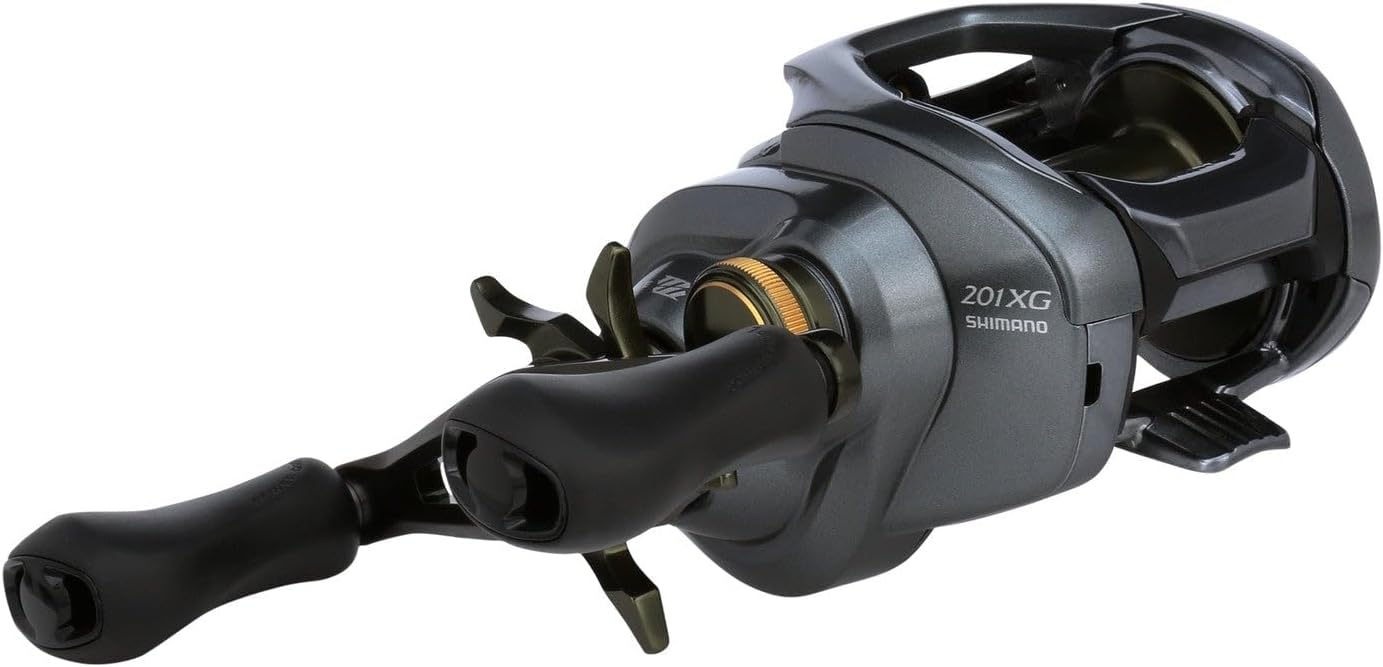

Figure 1: Front view of the Shimano CURADO DC 200 Low Profile Reel, showcasing its compact design and handle.

Setup

1. Unboxing and Inspection

Carefully remove the reel from its packaging. Inspect the reel for any visible damage or missing components. Ensure all parts are present before proceeding with setup.

2. Mounting the Reel to a Rod

1. Align the reel foot with the reel seat on your fishing rod.
2. Tighten the reel seat nut securely until the reel is firmly attached and does not wobble. Do not overtighten.

3. Spooling Fishing Line

The Curado DC 200 is designed for versatility with various line types. When spooling, ensure the line is wound evenly and tightly onto the spool to prevent tangles and optimize casting performance.

Figure 2: Side view of the reel, illustrating the spool area where fishing line is loaded.

Operating Instructions

1. Understanding the I-DC4 Digital Control Braking System

The I-DC4 system is a key feature of your Curado DC 200 reel, providing advanced casting control and minimizing backlashes. It offers four distinct settings, adjustable via an external dial:

• Mode 1 (MAX Distance): For maximum casting distance in calm conditions.
• Mode 2 (Braided/Monofilament): Optimized for braided or monofilament lines, offering balanced control.
• Mode 3 (Fluorocarbon): Specifically tuned for fluorocarbon lines, which have different casting characteristics.
• Mode 4 (Skipping): Provides maximum braking for short, precise casts like skipping under docks.

Select the appropriate mode based on your line type, lure weight, and prevailing wind conditions. Experiment with settings to find what works best for your casting style.

Figure 3: Top view of the reel, highlighting the I-DC4 digital control dial for adjusting braking settings.

2. Drag Adjustment

The star drag system allows you to adjust the tension on the line during a fight. Turn the star drag clockwise to increase drag tension and counter-clockwise to decrease it. Set the drag before casting to prevent line breakage or damage to the reel.

3. Casting and Retrieval

Engage the spool by pressing the thumb bar. Make your cast, and as the lure hits the water, gently place your thumb on the spool to prevent overrun. Begin retrieval by turning the handle, which automatically re-engages the reel.

Maintenance

Regular maintenance ensures the longevity and smooth operation of your Shimano Curado DC 200 reel.

1. Cleaning After Use

• After each use, especially in saltwater, rinse the reel with fresh water. Do not submerge the reel.
• Wipe down the exterior with a soft, damp cloth.
• Allow the reel to air dry completely before storage.

2. Lubrication

Apply a small amount of high-quality reel oil to moving parts such as the handle knobs, worm shaft, and spool bearings. Use reel grease on gears if performing a deeper service. Refer to a detailed service guide for specific lubrication points.

3. Storage

Store your reel in a dry, cool place away from direct sunlight and extreme temperatures. Consider using a reel cover or case to protect it from dust and physical damage.

Figure 4: View of the reel's handle and side plate, areas important for cleaning and lubrication.

Troubleshooting

Specifications

Warranty and Support

Warranty Information

Your Shimano CURADO DC 200 Low Profile Reel comes with a 1 year limited manufacturer warranty. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims.

Customer Support

For further assistance, technical support, or warranty inquiries, please visit the official Shimano website or contact their customer service department. Contact information can typically be found on the manufacturer's website or product packaging.

You can also visit the SHIMANO Store on Amazon for more product information and resources.
