CUB CADET 21.09" Blades 6-Pack

1. Introduction

This manual provides essential information for the safe and effective use, installation, and maintenance of your CUB CADET IH-547191-R2 21.09" replacement blades. Please read this manual thoroughly before attempting any installation or maintenance procedures. Proper installation and care will ensure optimal performance and longevity of your lawn mower blades.

2. Product Description

The CUB CADET IH-547191-R2 blades are genuine OEM (Original Equipment Manufacturer) replacement parts designed for specific CUB CADET rotary cutters and lawn mowers. This package includes six (6) high-quality, durable 21.09-inch blades, engineered to provide a precise and clean cut. These blades replace prior part numbers IH-547191-R1 and 759-3853.

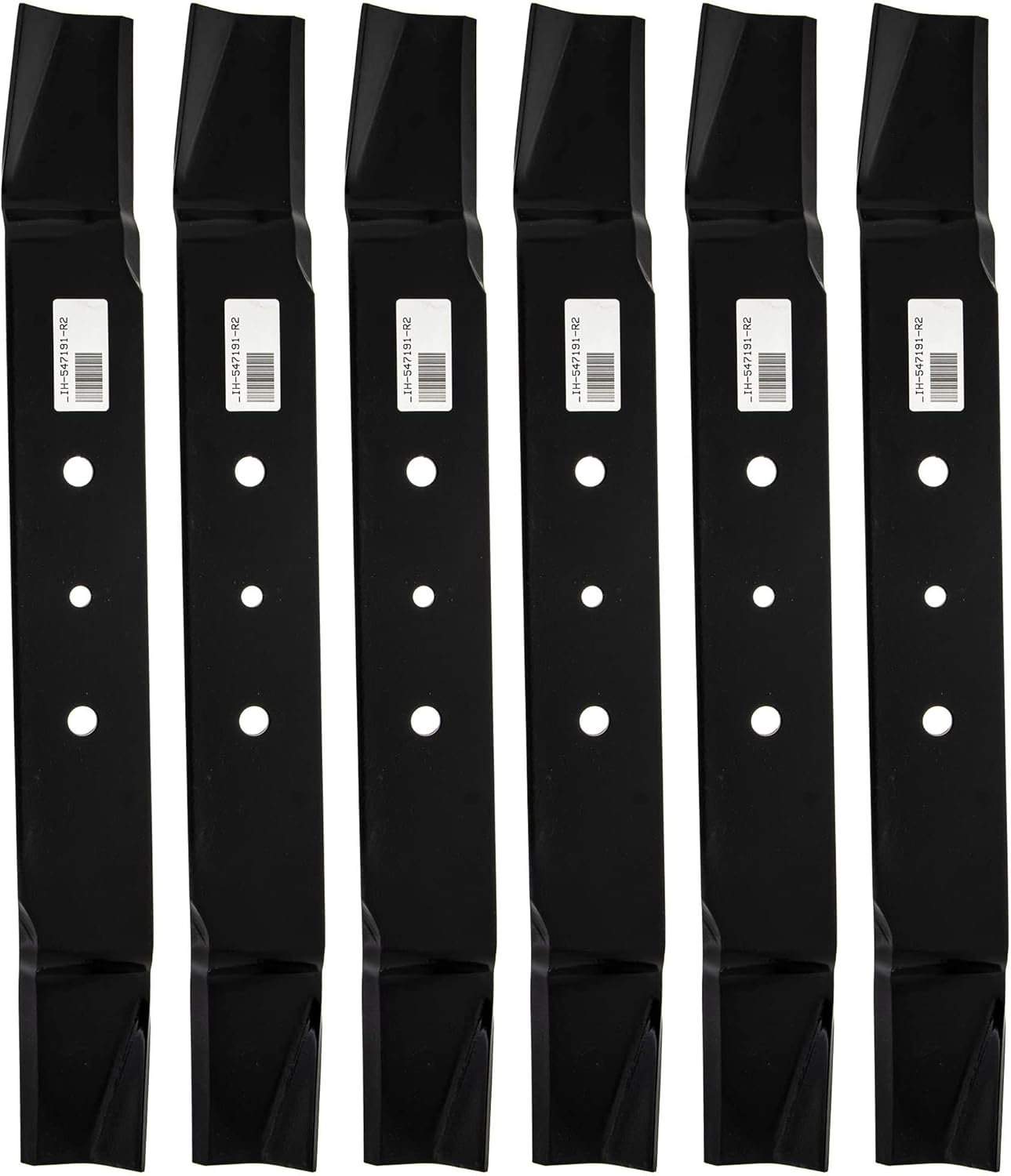

Figure 2.1: Overview of the six CUB CADET IH-547191-R2 replacement blades.

3. Compatibility

These replacement blades are compatible with the following CUB CADET models:

• CUB CADET 3160 Rotary Cutter
• CUB CADET C-1 Rotary Mower
• CUB CADET C-3 Rotary Mower

Important: Always refer to your original equipment owner's manual to verify compatibility and ensure you are installing the correct replacement parts for your specific model.

4. Safety Information

Your safety is paramount. Lawn mower blades are extremely sharp and can cause severe injury if not handled properly. Always follow these safety guidelines:

• Disconnect Power: Before performing any maintenance or installation, ensure the engine is off, the spark plug wire is disconnected, and the key is removed (if applicable) to prevent accidental starting.
• Wear Protective Gear: Always wear heavy-duty gloves to protect your hands from sharp edges. Safety glasses are also recommended to protect your eyes from debris.
• Stable Surface: Work on a flat, stable surface. Use appropriate lifting equipment or stands to secure the mower if it needs to be tilted or raised.
• Inspect Blades: Before and after installation, inspect blades for any damage or defects. Do not use damaged blades.
• Proposition 65 Warning: This product may contain chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.

5. Installation (Blade Replacement)

Follow these steps carefully to replace your lawn mower blades:

1. Preparation:
   • Ensure the mower is on a level surface.
   • Disconnect the spark plug wire and remove the ignition key.
   • If necessary, drain the fuel tank or ensure it is nearly empty to prevent spills if tilting the mower.
   • Tilt the mower onto its side with the carburetor facing upwards to prevent oil or fuel leaks.
2. Remove Old Blades:
   • Using a block of wood or a specialized blade removal tool, secure the blade to prevent it from turning.
   • Using a wrench, loosen and remove the blade bolt(s) that hold the blade to the spindle. Note the orientation of any washers or spacers.
   • Carefully remove the old blade.


   Figure 5.1: A single CUB CADET replacement blade, showing its design and part number.

3. Install New Blades:
   • Ensure the new blade is oriented correctly. The cutting edge should face the direction of rotation (usually towards the deck). Refer to your mower's manual for specific orientation.
   • Align the center hole(s) of the new blade with the spindle.
   • Reinstall any washers or spacers in their original positions.
   • Thread the blade bolt(s) by hand to ensure they are not cross-threaded.
   • Using a torque wrench, tighten the blade bolt(s) to the manufacturer's specified torque setting. Refer to your mower's owner's manual for the exact torque specifications. Overtightening or undertightening can be dangerous.


   Figure 5.2: Top view of the blade, showing the part number label and mounting holes.



   Figure 5.3: Bottom view of the blade, showing engraved markings and mounting holes.

4. Post-Installation Check:
   • Ensure the blade is securely fastened and does not wobble.
   • Reconnect the spark plug wire.
   • Carefully lower the mower back to its operating position.
   • Before starting the engine, manually rotate the blade to ensure it clears the deck and any obstacles.

6. Operating Considerations

After installing new blades, ensure they are properly balanced and securely tightened before operating your lawn mower. Unbalanced or loose blades can cause excessive vibration, damage to the mower, and pose a safety risk. Always follow the operating instructions provided in your lawn mower's owner's manual.

7. Maintenance

Regular inspection of your lawn mower blades is crucial for optimal cutting performance and safety.

• Inspection Frequency: Inspect blades before each use for sharpness, bends, cracks, or excessive wear.
• When to Replace: Replace blades when they become dull, bent, cracked, or show signs of significant wear. Dull blades tear grass, leading to an unhealthy lawn. Damaged blades can be dangerous and cause mower vibration.
• Cleaning: After each use, clean grass clippings and debris from the underside of the mower deck and blades to prevent buildup and maintain balance.

8. Troubleshooting

If you experience issues after blade replacement, consider the following:

• Excessive Vibration: This often indicates an unbalanced blade or improper installation. Re-check that the blade is securely tightened to the correct torque specification. Ensure the blade is not bent or damaged.
• Poor Cut Quality: If the grass appears torn or uneven, the blades may be dull, installed incorrectly, or the mower deck height may need adjustment.
• Blade Loosening: If a blade loosens during operation, immediately stop the mower and re-tighten the blade bolt to the specified torque. This is a critical safety concern.

9. Specifications

10. Warranty and Support

For specific warranty information regarding your CUB CADET replacement blades, please refer to the original product documentation that came with your lawn mower or visit the official CUB CADET website. As these are replacement parts, their warranty may be covered under the original equipment's warranty or a separate parts warranty.

For technical support or further assistance, please contact CUB CADET customer service or an authorized service dealer. Always provide your product's model number (IH-547191-R2) and any relevant purchase information when seeking support.
