Suite Bebe Winchester 4-in-1 Convertible Crib Instruction Manual

1. Product Overview

The Suite Bebe Winchester 4-in-1 Convertible Crib is designed to provide a safe and adaptable sleeping solution for your child, transitioning from a crib to a toddler bed, day bed, and finally a full-size bed. Constructed from durable wood, this crib features a gender-neutral design with applied moldings and integrated storage drawers for convenience.

Key features include:

• 4-in-1 convertibility: Crib, Toddler Bed, Day Bed, Full-Size Bed.
• Integrated pull-out storage drawers beneath the crib.
• Three adjustable mattress height settings.
• Durable wood construction.
• Lead-free finish.

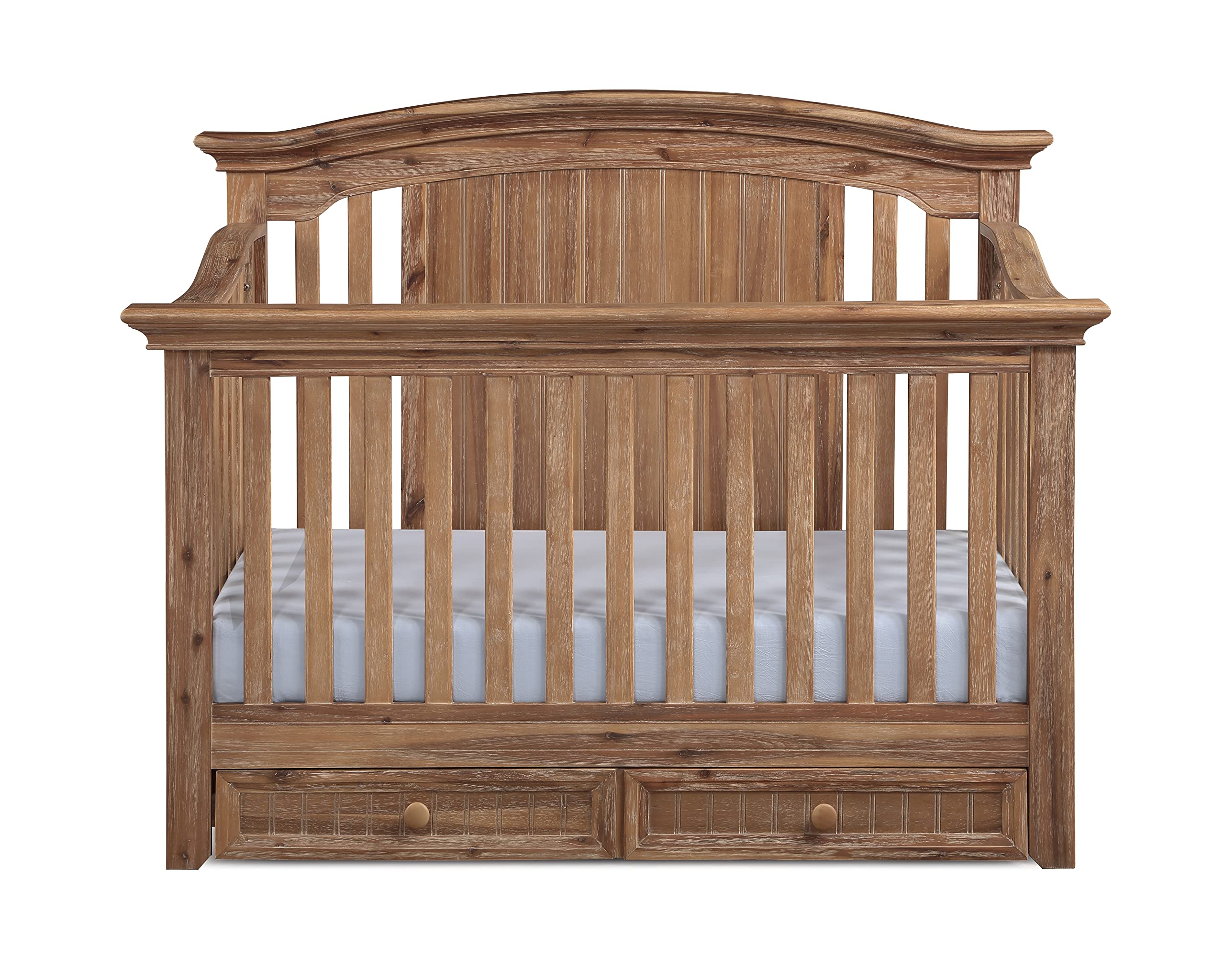

Image 1.1: The Suite Bebe Winchester 4-in-1 Convertible Crib in its standard crib configuration with closed storage drawers.

2. Safety Information

Please read and understand all instructions before assembling and using this crib. Keep this manual for future reference. Failure to follow these warnings and instructions could result in serious injury or death.

General Safety Warnings:

• SUFFOCATION HAZARD: Infants can suffocate in gaps between an extra mattress and the side of the crib. Use only a mattress that is at least 27 1/4 inches (69 cm) by 51 5/8 inches (131 cm) with a thickness not exceeding 6 inches (15 cm).
• STRANGULATION HAZARD: Strings and cords can cause strangulation. Keep strings and cords away from the crib. Never place the crib near a window where cords from blinds or drapes could strangle a child.
• FALL HAZARD: When a child is able to pull to a standing position, set the mattress to the lowest position. Remove bumper pads, large toys, and other objects that could serve as steps for climbing out.
• Do not use this crib if any parts are missing, damaged, or broken. Contact Suite Bebe for replacement parts. Do not substitute parts.
• Periodically check all fasteners for tightness. Do not overtighten.
• Do not use waterbeds or soft bedding in the crib.
• Ensure the crib is assembled correctly and all locking mechanisms are engaged before placing a child in it.
• Maximum recommended weight for the crib is 50 pounds (22.7 kg).

3. Parts List

Before assembly, ensure all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact customer support for assistance.

Included Components:

• Headboard
• Footboard
• Side Rails (2)
• Mattress Support Frame
• Storage Drawers (2)
• Hardware Pack (screws, bolts, barrel nuts, Allen wrench)

Optional Conversion Kit Components (Sold Separately):

• Toddler Guard Rail (Part Number: 4075)
• Full Bed Rails (Part Number: 4070)

4. Setup and Assembly

Assembly is required. It is recommended that two adults assemble the crib. Clear a spacious area for assembly and keep all small parts out of reach of children.

4.1. Crib Assembly

1. Attach the side rails to the headboard and footboard using the provided hardware. Ensure all bolts are securely tightened, but do not overtighten.
2. Install the mattress support frame. Select the desired mattress height setting (refer to Section 5.1 for guidance). Secure the mattress support to the side rails.
3. Assemble the two storage drawers according to the separate drawer assembly instructions (if provided). Slide the assembled drawers into the designated space beneath the crib.
4. Once assembled, ensure all connections are secure and the crib is stable.

Image 4.1: The crib fully assembled with storage drawers closed.

Image 4.2: The crib with its integrated storage drawers pulled out.

4.2. Conversion to Toddler Bed

To convert the crib into a toddler bed, you will need the Toddler Guard Rail (Part Number: 4075), sold separately.

1. Remove one of the crib's side rails.
2. Attach the Toddler Guard Rail in its place, following the instructions provided with the guard rail kit.
3. Ensure the mattress support is at the lowest position for safety.

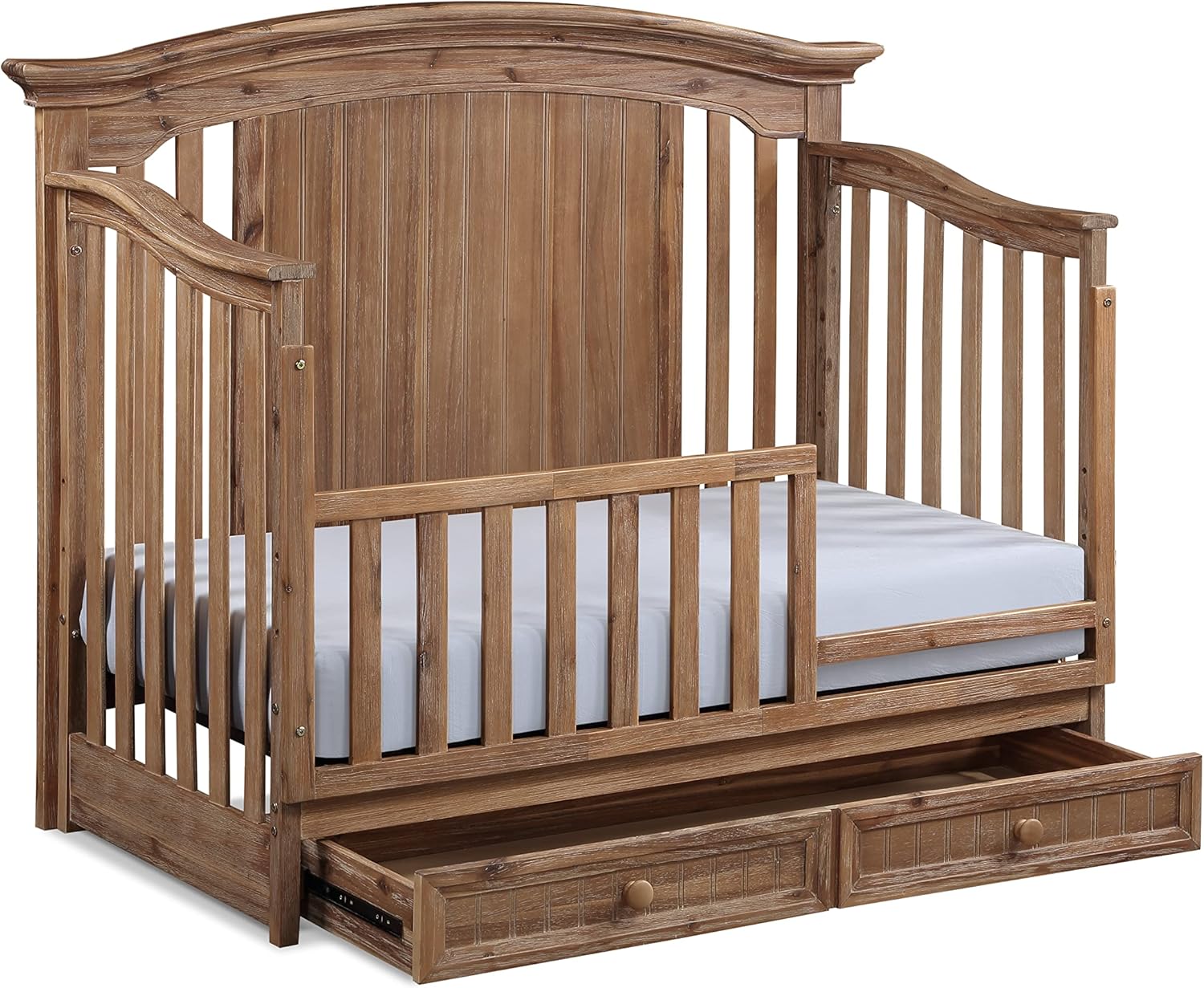

Image 4.3: The crib configured as a toddler bed with the guard rail installed.

4.3. Conversion to Day Bed

To convert the crib into a day bed, no additional parts are typically required beyond the original crib components.

1. Remove both side rails from the crib.
2. The headboard, footboard, and mattress support remain.
3. Ensure the mattress support is at the lowest position.

Image 4.4: The crib configured as a day bed, with both side rails removed.

4.4. Conversion to Full-Size Bed

To convert the crib into a full-size bed, you will need the Full Bed Rails (Part Number: 4070) and a Hollywood frame, both sold separately.

1. Remove all crib side rails and the mattress support.
2. Attach the Full Bed Rails to the headboard and footboard, following the instructions provided with the bed rail kit.
3. Install a standard full-size mattress and box spring (not included) onto the bed rails or Hollywood frame.

Image 4.5: The headboard and footboard of the crib used to form a full-size bed frame.

5. Operating Instructions

5.1. Adjusting Mattress Height

The Suite Bebe Winchester crib offers three adjustable mattress height settings to accommodate your child's growth and ensure safety.

1. Highest Position: For newborns and infants who cannot push up on their hands and knees. This position allows easier access to the baby.
2. Middle Position: For infants who can push up on their hands and knees, but cannot yet pull themselves to a standing position.
3. Lowest Position: For toddlers who can pull themselves to a standing position. This is the safest position to prevent climbing out.

To adjust the mattress height:

• Remove the mattress from the crib.
• Carefully detach the mattress support frame from the side rails.
• Re-attach the mattress support frame to the desired height setting, ensuring all four corners are securely fastened.
• Verify that the mattress support is level and stable before replacing the mattress.

6. Maintenance

Proper maintenance will extend the life and ensure the safety of your crib.

• Cleaning: Wipe the crib surfaces with a dry cloth. Avoid abrasive cleaners or strong chemicals that could damage the finish.
• Inspections: Periodically inspect all screws, bolts, and fasteners to ensure they are tight. Do not overtighten.
• Storage: If storing the crib, disassemble it carefully and store all parts in a dry, temperate environment.
• Damage: If any part of the crib becomes damaged or broken, discontinue use immediately and contact customer support for replacement parts.

7. Troubleshooting

This section addresses common issues you might encounter with your Suite Bebe Winchester crib.

8. Specifications

9. Warranty and Support

9.1. Warranty Information

Specific warranty details for the Suite Bebe Winchester 4-in-1 Convertible Crib are not provided in this manual. Please refer to the warranty card included with your purchase or visit the official Suite Bebe website for comprehensive warranty information. Keep your proof of purchase for any warranty claims.

9.2. Customer Support

For missing parts, damaged components, assembly assistance, or any other inquiries, please contact Suite Bebe customer support. Contact information can typically be found on the manufacturer's website or on the packaging materials.

When contacting support, please have your model name (Winchester) and ASIN (B0B5VBD18X) ready.
