Boswillon Black Floating Shelves Instruction Manual

Introduction

Thank you for choosing Boswillon Black Floating Shelves. This manual provides detailed instructions for the safe and proper installation, use, and maintenance of your new shelves. Please read this guide thoroughly before beginning installation and retain it for future reference.

Safety Information

• Ensure proper wall mounting by using all included hardware.
• Do not exceed the maximum weight capacity of 20 lb (9.07 kg) per shelf to prevent potential hazards and damage.
• Verify the wall material is suitable for drilling and supporting the shelves' weight.
• Keep small parts and hardware away from children to avoid choking hazards.

Package Contents

Please check that all components are present before beginning installation:

• 4 x Shelf Boards
• 8 x Shelf Brackets (Invisible Brackets)
• 24 x Wall Screws
• 24 x Plastic Screw Anchors
• 8 x Wood Screws (for securing shelf to bracket)
• 1 x Instruction Manual

Image: Overview of the Boswillon Black Floating Shelves with decorative items.

Setup and Installation

Tools Required (Not Included):

• Pencil
• Measuring Tape
• Level
• Electric Drill
• Hammer

Installation Steps:

1. Mark Hole Positions: Determine the desired location for your shelf. Use a level and pencil to mark the positions for the drill holes on the wall. Ensure the marks are level and correspond to the bracket's mounting points.
2. Drill Holes: Using an electric drill, create holes at the marked positions. The drill bit size should match the diameter of the plastic screw anchors.
3. Insert Wall Anchors: Gently tap the plastic screw anchors into the drilled holes with a hammer until they are flush with the wall surface.
4. Attach Brackets: Align the shelf brackets with the inserted wall anchors. Secure the brackets to the wall using the provided wall screws. Ensure the brackets are firmly attached and level.
5. Install Shelf Board: Slide the shelf board onto the installed brackets. The brackets should fit snugly into the pre-drilled holes on the back of the shelf board.
6. Secure Shelf Board: For added stability, use the smaller wood screws to secure the shelf board to the brackets from underneath, if applicable.

Image: Detailed installation step diagram for floating shelves.

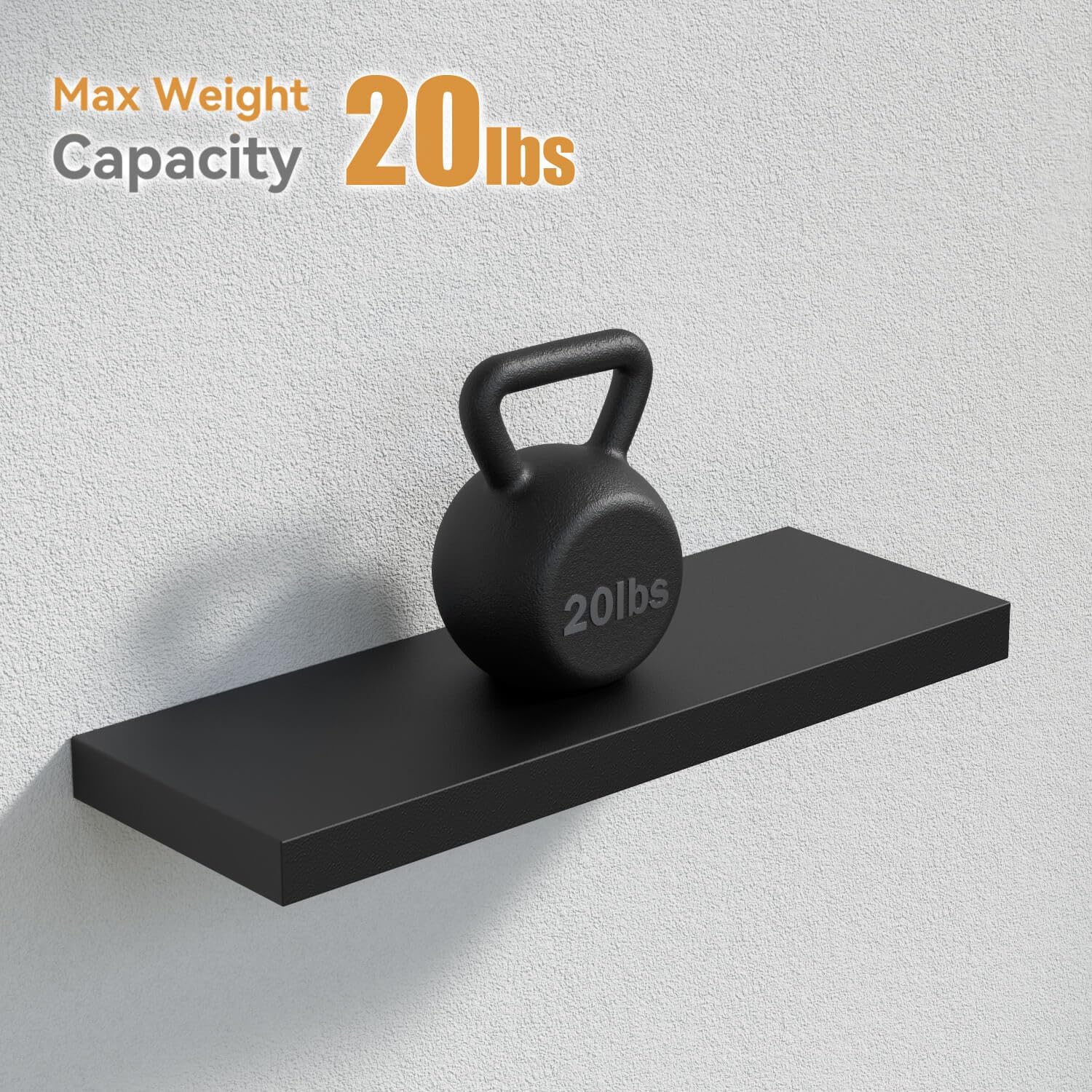

Image: Shelf demonstrating maximum weight capacity of 20 lbs.

Operating Instructions

Once installed, your Boswillon floating shelves are ready for use. Consider the following:

• Weight Distribution: Distribute items evenly across the shelf surface. Avoid placing heavy objects concentrated in one area.
• Placement: These shelves are suitable for various rooms including bathrooms, bedrooms, kitchens, and living rooms.
• Decorative Use: Ideal for displaying small decorative items, books, plants, and other lightweight objects.

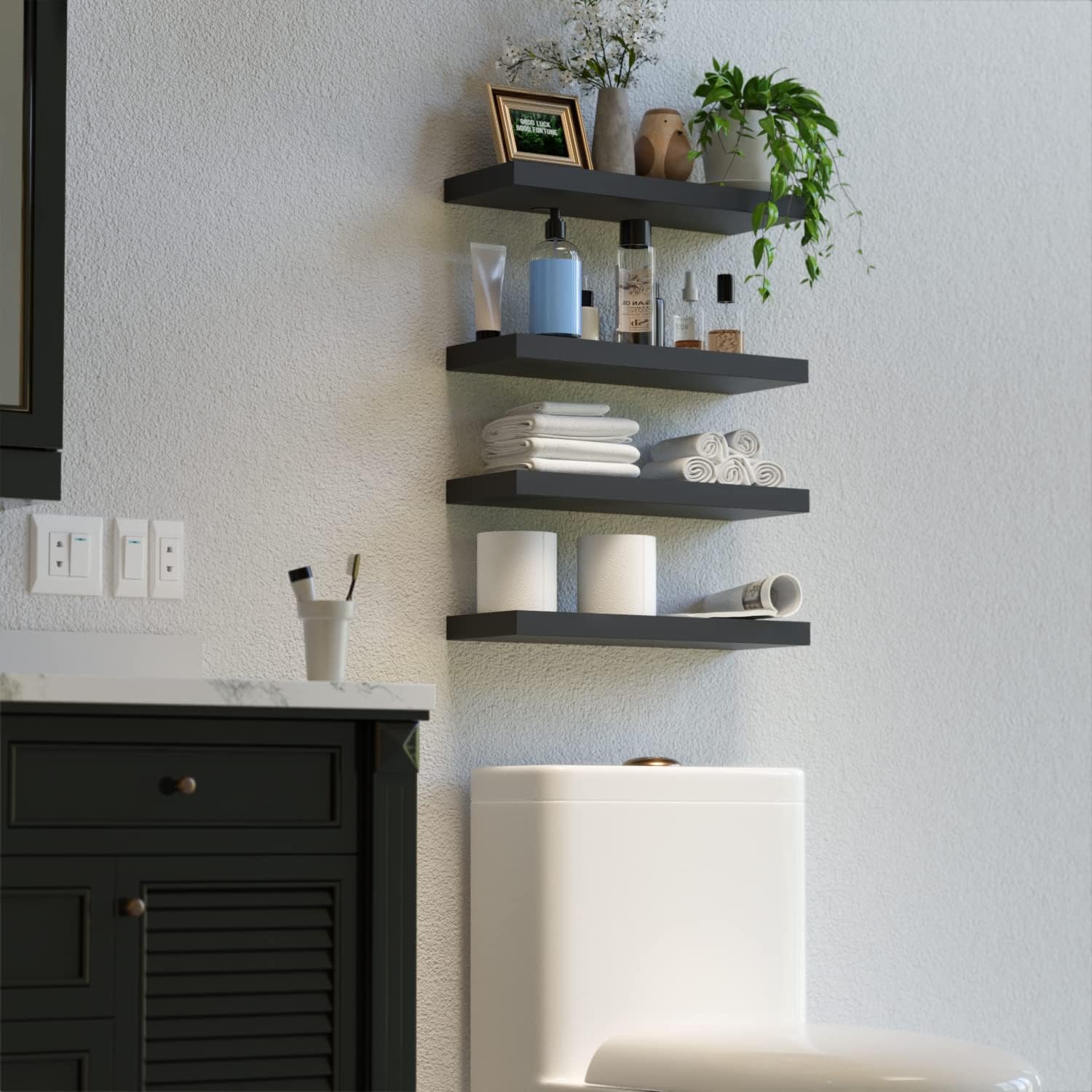

Image: Example of shelves used in a bathroom for storage.

Maintenance

To maintain the appearance and longevity of your shelves:

• Cleaning: Wipe the shelves with a soft, damp cloth. Avoid abrasive cleaners or harsh chemicals that may damage the frosted finish.
• Dusting: Regularly dust the shelves to prevent buildup.
• Inspection: Periodically check the mounting hardware to ensure it remains secure. Tighten screws if necessary.

Troubleshooting

Common Issues and Solutions:

• Shelves Not Level: If shelves appear slanted or uneven after installation, re-check the wall markings with a level before drilling. Ensure the brackets are perfectly horizontal before securing them. Slight adjustments may be possible by loosening and re-tightening screws.
• Shelves Not Lining Up Evenly (when placed side-by-side): Precise measurement is crucial when installing multiple shelves adjacent to each other. Use a measuring tape and level to ensure consistent spacing and alignment between shelves.
• Shelf Instability: Ensure all wall screws and plastic anchors are fully inserted and tightened. Verify that the wall material can adequately support the weight. Do not exceed the 20 lb weight limit. If the issue persists, consider consulting a professional for installation.

Specifications

Warranty Information

Boswillon products are manufactured with quality in mind. Specific warranty details may vary. For information regarding warranty coverage, please refer to the product packaging or contact Boswillon customer support directly.

Customer Support

For any questions, concerns, or assistance with your Boswillon Black Floating Shelves, please contact Boswillon customer support through the retailer's platform or the official Boswillon website. Please have your model number (B0B5T5JCF3) available when contacting support.
