Kizer Drop Bear EDC Folding Knife V3619C1 Instruction Manual

1. Introduction

The Kizer Drop Bear EDC Folding Knife V3619C1 is a high-performance everyday carry tool designed for reliability and versatility. Featuring a durable 154CM steel blade and an aluminum handle, this knife is suitable for various outdoor and indoor tasks. This manual provides essential information for the safe and effective use, maintenance, and care of your Kizer Drop Bear knife.

2. Safety Information

• Always handle the knife with extreme care. The blade is sharp and can cause serious injury.
• Keep the knife clean and dry to prevent corrosion and maintain optimal performance.
• Store the knife in a safe place, out of reach of children.
• Ensure the blade is fully locked in place before use.
• Do not use the knife for tasks it was not designed for, such as prying or as a screwdriver.

3. Package Contents

Your Kizer Drop Bear EDC Folding Knife package includes:

• Kizer Drop Bear Folding Knife
• Pocket Clip
• Storage Case
• Cleaning Cloth
• Random Sticker
• Screws (x5)
• Box

Figure 3.1: Contents included with the Kizer Drop Bear knife.

4. Setup & Operation

4.1. Opening the Knife

The Kizer Drop Bear features a smooth opening mechanism. You can open the knife using the thumb stud or by manipulating the clutch lock.

• Using the Thumb Stud: Apply pressure to the thumb stud with your thumb and push outwards until the blade fully extends and locks into place.
• Using the Clutch Lock: Pull the clutch lock mechanism downwards and flick your wrist to deploy the blade. Ensure the blade is fully engaged before use.

Figure 4.1: The thumb stud and clutch lock provide smooth blade deployment.

4.2. Closing the Knife

To close the knife, pull the clutch lock mechanism downwards and gently fold the blade back into the handle. Ensure your fingers are clear of the blade path.

4.3. Adjusting Clutch Lock Tension

The clutch lock mechanism on your Kizer Drop Bear knife is adjustable. This allows you to customize the tension to your preference, making the blade deployment either tighter or smoother. Refer to the included screws and any specific instructions for adjustment, typically involving loosening or tightening internal components.

4.4. Changing Scales/Handles

The Kizer Drop Bear features hot-swappable handle scales, allowing for customization. To change the scales, remove the designated screws on the handle. You do not need to disassemble the entire knife to replace the scales. This design simplifies customization and maintenance.

4.5. Reversible Deep Carry Pocket Clip

The knife is equipped with a reversible deep carry pocket clip, allowing for versatile carrying options. The clip can be repositioned to suit left-handed or right-handed users, ensuring comfortable and discreet carry.

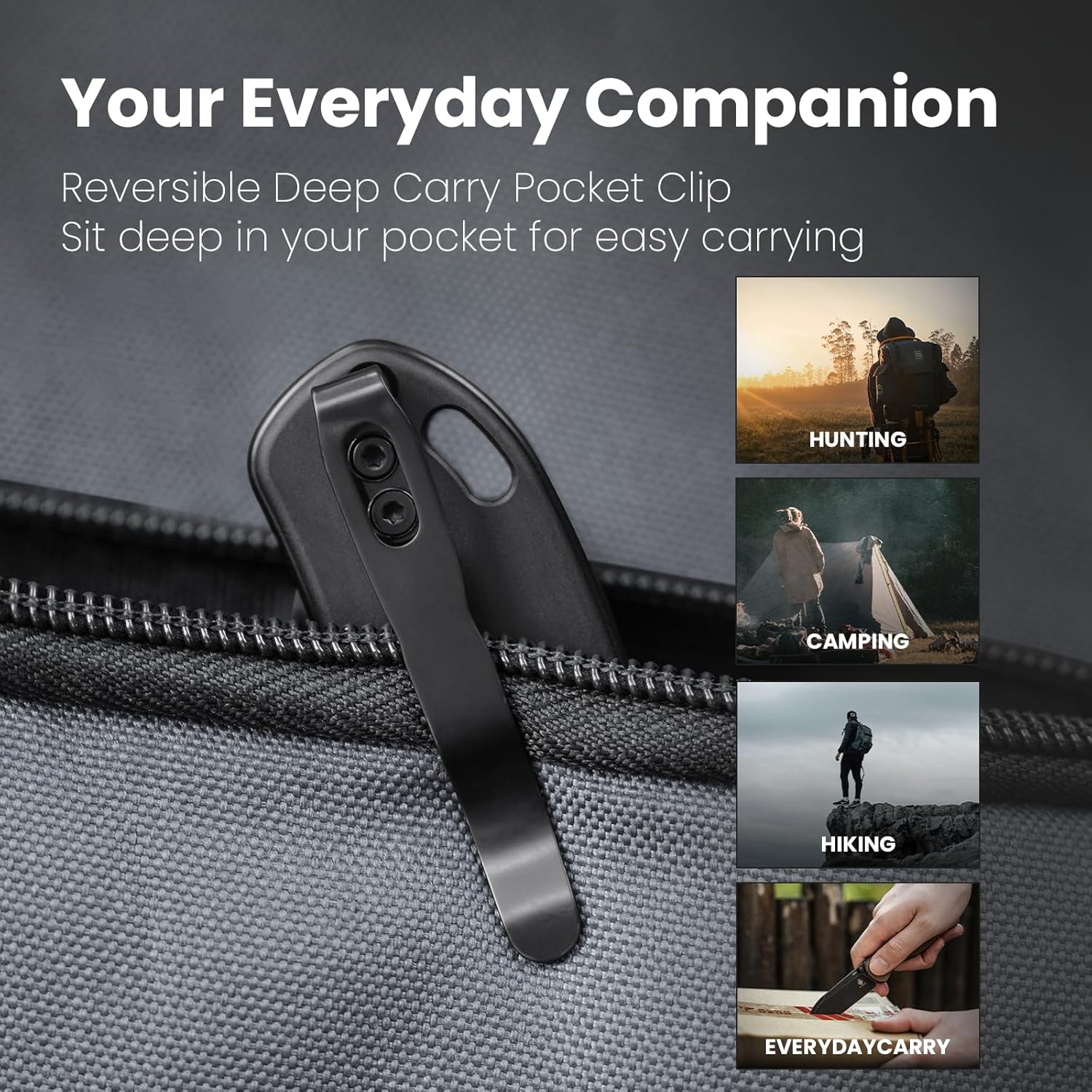

Figure 4.2: The reversible deep carry pocket clip enhances portability for various activities.

Figure 4.3: The aluminum handle provides an excellent grip, even when wearing gloves.

5. Maintenance

5.1. Cleaning

After each use, especially after cutting food or corrosive materials, clean the blade and handle thoroughly. Use the provided cleaning cloth or a soft, damp cloth. Ensure all debris is removed. Dry the knife completely before storing.

5.2. Sharpening

The 154CM steel blade is known for its excellent edge retention and is relatively easy to sharpen when needed. Use appropriate sharpening tools and techniques to maintain the blade's sharpness. Regular light sharpening is recommended over infrequent heavy sharpening.

5.3. Product Care Instructions

The Kizer Drop Bear knife is designed for durability, but proper care is essential. Hand wash only. Do not put in a dishwasher, as harsh detergents and high temperatures can damage the materials.

6. Troubleshooting

If you encounter any issues with your Kizer Drop Bear knife, please consider the following:

• Blade not deploying smoothly: Check for debris in the pivot area. Clean and apply a small amount of knife lubricant if necessary. Ensure the pivot screw is not overtightened.
• Blade play: Gently tighten the pivot screw. Do not overtighten, as this can affect smooth deployment.
• Corrosion: If minor rust spots appear, they can often be removed with a fine abrasive and oil. Prevent future corrosion by keeping the knife clean and dry.

For persistent issues or concerns not addressed here, please contact Kizer customer support.

7. Specifications

Figure 7.1: Kizer Drop Bear dimensions for reference.

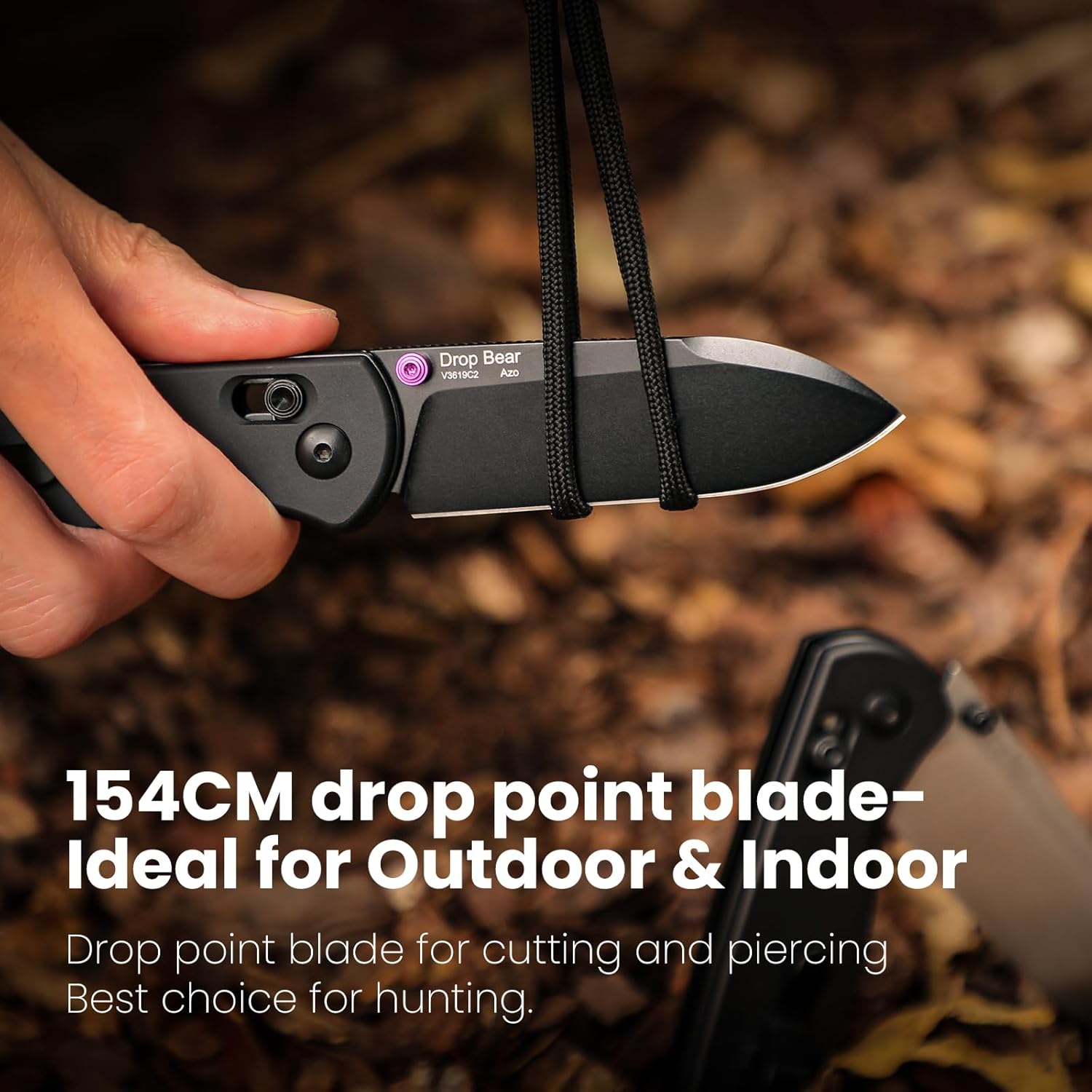

Figure 7.2: The 154CM drop point blade is designed for cutting and piercing.

8. Warranty & Support

Kizer is committed to crafting high-performance, versatile, and collectible EDC outdoor products with a user-centric approach. For warranty information, product support, or to explore other Kizer products, please visit the official Kizer Store on Amazon.
