1. Safety Information
Read all instructions carefully before assembly and use of the sauna. Failure to follow these instructions may result in injury or damage to the product.
1.1 General Safety Precautions
- Consult a physician before using the sauna, especially if you have pre-existing medical conditions, are pregnant, or are taking medication.
- Do not use the sauna under the influence of alcohol, drugs, or sedatives.
- Limit sauna sessions to 30-45 minutes. Excessive exposure may cause overheating.
- Stay hydrated by drinking water before, during, and after sauna use.
- Keep children and pets away from the sauna during operation.
- Ensure proper ventilation around the sauna to prevent overheating of external components.
1.2 Electrical Safety
- Connect the sauna only to a properly grounded outlet with the correct voltage and amperage (2050W).
- Do not use extension cords or adapters.
- Keep all electrical components dry. Do not operate the sauna if it has been exposed to water.
- Unplug the sauna from the power outlet before cleaning or performing any maintenance.
2. Product Overview
The Kanlanth Outdoor Infrared Sauna Model 904 is a 4-person far infrared sauna designed for home use. Constructed from Canadian Hemlock wood, it features low EMF heating elements, Bluetooth connectivity, dual LCD control panels, and chromotherapy lighting for an enhanced sauna experience.
Figure 2.1: Overview of the Kanlanth Outdoor Infrared Sauna, highlighting key features such as the waterproof roof, control panel, carbon crystal heating boards, and spacious interior.
Figure 2.2: Informational diagram illustrating potential benefits of using the infrared sauna.
Figure 2.3: The outdoor sauna designed to be rain and sun proof, shown in a garden environment.
3. Setup and Assembly
This section provides step-by-step instructions for assembling your Kanlanth Outdoor Infrared Sauna. It is recommended that two adults perform the assembly.
3.1 Assembly Video Guide
Video 3.1: Official assembly guide for the Kanlanth 4-Person Outdoor Sauna. This video demonstrates the step-by-step process for setting up the sauna components.
3.2 Step-by-Step Assembly Instructions

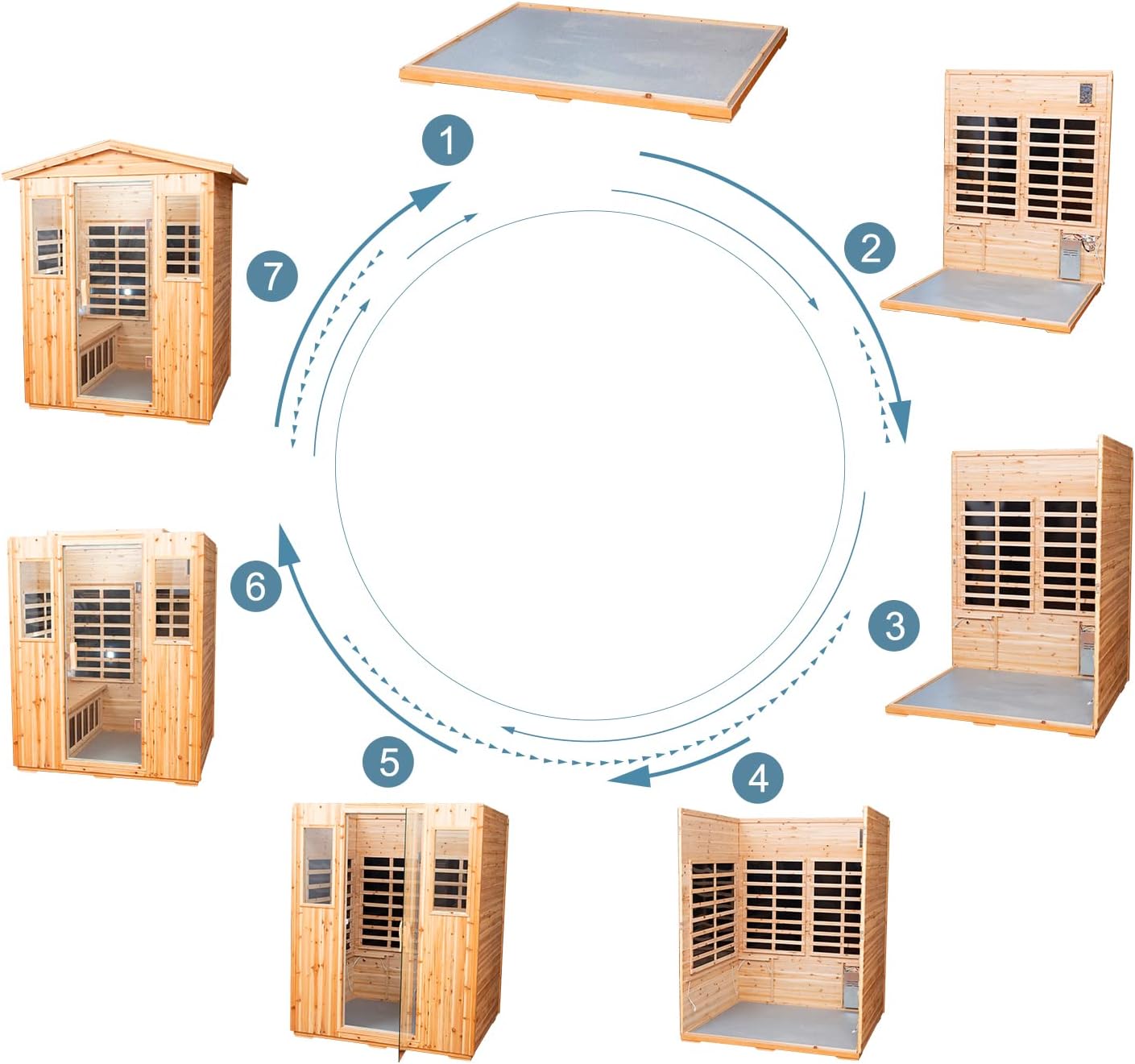

Figure 3.1: Visual guide to the sauna assembly sequence.
- Prepare the Base: Place the sauna base on a flat, level, and stable surface. Ensure adequate space around the sauna for assembly and ventilation.
- Install Rear Panel: Carefully position the rear panel onto the base, ensuring it aligns with the grooves. Secure it using the provided fasteners or interlocking mechanisms.
- Attach Side Panels: Connect the left and right side panels to the rear panel and the base. Ensure all connections are snug and secure. The panels typically interlock or use simple latch systems.
- Connect Electrical Wiring: Before installing the front panel, connect the internal electrical wiring for the heating elements, control panels, and lighting. Match the color-coded connectors carefully.
Figure 3.2: Detail of connecting internal electrical wiring. Ensure all connections are secure.
- Install Front Panel and Door: Attach the front panel, which includes the door, to the side panels and base. Ensure the door opens and closes smoothly.
- Place Benches: Insert the wooden benches into their designated slots inside the sauna. Ensure they are stable and properly seated.
- Install Roof Panel: Carefully place the roof panel on top of the assembled walls. Ensure it sits securely and aligns with the wall structure. Connect any remaining electrical wires for the roof components (e.g., lights, speakers).
- Install Outer Roof: Place the waterproof outer roof over the main roof panel. This provides weather protection for outdoor use.
4. Operating Instructions
This section details how to operate your Kanlanth Infrared Sauna, including power, temperature, time, and special features.
4.1 Control Panel Overview
Figure 4.1: The dual LCD control panel for managing sauna settings.
Figure 4.2: Detailed functions of the control panel buttons.
4.2 Basic Operation
- Power On: Press the 'Power' button on the control panel to turn on the sauna. The display will illuminate.
- Set Temperature: Use the 'Temp +' and 'Temp -' buttons to adjust the desired temperature. The range is typically 25°C to 65°C (77°F to 149°F). The sauna will begin heating to the set temperature.
- Set Time: Use the 'Time +' and 'Time -' buttons to set the desired session duration, typically from 0 to 90 minutes.
- Chromotherapy Lighting: Press the 'Color Light' button to cycle through different chromotherapy light colors or turn them off.
- Interior Light: Press the 'Light' button to turn the interior white light on or off.
- Bluetooth Connectivity: Activate Bluetooth on your device and search for the sauna's Bluetooth name (refer to the specific name in your sauna's supplementary materials). Pair your device to play audio through the sauna's speakers.
- Power Off: Press the 'Power' button again to turn off the sauna after your session.
5. Maintenance
Regular maintenance ensures the longevity and optimal performance of your Kanlanth Infrared Sauna.
5.1 Cleaning
- Interior: Wipe down the interior wood surfaces with a clean, damp cloth after each use. For deeper cleaning, use a mild, non-toxic wood cleaner. Avoid harsh chemicals or abrasive materials.
- Exterior: Clean the exterior with a damp cloth. For the waterproof roof, ensure it is free of debris.
- Glass Door: Use a standard glass cleaner for the door.
5.2 Wood Care
- The Canadian Hemlock wood is naturally resistant to decay. Avoid applying stains or sealants to the interior wood, as this can interfere with the wood's ability to breathe and absorb moisture.
- Address any spills immediately to prevent staining.
5.3 Heater Care
- Do not touch the heating elements directly during operation.
- Ensure nothing obstructs the heating panels to allow for proper heat distribution.
6. Troubleshooting
Refer to this section for solutions to common issues you might encounter with your sauna.
| Problem | Possible Cause | Solution |
|---|---|---|
| Sauna does not power on. | No power supply; loose connection; circuit breaker tripped. | Check power cord connection; ensure outlet is functional; reset circuit breaker. |
| Sauna not heating. | Temperature not set; heating elements malfunction. | Verify temperature setting on control panel; contact customer support if elements are faulty. |
| Control panel not responding. | Loose wiring; panel malfunction. | Check wiring connections to the control panel; power cycle the sauna. |
| Bluetooth not connecting. | Device not in pairing mode; incorrect pairing. | Ensure Bluetooth is enabled on your device and the sauna; try re-pairing. |
| Unusual odors. | New product odor; foreign material on heaters. | Initial use may have a slight odor, which will dissipate. Ensure no objects are on heating elements. |
7. Specifications
Technical details for the Kanlanth Outdoor Infrared Sauna Model 904.
Figure 7.1: Key dimensions of the sauna unit.
- Model: 904
- Capacity: 4 Person
- Heating Type: Far Infrared, Low EMF Carbon Crystal Heating Boards
- Power: 2050 Watts
- Material: Canadian Hemlock Wood
- Control: Dual LCD Control Panels
- Lighting: Chromotherapy Lighting, Interior White Light
- Connectivity: Bluetooth Audio System
- Dimensions (Approximate):
- Width: 59.1 inches (150 cm)
- Depth: 52.4 inches (133 cm)
- Height: 82.7 inches (210 cm)
- Roof: Waterproof Outer Roof
8. Warranty and Support
Kanlanth products are manufactured to high-quality standards. For warranty information, technical support, or replacement parts, please contact Kanlanth customer service. Keep your purchase receipt as proof of purchase for warranty claims.
For further assistance, please visit the Kanlanth Store on Amazon.
