Traxxas 6793 LED Light Set User Manual

Introduction

The Traxxas 6793 LED Light Set is specifically designed to enhance the visibility and aesthetic appeal of your Traxxas Rustler 4X4. This complete kit includes brilliant white forward-facing LEDs and red rear-facing LEDs, providing improved illumination for both day and night operation. Engineered for durability, the set is fully waterproof and includes all necessary components for a straightforward installation.

What's in the Box

The Traxxas 6793 LED Light Set package contains the following components:

• Front LED light bar with white LEDs
• Rear LED light bar with red LEDs
• Wiring harness with connectors
• Mounting hardware (e.g., screws, zip ties)
• Instruction sheet

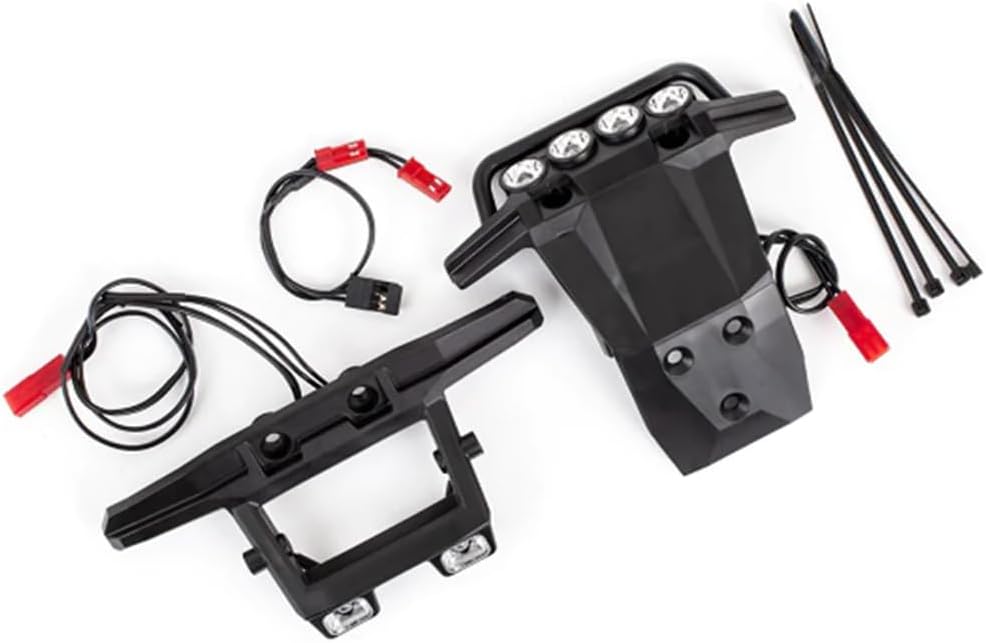

Image: The complete Traxxas 6793 LED Light Set components laid out, showing the front light bar with four white LEDs, the rear light bar with two red LEDs, wiring harnesses, and a bundle of zip ties for installation.

Safety Information

Please read and understand all safety precautions before installing and operating the LED light set. Failure to do so may result in damage to the product or injury.

• Always disconnect the vehicle's battery before performing any installation or maintenance.
• Ensure all wiring connections are secure and properly insulated to prevent short circuits.
• Keep wires clear of moving parts, such as drive shafts, gears, and suspension components, to prevent damage.
• Do not attempt to modify the LED lights or wiring harness, as this may void the warranty and cause malfunction.
• This product is designed for use with Traxxas Rustler 4X4 models only. Using it with other models may cause compatibility issues or damage.

Setup and Installation

Follow these steps to properly install your Traxxas 6793 LED Light Set on your Rustler 4X4:

1. Prepare the Vehicle: Ensure your Rustler 4X4 is turned off and the battery is disconnected. Remove the body shell to access the chassis.
2. Install Front Light Bar: Locate the mounting points on the front bumper or chassis designed for the LED light bar. Secure the front light bar using the provided screws or mounting hardware. Ensure it is firmly attached and facing forward.
3. Install Rear Light Bar: Similarly, locate the mounting points on the rear bumper or chassis. Attach the rear light bar, ensuring the red LEDs face backward.
4. Route Wiring: Carefully route the wiring harness from both the front and rear light bars towards the vehicle's electronic speed control (ESC) or designated power port. Use the included zip ties to secure the wires neatly along the chassis, away from any moving parts (e.g., drive shafts, suspension arms, steering linkages). Avoid pinching or kinking the wires.
5. Connect Power: Connect the wiring harness to the appropriate power source on your Rustler 4X4. Refer to your Rustler 4X4's main instruction manual for specific power port locations if unsure. Ensure the polarity is correct (positive to positive, negative to negative).
6. Test Lights: Reconnect the vehicle's battery and turn on the Rustler 4X4. Verify that both the front white LEDs and rear red LEDs illuminate correctly.
7. Final Assembly: Once confirmed operational, reattach the body shell to your Rustler 4X4.

Image: Two Traxxas Rustler 4X4 models, one green and blue, the other orange and blue, showcasing the installed LED light sets. The front white lights are brightly illuminated on the orange vehicle, and the rear red lights are visible on the green vehicle, demonstrating the product in use.

Operating Instructions

The Traxxas 6793 LED Light Set operates in conjunction with your Rustler 4X4's power system. Once installed and connected, the lights will typically illuminate when the vehicle's power is turned on.

• Power On: Turn on your Rustler 4X4 as you normally would. The LED lights should activate automatically.
• Visibility: The bright white front LEDs provide improved forward visibility, especially in low-light conditions. The red rear LEDs enhance the vehicle's visibility from behind.
• Waterproof Design: The light set is fully waterproof, allowing for operation in wet conditions without concern for damage to the lights themselves. However, always ensure your Rustler 4X4's other electronic components are also waterproof or adequately protected when operating in wet environments.

Maintenance

Proper maintenance will ensure the longevity and optimal performance of your LED light set:

• Cleaning: Periodically clean the LED lenses with a soft, damp cloth to remove dirt and debris that may obstruct light output. Avoid using harsh chemicals.
• Wiring Inspection: Regularly inspect the wiring harness for any signs of wear, fraying, or damage. Ensure all connections remain secure. Re-secure any loose wires with zip ties.
• Mounting Check: Verify that the light bars remain securely mounted to the vehicle. Tighten any loose screws if necessary.
• Storage: When not in use for extended periods, store your Rustler 4X4 and the light set in a clean, dry environment, away from extreme temperatures.

Troubleshooting

If you encounter issues with your Traxxas 6793 LED Light Set, refer to the following common problems and solutions:

Specifications

Warranty and Support

For information regarding warranty coverage, technical support, or replacement parts for your Traxxas 6793 LED Light Set, please refer to the official Traxxas website or contact Traxxas customer service directly.

Official Traxxas Website: traxxas.com

Always ensure you have your product model number (6793) and proof of purchase available when contacting support.
