Why is my Arebos Florence (AR-HE-SPA4SLH) hot tub not heating up even after performing a reset?

If your Arebos Florence (AR-HE-SPA4SLH) has stopped heating despite performing resets, please check the following common causes and solutions based on the manufacturer's troubleshooting guide:Check the Filter Cartridge: A clogged or dirty filter is the most common cause of heating issues. If the water flow is restricted, the heater will shut off as a safety precaution. Remove the filter and try running the heater briefly without it; if the temperature begins to rise, clean or replace the filter cartridge.Water Level: Ensure the water is filled between the MIN and MAX indicators inside the tub. If the level is too low, the heating system may not activate.Heat Retention: Always use the provided insulated cover when heating. Without the cover, heat loss can exceed the heater's output, especially if the ambient temperature is low.Control Panel Status: Verify that the heater icon is active on the digital display. The system has an automatic standby function; ensure the desired temperature is set (up to 40°C) and the heater button has been pressed.Power Supply: Ensure the unit is plugged directly into a 240V AC outlet. The manual explicitly warns not to use extension cords, as they can cause voltage drops that prevent the heater from functioning correctly.If the unit still fails to heat after checking the filter and water levels, there may be an internal component failure. Since your unit was set up only a week ago, it should be under warranty. You should contact Canbolat Vertriebs GmbH (Arebos) customer support for a potential replacement unit or technical service. Note: If the control panel displays a specific error code (e.g., E1, E3), please provide that code for more specific guidance.

Arebos AR-HE-SPA4SLH

Arebos Inflatable Hot Tub User Manual

Model: AR-HE-SPA4SLH

1. Introduction

Thank you for choosing the Arebos Inflatable Hot Tub. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your hot tub. Please read this manual thoroughly before installation and use, and retain it for future reference.

This hot tub is designed for both indoor and outdoor use, offering a relaxing spa experience with integrated LED lighting and massage jets. It accommodates up to four persons and has a capacity of 600 litres.

2. Safety Information

Always follow basic safety precautions when installing and using this electrical appliance. Failure to do so may result in serious injury, electric shock, fire, or property damage.

2.1 Important Safety Instructions

Read all instructions before using the hot tub.
Do not connect the hot tub to the power supply until it is filled with water.
Ensure the electrical supply meets the specifications (240 Volts AC).
Keep children under supervision around the hot tub.
Do not use extension cords.
Consult a doctor before use if you have health conditions.
Maximum water temperature is 40°C.
Always use the provided cover when the hot tub is not in use to prevent heat loss and ensure safety.

3. Product Components

The Arebos Inflatable Hot Tub package includes the following components:

Inflatable Hot Tub Unit
Control Panel
Filter Cartridge
Inflation Hose
Repair Patch Kit
Insulated Cover
LED Strip Light and Remote Control
Power Cable with RCD Plug

All components included with the Arebos Inflatable Hot Tub — Image: Overview of all components included with the Arebos Inflatable Hot Tub, showing the main tub, control unit, cover, filter, inflation hose, repair kit, LED light strip, and remote control.

4. Setup and Installation

4.1 Site Selection

Choose a flat, stable, and level surface capable of supporting the weight of the filled hot tub (approximately 600 kg for 600L water + tub weight + occupants). Ensure adequate drainage and proximity to a suitable power outlet.

Arebos Inflatable Hot Tub placed on an outdoor patio — Image: The Arebos Inflatable Hot Tub set up on a wooden deck next to a house, demonstrating a suitable outdoor placement.

4.2 Inflation

The hot tub features an automatic inflation function. Simply connect the inflation hose to the hot tub's inflation valve and the control unit's air outlet. Plug in the unit, and press the inflation button. The hot tub will inflate itself. Do not overinflate.

Close-up of the inflation port on the hot tub — Image: A close-up view of the inflation port on the side of the hot tub, showing where the inflation hose connects.

4.3 Water Filling

After inflation, fill the hot tub with water using a garden hose. Fill to the indicated MIN and MAX water levels inside the tub. Do not overfill.

4.4 Filter Installation

Install the filter cartridge into the designated filter housing inside the hot tub. Ensure it is securely twisted into place.

Filter cartridge installed inside the hot tub — Image: A view of the blue filter cartridge installed in its housing inside the hot tub, near the water level indicators.

5. Operating Instructions

5.1 Control Panel Overview

The hot tub is operated via an intuitive control panel. Familiarize yourself with the buttons for heating, massage jets, filtration, and temperature adjustment.

Close-up of the hot tub control panel — Image: A close-up of the hot tub's digital control panel, showing buttons for temperature adjustment, bubbles, filter, and heating functions.

5.2 Heating Function

Press the heater button on the control panel to activate the heating system. The desired temperature can be set up to 40°C using the temperature adjustment buttons. The display will show the current water temperature.

5.3 Massage Jets

Activate the 100 massage air jets by pressing the bubble button on the control panel. The jets will create thousands of bubbles for a relaxing experience. Press again to turn off.

5.4 LED Lighting

The integrated LED strip light can be controlled using the supplied remote control. You can change colors and modes to create your desired ambiance. Ensure the LED strip is properly connected.

Arebos Inflatable Hot Tub with LED lighting activated at night — Image: The Arebos Inflatable Hot Tub illuminated by its integrated LED lighting at night, showcasing the ambient light feature.

6. Maintenance and Care

6.1 Water Quality

Regularly test and adjust water chemistry (pH, chlorine/bromine levels) to ensure safe and clean water. Follow guidelines for hot tub chemical usage.

6.2 Filter Cleaning and Replacement

The filter cartridge should be cleaned regularly (e.g., daily or every other day depending on usage) by rinsing it with a garden hose. Replace the filter cartridge every 1-2 weeks or when visibly dirty to maintain optimal filtration performance.

6.3 Draining and Storage

To drain the hot tub, connect a garden hose to the drain valve located at the bottom of the tub and open the valve. Ensure all water is drained before deflating and storing. Clean and dry the hot tub thoroughly before folding for storage. Store in a dry, temperate place.

6.4 Cleaning the Tub Surface

Clean the interior and exterior surfaces of the hot tub with a soft cloth and mild, non-abrasive cleaner. Avoid harsh chemicals that could damage the PVC material.

7. Troubleshooting

Problem	Possible Cause	Solution
Hot tub not heating	Heater not activated; water level too low; filter clogged; ambient temperature too low.	Ensure heater is on; check water level and add water if necessary; clean or replace filter; ensure proper insulation with cover.
Massage jets not working	Bubble function not activated; air pump malfunction.	Press bubble button; check power connection; contact customer support if issue persists.
Water is cloudy	Dirty filter; improper water chemistry; heavy usage.	Clean or replace filter; adjust water chemistry (e.g., add clarifier, shock treatment); increase filtration time.
Hot tub losing air	Leak in tub or valves; improper valve closure.	Check all valves are tightly closed; use provided repair patch kit for small punctures; contact customer support for larger leaks.

8. Technical Specifications

Model: AR-HE-SPA4SLH
Dimensions: 154 x 154 x 65 cm (Length x Width x Height)
Capacity: 600 litres
Seating Capacity: 4 persons
Material: Polyvinyl Chloride (PVC)
Voltage: 240 Volts (AC)
Power Source: AC
Massage Jets: 100 air jets
Max. Water Temperature: 40°C
Features: LED lighting, Automatic Inflation, Heating System, Filtration System

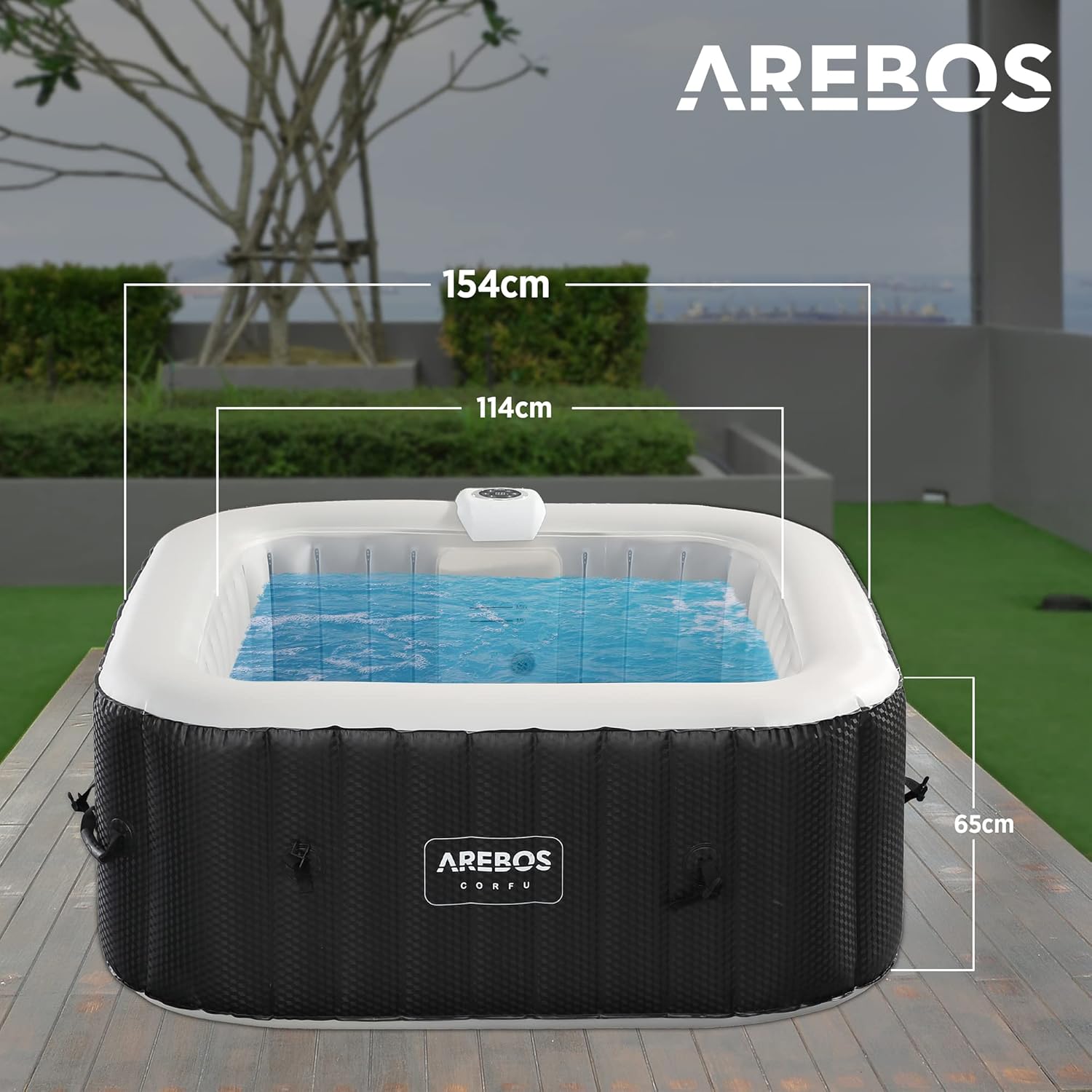

Diagram showing the dimensions of the Arebos Inflatable Hot Tub — Image: A diagram illustrating the key dimensions of the Arebos Inflatable Hot Tub, including its length (154cm), inner length (114cm), and height (65cm).

9. Warranty and Support

For warranty information and customer support, please refer to the warranty card included with your purchase or visit the official Arebos website. Keep your proof of purchase for any warranty claims.

Manufacturer: Canbolat Vertriebs GmbH
