1. Introduction

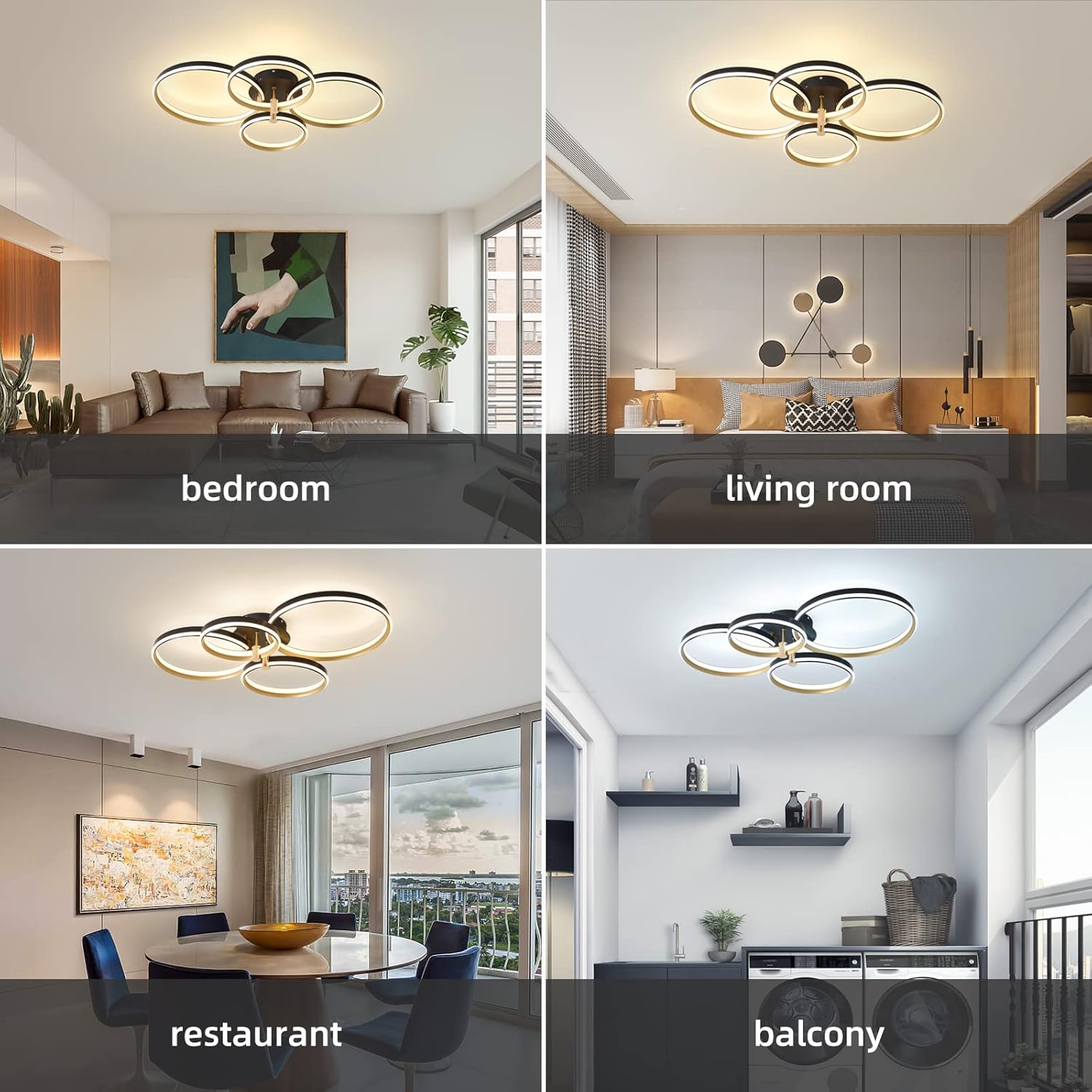

Thank you for choosing the Ganeed Dimmable LED Ceiling Light. This modern 4-ring ceiling lamp with remote control is designed to provide versatile lighting for various spaces, including living rooms, bedrooms, kitchens, and offices. This manual provides essential information for safe installation, operation, and maintenance of your new lighting fixture.
2. Safety Information
Please read all instructions carefully before installation and use. Retain this manual for future reference.
- Always disconnect power at the circuit breaker before installation, cleaning, or maintenance.
- Installation should be performed by a qualified electrician or a competent person.
- Ensure the mounting surface can support the weight of the fixture.
- Do not connect this fixture to a dimmer switch. This product is NOT compatible with any external dimmer switch. Dimming and color temperature adjustments are controlled solely by the included remote control.
- Avoid touching the LED light source directly when the fixture is on, as it may be hot.
- Keep packaging materials away from children.
3. Package Contents
Verify that all components are present and undamaged before beginning installation:
- LED Ceiling Light Fixture (4 Rings)
- Remote Control
- Accessory Bag (screws, wire nuts, mounting bracket)
- Installation Instructions (this manual)
4. Product Overview
The Ganeed 4-ring LED ceiling light features a modern design with adjustable rings, allowing for various DIY shapes. It provides stepless dimming and adjustable color temperatures from 3000K (warm white) to 6500K (cool white) via the remote control.
Figure 4.1: Ganeed Dimmable LED Ceiling Light with 4 rings and remote control.
Figure 4.2: Product dimensions and material composition.
5. Setup and Installation
Follow these steps for proper installation. It is recommended to have two people for installation due to the size and weight of the fixture.
- Prepare for Installation: Turn off power at the main circuit breaker. Ensure the mounting surface is clean and stable.
- Install Mounting Bracket: Secure the mounting bracket to the ceiling junction box using the provided screws. Ensure it is firmly attached.
- Wire Connections: Connect the fixture's wires to your household wiring. Typically, connect the live wire (black) to the fixture's live wire, the neutral wire (white) to the fixture's neutral wire, and the ground wire to the fixture's ground wire. Use the provided wire nuts to secure connections.
- Attach Fixture to Bracket: Carefully lift the fixture and align it with the mounting bracket. Secure the fixture to the bracket using the screws provided.
- Adjust Rings: Once the fixture is securely mounted, you can adjust the angle of the individual rings (up to 90 degrees) to create your desired aesthetic.
- Restore Power: Turn the power back on at the circuit breaker.
Figure 5.1: Securing the mounting bracket to the ceiling.
Figure 5.2: Making electrical connections with wire nuts.
Video 5.1: Official installation guide for the Ganeed 4-ring ceiling light. This video demonstrates the steps for mounting the fixture and connecting the wiring.
6. Operating Instructions
Your Ganeed LED Ceiling Light comes with a remote control for convenient operation.
Figure 6.1: Remote control functions for dimming and color temperature adjustment.
- Power On/Off: Press the power button on the remote to turn the light on or off.
- Brightness Adjustment: Use the brightness control buttons (usually marked with sun icons or +/-) to increase or decrease the light intensity from 10% to 100%.
- Color Temperature Adjustment: Use the color temperature buttons (often marked with Kelvin values or warm/cool icons) to cycle through or select desired color temperatures: 3000K (warm white), 4500K (neutral light), and 6500K (cool white).
- Night Light Mode: Some remotes may include a dedicated night light button, which typically sets the light to a low brightness (e.g., 10%) and warm white (3000K).
- Timer Function: If available, use the timer buttons (e.g., 30min/1hour) to set the light to automatically turn off after a specified period.
Video 6.1: Demonstration of remote control functions for the Ganeed 4-ring ceiling light, including dimming and color temperature changes.
Figure 6.2: Important note on switch compatibility. Only use with a regular on/off switch; dimmer switches are not supported.
7. Maintenance
To maintain the appearance and performance of your ceiling light:
- Ensure power is off before cleaning.
- Wipe the fixture with a soft, dry cloth.
- Do not use abrasive cleaners or solvents, as they may damage the finish or LED components.
8. Troubleshooting
If you encounter issues with your ceiling light, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power supply; loose wiring; remote control battery dead. | Check circuit breaker. Ensure all wire connections are secure. Replace remote control battery. |
| Light flickers or dims unexpectedly. | Incompatible dimmer switch; unstable power supply. | Ensure no dimmer switch is installed. This fixture is not compatible with dimmer switches. Check household wiring for stability. |
| Remote control not working. | Battery dead; remote not paired; obstruction. | Replace remote control battery. Ensure no obstructions between remote and fixture. Refer to remote pairing instructions if applicable (not detailed in this manual). |
| Color temperature or brightness cannot be adjusted. | Remote control issue; incorrect operation. | Ensure you are using the correct buttons on the remote. Check remote battery. |
9. Specifications
| Parameter | Value |
|---|---|
| Brand | Ganeed |
| Model Number | TC-FM7388 |
| Power | 60W |
| Voltage | AC 110V |
| Material | Aluminum, Silicone, Iron |
| Fixture Color | Gold plating/Dimmable |
| Light Color Temperature | 3000K-6500K (Adjustable) |
| Brightness | 10%-100% (Dimmable) |
| Product Dimensions | 29.5"L x 19.7"W x 2.4"H |
| Control Method | Remote Control |
| Installation Type | Flush Mount |
10. Warranty and Support
This Ganeed LED Ceiling Light comes with a 1-year limited warranty from the date of purchase. The warranty covers defects in materials and workmanship under normal use.
For warranty claims, technical support, or any questions regarding your product, please contact Ganeed customer service through the retailer where the product was purchased or visit the official Ganeed website for contact information.
