1. Introduction
Thank you for choosing the YOUNGTREE F42-12V RV Fresh Water Pressure Pump. This pump is designed to provide reliable and consistent water pressure for various applications, including RVs, agricultural irrigation, yachting, and general water transfer. It features a 12V DC power source, a flow rate of 5.5 gallons per minute (GPM), and a factory-set shut-off pressure of 70 PSI, with an adjustable range of 40-80 PSI. This manual provides essential information for safe installation, operation, and maintenance of your pump.
2. Safety Information
Please read and understand all safety instructions before installing or operating the pump. Failure to follow these instructions may result in electric shock, fire, serious injury, or property damage.
- Electrical Safety: Ensure the power supply matches the pump's voltage (12V DC). Disconnect power before performing any service or maintenance. All wiring should be performed by a qualified professional and comply with local electrical codes.
- Water Safety: This pump is designed for fresh water only. Do not use with flammable liquids, corrosive chemicals, or water above 158°F (70°C).
- Installation: Mount the pump in a dry, well-ventilated area, protected from freezing temperatures and direct sunlight. Ensure proper ventilation to prevent overheating.
- Operation: Do not run the pump dry for extended periods, as this can cause damage. The pump features thermal protection for short-term dry operation without damage.
- Children: Keep children away from the pump and its connections during operation.
Image: The YOUNGTREE RV Fresh Water Pressure Pump highlighting its safety features including anti-corrosion, thermal protection, and support for short dry-runs.
3. Product Features
The YOUNGTREE F42-12V pump incorporates several features for efficient and reliable performance:
- High Flow Rate: Delivers 5.5 GPM for consistent water supply.
- Self-Priming: Can self-prime up to 9.8 feet (3 meters) vertically.
- On-Demand Operation: Equipped with an automatic pressure switch that turns the pump on/off as water is demanded.
- Adjustable Pressure: Factory set to 70 PSI, adjustable between 40-80 PSI.
- Thermal Protection: Built-in temperature control automatically stops the circuit if the temperature exceeds 158°F (70°C) to protect the motor, with an automatic restart feature.
- Dry Run Capability: Features thermal protection, enabling short-term dry operation without damage.
- Durable Construction: Housing made of Nylon/Polypropylene, diaphragm of Santoprene, and valves/seals of EPDM/Viton for corrosion resistance.
- Quiet Operation: Designed with rubber feet to reduce noise and vibration.
- Included Adapters: Comes with 3/4" garden hose adapters for versatile connections.
Image: A detailed diagram illustrating the key features of the pump, including the adjustable pressure switch, bypass switch, pure copper motor, 1/2" NPT pipe thread, and rubber feet.
Image: An overview of the YOUNGTREE 42-Series pump features, highlighting the 4-chamber pump, sealed gasket, quiet high-power copper motor, improved pressure switch, and rubber base.
4. Installation and Setup
Follow these steps for proper installation of your water pressure pump.
4.1 Mounting the Pump
- Choose a dry, secure location for mounting the pump.
- Ensure the pump is mounted horizontally with the motor above the pump head if possible, to prevent water from entering the motor in case of a leak.
- Use appropriate fasteners to secure the pump through its mounting feet. The rubber feet are designed to minimize vibration and noise.
Image: The YOUNGTREE RV Fresh Water Pressure Pump installed under a sink, demonstrating its compact size and stable rubber feet for quiet operation.
Image: A diagram showing the dimensions of the 12V Water Pump (Length: 9.45 inches, Width: 4.72 inches, Height: 4.53 inches) and the included accessories: barbed hose adapters, strainer, 1/2" to 3/4" garden hose adapters, and Teflon tape.
4.2 Plumbing Connections
The pump has 1/2" NPT external pipe threads. Use the provided adapters for connection to 3/4" garden hoses or other systems.
- Install Strainer: For clean water operation, install the included 50 mesh stainless strainer at the inlet connection of the pump. This filters out debris and protects the pump. Firmly tighten the strainer.
- Connect Adapters: Install the barbed hose adapter to the threaded MNPT on the pump.
- Connect Hoses: Install your water supply hose to the inlet and the output hose to the outlet. Use the included Teflon tape for all threaded connections to ensure a watertight seal.
- Flow Direction: Ensure the water flow direction matches the arrows on the pump head.
Image: Step-by-step guide for installing the YOUNGTREE 12V Water Pump, showing how to firmly tighten the strainer, install the barbed hose adapter, and connect the hose.

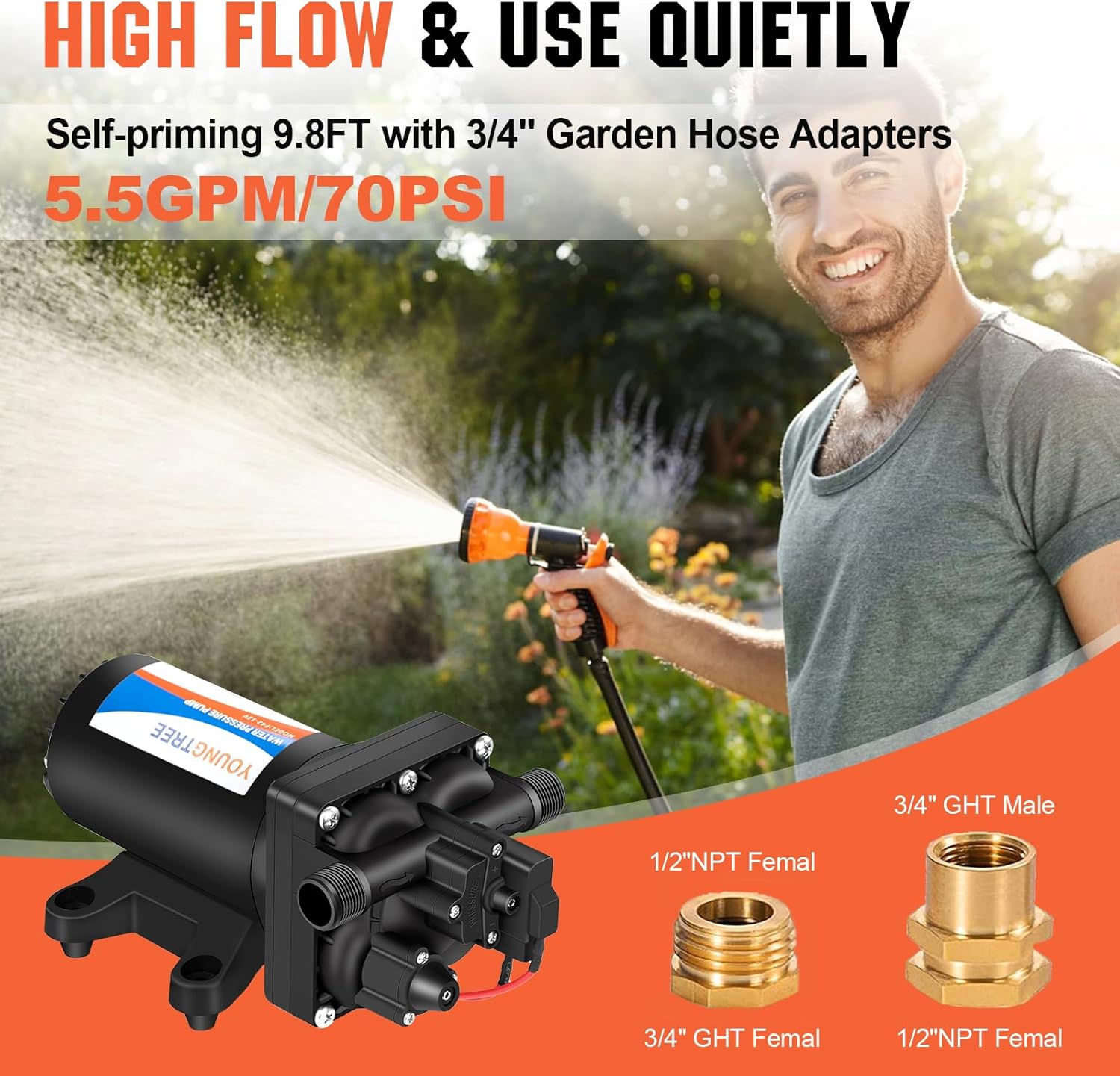

Image: The YOUNGTREE RV Fresh Water Pressure Pump shown with various adapters, including 3/4" GHT Male, 1/2" NPT Female, and 3/4" GHT Female, illustrating connection versatility.
Image: Examples of fitting connections for the YOUNGTREE Water Pump, demonstrating setups for transferring water, connecting to a garden hose, RV water system, and irrigation/spray applications.
4.3 Electrical Connections
- Connect the pump to a 12V DC power source.
- Ensure correct polarity: Red wire to positive (+), Black wire to negative (-).
- It is recommended to install an appropriate fuse (not included) in the positive power line to protect the pump and electrical system.
5. Operating Instructions
Once installed, the pump operates automatically based on water demand.
5.1 Initial Start-up
- Ensure all connections are secure and watertight.
- Open a faucet in your water system to allow air to escape.
- Apply 12V DC power to the pump. The pump will start running and self-prime, pushing air out of the system.
- Once a steady stream of water flows from the faucet, close the faucet. The pump will continue to run briefly to build pressure, then shut off automatically.
5.2 Automatic Operation
The pump is equipped with an on-demand pressure switch. It will automatically turn on when a faucet is opened and the system pressure drops, and turn off when the faucet is closed and the system reaches the set shut-off pressure.
5.3 Adjusting Pressure Switch
The factory shut-off pressure is set to 70 PSI, but it can be adjusted between 40-80 PSI.
- Locate the pressure switch on the pump head.
- Remove the top lid of the pressure switch.
- Find the screw hole in the center of the switch.
- Use a small Allen wrench (not included) to adjust the pressure:
- Turn clockwise to increase pressure.
- Turn counter-clockwise to decrease pressure.
- Test the pressure by opening and closing a faucet after each adjustment.
- Replace the top lid after adjustment.
Image: A diagram detailing the automatic pressure switch and bypass switch. Instructions show how to remove the top lid and adjust pressure by turning clockwise to increase or counter-clockwise to decrease.
Image: A visual guide demonstrating the steps to adjust the pump's pressure: finding the screw hole, using a pressure regulator needle, and understanding that turning clockwise increases pressure.
6. Maintenance
Regular maintenance ensures optimal performance and extends the life of your pump.
6.1 Cleaning the Strainer
The inlet strainer should be inspected and cleaned periodically, especially if you notice a decrease in flow rate.
- Disconnect power to the pump.
- Unscrew the clear housing of the strainer.
- Remove the mesh screen and rinse it thoroughly under clean water to remove any debris.
- Inspect the O-ring for damage and ensure it is properly seated.
- Reassemble the strainer, ensuring it is tightly sealed to prevent leaks.
Image: A diagram showing the components of the 50 mesh stainless strainer and its installation on the pump inlet. The strainer is crucial for filtering debris and can be removed for cleaning.
6.2 Winterization (for RV/Outdoor Use)
- Drain all water from the pump and plumbing system to prevent freezing damage.
- Run RV antifreeze through the pump if recommended by your RV manufacturer.
7. Troubleshooting
Refer to this section for common issues and their solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Pump does not turn on. | No power, incorrect wiring, blown fuse, faulty switch. | Check power supply, verify wiring polarity, inspect fuse, test pressure switch. |
| Pump runs but no water flows. | No water in supply, air in system, clogged inlet strainer, pump not primed. | Ensure water supply, open faucets to bleed air, clean strainer, allow pump to self-prime. |
| Low flow or low pressure. | Clogged strainer, kinked hose, low voltage, pressure switch set too low. | Clean strainer, check hoses, verify 12V DC supply, adjust pressure switch (increase PSI). |
| Pump cycles on and off rapidly (short cycling). | Leak in system, pressure switch set too high, bypass switch issue. | Check for leaks, adjust pressure switch (decrease PSI), ensure bypass switch is functioning correctly. |
| Pump does not shut off. | Leak in system, pressure switch malfunction, air in system. | Check for leaks, inspect/adjust pressure switch, bleed air from system. |
| Excessive noise or vibration. | Loose mounting, air in system, debris in pump head. | Tighten mounting screws, bleed air, clean strainer, inspect pump head for foreign objects. |
8. Specifications
Technical specifications for the YOUNGTREE F42-12V RV Fresh Water Pressure Pump.
| Specification | Value |
|---|---|
| Brand | YoungTree |
| Model Number | F42-12V |
| Power Source | 12V DC |
| Maximum Flow Rate | 5.5 Gallons Per Minute (GPM) |
| Shut-off Pressure | 70 PSI (Adjustable 40-80 PSI) |
| Self-Priming Height | Up to 9.8 feet (3 meters) |
| Maximum Lifting Height | 157 Feet |
| Material (Housing) | Nylon / Polypropylene |
| Material (Diaphragm) | Santoprene |
| Material (Valves/Seals) | EPDM / Viton |
| Item Weight | 6.33 Pounds |
| Product Dimensions (L x W x H) | 9.45"L x 4.72"W x 4.53"H (Actual pump dimensions, packaging dimensions are 19"L x 11"W x 11"H) |
9. Warranty and Support
YOUNGTREE is committed to providing excellent after-sales service for its products. For any product-related questions, concerns, or warranty claims, please contact customer service through your order platform. Please have your purchase details and model number (F42-12V) ready when contacting support.
