ECO-WORTHY 55-Series 12V Sprayer Pump User Manual

1. Introduction

This manual provides detailed instructions for the installation, operation, and maintenance of your ECO-WORTHY 55-Series 12V Sprayer Pump. Designed for high-pressure water transfer, this pump is suitable for various applications including RVs, marine use, car washing, and agricultural irrigation. Please read this manual thoroughly before use to ensure safe and efficient operation.

Figure 1: ECO-WORTHY 55-Series 12V Sprayer Pump and accessories.

2. Product Features

• Diaphragm Pump: 5-chamber 12V diaphragm pump providing 6.5GPM flow capacity.
• Pressure Switch: Turns on and off using water pressure at 70PSI, with 15.3 Max amps.
• Self-Priming: Capable of self-priming up to 9.8 vertical feet, and lifting water up to 148 feet.
• Upgrade Design: Features a unique one-piece diaphragm and bypass switch for long life and consistent performance.
• Adjustable Pressure: Pressure range is adjustable from 45-75PSI.
• Powerful Motor: Equipped with a 183W motor for efficient 6.5GPM high flow.
• Thermal Overload Protection: Automatically disconnects the circuit when temperature exceeds 90℃/194℉ to protect the motor.
• Continuous Operation: Supports continuous operation for more than 1 hour.
• Multipurpose Use: Suitable for RVs, Marine applications, Boats, Irrigation, Sprinklers, Faucets, and more.

Figure 2: High flow and self-priming capabilities of the pump.

Figure 3: Key components and design features of the pump.

3. Safety Information

Please observe the following safety precautions to prevent injury and damage to the pump:

• Electrical Safety: Ensure the power source matches the pump's voltage (12V DC). Always disconnect power before performing any installation, maintenance, or troubleshooting.
• Liquid Compatibility: This pump is designed for water and weakly acidic liquids. DO NOT PUMP FLAMMABLE LIQUIDS such as gasoline, kerosene, ethanol, or similar substances. Pumping flammable liquids can cause fire or explosion.
• Temperature Limits: Do not operate the pump in environments exceeding its specified temperature limits. The pump has thermal overload protection, but prolonged exposure to high temperatures can cause damage.
• Proper Ventilation: Ensure adequate ventilation around the pump during operation to prevent overheating.
• Secure Installation: Mount the pump securely to prevent vibration and movement during operation.
• Water Quality: Use a strainer on the inlet side to prevent debris from entering the pump, which can cause damage or reduce performance.

Figure 4: Compatible liquids and important safety warning.

4. Package Contents

Verify that all items are present in the package:

• ECO-WORTHY 55-Series 12V Sprayer Pump
• Inlet Strainer/Filter
• Hose Barb Fittings (typically 2 units)
• User Manual (this document)

Figure 5: Included fittings for the 55-Series pump.

5. Setup and Installation

Follow these steps for proper installation:

1. Mounting: Choose a dry, well-ventilated location for the pump. Securely mount the pump using appropriate fasteners through the mounting feet. Ensure the pump is installed in a position that allows for easy access for maintenance and connection.
2. Inlet Connection: Connect the water source to the pump's inlet port. It is highly recommended to install the provided strainer on the inlet line to prevent debris from entering the pump. The pump features 1/2" NPT external pipe threads.
3. Outlet Connection: Connect the desired output hose or plumbing to the pump's outlet port.
4. Electrical Connection: Connect the pump to a 12V DC power source. Ensure correct polarity: red wire to positive (+), black wire to negative (-). Use appropriate gauge wiring for the current draw (15.3 Max amps). It is advisable to install an inline fuse for circuit protection.
5. Priming: The pump is self-priming up to 9.8 feet. Ensure the inlet line is submerged in water before initial operation to facilitate priming.

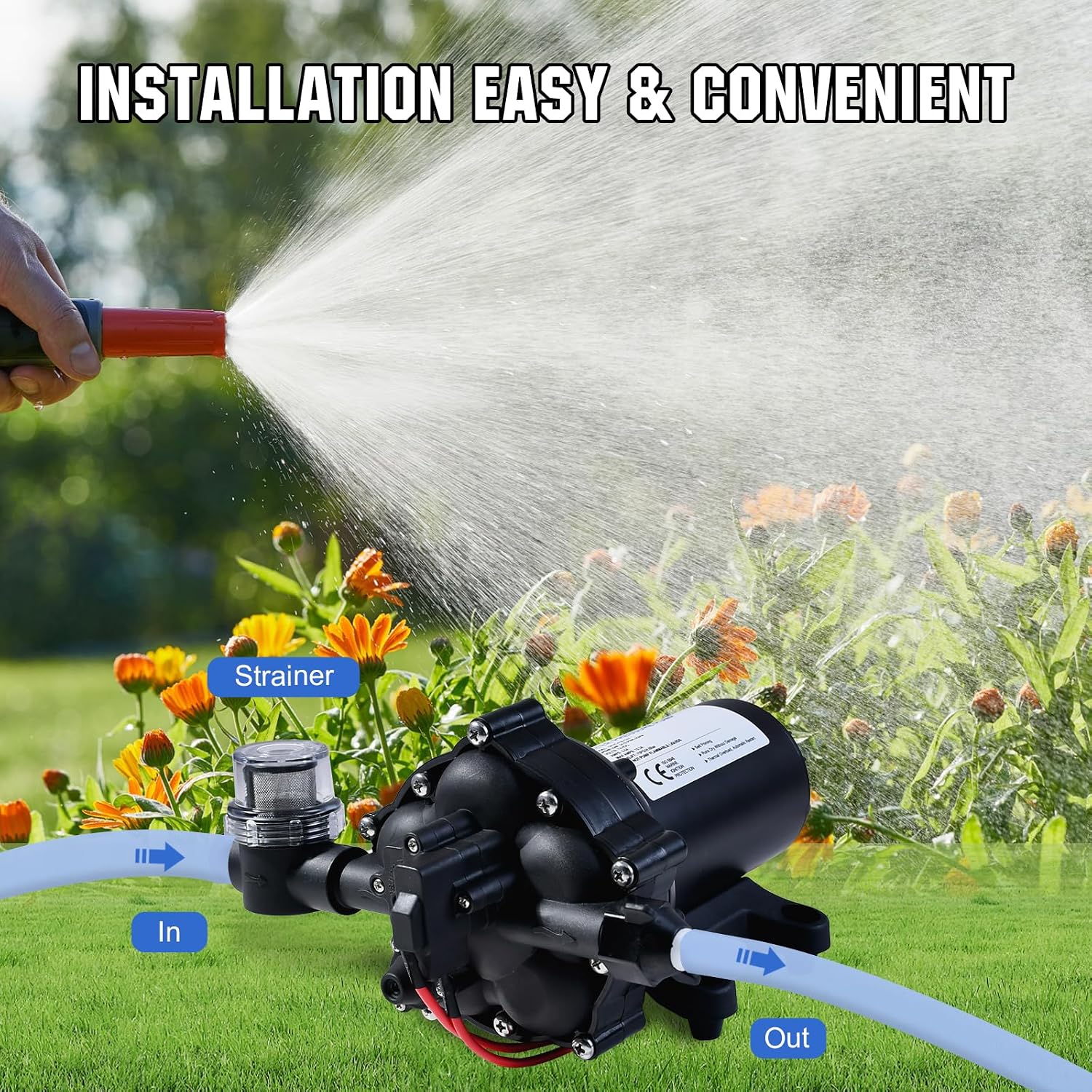

Figure 6: Example of pump installation for garden use.

6. Operating Instructions

Operating your ECO-WORTHY pump is straightforward:

1. Initial Start-up: Once all connections are secure and the pump is properly primed, apply 12V DC power. The pump will begin to run.
2. On-Demand Operation: The pump features an automatic pressure switch. It will turn on when water demand is detected (e.g., opening a faucet) and turn off when the demand ceases and pressure builds up (e.g., closing a faucet).
3. Adjusting Pressure: The pump's pressure switch is adjustable within the range of 45-75 PSI. To adjust, locate the adjustment screw on the pressure switch (refer to Figure 3 for location). Use an Allen wrench to turn the screw:
   • Turn clockwise to increase the cut-off pressure.
   • Turn counter-clockwise to decrease the cut-off pressure.
   Make small adjustments and test the system until the desired pressure is achieved. The factory setting is typically 70 PSI.
4. Continuous Use: The pump is designed for continuous operation for over an hour. However, prolonged dry running should be avoided, although the pump is designed to withstand it.

Figure 7: Adjustable pressure switch details.

7. Maintenance

Regular maintenance ensures optimal performance and longevity of your pump:

• Strainer Cleaning: Periodically inspect and clean the inlet strainer to remove any accumulated debris. A clogged strainer can reduce flow and put strain on the pump.
• Connection Check: Regularly check all hose and electrical connections for leaks or corrosion. Tighten loose connections as needed.
• Winterization (if applicable): If the pump is used in an environment where temperatures drop below freezing, ensure it is drained completely or winterized with RV antifreeze to prevent damage from freezing water.
• General Cleaning: Keep the exterior of the pump clean and free from dirt and grime.

8. Troubleshooting

Refer to the table below for common issues and their solutions:

9. Specifications

Figure 8: Product dimensions.

10. Warranty and Support

ECO-WORTHY is committed to customer satisfaction. If you encounter any issues or have questions regarding your 55-Series Sprayer Pump, please contact our customer support team. We strive to provide prompt assistance and resolve any concerns you may have.

For support, please refer to the contact information provided with your purchase or visit the official ECO-WORTHY website. Your feedback is valuable to us.

Note: Warranty terms and conditions may vary. Please retain your proof of purchase for warranty claims.
