1. Introduction
Thank you for purchasing the Erinnyees 10' x 10' Outdoor Pergola with Sun Shade Canopy. This manual provides essential information for the safe assembly, operation, and maintenance of your new pergola. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Safety Warnings
- Ensure all parts are present and undamaged before assembly.
- Assembly requires 2-3 people. Do not attempt to assemble alone.
- Wear appropriate safety gear, such as gloves, during assembly.
- Securely anchor the pergola to the ground to prevent tipping in windy conditions.
- Do not hang heavy objects from the pergola frame.
- Remove the canopy during strong winds or heavy snowfall to prevent damage.
- Keep children and pets away from the assembly area.
2. Package Contents
Verify that all components listed below are included in your package:
- 1 x Pergola Frame (Powder Sprayed Steel)
- 1 x Waterproof Fabric Canopy
- 1 x Hardware Kit (screws, bolts, anchors, etc.)
- 1 x Assembly Instruction Manual

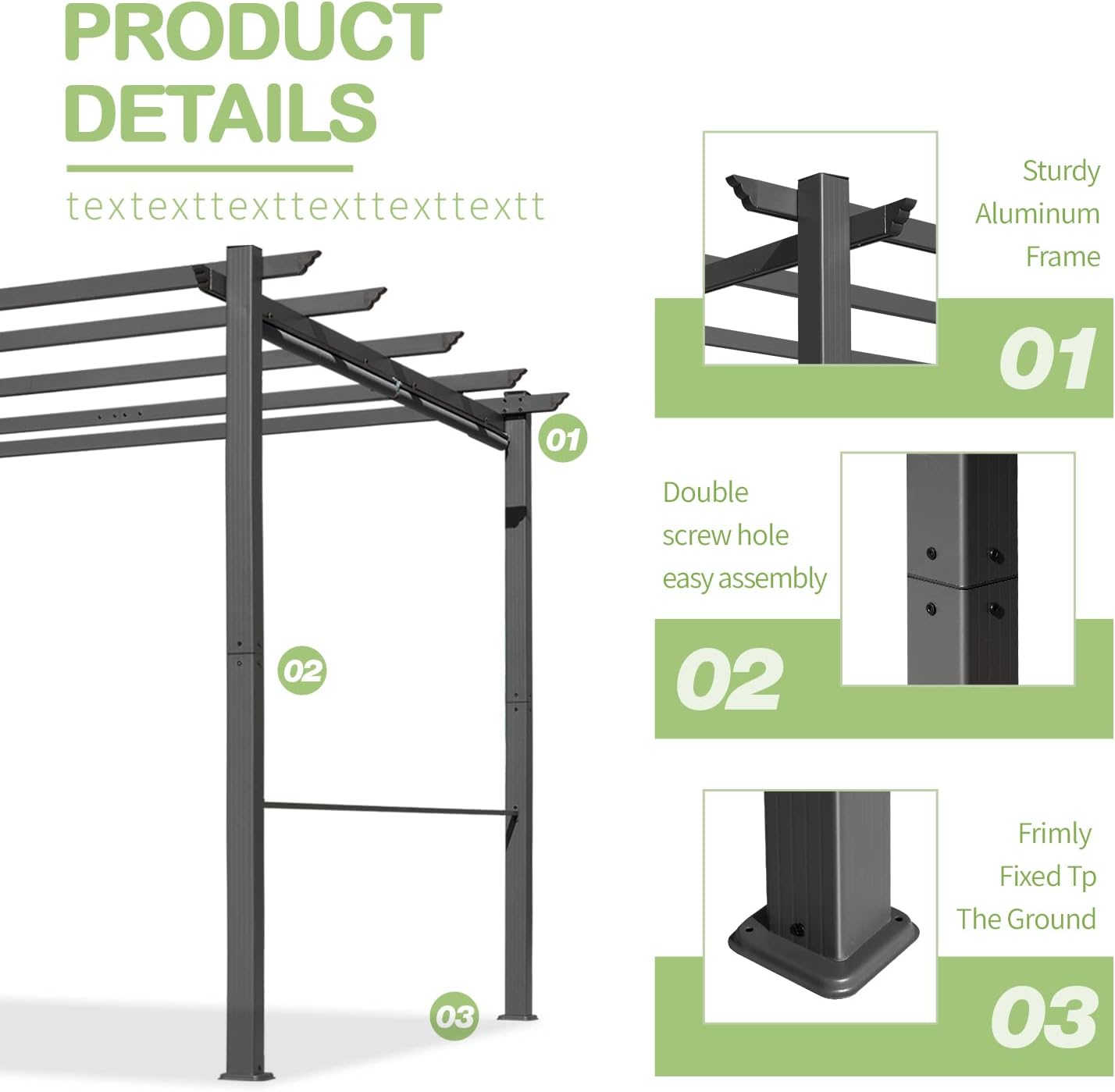

Figure 2.1: Illustration of key product details including the sturdy frame, double screw holes for easy assembly, and the base for ground fixing.
3. Setup and Assembly Instructions
Assembly typically requires 1-2 hours with 2-3 people. Follow these steps carefully:
- Unpack and Identify Parts: Carefully unpack all components and lay them out on a clean, flat surface. Refer to the parts list in your hardware kit to identify each piece.
- Assemble the Main Frame: Connect the vertical posts to the horizontal beams using the provided hardware. Ensure all connections are secure but do not fully tighten bolts until the entire frame is assembled.
- Attach Crossbeams: Install the top crossbeams that will support the canopy.
- Install Canopy Guide Rails: Attach the metal guide rails for the adjustable canopy to the frame.
- Mount the Canopy: Slide the waterproof fabric canopy onto the guide rails. Ensure it moves smoothly.
- Final Tightening: Once the entire structure is assembled, go back and fully tighten all bolts and screws.
- Anchor the Pergola: Securely anchor the pergola to the ground using appropriate anchors for your surface (e.g., concrete anchors for patio, ground stakes for lawn).
Figure 3.1: The Erinnyees 10' x 10' Outdoor Pergola fully assembled in an outdoor environment.
Figure 3.2: Product specification diagram showing the overall dimensions of the pergola.
4. Operating Instructions
Adjusting the Sun Shade Canopy
The pergola features an adjustable sling canopy designed for flexible positioning to control sunlight exposure.
- To adjust the canopy, gently slide it along the metal guide rails on both sides of the pergola.
- Position the canopy to your desired shade level. The canopy can be locked in place to maintain its position.
- For full sun exposure, retract the canopy completely. For maximum shade, extend it fully.
Figure 4.1: Detail of the adjustable canopy system, highlighting the metal guide rail and two-stage design for smooth operation.
5. Maintenance
- Canopy Cleaning: The waterproof fabric canopy is easy to clean. Use a mild soap solution and a soft brush or cloth. Rinse thoroughly with water and allow to air dry completely before retracting. Do not use harsh chemicals or abrasive cleaners.
- Frame Cleaning: Wipe the steel frame with a damp cloth and mild detergent as needed. Dry thoroughly to prevent rust.
- Seasonal Care: During periods of strong winds, heavy rain, or snowfall, it is recommended to retract or remove the canopy to prevent damage to both the canopy and the frame.
- Hardware Check: Periodically check all bolts and screws to ensure they remain tight. Re-tighten if necessary.

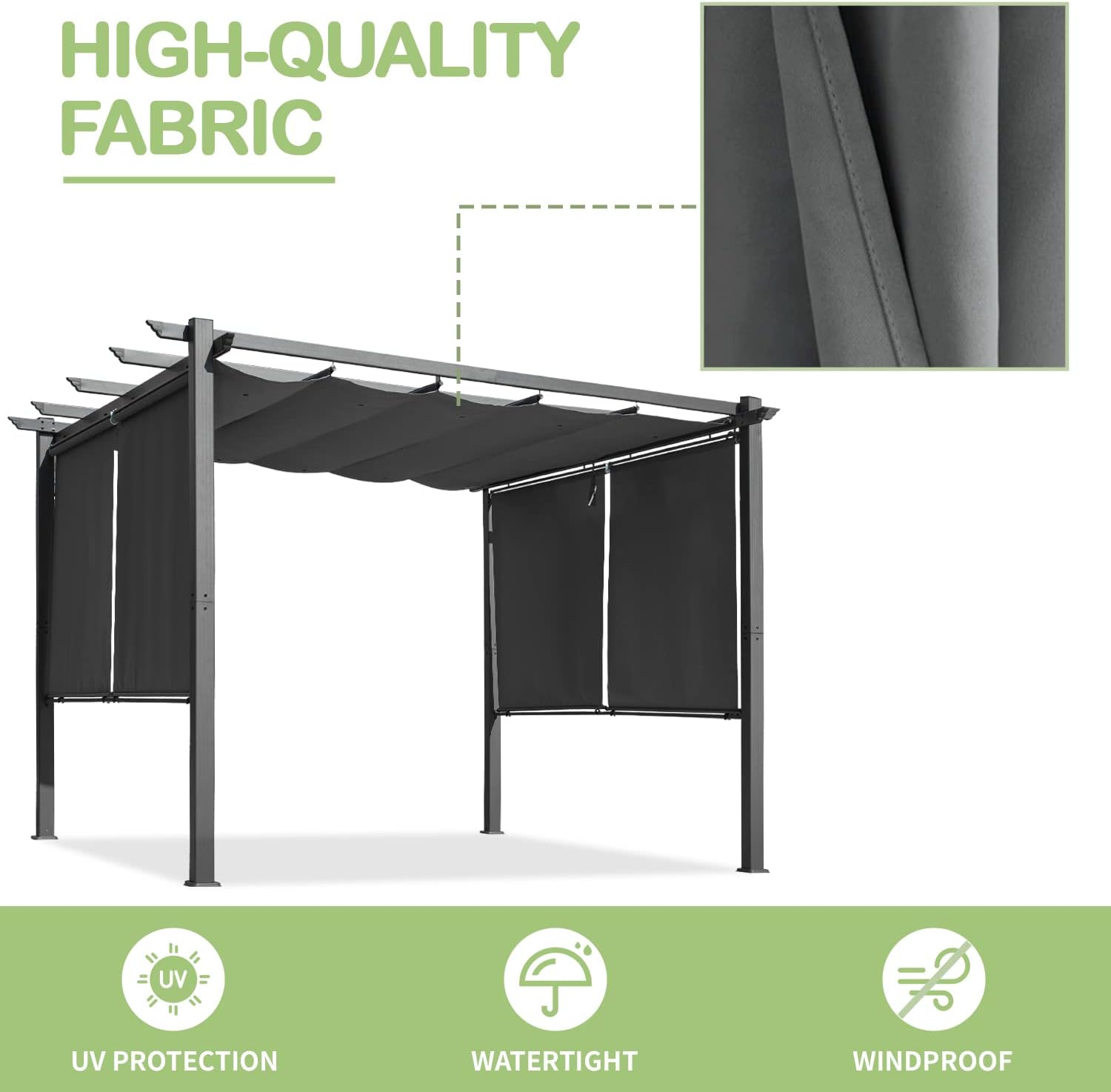

Figure 5.1: Features of the high-quality fabric, including UV protection, watertightness, and wind resistance.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Canopy does not slide smoothly. | Guide rails are dirty or obstructed; canopy fabric is misaligned. | Clean guide rails. Check for any obstructions. Realign canopy fabric on the rails. |
| Pergola feels unstable. | Bolts are not fully tightened; pergola is not properly anchored. | Ensure all assembly bolts are fully tightened. Verify that the pergola is securely anchored to the ground. |
| Water pooling on canopy. | Canopy is not taut; heavy rainfall. | Ensure canopy is fully extended and taut. During heavy rain, retract the canopy to prevent damage. |
| Missing parts during assembly. | Packaging error. | Contact Erinnyees customer support with your purchase details. |
7. Specifications
| Brand | Erinnyees |
| Model | 10' x 10' Outdoor Pergola |
| Overall Dimensions | 120"L x 120"W x 81.6"H (10' L x 10' W x 6.8' H) |
| Structure Material | Powder Sprayed Steel (Alloy Steel, Metal) |
| Canopy Material | Waterproof Fabric |
| Color | Grey Canopy |
| Water Resistance Level | Waterproof |
| UV Protection | Yes |
| Assembly Required | Yes (Approx. 1-2 hours with 2-3 people) |
8. Warranty and Support
For any questions, missing parts, or concerns regarding your Erinnyees 10' x 10' Outdoor Pergola, please contact Erinnyees customer support. Our professional service team aims to provide efficient solutions within 24 hours.
Please refer to your purchase documentation for specific warranty details. Keep your proof of purchase for warranty claims.
You can visit the official Erinnyees store for more information: Erinnyees Store
