ZJIAH Low Bunk Bed Twin Over Twin Instruction Manual

Important Safety Information

Please read all instructions carefully before assembly and use. Keep this manual for future reference.

• Always ensure all connections are securely tightened before use. Periodically check and re-tighten as necessary.
• The top bunk is intended for children 6 years of age and older.
• Ensure the mattress thickness on the top bunk does not exceed the height of the guardrails to prevent falls.
• Do not allow children to play on or under the bunk bed without supervision.
• Use the built-in ladder for climbing. Do not use chairs or other items to access the top bunk.
• This bunk bed is designed for indoor use only.
• Maximum weight capacity for the upper bunk is 200 lbs. Maximum weight capacity for the bottom bunk is 400 lbs.

Product Overview

The ZJIAH Low Bunk Bed Twin Over Twin is designed for durability, safety, and space-saving functionality. Constructed from solid wood, it features a low-profile design suitable for rooms with lower ceilings and younger children.

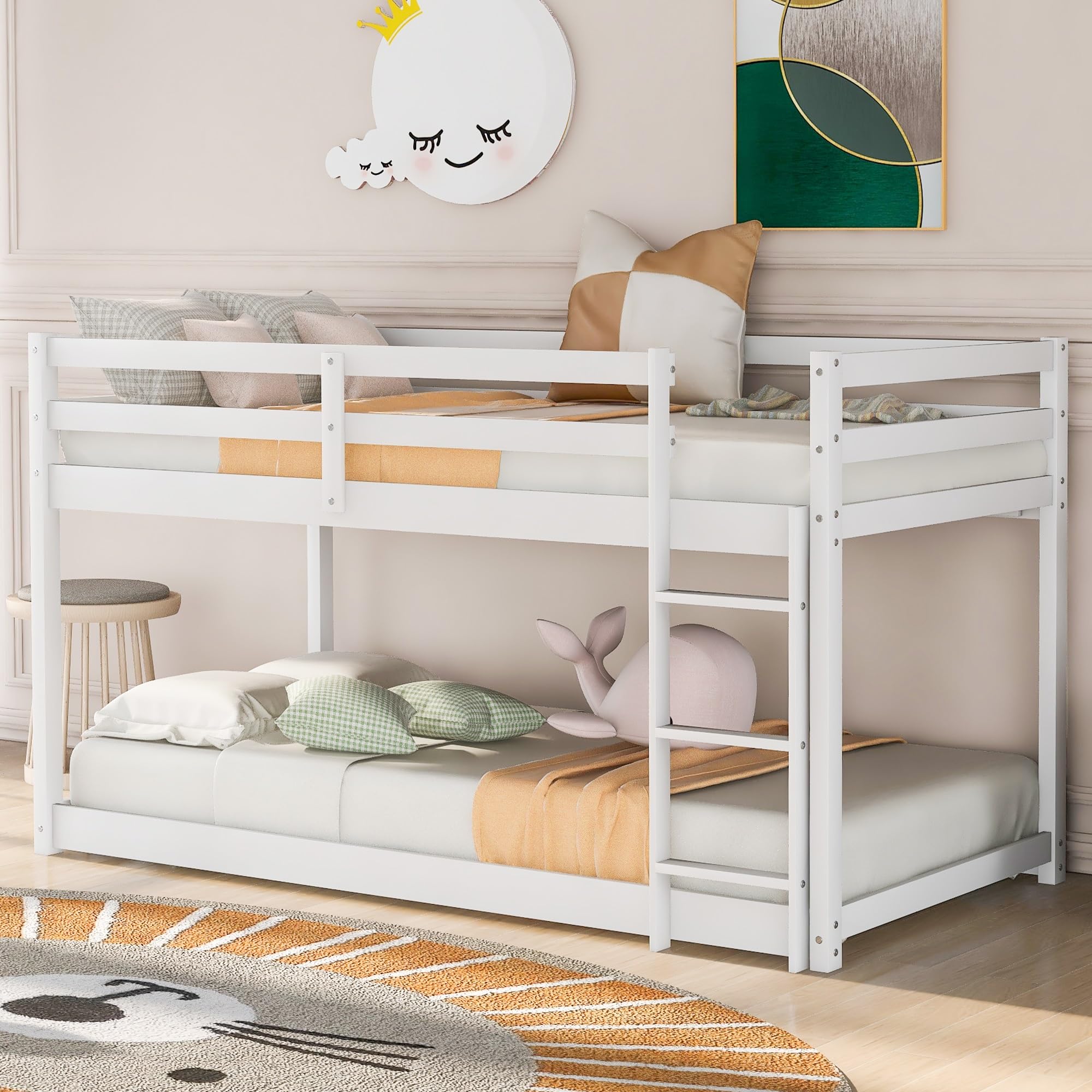

Image: ZJIAH Low Bunk Bed Twin Over Twin in White. This image shows the assembled bunk bed, highlighting its compact and sturdy design.

Key Features:

• Sturdy Solid Wood Construction: Ensures durability and high load capacity.
• High Safety Guardrails: 13.4-inch full-length guardrails on the top bunk provide enhanced safety.
• Built-in 3-Step Ladder: Allows for safe and comfortable climbing.
• Space-saving Low Design: Ideal for rooms with low ceilings and provides two twin-size sleeping areas.
• No Box Spring Needed: Features sturdy slats for mattress support.
• Multifunctional: The bottom bed can be used for sleeping, play, or storage.

Image: Icons illustrating key features: large weight capacity, sturdy wooden frame, space-saving design, easy to assemble, and safe/non-toxic materials.

Setup and Assembly Instructions

This twin bunk bed is designed for straightforward assembly. It is recommended to have two people for assembly. All necessary hardware and a manual are included in the packaging.

General Assembly Steps:

1. Unpack all components and verify against the included parts list.
2. Assemble the headboards and footboards for both the upper and lower bunks.
3. Attach the side rails to the assembled headboards and footboards to form the bed frames.
4. Install the wooden slats onto the bed frames for mattress support.
5. Secure the upper bunk to the lower bunk frame.
6. Attach the safety guardrails to the upper bunk.
7. Install the built-in 3-step ladder.
8. Ensure all bolts and screws are securely tightened.

Image: Close-up views of the full-length guardrails, sturdy and noiseless slats, spacious bottom area for play, and the 3-step wide ladder for climbing.

Assembly Video:

Operating Instructions

The ZJIAH Low Bunk Bed is designed for safe and comfortable use by children. Follow these guidelines for optimal operation:

• Ensure mattresses are properly sized for twin beds and fit snugly within the frame.
• Always use the built-in ladder to access the top bunk.
• Do not jump on either bunk.
• Keep the area around the ladder clear of obstructions.
• The low height of the bottom bunk is ideal for younger children, minimizing fall risk.

Image: A ZJIAH Low Bunk Bed positioned in a room, illustrating its suitability for spaces with low ceilings and its compact footprint.

Maintenance

Proper maintenance will ensure the longevity and safety of your bunk bed.

• Cleaning: Wipe down the wooden frame with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Hardware Checks: Periodically inspect all bolts, screws, and connections to ensure they are tight. Re-tighten as needed to maintain stability.
• Slats Inspection: Check bed slats regularly for any signs of damage or wear. Replace any broken or cracked slats immediately.
• Environmental Conditions: Avoid placing the bed in direct sunlight or near heat sources, which can cause wood to warp or fade.

Troubleshooting

If you encounter any issues with your bunk bed, refer to the following common solutions:

• Squeaking Noises: Tighten all assembly bolts. Ensure the bed is on a level surface.
• Instability/Wobbling: Re-check all connections and ensure they are fully tightened. Verify that all parts are correctly assembled according to the manual.
• Ladder Feels Loose: Ensure the ladder is securely attached to the bed frame. Tighten any loose screws.
• Missing Parts: If any parts are missing upon arrival, contact ZJIAH customer support immediately for replacements.

Specifications

Image: A detailed diagram showing the dimensions of the ZJIAH Low Bunk Bed in inches, including overall length, width, height, and internal measurements.

Warranty and Support

ZJIAH is committed to providing high-quality products and customer satisfaction.

• Return Policy: This product is eligible for a 90-day easy return policy.
• Customer Support: For any questions, concerns, or assistance with assembly or parts, please contact ZJIAH customer support. Refer to your purchase documentation for specific contact details.
• Protection Plans: Extended protection plans (2-Year and 3-Year) are available for purchase separately to cover potential issues beyond the standard return period.
