Geepas GSWM18026 Semi-Automatic Twin Tub Washing Machine

1. Introduction

Thank you for choosing the Geepas GSWM18026 Semi-Automatic Twin Tub Washing Machine. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.

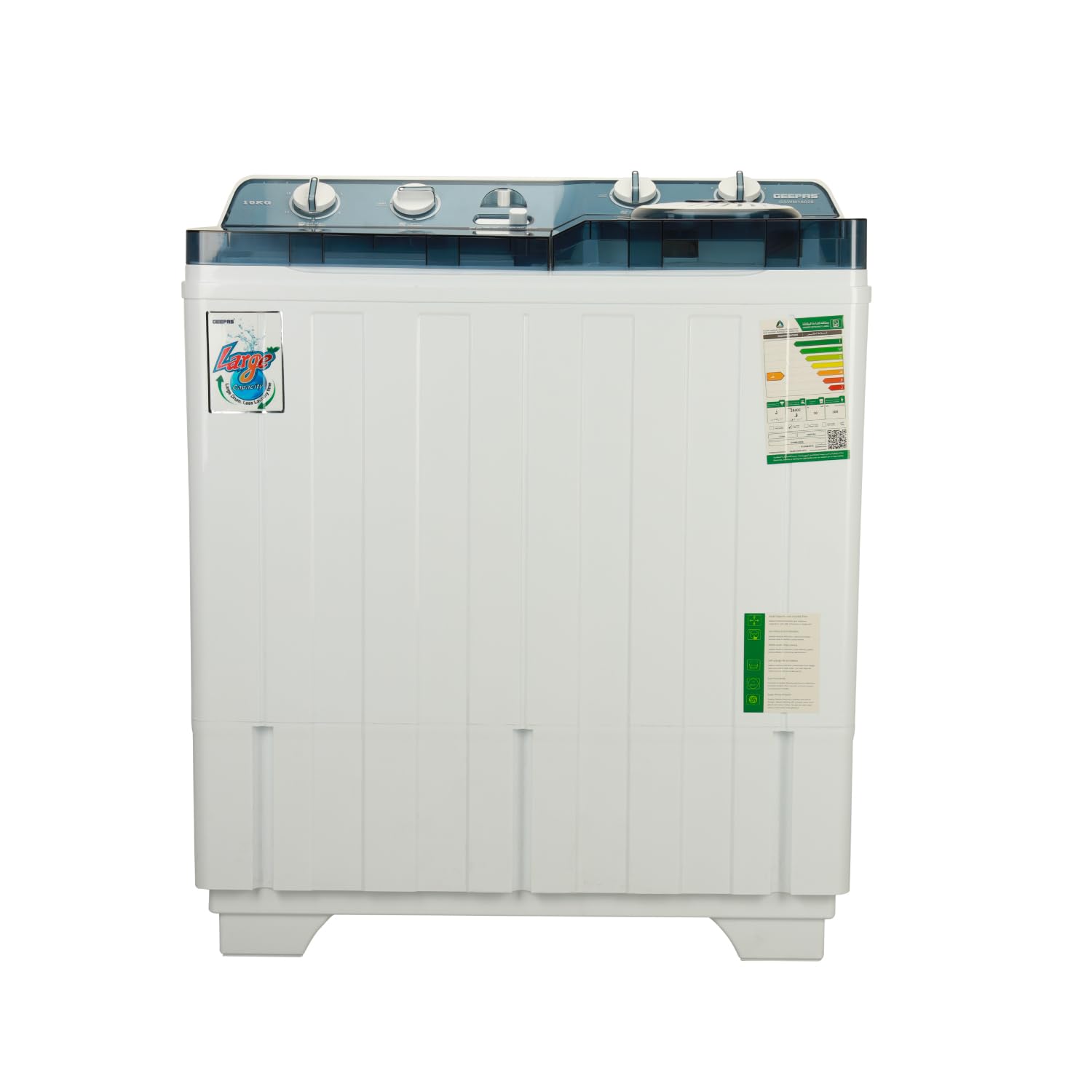

Image: Front view of the Geepas GSWM18026 washing machine.

2. Safety Information

To prevent injury to yourself and others, or damage to the appliance, please observe the following safety precautions:

• Ensure the washing machine is installed on a stable, level surface.
• Do not operate the machine with a damaged power cord or plug.
• Keep children and pets away from the appliance during operation.
• Do not immerse the electrical parts in water.
• Unplug the machine before cleaning or performing any maintenance.
• Do not wash items that are soiled with flammable substances.
• Always close the lids before starting a wash or spin cycle.

3. Product Overview

Key Features:

• Large Capacity: 10kg wash capacity and 6kg spin capacity, suitable for large laundry loads.
• Dual Tub Design: Allows for simultaneous washing and spinning, saving time.
• Powerful Motor: 770W total power (570W wash, 200W spin) for efficient and quiet operation.
• 360° Smart Wash Technology: Pulsator action ensures deep cleaning without fabric damage.
• Turbo Dryer: High-speed drying system to reduce drying time.
• Magic Filter: Effectively collects lint and debris during the wash cycle.
• Durable Body: Rust-resistant plastic body for long-lasting use.

Components:

Image: Front view of the washing machine, highlighting the wash and spin tubs.

1. Wash Tub
2. Spin Tub
3. Control Panel (Knobs for Wash Timer, Wash Selector, Spin Timer)
4. Water Inlet
5. Drain Hose
6. Power Cord
7. Lids (Wash Tub Lid, Spin Tub Lid)

4. Setup and Installation

4.1 Unpacking

• Carefully remove the washing machine from its packaging.
• Check for any damage during transit. Contact your retailer immediately if damage is found.
• Remove all packing materials, including the base packaging.

4.2 Placement

• Place the machine on a firm, level surface in a dry area.
• Ensure there is adequate space around the machine for ventilation and operation.
• Avoid direct sunlight or heat sources.

4.3 Water Connection

• Connect the water inlet hose to a suitable water tap.
• Ensure the drain hose is positioned to allow water to drain freely, either into a sink or a floor drain.

Image: Side view of the washing machine, illustrating water inlet and drain hose connections.

4.4 Power Connection

• Plug the power cord into a grounded electrical outlet.
• Verify that the power supply matches the specifications listed on the appliance.

5. Operating Instructions

5.1 Control Panel Overview

Image: Detailed view of the control panel with three rotary knobs.

• Wash Timer Knob: Sets the duration of the wash cycle.
• Wash Selector Knob: Selects wash mode (e.g., Gentle, Normal, Drain).
• Spin Timer Knob: Sets the duration of the spin cycle.

5.2 Washing Procedure

1. Sort laundry by fabric type and color.
2. Load clothes into the wash tub, ensuring not to exceed the 10kg capacity.
3. Add appropriate amount of detergent and fabric softener.
4. Fill the wash tub with water to the desired level.
5. Close the wash tub lid.
6. Set the Wash Timer Knob to the desired wash duration.
7. Set the Wash Selector Knob to the appropriate wash mode.
8. The machine will start washing. Once the cycle is complete, drain the water by setting the Wash Selector Knob to 'Drain'.

Image: Internal view of the wash tub during operation and the spin tub.

5.3 Spinning Procedure

1. After washing and draining, transfer the wet clothes from the wash tub to the spin tub, ensuring even distribution. Do not exceed the 6kg spin capacity.
2. Place the spin cap firmly on top of the clothes in the spin tub.
3. Close the spin tub lid.
4. Set the Spin Timer Knob to the desired spin duration (typically 1-5 minutes).
5. The machine will begin spinning. Once the cycle is complete, the machine will stop automatically.
6. Carefully open the spin tub lid and remove the clothes.

6. Maintenance

6.1 Cleaning the Exterior

• Wipe the exterior of the machine with a soft, damp cloth.
• Do not use abrasive cleaners or solvents.

6.2 Cleaning the Magic Filter

• Regularly remove and clean the Magic Filter located inside the wash tub.
• Rinse the filter under running water to remove lint and debris.
• Reinsert the filter securely.

6.3 Winterization (if applicable)

• If the machine is stored in an area where temperatures may drop below freezing, drain all water from the hoses and tubs to prevent damage.

7. Troubleshooting

Before contacting customer service, please refer to the following table for common issues and their solutions:

8. Specifications

9. Warranty and Support

This Geepas GSWM18026 washing machine comes with a two-year manufacturer warranty from the date of purchase.

For warranty claims, technical support, or service inquiries, please contact Geepas customer service. Keep your purchase receipt as proof of purchase.

For further assistance, please refer to the contact information provided on the Geepas official website or your purchase documentation.
