1. Introduction
This manual provides essential instructions for the safe and effective use of your Generic Ballistic Dart Launcher. Please read this manual thoroughly before operating the device to ensure proper handling and to prevent injury or damage.
2. Safety Information
WARNING: Misuse can cause serious injury. Always follow safety guidelines.
- Always point the dart launcher in a safe direction, away from people, animals, and fragile objects.
- Do not aim at the face or eyes.
- Use only darts specifically designed for this launcher.
- Keep out of reach of children. Adult supervision is required for minors.
- Inspect the launcher and darts for damage before each use. Do not use if damaged.
- Do not modify the dart launcher or darts in any way.
3. Package Contents
Verify that all items are present in your package:
- 1 x Ballistic Dart Launcher
- 10 x Darts
- 1 x Waterproof Storage Box

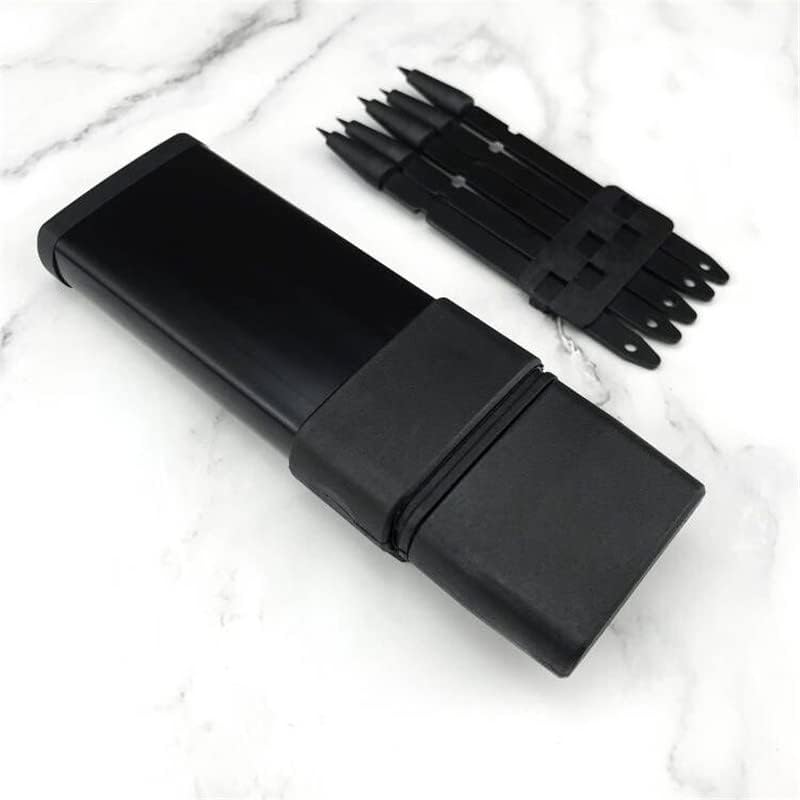

Image 1: The Ballistic Dart Launcher with its included darts and a protective cap.

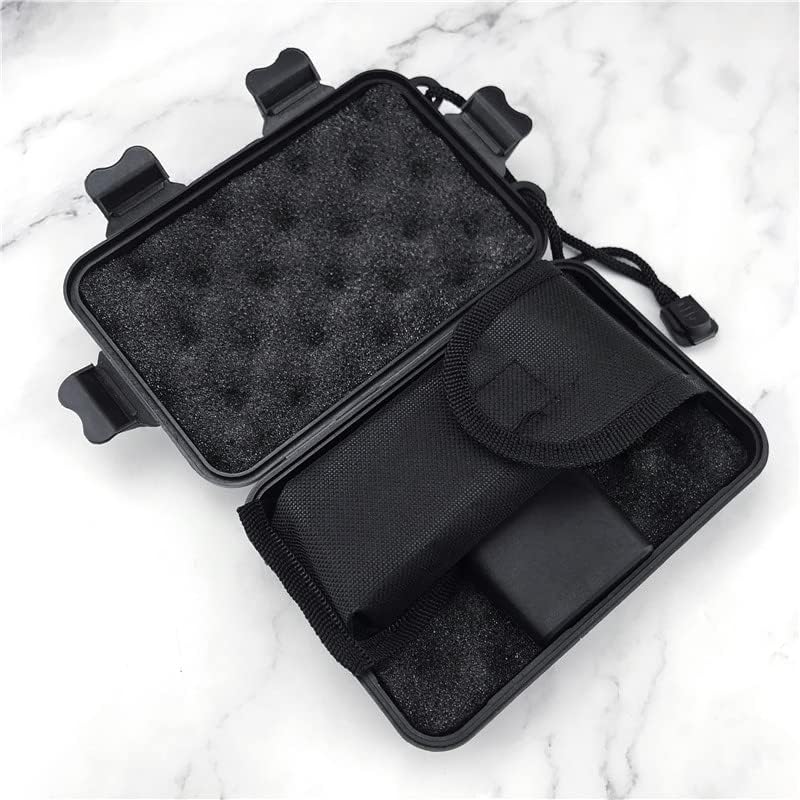

Image 2: The waterproof storage box, containing the dart launcher and darts, ensuring portability and protection.
4. Setup
- Unpack Components: Carefully remove the dart launcher, darts, and waterproof box from their packaging.
- Inspect for Damage: Before first use, visually inspect all components for any signs of damage or manufacturing defects. If any issues are found, do not use the product and contact customer support.
- Prepare Darts: Ensure darts are clean and free from debris.
Image 3: A close-up view of the dart launcher's firing mechanism, showing the individual dart slots.
5. Operating Instructions
- Loading Darts:
- Hold the dart launcher firmly.
- Insert a dart into one of the designated slots until it clicks securely into place. Ensure the dart is fully seated.
- Repeat for additional darts as desired.
- Aiming:
- Identify a safe target area.
- Point the dart launcher directly at your intended target.
- Firing:
- With a firm grip, press the corresponding button for the loaded dart.
- The dart will launch from the device.
- Retrieving Darts: After firing, safely retrieve all darts from the target area.

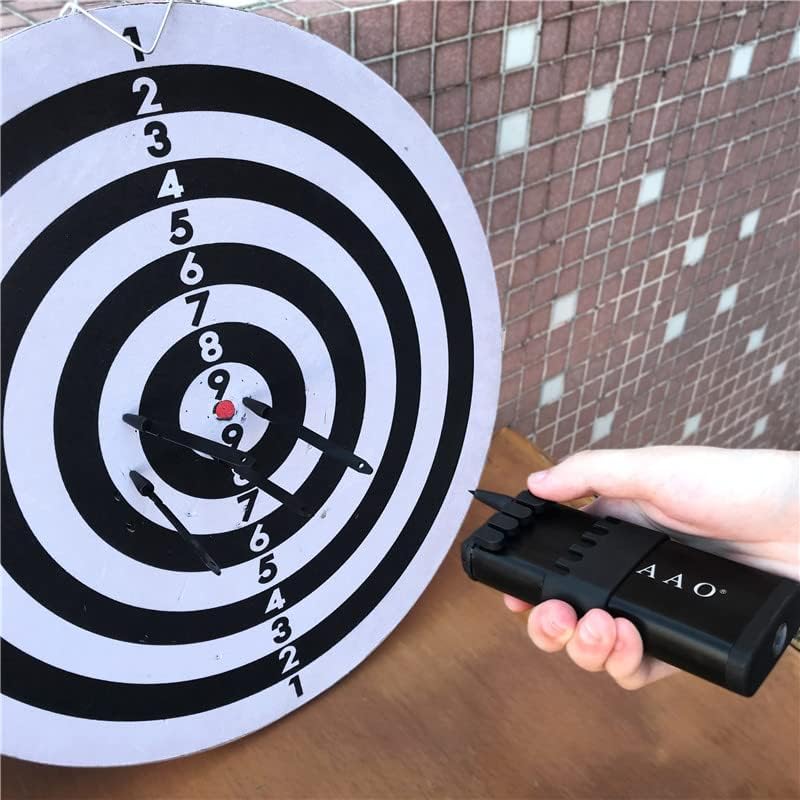

Image 4: A user demonstrating the dart launcher in action, aiming at a dartboard target.
Image 5: A detailed view of the darts loaded into the launcher, ready for firing.
6. Maintenance
- Cleaning: Wipe the dart launcher with a dry or slightly damp cloth after each use. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the dart launcher and darts in the provided waterproof box in a cool, dry place, away from direct sunlight and extreme temperatures.
- Dart Inspection: Regularly check darts for bent tips, damaged flights, or cracks. Replace damaged darts to ensure optimal performance and safety.

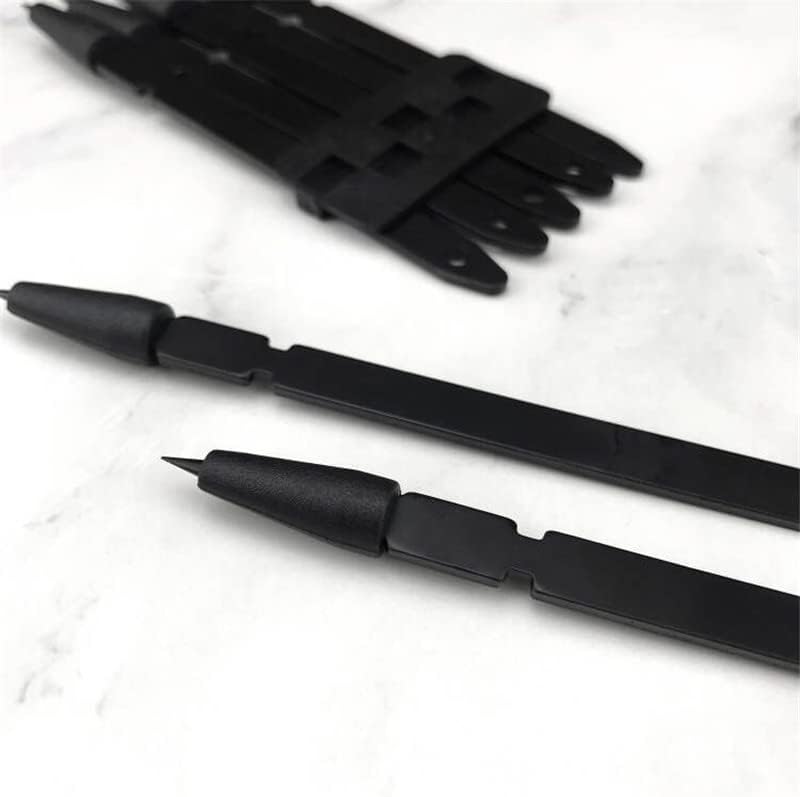

Image 6: A close-up of the dart tips, highlighting their design for target penetration.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Dart does not fire. | Dart not fully seated; firing mechanism obstructed; damaged dart. | Ensure dart is pushed in completely until it clicks. Check for debris in the firing slot. Replace dart if damaged. |
| Dart fires weakly or inaccurately. | Damaged dart; worn firing mechanism. | Inspect dart for damage and replace if necessary. If problem persists, contact customer support. |
| Buttons are stiff or unresponsive. | Debris under button; manufacturing defect. | Gently clean around the buttons. If issue persists, contact customer support. |
8. Specifications
- Dart Launcher Dimensions: 5.7 x 1.8 x 0.7 inches (approx.)
- Dart Launcher Weight: 4.66 ounces (approx.)
- Dart Length: 4.2 inches (approx.)
- Dart Weight: 0.32 ounces (approx.)
- Waterproof Box Dimensions: 6.1 x 3.9 x 1.8 inches (approx.)
- Materials: Acrylonitrile Butadiene Styrene, Stainless Steel
- Color: Multi-color (typically black)
- Included Components: Fire Starter (as per product listing, though primary function is dart launching)
Image 7: The dart launcher featuring an integrated compass on one end, indicating additional functionality.
9. Warranty & Support
For warranty information, technical support, or to inquire about replacement parts, please contact the manufacturer or the retailer from whom you purchased this product. Keep your proof of purchase for warranty claims.
Manufacturer: Generic
