BRAUN M1012 Pocket Shaver User Manual

Introduction

The BRAUN M1012 Pocket Shaver is designed for convenient and efficient shaving, offering a compact and portable solution. Its features include a palm-sized body for easy portability, a micro comb to guide hairs for a smoother shave, and two independent moving cutting elements that adapt to facial contours. The shaver is 100% waterproof, allowing for wet shaving and easy cleaning under running water. It also boasts fast charging capabilities for quick use.

Important Safety Information

Please read all instructions carefully before using this appliance. Keep this manual for future reference.

• This appliance is suitable for cleaning under running water.
• Do not use the appliance if the foil or cord is damaged.
• Keep the appliance dry when not in use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Only use the power supply provided with the appliance.

Package Contents

Verify that all items are present in the package:

• 1 x BRAUN M1012 Pocket Shaver
• 1 x Charging Cable
• 1 x Cleaning Brush
• 1 x User Manual

Note: The product specifications mention "1 x Shaver" as included components. Other accessories like charging cable and cleaning brush are standard but not explicitly listed.

Setup

Charging the Shaver

Before first use, fully charge the shaver. The BRAUN M1012 features fast charging capabilities.

1. Connect the charging cable to the shaver's charging port.
2. Plug the other end of the cable into a suitable power outlet.
3. Allow the shaver to charge for approximately 1 hour for a full charge, providing 40 minutes of continuous shave time. A 5-minute fast charge can provide enough power for an emergency shave.
4. The charging indicator light (if present, typical for shavers) will indicate charging status and full charge.

Figure 1: The BRAUN M1012 Pocket Shaver, ready for use or charging. Its compact design is evident.

Operating Instructions

Basic Shaving

1. Ensure the shaver is charged.
2. Remove the protective cap.
3. Press the power button to turn on the shaver.
4. Hold the shaver at a right angle (90 degrees) to your skin.
5. Stretch your skin with your free hand to make the hairs stand up.
6. Move the shaver against the direction of hair growth using light pressure. The micro comb will help guide hairs into the cutting elements.
7. For optimal results, shave before washing your face.

Figure 2: Demonstrating the BRAUN M1012 in use, highlighting its suitability for quick shaves anywhere.

Wet Shaving (100% Waterproof)

The BRAUN M1012 is 100% waterproof, allowing for comfortable wet shaving with foam or gel, or even in the shower.

1. Apply shaving foam or gel to your face.
2. Turn on the shaver and proceed with shaving as described above.
3. After use, rinse the shaver thoroughly under running water.

Figure 3: The shaver being cleaned under running water, demonstrating its waterproof design.

Maintenance

Cleaning the Shaver

Regular cleaning ensures optimal performance and hygiene.

1. After each use: Turn off the shaver. Remove the foil and cutter block. Tap out any loose hair. Rinse the shaver head and the inner parts under warm running water until all residue is removed.
2. Deep cleaning (weekly): For a more thorough clean, use a small brush (if included) to remove stubborn hair particles from the cutter block and foil.
3. Allow all parts to air dry completely before reassembling and replacing the protective cap.

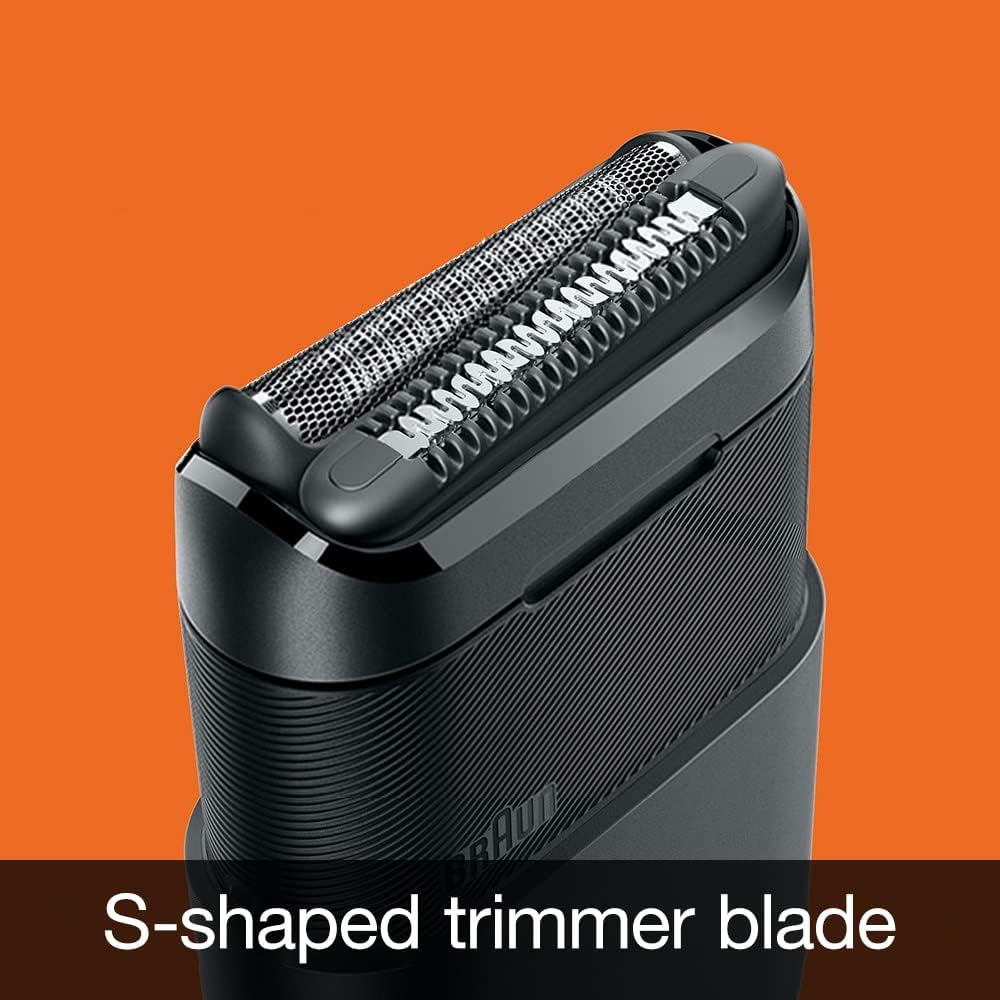

Figure 4: Detailed view of the S-shaped trimmer blade and foil, which should be cleaned regularly.

Replacing Shaving Parts

For continued optimal shaving performance, it is recommended to replace the shaver foil and cutter block every 18 months, or when they show signs of wear.

• Replacement parts can be purchased from authorized Braun retailers or online.
• To replace, simply remove the old foil and cutter block and snap the new ones into place.

Troubleshooting

If you encounter issues with your BRAUN M1012 Pocket Shaver, refer to the following common problems and solutions:

Specifications

Figure 5: The compact size of the BRAUN M1012, making it ideal for travel.

Figure 6: The shaver easily fits into various bags, highlighting its portability.

Warranty and Support

This BRAUN M1012 Pocket Shaver comes with a standard manufacturer's warranty. Please refer to the warranty card included in your package for specific terms and conditions, including warranty period and coverage.

For technical support, replacement parts, or warranty claims, please contact Braun customer service. Contact information can typically be found on the Braun official website or on the product packaging.

Note: Amazon's return policy for this product is 15 days for refund/replacement. This is separate from the manufacturer's warranty.
