anydry Model 5101 Wall-Mounted Paper Towel Dispenser User Manual

Product Overview

The anydry Model 5101 is a wall-mounted paper towel dispenser designed for efficient and hygienic paper towel access in various environments, including homes, offices, and commercial spaces. Its compact design helps save countertop space while providing a sleek, modern aesthetic.

• Capacity: Holds up to 200 multi-fold or tri-fold paper towels, compatible with towels up to 10 inches in length and 3.1 inches in folded width. This reduces the frequency of refills.
• Durability: Constructed from high-quality ABS plastic for long-lasting performance.
• Design: Features a visible check window to monitor paper towel levels and dual unlocking options (button or key) for added security and convenience.
• Dimensions: Measures approximately 11 inches (W) x 8.2 inches (H) x 3.8 inches (D).

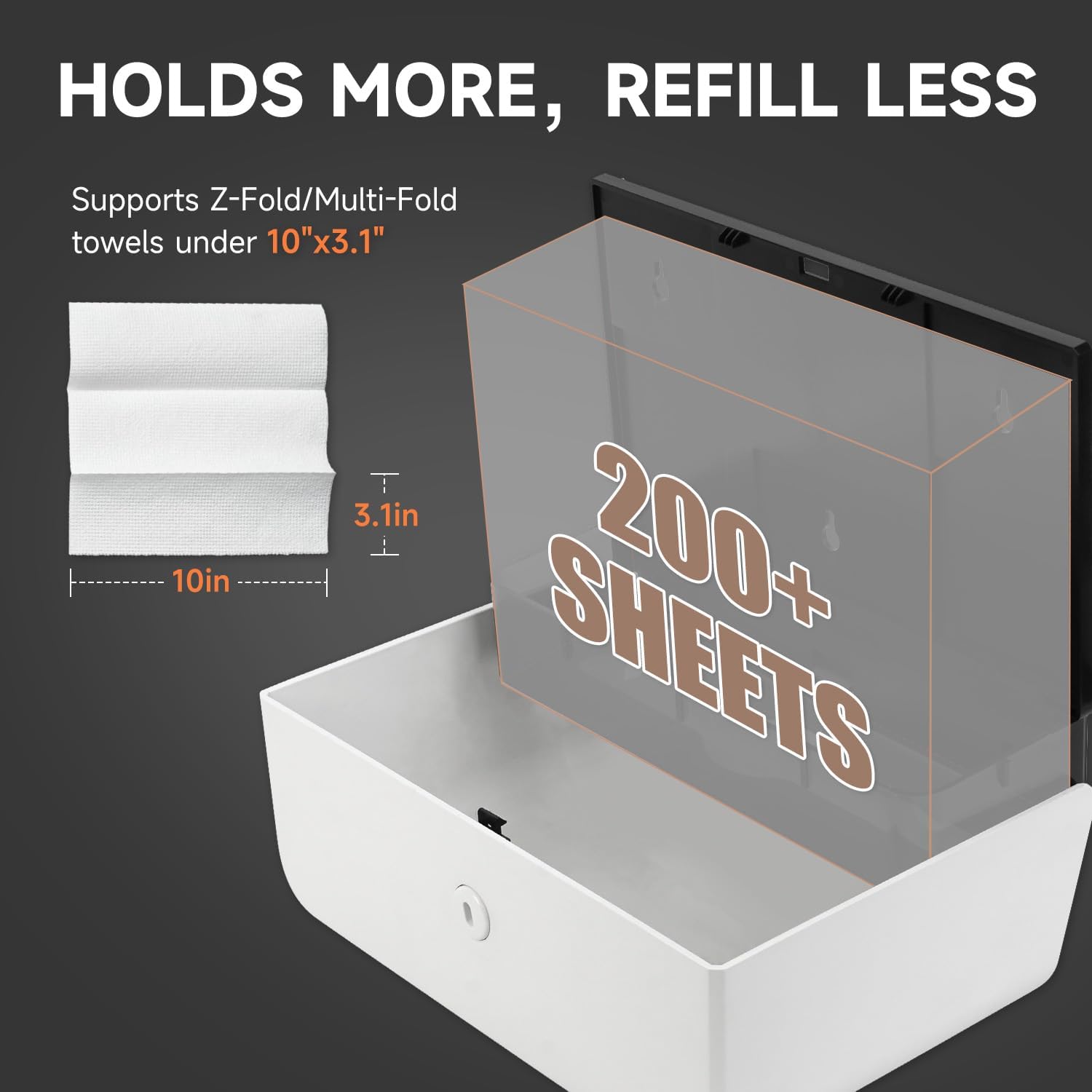

Image: The dispenser's internal capacity, illustrating how it holds over 200 multi-fold paper towels with dimensions of 10 inches by 3.1 inches.

Image: A hand effortlessly pulling a paper towel from the wide dispensing slot, highlighting smooth paper access.

Image: Details of the dispenser's top, showing the button and key options for unlocking, and a transparent window for checking paper towel levels.

Installation Guide

The anydry Model 5101 paper towel dispenser offers two installation methods: adhesive (no-drill) and screw-mounted (stable). Ensure your wall surface is smooth, dry, and clean before installation.

Method 1: Simple Adhesive Installation

1. Step 1: Prepare the Wall Surface. Wipe and dry the wall surface thoroughly where the dispenser will be mounted.
2. Step 2: Mark Positions. Hold the dispenser against the wall at the desired height and mark three positions for the adhesive hooks.
3. Step 3: Attach Adhesive Hooks. Peel the backing from the three adhesive hooks and firmly press them onto the marked positions on the wall. Ensure they are level. Loosen the screws on the hooks slightly.
4. Step 4: Hang the Dispenser. Align the keyholes on the back of the dispenser with the screws on the adhesive hooks. Hang the dispenser and tighten the screws to secure it.
5. Step 5: Load Paper Towels. Open the dispenser, insert multi-fold paper towels, and close the dispenser.

Image: A visual guide demonstrating the four steps for adhesive installation, including preparing the wall, attaching hooks, and mounting the dispenser.

Method 2: Stable Screw Installation

1. Step 1: Mark Positions. Hold the dispenser against the wall at the desired height and mark three positions for drilling.
2. Step 2: Drill Holes. Using an appropriate drill bit, drill holes at the marked positions.
3. Step 3: Insert Wall Anchors. Gently tap the wall anchors into the drilled holes until flush with the wall surface.
4. Step 4: Fix Backplate. Align the dispenser's backplate with the wall anchors and secure it to the wall using the provided screws.
5. Step 5: Load Paper Towels. Open the dispenser, insert multi-fold paper towels, and close the dispenser.

Operating Instructions

Using your anydry Model 5101 paper towel dispenser is straightforward.

Loading Paper Towels

1. To open the dispenser, press the button located on the top or use the provided key to unlock the front cover.
2. Lift the front cover to reveal the internal compartment.
3. Place a stack of multi-fold or tri-fold paper towels into the compartment. Ensure the towels are within the specified dimensions (up to 10"L x 3.1"W folded) for optimal dispensing.
4. Thread the first towel through the dispensing slot at the bottom.
5. Close the front cover securely until it clicks into place.

Dispensing Paper Towels

Simply pull the exposed paper towel from the bottom slot. The dispenser is designed for smooth, single-sheet dispensing to prevent tearing or jamming.

Maintenance

Regular maintenance ensures the longevity and hygienic operation of your paper towel dispenser.

• Cleaning: Wipe the exterior of the dispenser with a soft, damp cloth and mild soap as needed. Avoid abrasive cleaners or solvents that could damage the finish.
• Refilling: Monitor the paper towel level through the visible check window. Refill promptly to avoid running out.
• Inspection: Periodically check the mounting for security, especially if using adhesive installation. Ensure all components are intact and functioning correctly.

Troubleshooting

If you encounter issues with your dispenser, refer to the following common solutions:

• Paper Towels Not Dispensing:
  • Check if the dispenser is empty and requires refilling.
  • Ensure the paper towels are correctly loaded and not jammed.
  • Verify that the paper towel size is compatible (multi-fold/tri-fold, up to 10"L x 3.1"W folded).
• Dispenser Not Secure on Wall:
  • For adhesive installation, ensure the wall surface was clean and dry during installation. Reapply new adhesive hooks if necessary.
  • For screw installation, check if screws are tightened properly.
• Difficulty Opening/Closing:
  • Ensure no foreign objects are obstructing the locking mechanism.
  • If using the key, ensure it is fully inserted and turned correctly.

Specifications

Warranty and Support

The anydry Model 5101 Paper Towel Dispenser comes with a 1-Year Manufacturer Warranty. For warranty claims, technical support, or any product-related inquiries, please contact anydry customer service through the retailer where the product was purchased or visit the official anydry brand store online.

Please retain your proof of purchase for warranty validation.
