Divolight 3-in-1 Soil Tester Instruction Manual

1. Introduction

The Divolight 3-in-1 Soil Tester is a versatile tool designed to help you monitor the health of your plants by measuring three crucial soil parameters: moisture, pH level, and sunlight intensity. This device requires no batteries, offering a convenient and eco-friendly solution for both indoor and outdoor gardening.

Understanding these factors is essential for optimal plant growth, preventing issues such as over or under-watering, nutrient deficiencies due to incorrect pH, and insufficient light exposure.

2. Product Overview

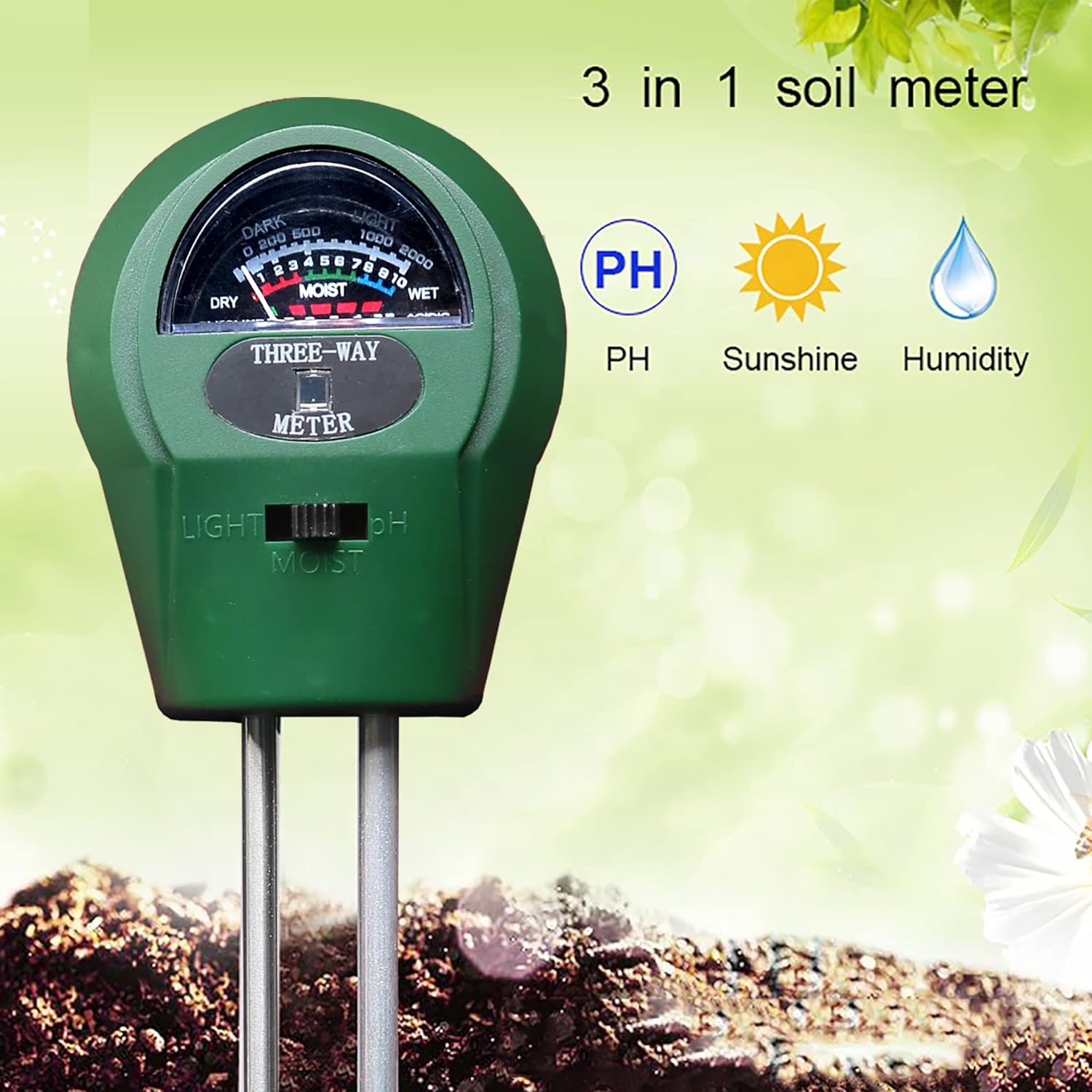

Image: The Divolight 3-in-1 Soil Tester, highlighting its capabilities to measure pH, sunlight, and humidity (moisture).

Key Features:

• 3-in-1 Functionality: Measures soil moisture, pH value, and sunlight intensity.
• Battery-Free Operation: No batteries are required, making it ready to use at any time.
• Easy to Use: Simple operation with a single switch to select the desired measurement.
• Quick Results: Provides soil profile readings within 5-10 minutes.
• Versatile Application: Suitable for indoor and outdoor plants, gardens, farms, and lawns.

3. Setup

The Divolight 3-in-1 Soil Tester is designed for immediate use without any complex setup. Simply remove it from its packaging.

Components:

• Main Meter Unit with Analog Display
• Two Metal Probes (for moisture and pH)
• Light Sensor (located on the top of the meter)
• Function Switch (to select Moisture, Light, or pH)

Image: Detailed diagram illustrating the components of the soil tester, including the meter dial, light sensor, moisture sensor, pH sensor, and the function switch.

4. Operating Instructions

Follow these steps to accurately measure your soil's conditions:

4.1. Preparing for Measurement

1. Select a Spot: Choose a suitable area in the soil for testing.
2. Moisten Soil (if dry): If the soil is very dry, lightly water the area and wait for 20-30 minutes before testing to ensure accurate moisture readings.
3. Clean Probes: Gently clean the metal probes with a soft cloth before each use to remove any residue.

Image: A hand wiping the metal probes of the soil tester clean with a cloth, emphasizing proper maintenance.

4.2. Measuring Soil Moisture

1. Set the function switch to the MOIST position.
2. Insert the probes into the soil, ensuring they are buried 2-4 inches deep. Avoid forcing the probes into hard soil to prevent damage.
3. Wait for 5-10 minutes for the needle to stabilize.
4. Read the moisture level on the dial: 1-3 (Dry), 4-7 (Moderate), 8-10 (Wet).

Image: The 3-in-1 Soil Tester inserted into garden soil, with the dial indicating moisture levels.

4.3. Measuring Soil pH

1. Set the function switch to the pH position.
2. Insert the probes into the soil 2-4 inches deep.
3. Wait for 5-10 minutes for the needle to stabilize.
4. Read the pH level on the dial: 3.5-6.5 (Acidic), 6.6-7.3 (Neutral), 7.4-8 (Alkaline).

Image: The 3-in-1 Soil Tester in garden soil, displaying pH readings on its dial.

4.4. Measuring Sunlight Intensity

1. Set the function switch to the LIGHT position.
2. Point the light sensor (located on the top of the meter) towards the light source.
3. The needle will immediately indicate the light intensity: 0-200 (Dark), 200-500 (Low), 500-1000 (Normal), 1000-2000 (High).

Image: The 3-in-1 Soil Tester positioned to measure light, with the light sensor visible on top.

5. Important Notes and Warnings

• Soil Use Only: This soil tester is designed exclusively for use in soil. DO NOT use it to test any liquids (e.g., water, vinegar) as this may damage the device.
• Avoid Dry Soil: Do not insert the probes into very dry or hard soil. This can bend or break the probes. If the soil is too dry, moisten it first.
• Do Not Leave in Soil: Remove the tester from the soil after each use. Leaving it in the soil for extended periods can affect its accuracy and lifespan.
• Clean After Use: Always wipe the probes clean with a soft cloth after each measurement to prevent corrosion and ensure accurate future readings.
• Light Sensor: The light sensor is designed for natural sunlight. It may not provide accurate readings under artificial light sources.

Image: A visual warning indicating that the soil tester is for soil use only, should not be immersed in liquids, and should not be forced into hard objects.

6. Maintenance

• Cleaning: After each use, gently wipe the probes with a clean, dry cloth to remove any soil particles or moisture. Do not use abrasive materials or harsh chemicals.
• Storage: Store the soil tester in a cool, dry place, away from direct sunlight and extreme temperatures. Keep the protective cap on the probes if provided.
• Avoid Impact: Handle the device with care to prevent physical damage to the probes or the meter display.

7. Troubleshooting

8. Specifications

• Product Name: 3-in-1 Soil Tester
• Brand: Divolight
• Model: 3-in-1 Soil Tester
• Functions: Moisture, pH, Light
• Measurement Range:
  • Moisture: 1-10 (Dry to Wet)
  • pH: 3.5-8 (Acidic to Alkaline)
  • Light: 0-2000 Lux (Dark to High)
• Probe Length: Approximately 7.09 inches
• Total Product Size: Approximately 10.04 inches
• Item Weight: 3.2 ounces
• Battery: Not Required

Image: A diagram illustrating the physical dimensions of the Divolight 3-in-1 Soil Tester, including probe length and overall size.

9. Official Product Videos

10. Warranty and Support

For any issues or questions regarding your Divolight 3-in-1 Soil Tester, please contact our customer support team. While specific warranty details are not provided in this manual, we are committed to ensuring your satisfaction.

Please refer to the product packaging or the retailer's website for the most up-to-date warranty information and contact details.

Manufacturer: Divolight

Seller: Divolight
