Washer Lid Lock Replacement Instruction Manual

1. Introduction

This manual provides detailed instructions for the installation, maintenance, and troubleshooting of the Kscjdg W11457841 Washer Lid Lock Replacement. This part is designed to replace faulty lid strikes in various washing machine models, ensuring proper operation and safety by securely locking the washer lid during cycles.

Figure 1: Kscjdg W11457841 Washer Lid Lock Replacement (2 Pack)

The image displays two units of the Kscjdg W11457841 washer lid lock replacement. These are essential components for ensuring the safe and proper functioning of your washing machine's lid locking mechanism.

2. Safety Information

• Always disconnect power to the washing machine before attempting any repair or maintenance. Failure to do so can result in electric shock or injury.
• Wear appropriate personal protective equipment, such as gloves, to prevent injury during installation.
• Handle the replacement part carefully to avoid damage.
• Ensure all connections are secure and the part is correctly seated before restoring power to the appliance.
• Keep small parts away from children.

3. Product Overview & Compatibility

The W11457841 washer lid strike is a crucial component that attaches to the washer lid. Its primary function is to activate the lid switch when the lid is closed, allowing the washing machine to begin or continue its cycle. A properly functioning lid strike ensures the washer operates safely and efficiently.

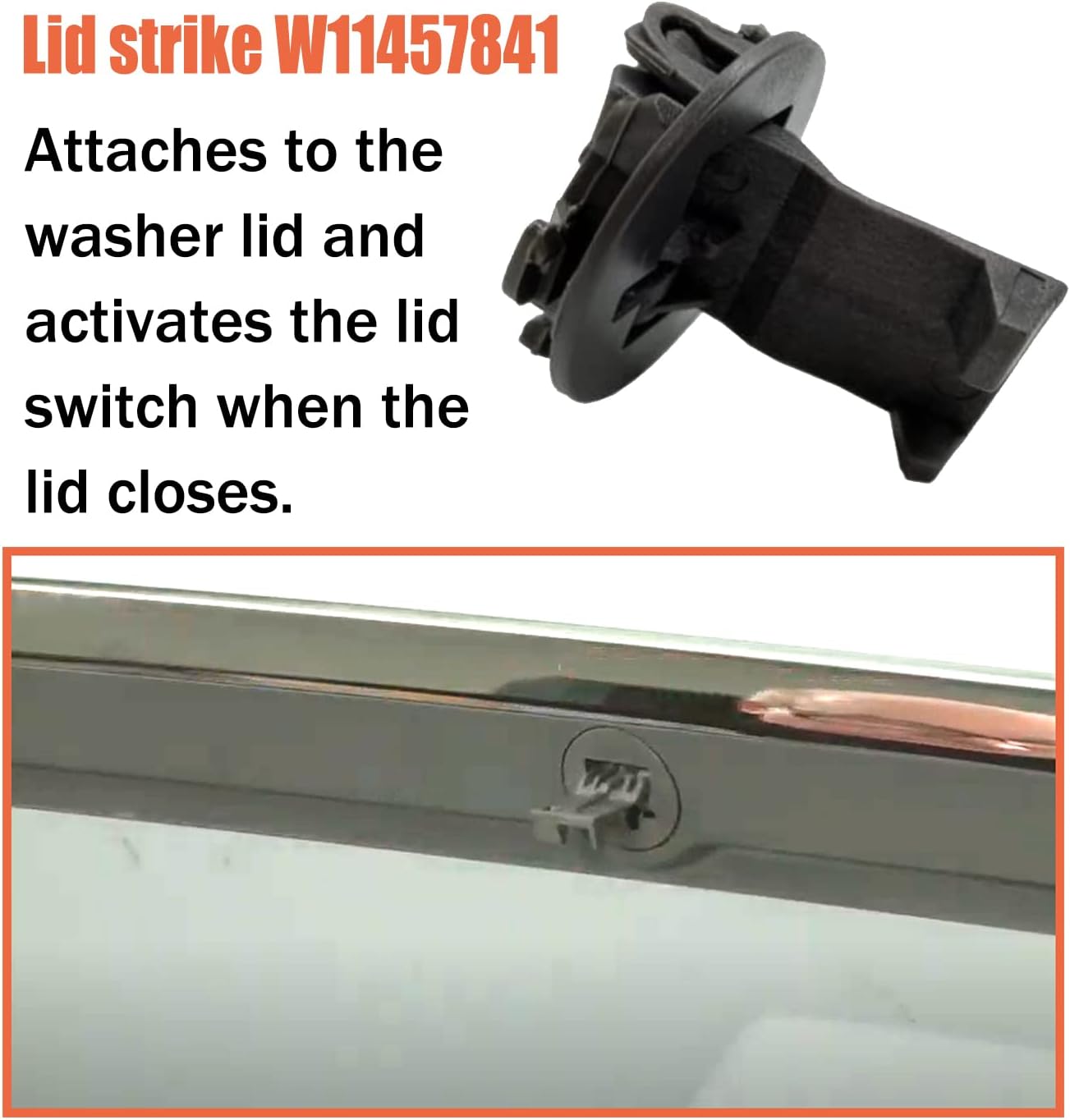

Figure 2: Lid Strike Function

This image illustrates how the W11457841 lid strike attaches to the washer lid and its role in activating the lid switch when the lid is closed, which is essential for the washer's operation.

3.1. Wide Compatibility

The W11457841 washer lid strike is designed for wide compatibility with various washing machine brands and models. It is suitable for use with:

• Whirlpool
• Kenmore
• Maytag
• KitchenAid
• Magic Chef
• Jenn-Air
• Amana
• Roper
• Admiral
• Norge

This part replaces several other part numbers, including: W11091027, 4959179, AP6987306, PS16218028, EAP16218028, PD00061788.

Figure 3: Compatibility with Various Washer Brands

The image demonstrates the compatibility of the W11457841 washer lid strike with common washing machine brands like Whirlpool, Kenmore, Maytag, and KitchenAid.

Figure 4: Extensive Model Compatibility List

This image provides an extensive list of specific washing machine models that are compatible with the W11457841 and W11091027 washer door lid strikes, ensuring a precise fit for many appliances.

4. Specifications

Figure 5: Durable Plastic Construction

This image highlights the durable plastic construction of the washer door strike, emphasizing its robust design for reliable and long-lasting use.

5. Installation Instructions

Replacing the washer lid strike is a straightforward process. Follow these steps carefully to ensure proper installation:

1. Disconnect Power: Before beginning, always unplug the washing machine from the power outlet to prevent electrical hazards.
2. Locate the Old Lid Strike: The lid strike is typically located on the underside of the washer lid, near the front edge, where it aligns with the lid switch on the washer's main body.
3. Remove the Old Lid Strike:
   • Using pliers or a similar tool, grasp the old lid strike.
   • Rotate the old lid strike counter-clockwise. This action will break the retaining tab that holds it in place.
   • Once the tab is broken, pull the old lid strike straight out from its housing.
4. Install the New Lid Strike:
   • Align the new W11457841 lid strike with the opening on the washer lid. Ensure the grooves on the new part match the housing.
   • Gently push the new lid strike into the opening.
   • Rotate the new lid strike clockwise until you hear a distinct click. This click indicates that the retaining tab has engaged and the part is securely in place.
5. Restore Power: Once the new lid strike is securely installed, plug the washing machine back into the power outlet.
6. Test Operation: Close the washer lid and attempt to start a cycle to ensure the new lid lock is functioning correctly.

For a visual guide on the removal and installation process, please refer to the video demonstration if available from the manufacturer.

6. Maintenance

The W11457841 washer lid strike is designed for durability and requires minimal maintenance. However, regular inspection can help prolong its lifespan and ensure continued safe operation:

• Regular Cleaning: Periodically wipe down the lid strike and its housing with a damp cloth to remove any detergent residue, lint, or debris that might accumulate and hinder its movement.
• Inspect for Wear: Visually inspect the lid strike for any signs of cracks, chips, or excessive wear, especially on the retaining tabs or the part that engages with the switch.
• Check for Obstructions: Ensure no foreign objects (e.g., small clothing items, toys) are lodged in the lid strike's path or within the lid switch mechanism, as this can prevent proper engagement.
• Avoid Forceful Closing: Always close the washer lid gently. Slamming the lid can put undue stress on the lid strike and switch, potentially leading to premature failure.

7. Troubleshooting

If your washing machine is experiencing issues related to the lid lock, the W11457841 lid strike might be the cause. Here are common symptoms and potential solutions:

Figure 6: Identifying a Faulty Lid Strike

This image visually represents a common issue where a washer lid or door will not close or start due to a faulty lid strike, highlighting the need for replacement.

7.1. Common Issues and Solutions

• Washer Lid/Door Won't Close:

  If the lid does not latch properly, inspect the lid strike for any visible damage, such as a broken or bent tab. Also, check the lid switch mechanism on the washer body for obstructions or damage. If the lid strike is damaged, replacement is necessary.
• Washer Won't Start:

  Many washing machines require the lid to be securely locked before a cycle can begin. If the washer won't start and displays an error code related to the lid lock, it's often due to a faulty lid strike not properly engaging the lid switch. Ensure the lid strike is correctly installed and undamaged. If the issue persists, consider replacing the lid strike.

• Lid Lock Error Code:

  Refer to your washing machine's specific user manual for error codes related to the lid lock. A common cause for these errors is a malfunctioning lid strike. Replacing the lid strike often resolves these issues.

If troubleshooting steps do not resolve the issue, it is recommended to consult a qualified appliance technician.

8. Warranty and Support

For information regarding product warranty, returns, or technical support, please contact Kscjdg customer service directly. Keep your purchase receipt and product model number (W11457841) readily available when contacting support.

Contact details can typically be found on the manufacturer's official website or through the retailer where the product was purchased.
