Introduction
This manual provides essential information for the safe and efficient use of your Gabba Goods 18W Dual Port USB C Wall Charger. This charger features Power Delivery (PD) technology and Quick Charge 3.0, offering both USB-A and USB-C ports for versatile and rapid charging of compatible devices. Please read these instructions thoroughly before use and retain them for future reference.

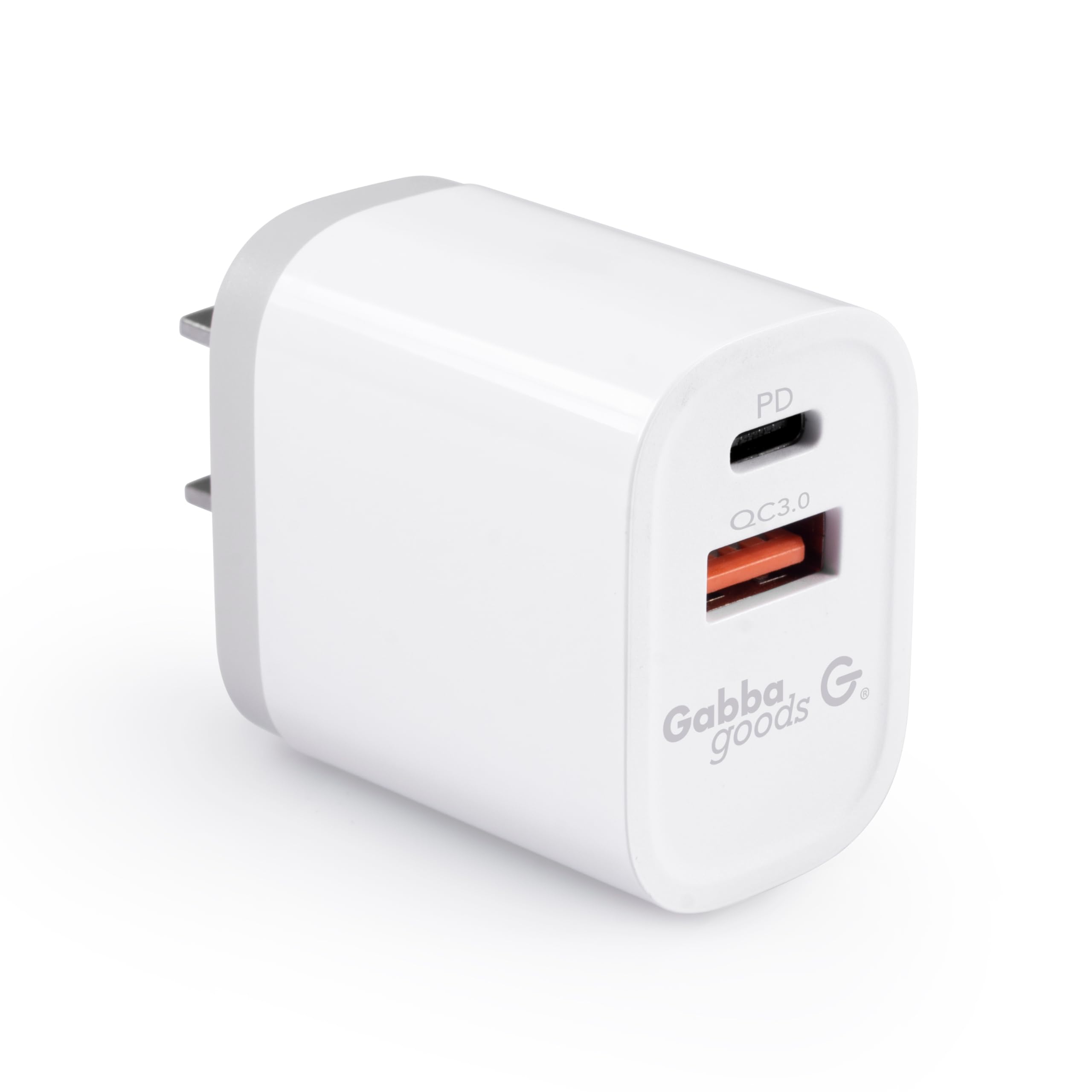

Image: Gabba Goods 18W Dual Port USB C Wall Charger, front view.
Product Features
- Power Delivery (PD) Technology: Delivers up to 18 watts for fast and efficient charging of smartphones, tablets, and other compatible devices.
- Dual Ports: Includes one USB-A port and one USB-C port, allowing simultaneous charging of two devices.
- Universal Compatibility: Compatible with a wide range of devices including iPhone, iPad, Samsung Galaxy, Google Pixel, and other smartphones and tablets.
- Compact Design: Travel-friendly and easy to carry.
- Safety Features: Equipped with multiple protection mechanisms including over-voltage, over-current, and short-circuit protection.
Image: Close-up of the charger highlighting the USB-A and USB-C ports.
Setup and Installation
- Unpack the Charger: Carefully remove the Gabba Goods 18W Dual Port USB C Wall Charger from its packaging.
- Inspect for Damage: Before use, visually inspect the charger for any signs of physical damage. Do not use if damaged.
- Select a Power Outlet: Choose a standard wall outlet (Type A - 2 pin, North American) that is easily accessible.
- Plug in the Charger: Insert the charger securely into the wall outlet.
- Connect Your Device: Use a compatible USB charging cable (not included) to connect your device to either the USB-A or USB-C port on the charger.
Image: Diagram showing the dimensions of the charger (40.1mm x 26mm x 60.2mm).
Operating Instructions
The Gabba Goods 18W Dual Port USB C Wall Charger is designed for simple plug-and-play operation. Once connected to a power outlet and your device, it will automatically begin charging.
- USB-C Port (Power Delivery): For devices that support USB Power Delivery, use a USB-C to USB-C cable or a USB-C to Lightning cable to achieve optimal fast charging speeds up to 18W.
- USB-A Port (Quick Charge 3.0): For devices compatible with Quick Charge 3.0, use a standard USB-A to USB-C/Micro USB/Lightning cable. This port also provides standard charging for other USB-A devices.
- Simultaneous Charging: You can charge two devices concurrently using both the USB-A and USB-C ports. The charger will intelligently distribute power.
Image: Illustrates the faster charging capability of the Rapid PD 18W Wall Charger compared to a standard USB charger.
Maintenance
- Cleaning: Disconnect the charger from the power outlet before cleaning. Use a soft, dry cloth to wipe the surface. Do not use liquid cleaners or aerosols.
- Storage: Store the charger in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
- Handling: Avoid dropping or subjecting the charger to strong impacts. Do not attempt to disassemble or modify the charger.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Device not charging. | Loose connection; faulty cable; incompatible device; power outlet issue. | Ensure cables are securely connected. Try a different cable. Verify device compatibility. Test the charger in a different power outlet. |
| Slow charging. | Cable not supporting fast charging; device not supporting fast charging; multiple devices connected. | Use a high-quality cable designed for fast charging. Ensure your device supports PD or QC 3.0. If charging two devices, speeds may be reduced. |
| Charger making a high-pitched noise. | Electrical interference or component issue. | Unplug the charger immediately. If the noise persists or is accompanied by heat/smell, discontinue use and contact customer support. |
Specifications
| Feature | Detail |
|---|---|
| Brand | Gabba Goods |
| Model Number | GG-PD18-WHT |
| Wattage | 18 watts |
| Total USB Ports | 2 (1x USB-A, 1x USB-C) |
| Connector Type | USB |
| Compatible Devices | Cellular Phones, Tablets (iPhone, iPad, Samsung Galaxy, Google Pixel, etc.) |
| Output Voltage | 5 Volts (DC) |
| Power Source | Corded Electric |
| Main Power Connector Type | 2 Pin (Type A - North American) |
| Mounting Type | Wall Mount |
| Color | White |
| Item Weight | 0.07 Kilograms |
Warranty Information
Gabba Goods products are designed for reliability and performance. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official Gabba Goods website. Please retain your proof of purchase for any warranty claims.
Customer Support
If you encounter any issues or have questions regarding your Gabba Goods 18W Dual Port USB C Wall Charger, please contact our customer support team. You can find contact information on the product packaging or on the official Gabba Goods website: Gabba Goods Store.
